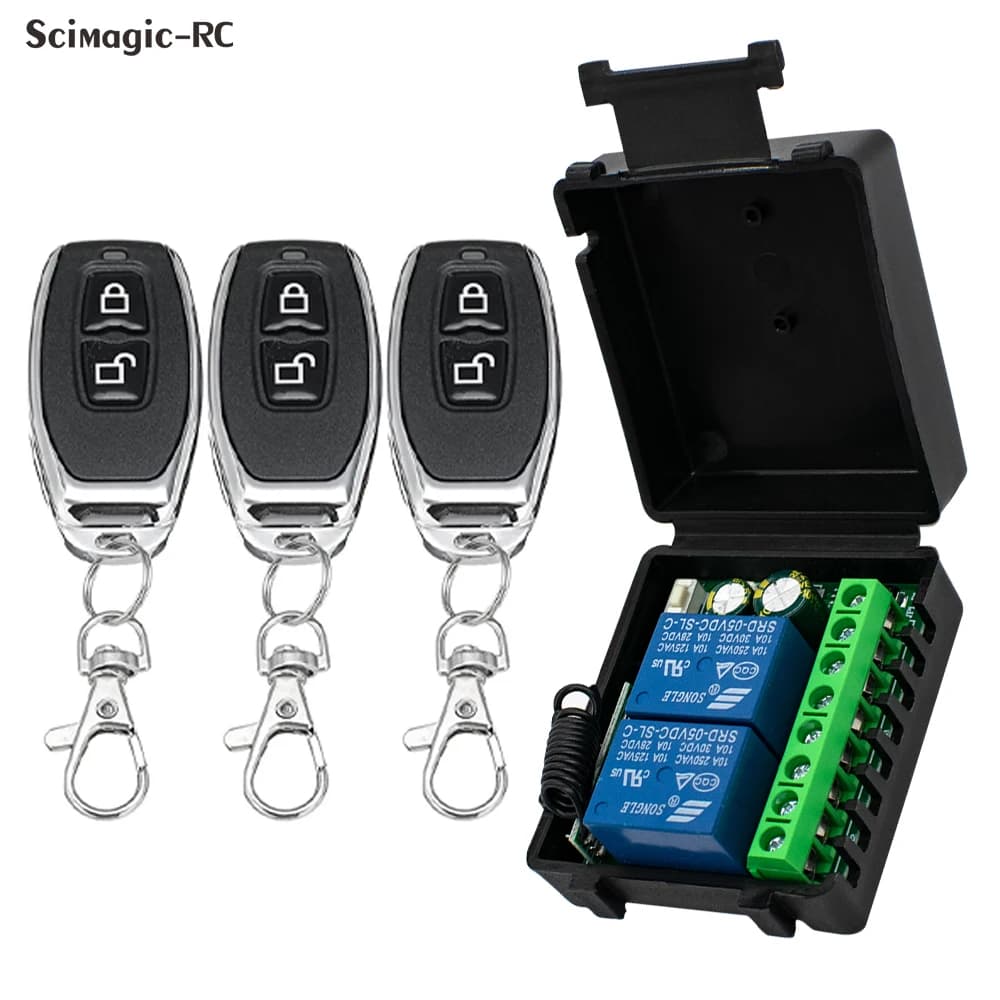

RF 433Mhz Remote Control Wireless Switch DC 12V 24V 10A 2CH Relay Receiver Mini Transmitter For Door Electromagnetic Lock DIY

433Mhz 2 Channel Remote Control Wireless Switch DC 12V/24V RF 10A Relay Receiver and 2CH Transmitter For Door Electromagnetic Lock Lighting Curtains

Description

Technical parameters:
1.0perating voltage: 6-30VAC
2. Static working current: s10mA
3.0perating temperature: -40'c-+80°c
4.Receive sensitivity: 2-100dB
5.0perating frequency: ,433.92MHZ
6.0utput current: s10A
7. Working mode: point movement, interlock,
self-locking, and delay 、 Move and lock along the way
8.0utput mode:/85V~265VAC

1.Clear code

Press the control board code matching button 8 times in a row, and wait
for the LED indicator light to automatically flash continuously for 4 times
to return to normal, This will complete the code clearing and clear all
previously learned remote control key codes.

2.Pattem pairing method

Jog mode

Press the code matching button on the control board once, wait for the LED indicator light to
turn off, and then press the remote contolA button that needs to be matched. The LED indicator
light on the control board will flash continuously for 3 times. The A button successfully matches
the code, and the indicator light will tum off to enter the second button learning state. At this
time, press the remote control B button,and the LED indicator light on the control board will flash
corlinuously for 3 times. The B button successfully matches the code, and the indicator light
will remain on continuously, completing the code matching.

Self locking mode

Press the control board code matching button twice in a row, wait for the LED indicator light to
turn oit, and then press the remote controlA button that requires code matching. The control
board LED indicator light will flash continuously for three times. The A button successfully
matches the code, and the indicator light will go out to enter the second button learing state.
At this time, press the remote control B button, and the control board LED indicator light will
flash continuously for three times. The B button successfully matches the code, and the indicator
light will stay on for a long time. The code matching is completed.

interlocked mode

Press the control board code matching button three times in a row, wait for the LED indicatar
light to turn off, and then press the remdte control A button that needs to be matched. The
contrdl board LED indicator light will flash three times in a row. The A button successfully
matches the code, and the indicator light will turn off to enter the second buttan learning state.
At this time, press the remote control B button, and the control board LED indicator light will
flash three times in a row. The B button successfully matches the code, and the indicator light
will remain on for a long time. The code matching is completed.

Move and lock along the way

Press the control board code matching button 4 times in a row, wait for the LED indicator light
to turn off, and then press the remote control A button that needs to match the code. The
contrdl board LED indicator light will ilash coninuously for 3 times. The A button successfully
matches the code, and the indicator light will turn off to enter the second button learning state.
At this time, press the remote control B button, and the control board LED indicator light will
flash continuously for 3 times. The B button successfully matches the code. The indicator light
remains on and the code is completed.
