PROTECO ANGIE Garage Remote Control 433.92MHz Fixed Code Transmitter Gate Key Fob

Note

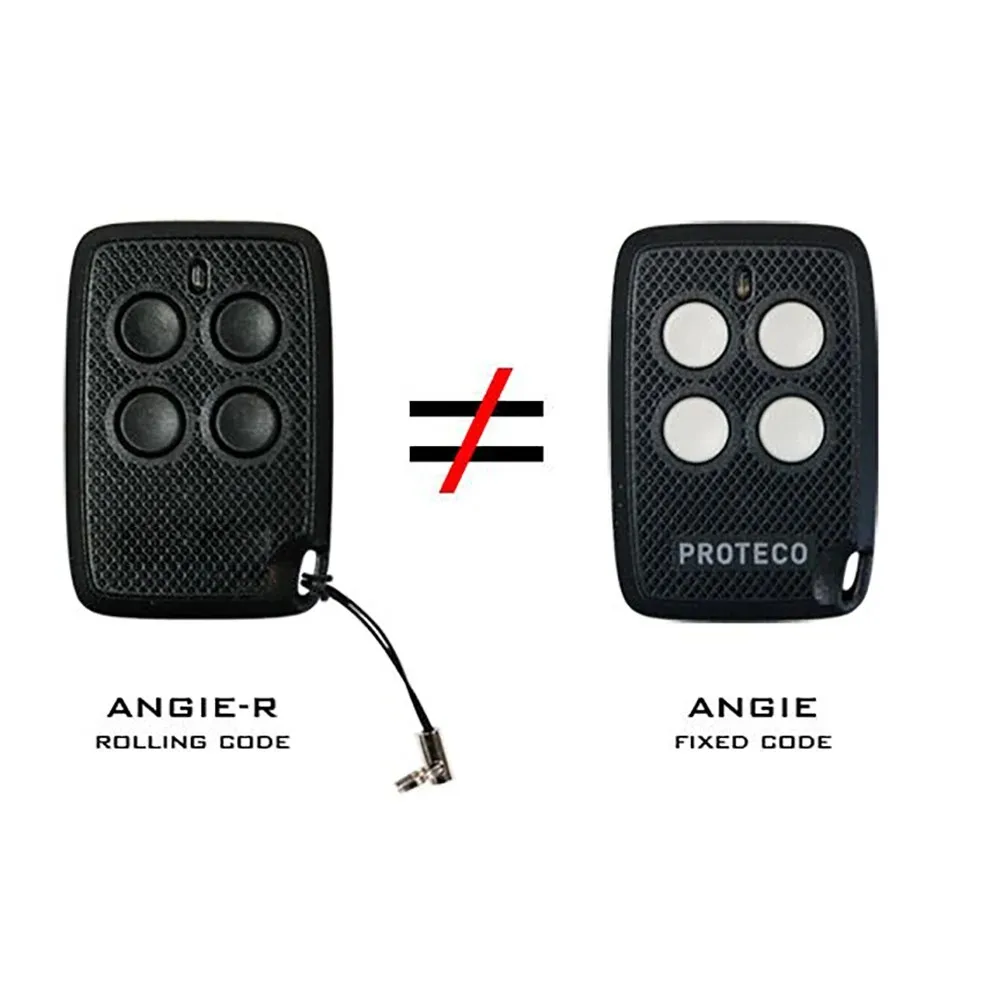

* It is compatible with ANGIE fixed code remotes with white buttons.

*It not compatible with any remotes not in the picture, please note our advertising.

Specifications:

1. Type of programming: Sely copy
2. Material : ABS & Metal
3. Frequency : 433.92MHz. 433MHz
4. Code:Fixed code
5. Buttons : 4
6. Battery: 12V 27A With battery

Uses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products

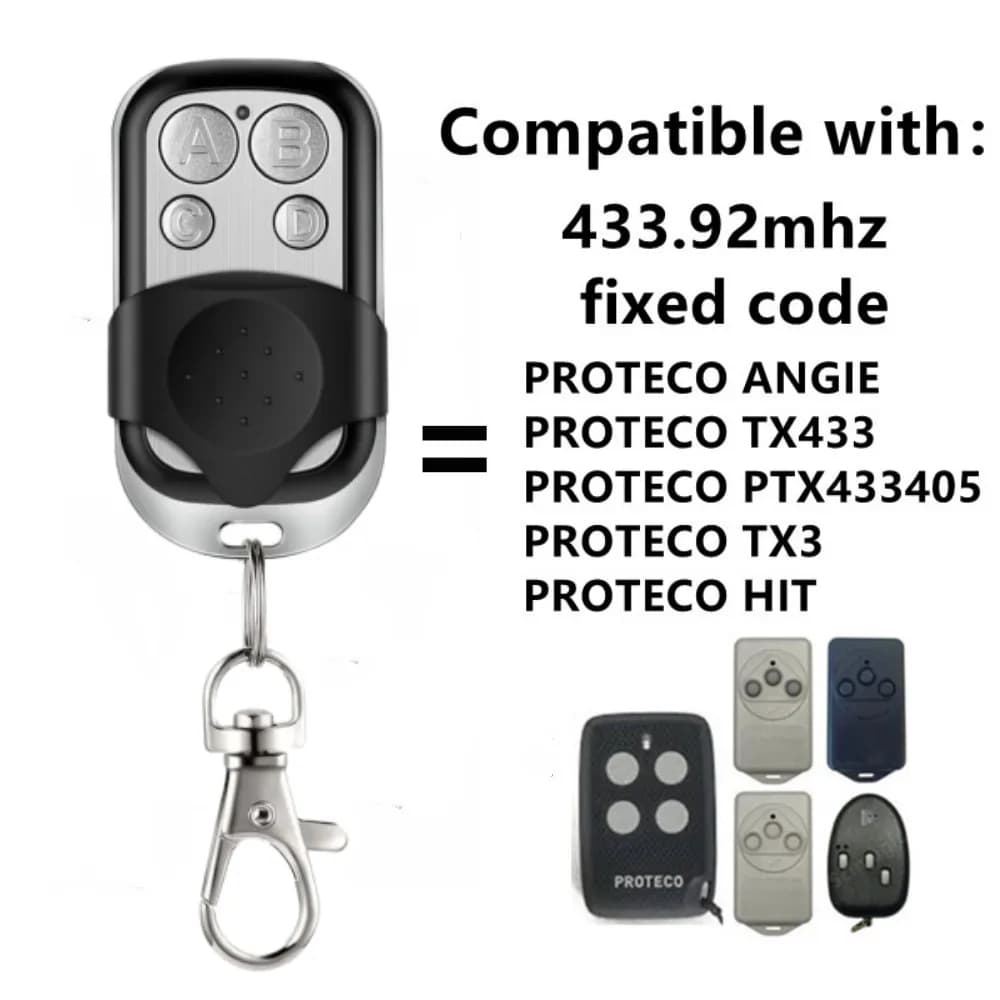

Compatible Model

PROTECO 433.92mhz fixed code
PROTECO ANGIE
PROTECO TX433
PROTECO PTX433405
PROTECO TX3
PROTECO HIT

How to program the remote

Please note, this remote should copy from your original remote, you should have have workable remote control on hand, then you can make the copy, if your original remote is lost, then please don't buy it.

The programming procedure is as below:

Step:1:Clear the history code from duplicator

1:Press button A and B continuously until LED flash 3 times

2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash

3.Release button “A”,finish code clearance.

Step 2,Copy code from original remote control

1.Put duplicator aside of original transmitter,as close as possible.

2.Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash

3.Release both buttons,finish code copy,copy other button in same way.

Button A= lock button Button B=unlock button

If you can not copy it well, please be patient and repeat the above steps and try it again.

Include

1 x Remote Control
1 x Battery
1 x Keychain
1 x English Manual
