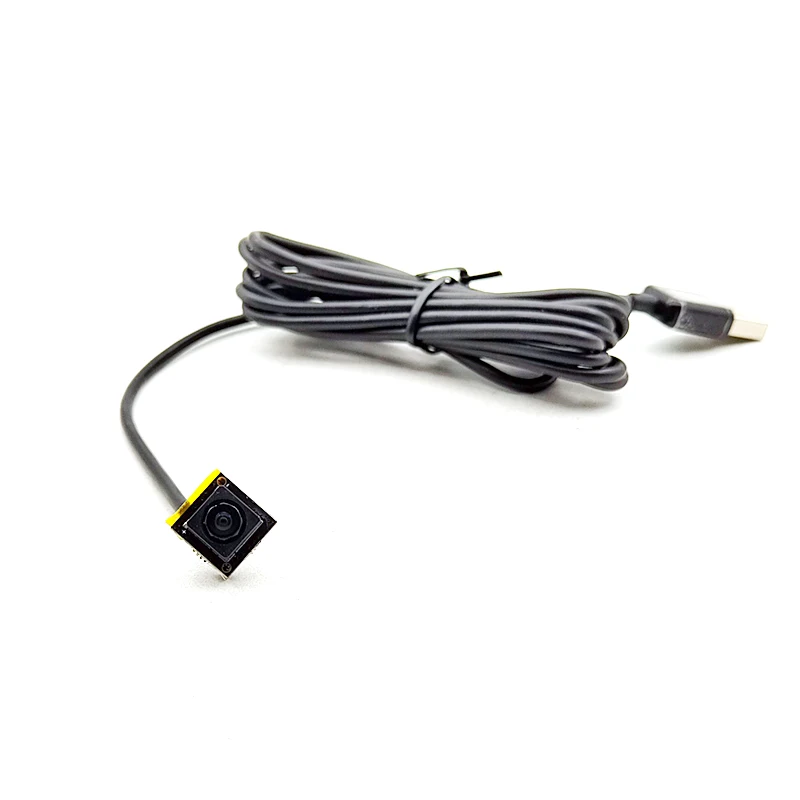

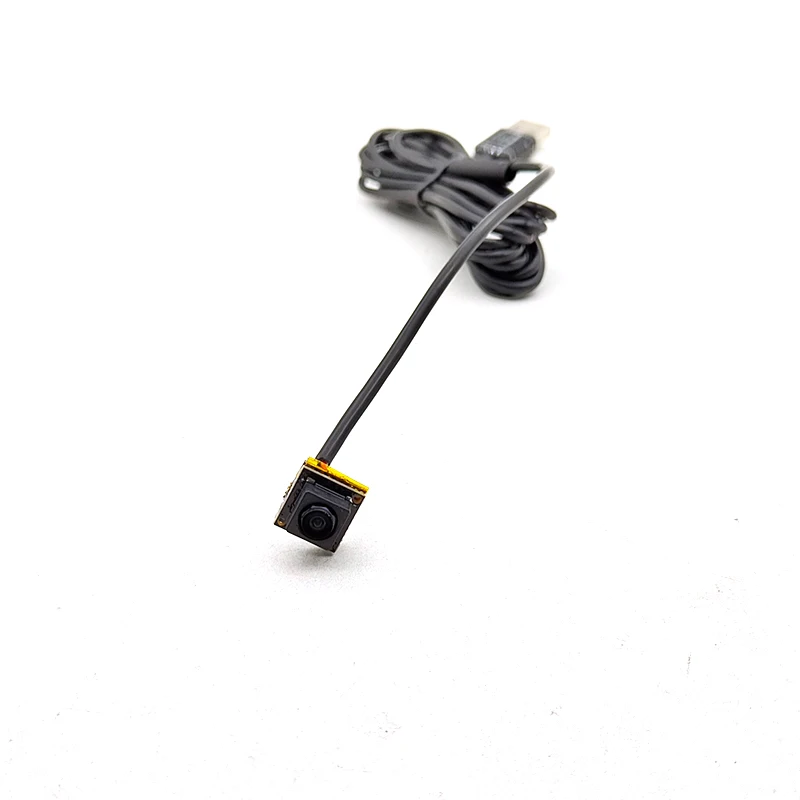

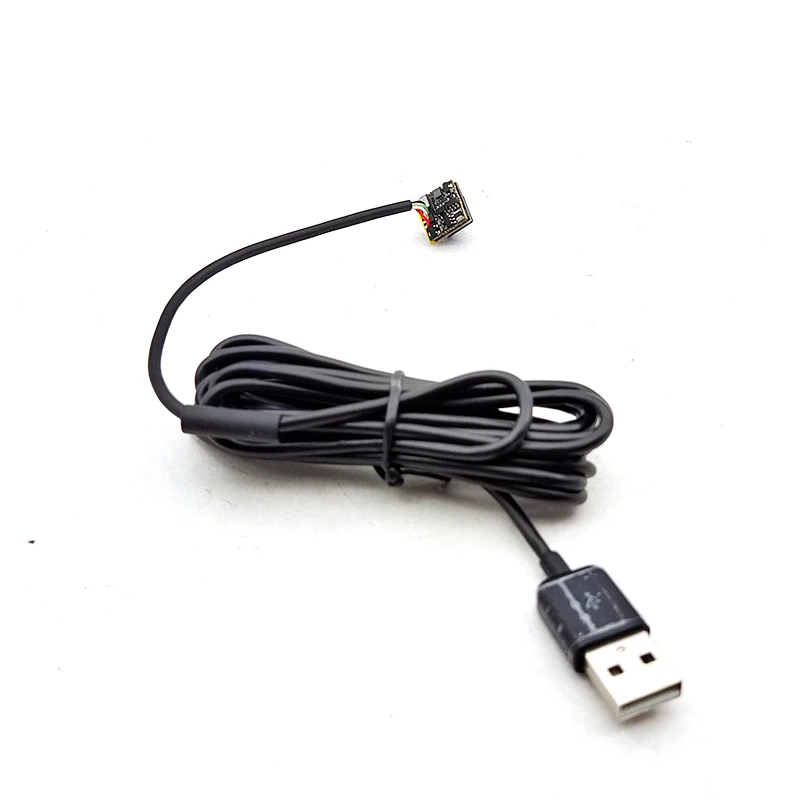

12*12mm Smallest Size Industry 30Fps 2MP 5MP UVC Usb Camera Module Audio 2592x1944P 1080P FOV 120° Fixed Lens For Machine use

12*12mm Smallest Size Industry 30Fps 2MP 5MP UVC Usb Camera Module Audio 2592x1944P 1080P FOV 120° Fixed Lens For Machine use

(Notice: Module-Without Housing ),pls check

5MP 2MP  is 30fps audio .  Camera come with 120degree fov  fixed lens ,wide angle view !

NOTE: Before purchasing this camera, please confirm whether your phone supports OTG function to avoid unnecessary losses

(For those who require OTG Micro USB interface, please contact customer service or note in your order,Thank you !)

for more products infomation ,pls go to our store page !

if you have other requirement ,welcome contact with us free !

Camera Module:

These interfaces are optional, please place orders which one you need:

5MP Video output

Surveillance Camera Full HD 1080P UVC OTG AF AutoFocus 500W USB Camera Module 2592*1944 30FPS High Speed 2MP CCTV Webcam

Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts!

We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!

Factory direct sales of goods are definitely value for money!

Feature:

HD   5MP USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

Typical application

1: ATM,Kiosk,POS,TV box2: advertising cameras3: one camera4: Smart TV built-in camera

5: Construction Equipment6: Banking equipment7: body switch8: Scanner

9: a mobile terminal device10: Medical diagnostic image acquisition11: fingerprints, palm prints image acquisition

12:video door phone13:HD surveillance

Remarks:

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Typical application

1: ATM,Kiosk,POS,TV box          2: advertising cameras        3: one camera         4: Smart TV built-in camera

5: Construction Equipment         6: Banking equipment          7: body switch          8: Scanner

9: a mobile terminal device        10: Medical diagnostic image acquisition            11: fingerprints, palm prints image acquisition

12:video door phone                  13:HD surveillance

This camera is a 5.0 megapixel size 2592*1944 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 15/30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!

HD 5MP 1080P USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

1: ATM,Kiosk,POS,TV box         2: advertising cameras       3: one camera        4: Smart TV built-in camera

5: Construction Equipment        6: Banking equipment         7: body switch         8: Scanner

9: a mobile terminal device       10: Medical diagnostic image acquisition           11: fingerprints, palm prints image acquisition

12:video door phone                 13:HD surveillance

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Size:1/4 inch

pixel size:1.4 µm x 1.4 µm

Maximum effective pixels: 2592(H)*1944(V)/1920 (H) *1080 (V)

Output image format: YUV2 (YUYV) / MJPEG

Frame rate:

2592*1944-MJPEG-30FPS YUY2-2FPS

2048*1536-MJPEG-30FPS YUY2-3FPS

1920*1080-MJPEG-30FPS YUY2-5FPS

1280*720-  MJPEG-30FPS           YUY2-10FPS

950*540-    MJPEG-30FPS            YUY2-

640*480-    MJPEG-30FPS            YUY2-30FPS

320*240-    MJPEG-30FPS            YUY2-

320*180-    MJPEG-30FPS            YUY2-30FPS

Signal to noise ratio: 36dB

Dynamic range: 72dB

image area:3673.6 µm x 2738.4 µm

Sensitivity: 690 mV/lux-sec

Minimum illumination: 0.01LUX

Shutter type: Electronic rolling Frame shutter/ exposure

Interface type: USB2.0 High Speed

Support free flooding protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: support

Automatic white balance AEB: support

Automatic gain control AGC: support

Adjustable parameters: brightness contrast color saturation hue resolution

The gamma exposure contrast gain white balance backlighting

Power supply: USB BUS 4P-2.0mm POWER socket

Working voltage: DC5V

Working current: 140mA~220mA

Working temperature: 0 ~ 60

Storage temperature: -20 ~ 70 C

Board size: 12*12mm

Machine weight: 50g

Supported system: WinXP/Vista/Win7/Win8/ Linux with UVC (above linux-2.6.26)/ MAC-OS X 10.4.8 or later

/Wince with UVC/Android 4 or with above UVC

Interface:USB Interface

Lens: 2mm

Angle（FOV): 120°

Line length:1M

Real case:

Package contents:

1 x Camera

Notice ：Dear,all customer ,because cd disk is easy damaged by rude transport and Most

of the Customer ‘s Computer Without CD CD-ROM disk drive,it is hard to copy the files

from the CD Disk! In addation ,the CD Disk Polluting the environment after used !

Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !

To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!
