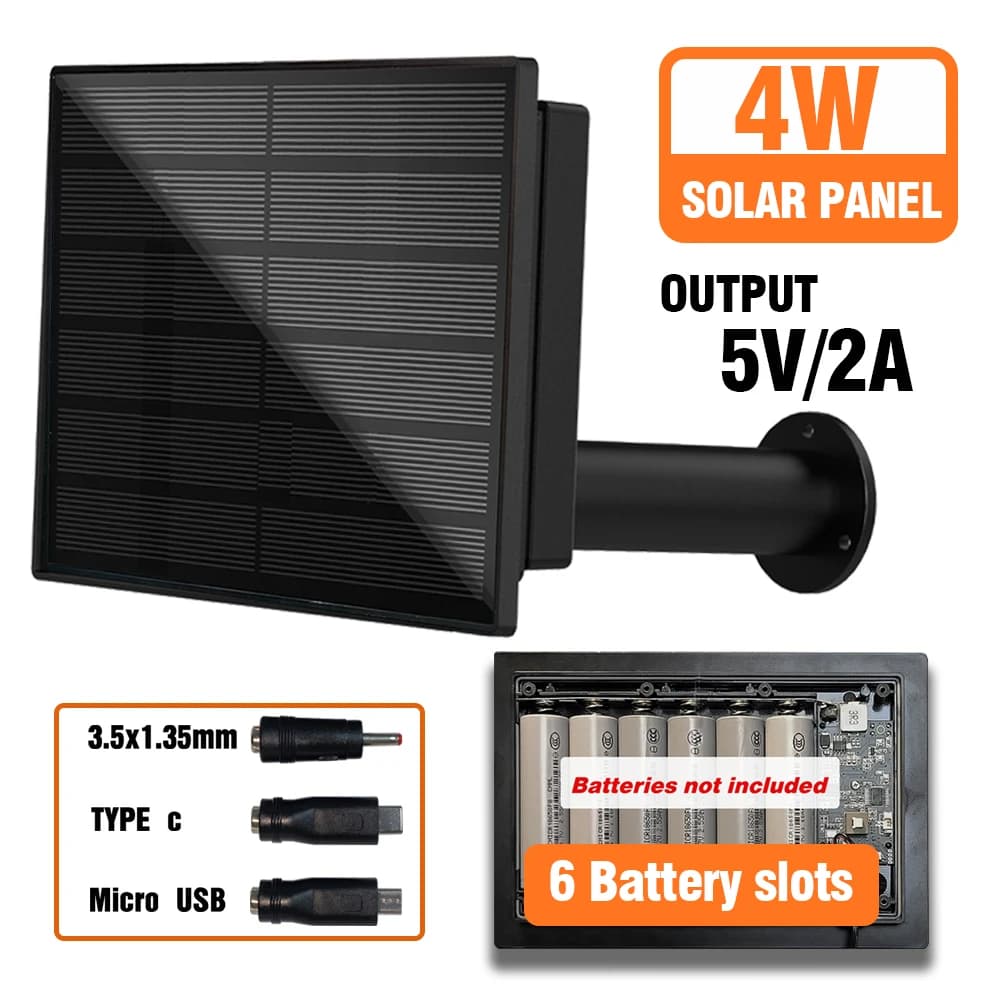

4W Solar Panel Waterproof Micro USB/TypeC Output 5V Solar Cells Charge Install 18650 Battery Outdoor For Leds or Remote Sensors

Selecting the Right Solar Panels

You can select the solar panels you need based on our solar parameters.

4W Solar Panel 3 In1 DC/Mirco USB/TypeC Output 5V Solar Cells Charger Built-in 18650 Battery For Outdoor security Camera IP66 Waterproof

This link does not include batteries

NOTE

We have adjusted the position of the charging port, with its functionality remaining unchanged.You may receive different versions.

Main Features:

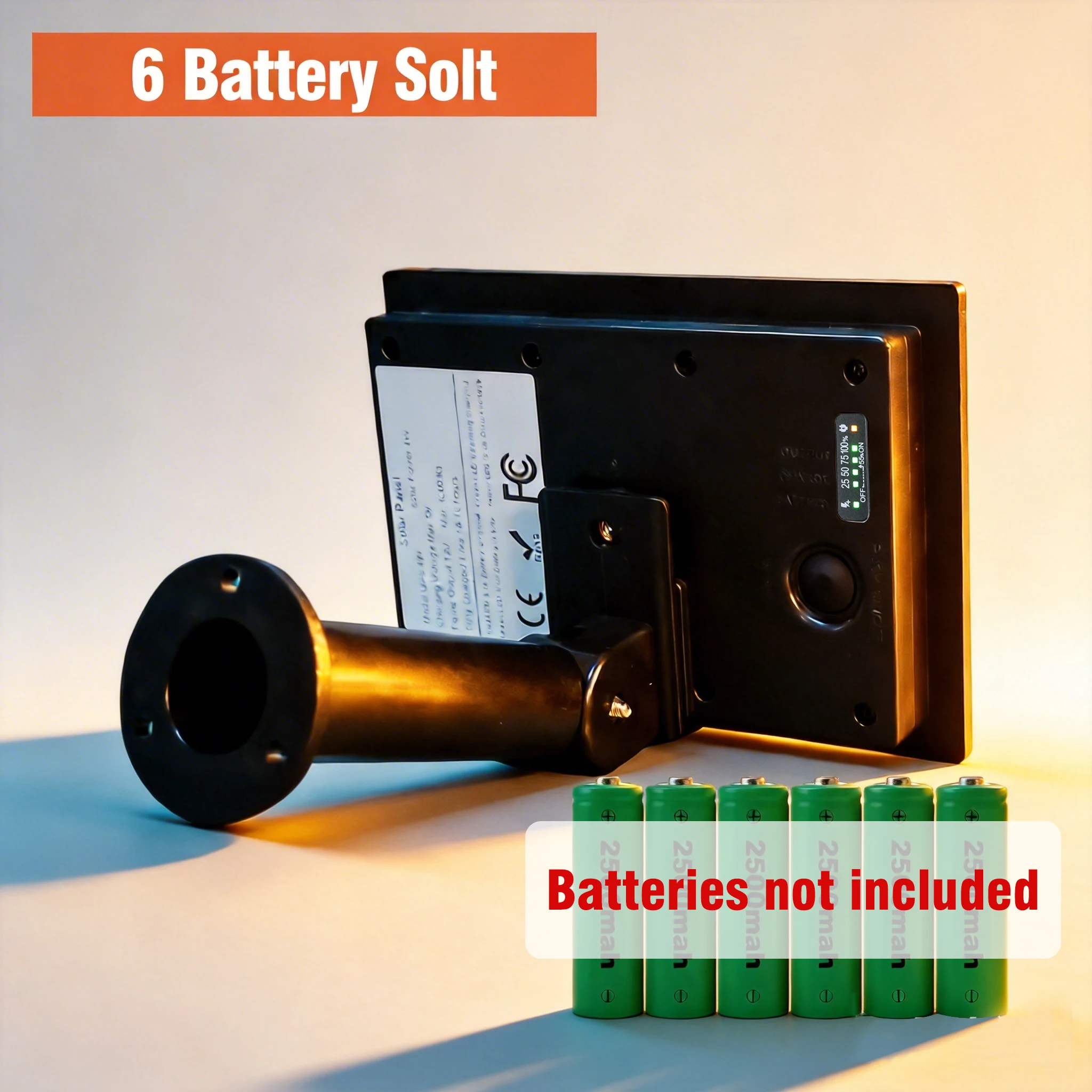

*【Batteries can be installed】There are 6 slots for 18650 batteries inside the solar panel, the slots are standard 18650 battery size, you can easily install the batteries.
*【Mcu Charge Management】Low power consumption MCU core processor, the whole panel charging and discharging for fine management, to ensure that the panel runs well.
*【Monocrystalline silicon solar panel cells】Solar cells use monocrystalline silicon, which has the highest conversion efficiency of 23%, to improve the efficiency of converting sunlight into electricity.
*【Constant Current Voltage Regulator Circuit PCB】Built-in PCBA to output stable 5V voltage from the battery through constant current circuit to supply your device and keep him running well.
*【Solar & DC power input】The panel can be charged in two ways, you can charge him via sunlight or you can also charge the battery in the panel via a 5V2A power adapter.
*【Iindicator lamps】The back of the panel is designed with 3 status indicators, making it easy to understand the working status of the panel as well as troubleshooting.
*【Outdoor waterproof IP66】The panel is designed for outdoor use and is waterproof to IP66.
*【Overcharge and Overdischarge】The overcharge voltage is 4.25V and the overdischarge voltage is 2.8V, which protects your battery more safely and prolongs the life of the battery.

Batteries not included!!!If you can't buy 18650 batteries, do not purchase this product! Do not purchase it!!!

FAQ

Q: Is the battery included?
A: Panel has 6 battery slots, you can choose you need.
Q: Use environment temperature
A：-10°-50°
Q：How to choose a battery?
A：Supports all 18650 batteries.
Q：Is there a requirement for battery capacity?
A：No limitations, high capacity, long charging time.
Q：How are the panels installed?
A：Please install the panel in a location with greater than 5 hours/day of sunlight.
Q:Do I need to fill all 6 batteries, or will it work with fewer than 6?
A:It works with at least 1 battery installed. We recommend installing all 6 batteries.
Q:Does it charge while charging or only if the batteries are at 100%?
A:Charges and supplies power at the same time.

Output Current

Output 5V2A
The maximum output voltage is 5V and the maximum output current is 2A, please do not use higher power devices.

Device Power

Since the panel generates relatively little power, if it provides power for high-power devices, the rate at which the devices consume power is much greater than the rate at which the panel is charged.
If you need to work 7X24 hours, please keep your device power and working current less than the following reference values.
5V device: power 0.45W, current less than 88ma

Unattended automatic cycle working

【Step 1】：Once the battery is fully charged, connect it to the device to start operation. 【Step 2】：Assuming the device power consumption is higher than the charging speed, the battery level drops from 100% to 75%.
【Step 3】：Assuming the device power consumption is higher than the charging speed, the battery level drops from 75% to 50%.
【Step 4】：Assuming the device power consumption is higher than the charging speed, the battery level drops from 50% to 25%.
【 Step 5】：Assuming the device power consumption is higher than the charging speed, the battery level drops from 25% to 5%.
【Step 6】：When the battery level is too low, the panel stops power output, the orange LED turns off, and the battery waits to be recharged.
【 Step 7】：Power output is stopped to ensure fast charging of the battery, and the battery level reaches 5%.
【Step 8】：Power output remains stopped to ensure fast charging of the battery, and the battery level reaches 25%.
【Step 9】:Power output remains stopped to ensure fast charging of the battery, and the battery level reaches 50%.
【Step 10】:When the battery is charged to 55%, power output is automatically activated and the orange LED lights up again. There are two possible paths in this process:
a. If your device power consumption is higher than the solar panel charging speed, the cycle proceeds to step 4.
b. If your device power consumption is lower than the solar panel charging speed, the cycle proceeds to step 11.
【Step 11】:When your device power consumption is lower than the solar panel charging speed, the cycle remains at step 11, and the battery level tends toward 100% at all times.

LED

Charging LED: Indicates charging status.
Battery level percentage: Displays remaining power at 25/50/75/100%.
Output LED: Indicates power output status.
When the battery level drops below 5%, the protection program is activated to cut off the power output and wait for charging. The power output will be automatically resumed without manual intervention when the battery is charged to 55%. It features 24/7 cyclic operation.

12V cameras are not supported.

The solar panel supplies 24/7 power to PIR motion-activated recording cameras.
It is incompatible with 12V 2A cameras for round-the-clock use. Do not buy if you have a 12V camera.

2A charging

Our charging current is 2A, which shortens the charging time, while other sellers only use 1A charging.

About batteries

The solar panel can hold a maximum of 6 PCS batteries. Search for "18650 batteries" with no capacity limit; it is recommended to use batteries with 2500mAh or higher per cell. Both pointed-top and flat-top 18650 batteries are supported.
Note: The battery diameter must not exceed 18mm, otherwise it may not fit.
Note: Batteries are NOT included in this listing.

QC

We inspect every single photovoltaic panel via an Electroluminescence (EL) camera, ensuring that every panel you receive delivers flawless charging performance.

IP67 TEST

We install two 18650 batteries inside the panel. After securing all waterproof plugs, power on the panel to activate it. Then submerge the panel in water for 30 minutes—it will continue to operate stably.

Easy installation

When fixing the bracket, adjust the mounting angle as required.

Batteries not included!!!If you can't buy 18650 batteries, do not purchase this product! Do not purchase it!!!

Packing List

Solar Panel 1PCS
Fixed bracket 1PCS
Screws 1PCS
Instruction manual 1PCS
Screw accessory package 1 package
