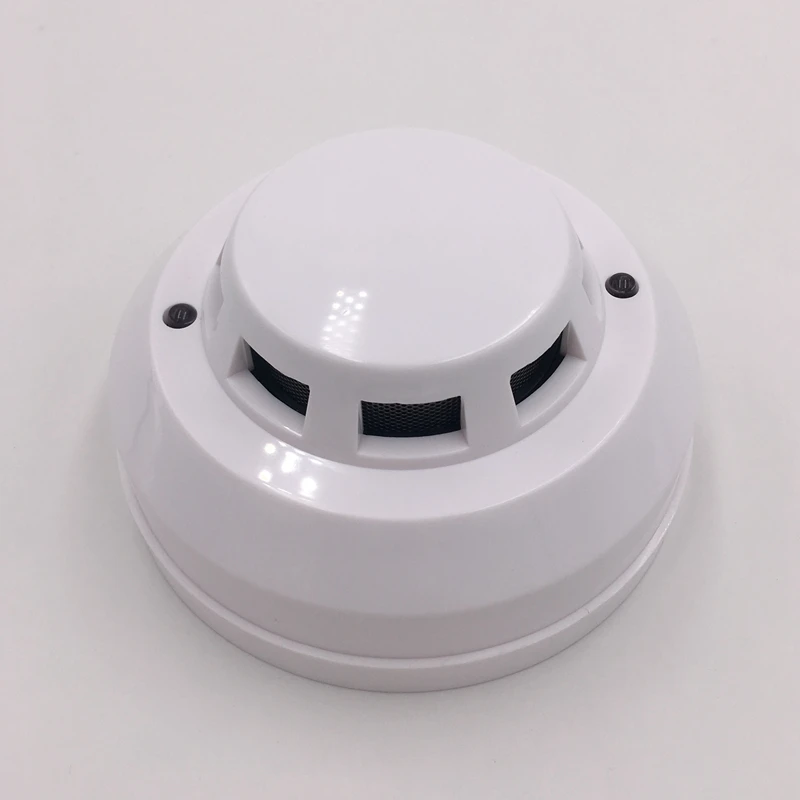

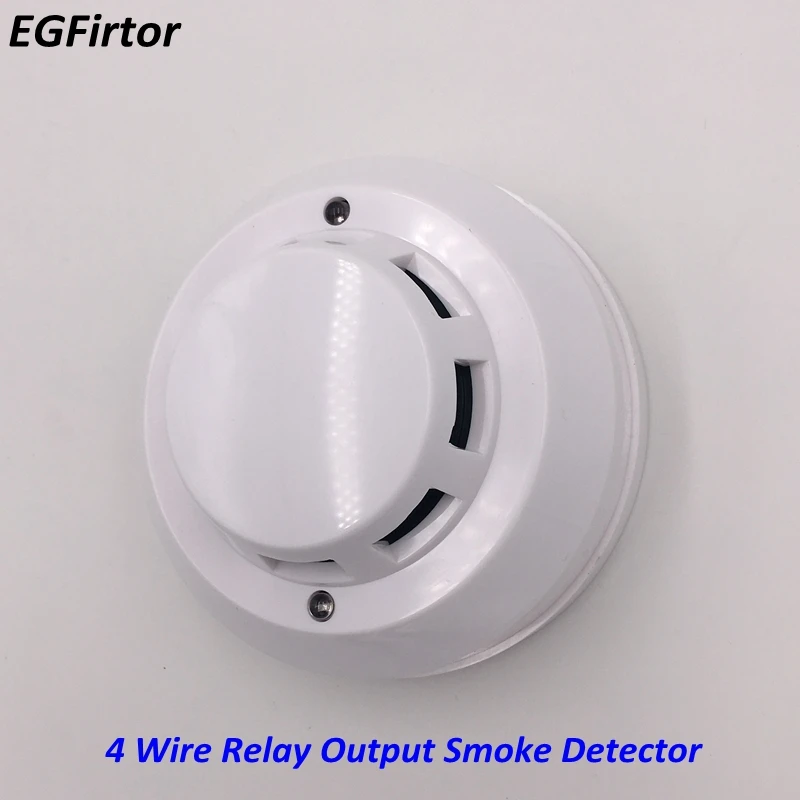

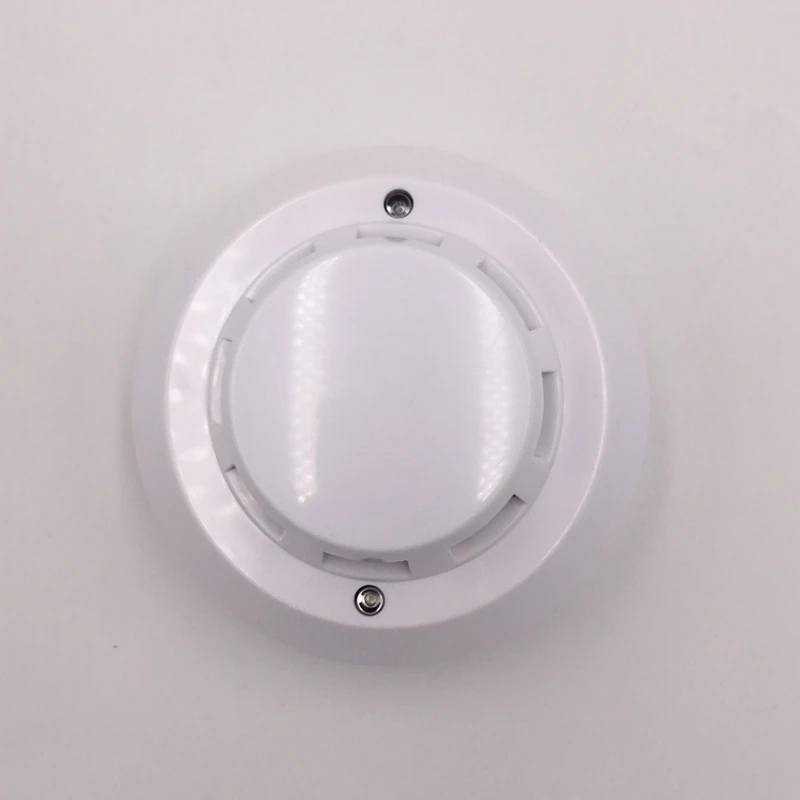

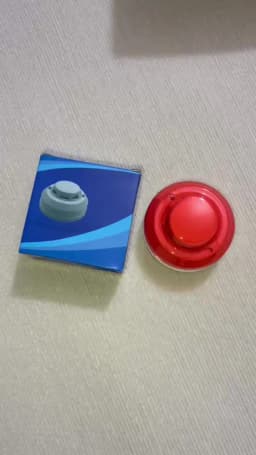

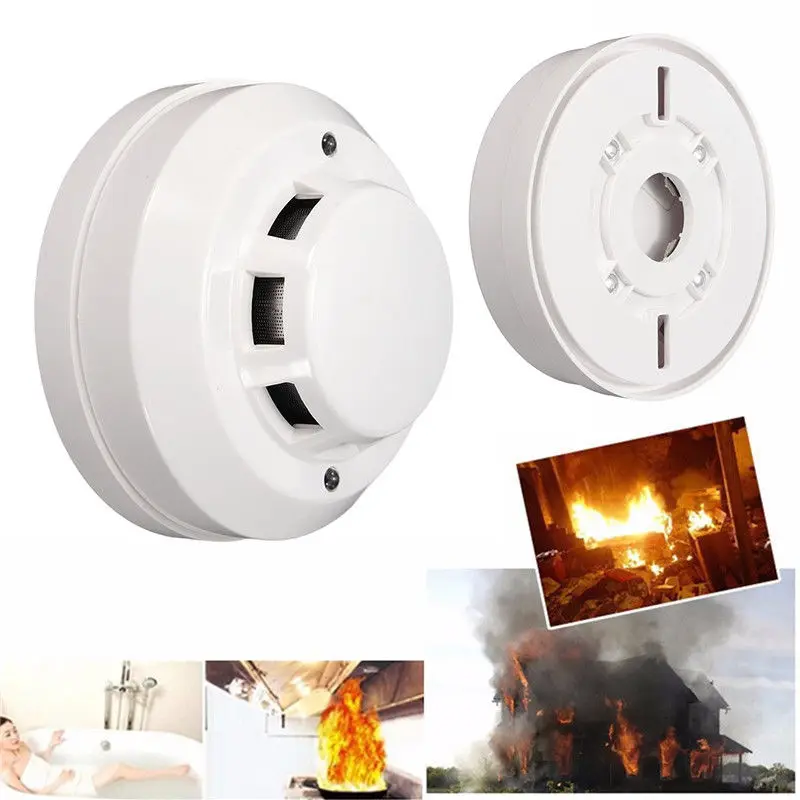

Fire Alarm 4 Wire Photoelectric Smoke Detector Relay Ouput Operation NO NC Smoke Sensor Alarm Detector For Conventional System

1 Pcs Security Fire Alarm 4 Wire Photoelectric Smoke Detector With Relay Output For Burglar Alarm System

Note: Detector Must work with Burglar alarm system, it is 4 wire cable.

Can't work Stand Alone

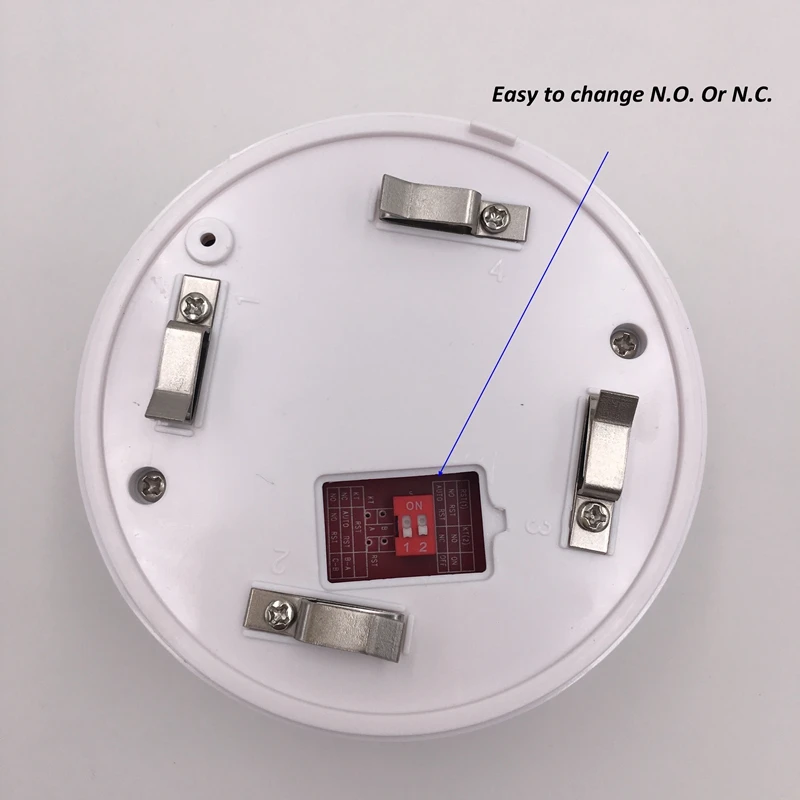

Factory setting is N.C. If you want N.O., you can open case then change it.

Specification:

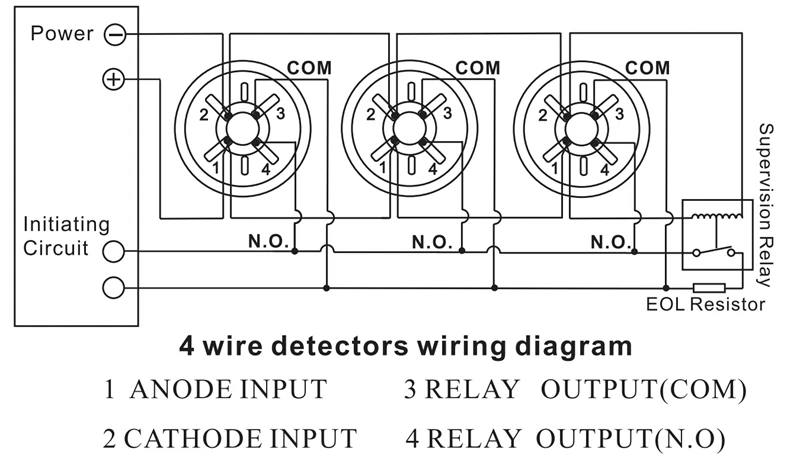

Photoelectric Smoke detector,4-wire,network by relay output

Operating voltage: DC9-35V

Standby current: 500uA

Alarm current:35mA at DC12V  60mA at DC24V

Alarm indication: Red LED ON

Temperature range: -10℃~+50℃

Humidity: 0%~95%RH(No condensation)

Alarm out put:  Remote LED

Contact rating: N/A

Sensitivity:0.5dB/m (±0.1dB/m)

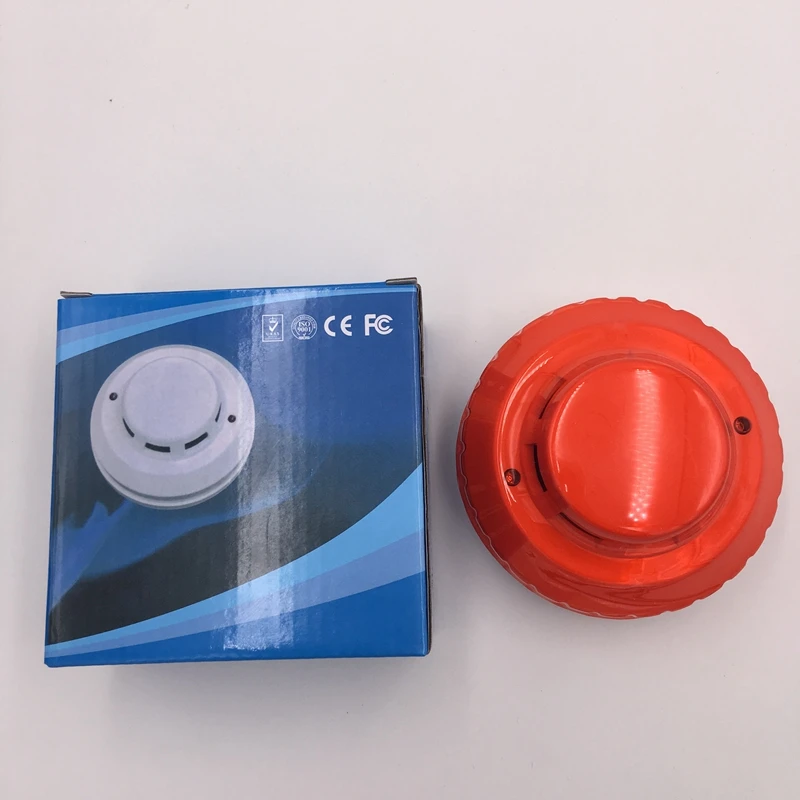

Package:

1Xsmoke detector

1X manual
