Digital 302 304 313 Comfort 220 250 252 433.92MHz Garage Door Remote Control 433MHz Fixed Code Gate Controller

Compatible Remote 433.92MHz

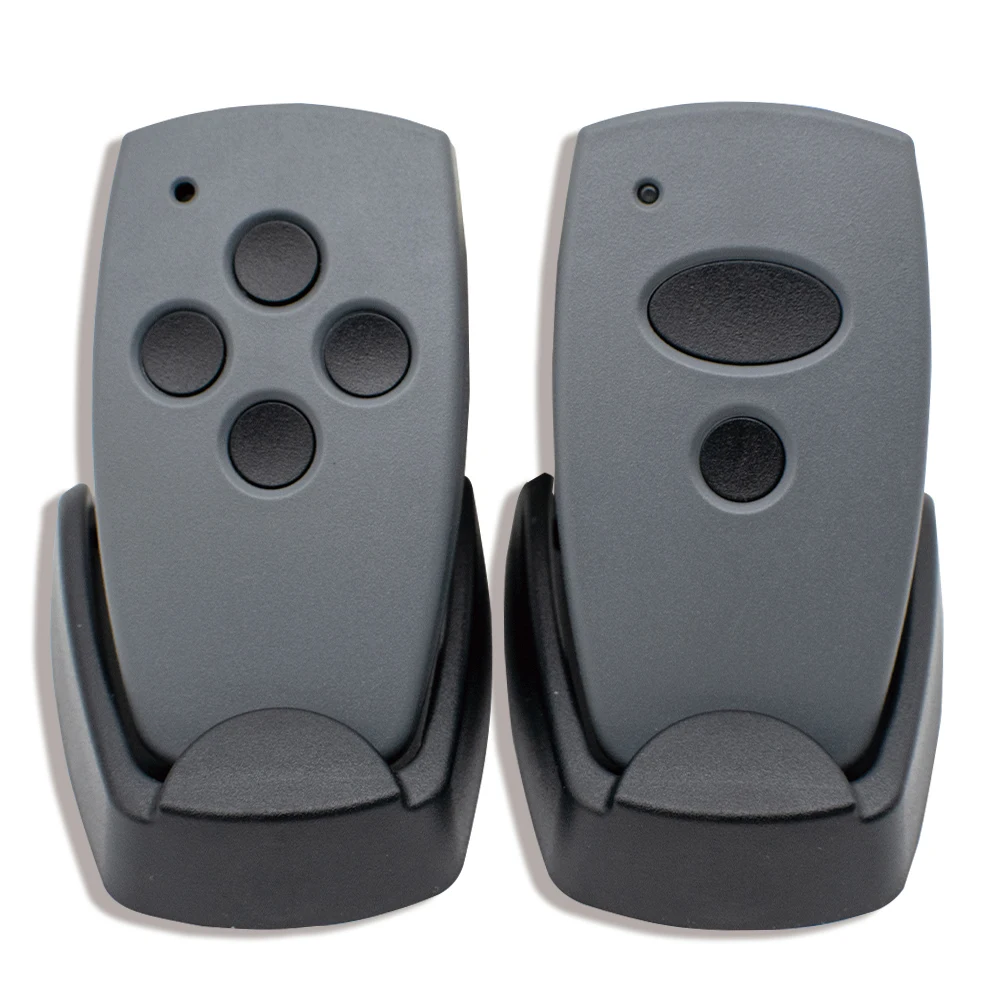

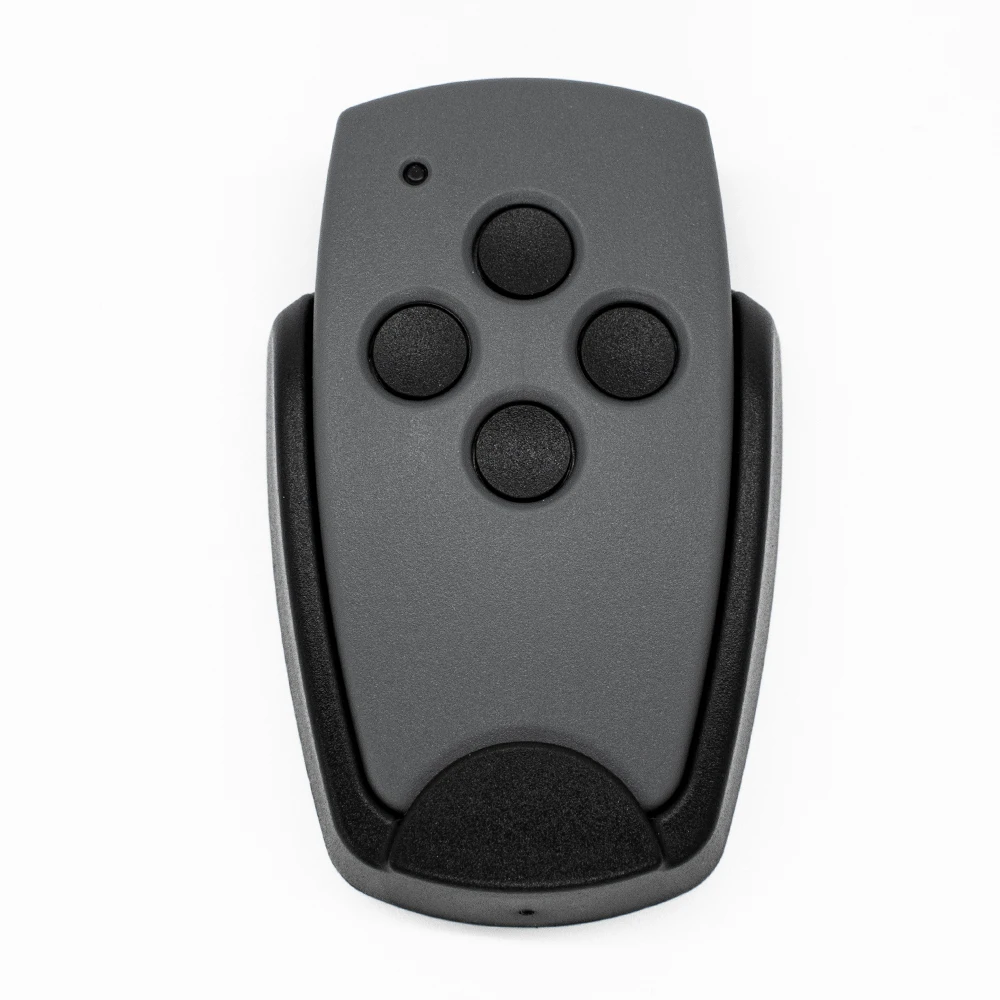

If your remote looks like the remote's pictured in the center of our listing then our remote will work for you!

Please note this is a duplicator remote which will require you to have an existing operational remote.

Compatible Model:

AZ021
64176
Comfort 220
Comfort 250
Comfort 252
Comfort 270
Digital 302
Digital 304
Digital 313

Not compatible with remotes that operate on 868.3MHz

Digital 302 304 433.92MHz

Operating Current: ≤ 8mA
Working frequency: 433MHz, 433.95MHz.
Modulation Mode: ASK (AM)
The transmission power: ≤ 100mW
Emission Distance: 50 to 100 m (proof)
The encoding type: self Copy
The working temperature: -20 ° C to +50 ° C

Features:

1.Privacy is strong
2.One to one key copy
3.Each key password alone save
4.Can continuous repetitive copy use one million times

SMG-002 Specifications:

Working voltage: DC12V (27A battery a including)
Operating Current: ≤ 8mA
Working frequency: 433.92MHz
Modulation Mode: ASK (AM)
The transmission power: ≤ 100mW
Emission Distance: 50 to 100 m (proof)
The encoding type: self Copy
The working temperature: -20 ° C to +50 ° C

Remote Includes:

Free Battery
Free Coding Instructions
Free Keychain
Long Range
Heavy Duty Design
In-built Battery

Listing Includes:

1 x Compatible Remote Control
1 x Battery
1 x Keychain
1 x English Manual/Instructions

How to Program - It is easy !

Face to face copy your original remote control

Step:1:Clear the history code from duplicator

1:Press button A and B continuously until LED flash 3 times

2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash

3.Release button “A”,finish code clearance.


Step 2,Copy code from original transmitter

1. Put duplicator aside of original transmitter,as close as possible.

2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash

3. Release both buttons,finish code copy,copy other button in same way.

Button A= Lock button

Button B=unlock button
