Unisheen BM1000H HDMI to IP Video Encoder Board H.265 H.264 Mini Live Streaming Board for IPTV System Integration SRT RTSP RTMP

Accessories products are designed to facilitate customers in purchasing

parts for self-assembly. Please select the appropriate accessories. For

example, if you choose a power supply, you will only get power supply

accessories, not including the encoder board

*BM1000H Device including Board&Casing&power Adapter

*Board&Oled 0.96 Inch only including board & 0.96inch Oled without Power supply and casing

*Board only including board without others

*Oled 0.96 Inch only including Oled 0.96 Inch

*Metal Casing is only a set casing of BM1000H, don't including Board and Power

*EU adapter is one pcs 12V1A EU adapter without others

*US adapter is one pcs 12V1A US adapter without others

*UK adapter is one pcs 12V1A UK adapter without others

How to working Encoder & Decoder

* What does this product do and how do I use it?

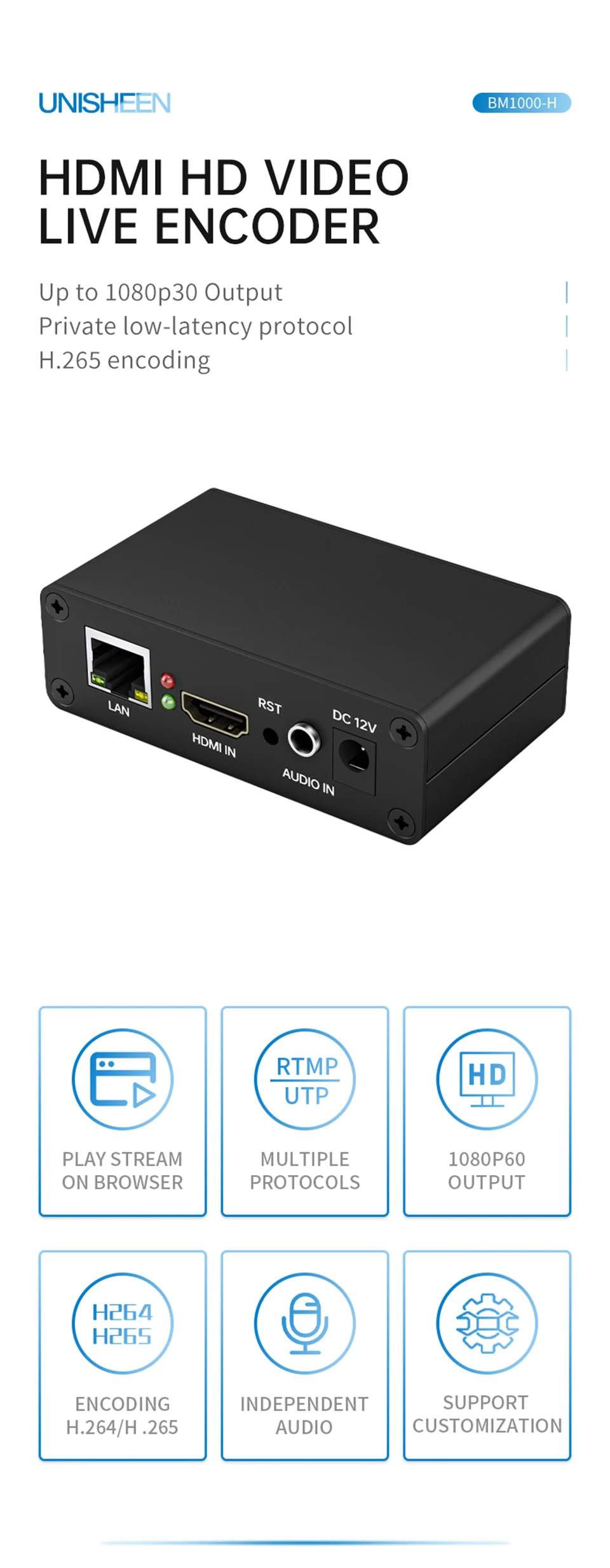

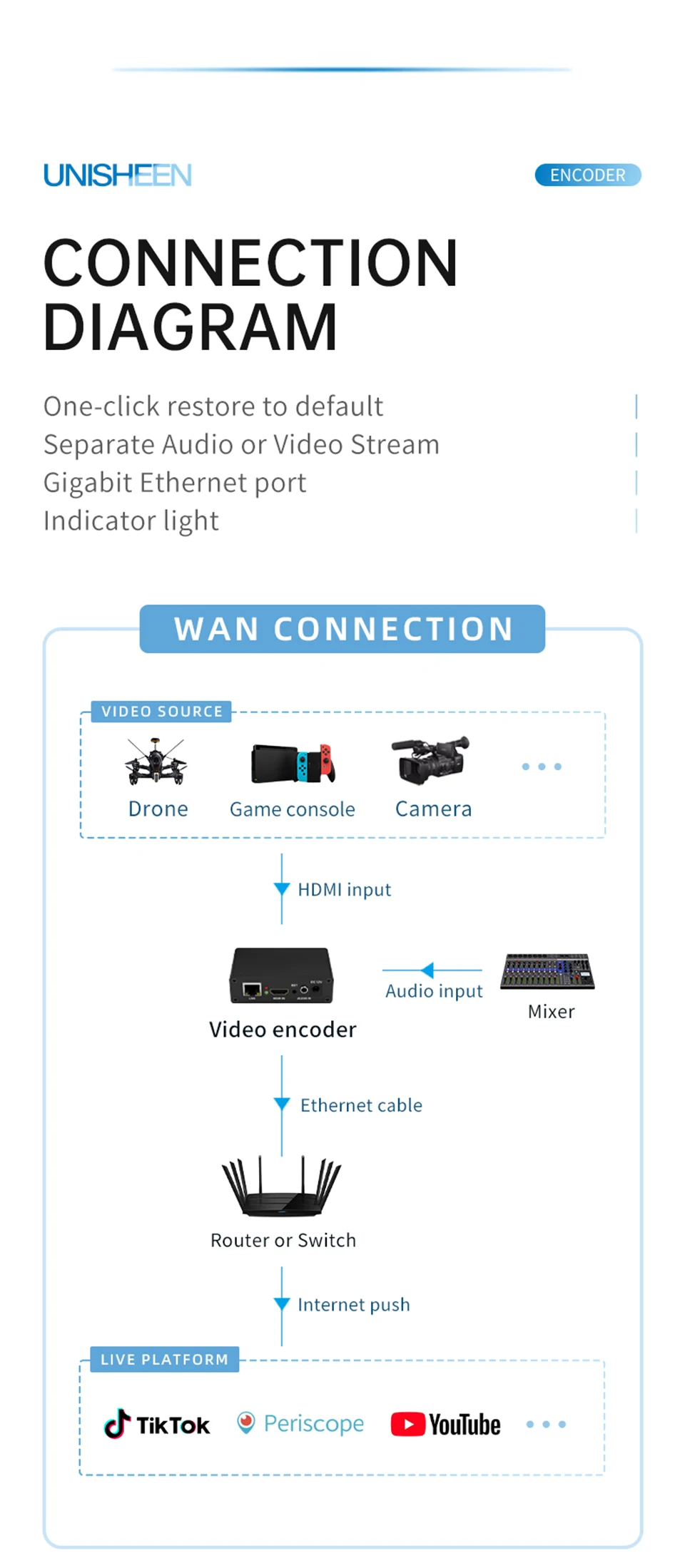

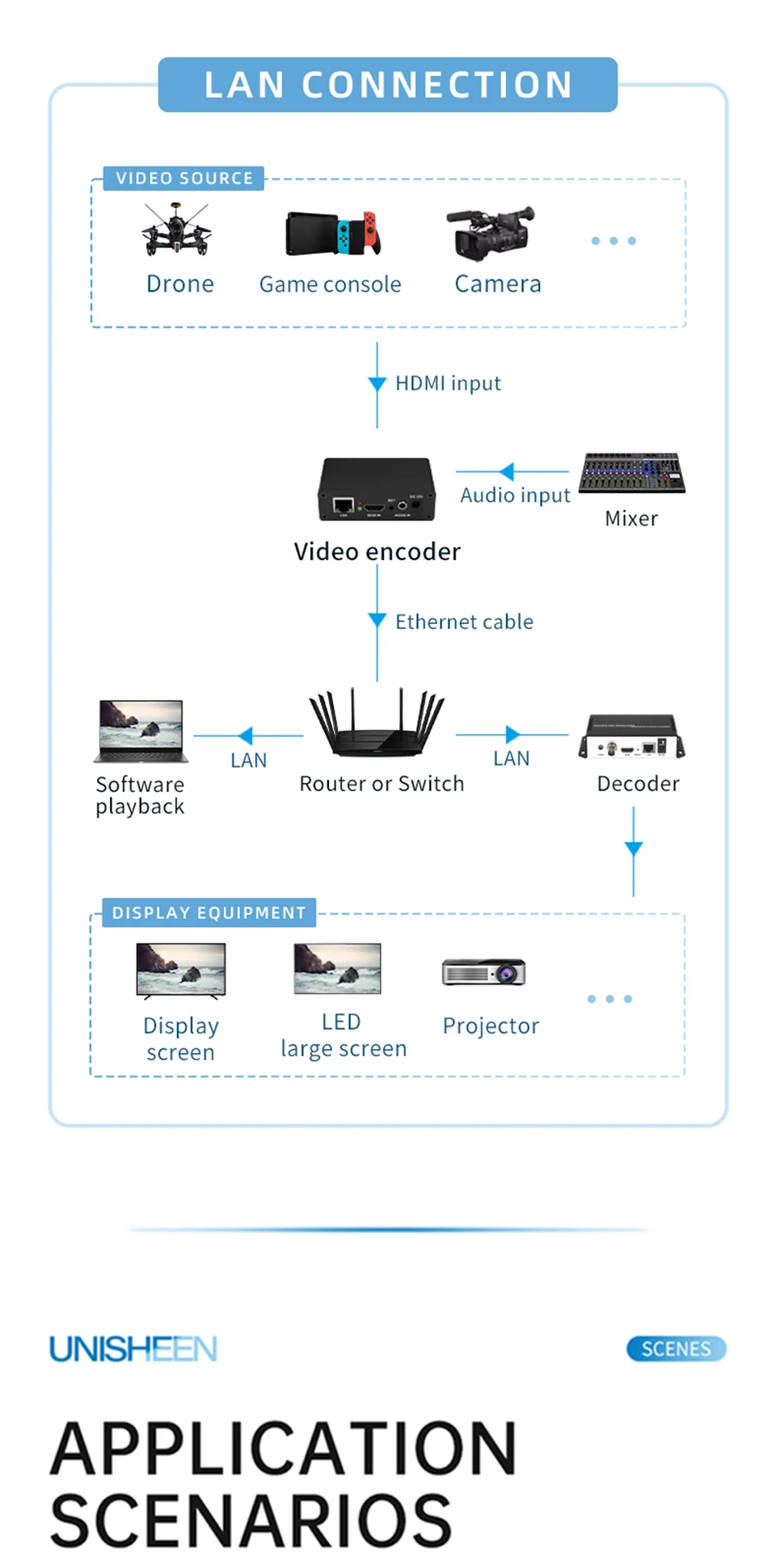

The UNISHEEN BM1000H is an HDMI video encoder that converts HDMI input to network video streams. It is managed via a web browser by accessing the device's IP address, and is widely used in live streaming, video conferencing, video surveillance, TV systems, audio streaming, remote education, digital signage, and system integration.

We provide a detailed user manual and tutorial videos to help you deploy and use it quickly.

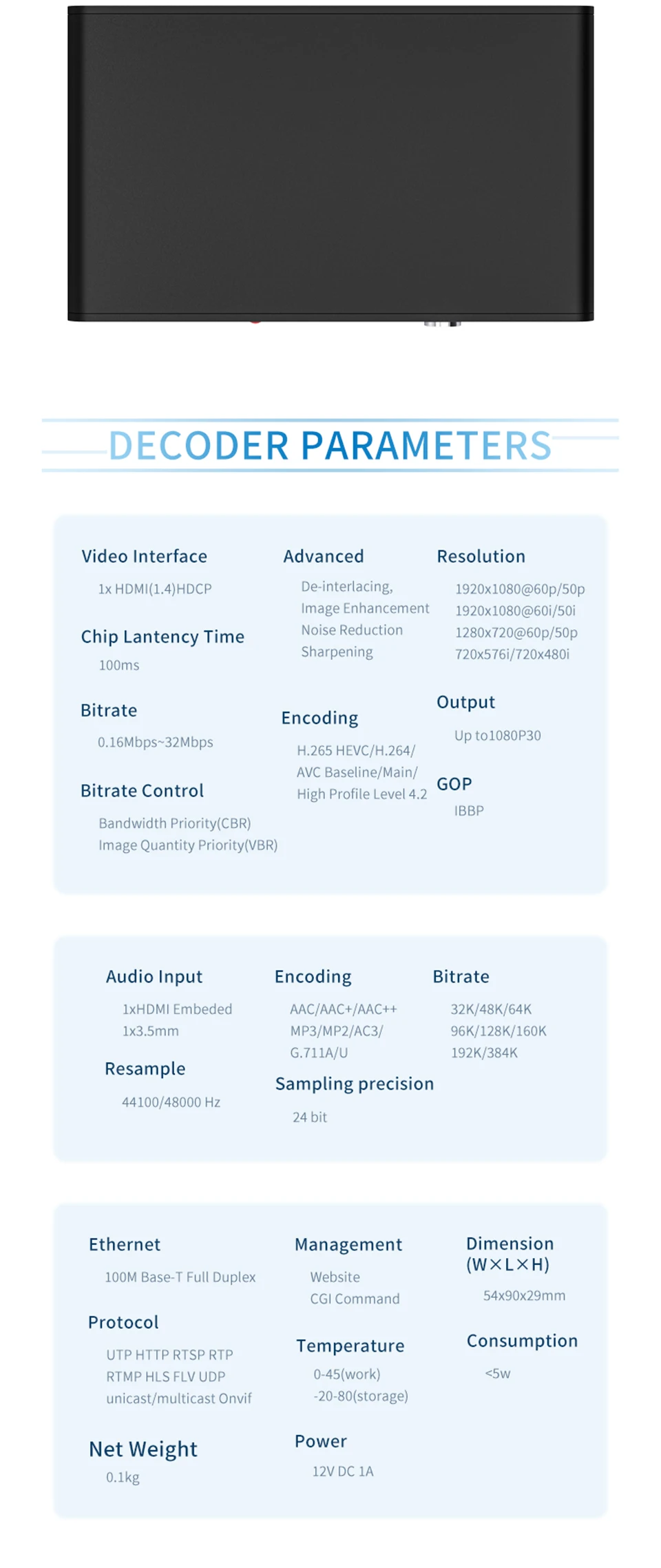

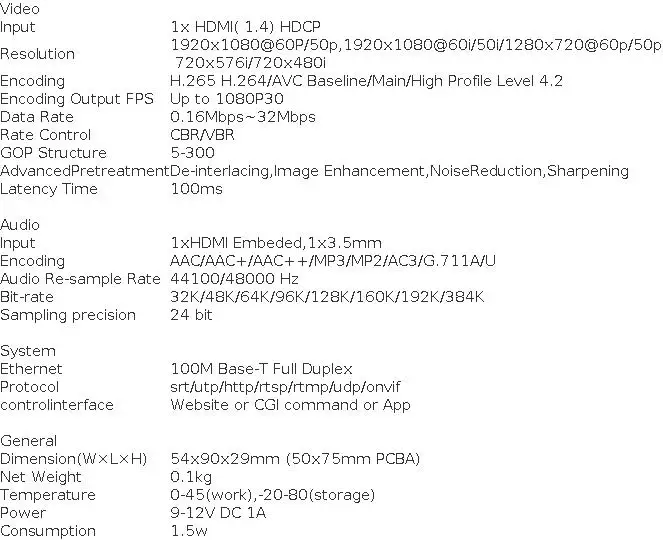

*What audio and video encoding formats are supported

Video: H.265 / H.264 / MJPEG encoding with CBR and VBR bitrate control

Audio: AAC, MP3, MP2, AC3, Opus

*Does the BM1000H video encoder support NVR integration?

Yes, the BM1000H video encoder supports NVR integration. Simply configure the correct IP address, then scan and add the device on your NVR.

*Does it support audio-only streaming?

Yes, the BM1000H supports audio-only streaming to IceCast and ShoutCast servers.

* Why Choose the UNISHEEN BM1000H Video Encoder?

The UNISHEEN BM1000H video encoder has been upgraded to support 1080p60 encoding output — delivering full HD video without breaking a sweat.

Comprehensive Protocol Support

HTTP, RTSP, RTMP, RTMPS, SRT, SAP, UDP, WebRTC, ONVIF, TRTC, MP4, HLS, IceCast, ShoutCast — all supported out of the box.

Key Features

Simultaneous multi-stream output

NVR integration ready

Video mirroring, rotation, flip, and crop

Text, timestamp, and image overlay

Recording to network-attached storage (NAS)

Ultra-low latency via UTP/NTP (requires UNISHEEN decoder)

Built for Integration

Ultra-compact form factor with a fixed mounting bracket for easy rack or panel installation.

Powerful. Versatile. Unbeatable value.

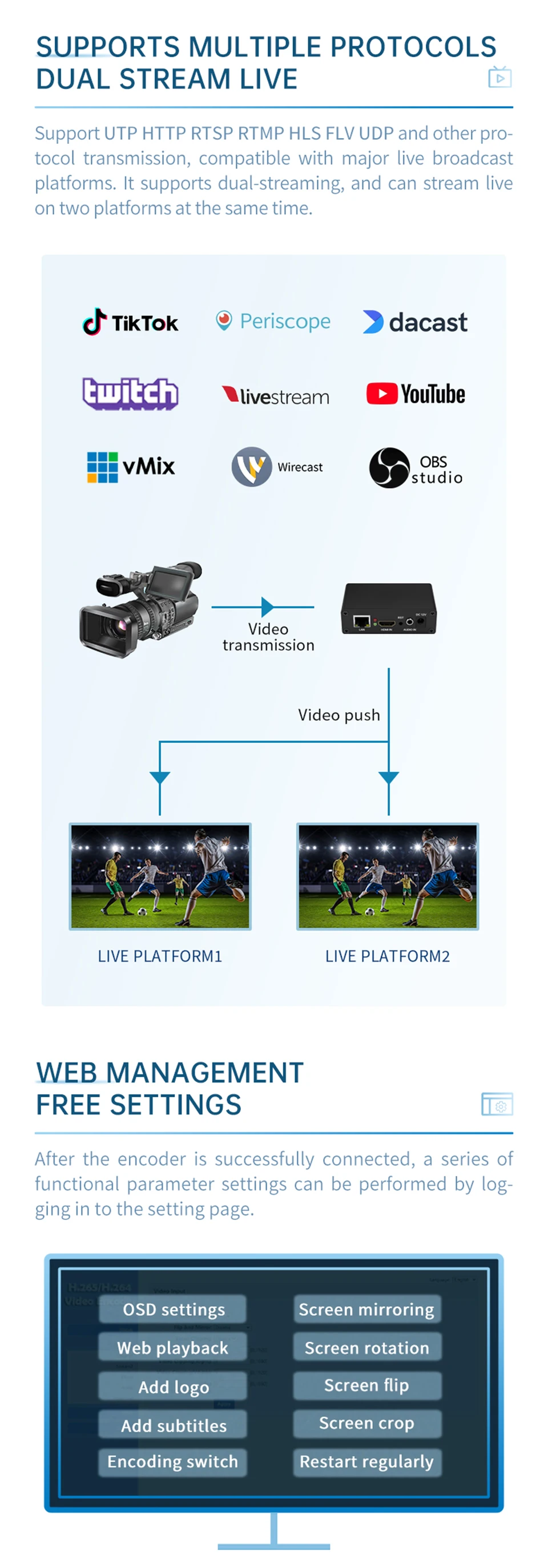

* What network video protocols does this product support?

Network Video Output

HTTP, SRT (Caller & Listener), RTSP (push/pull), RTMP (push/pull), RTMPS (push), UDP (multicast/unicast), ONVIF, WebRTC, TRTC

Network Audio Output

IceCast, ShoutCast

Audio and video are streamed together by default. Pure audio streaming is also supported — no video input required.

Ultra-Low Latency

The device supports UNISHEEN's proprietary low-latency protocols: UTP (TCP) and NTP (UDP). In a wired LAN test environment, end-to-end video latency is approximately 100ms — requires pairing with a UNISHEEN video decoder.

* What are the product dimensions, and what's included in the package?

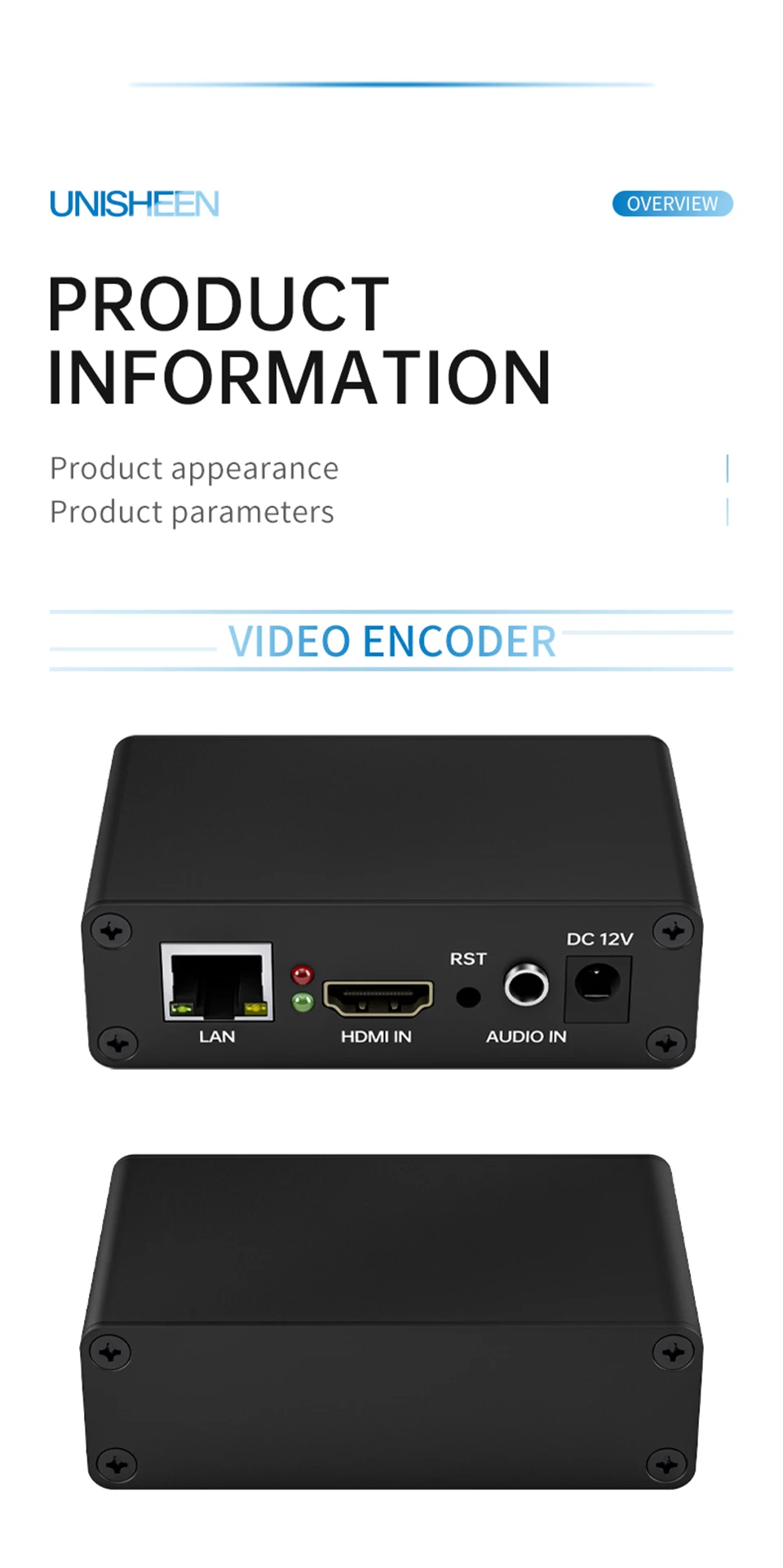

The BM1000H features an ultra-compact design. The enclosure measures 54 x 90 x 29 mm (PCBA: 50 x 75 mm), and it ships in a 150 x 150 x 50 mm box.

What's in the Box:

1x BM1000H Video Encoder

1x DC 12V/1A Power Adapter

1x Mounting Bracket

*Why Choose UNISHEEN

UNISHEEN has been designing and manufacturing video products for over 15 years. Our portfolio spans video capture, recording, encoding, decoding, and conversion — backed by industry-leading R&D capabilities in both hardware and software. We continuously invest in product improvements to address real customer needs and deliver high-value solutions.

We also take compliance seriously. Our products carry HDMI certification, CE, FCC, RoHS, and UKCA approvals — so you can buy with confidence and deploy without hassle.
