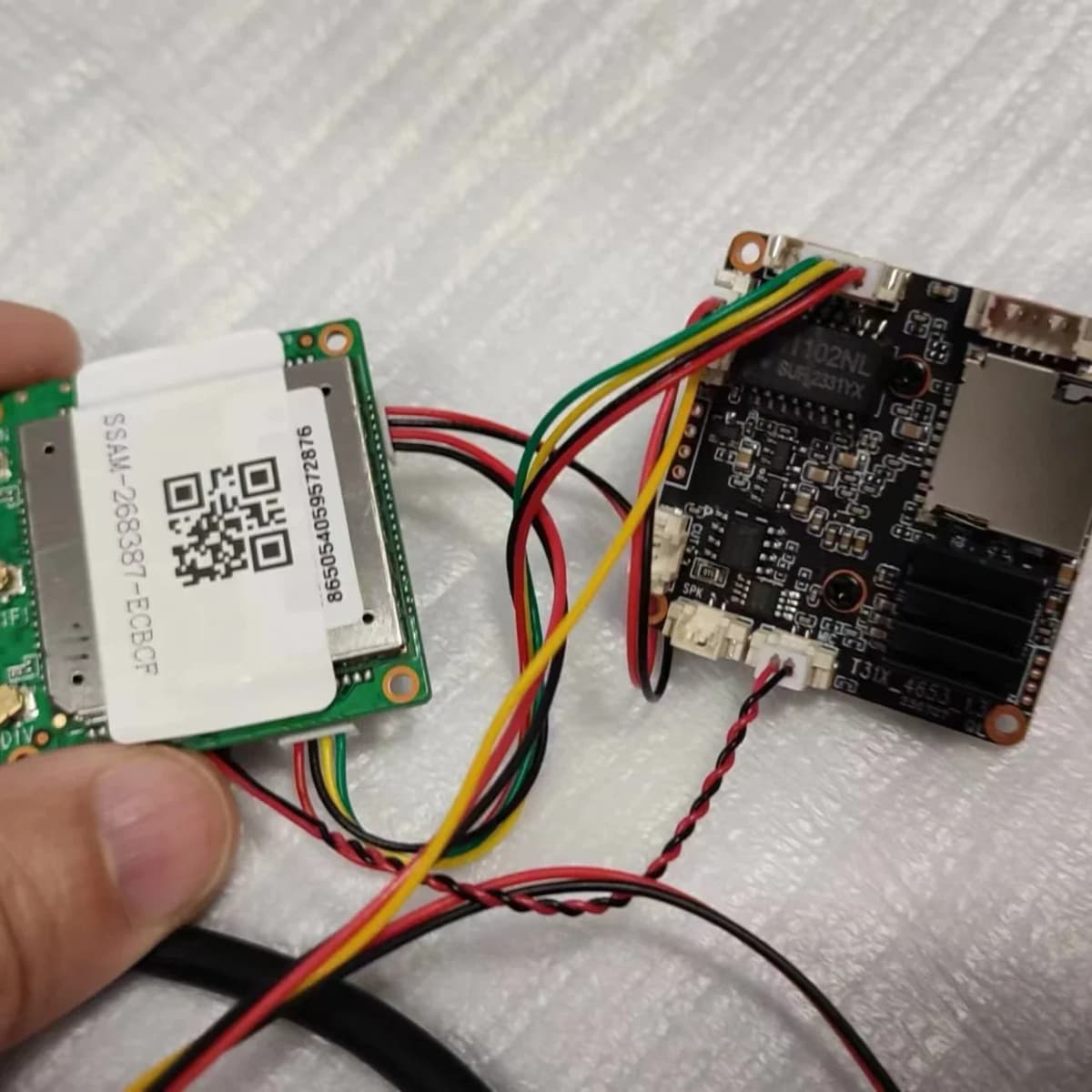

DIY 4G WIFI AP IP Camera Module 5MP IMX307 Wireless Mini Built-in MIC Micro SD Card Slot IMEI Modification P2P APP AF790

NOTICE:

Note:

Before purchasing, please consult whether you need 4G or wifi version. 4G version supports 4G network in Europe and wifi version supports all countries

Note: LTE Cat 4,This module supports 4G networks in the following countries. Some customers have already used it

Brazil

4G Europe

Support

Israel

4G Europe

Support

Kuwait

4G Europe

Support

The British

4G Europe

Support

Russia

4G Europe

Support

Italy

4G Europe

Support

Poland

4G Europe

Support

Ukraine

4G Europe

Support

Thailand

4G Europe

Support

Finland

4G Europe

Support

Spain

4G Europe

Support

Bulgaria

4G Europe

Support

Canada

4G Europe

Support

Estonia

4G Europe

Support

1. You can modify the IMEI on the WEB UI

2. Supports SNTP time synchronization, including automatic synchronization and manual synchronization.

3. Support traffic statistics function, can be counted by traffic/time online or duration; You can create on this page

Create a traffic plan and query used and remaining traffic.

4. Support M.OME domain name access, this function can determine whether the router dns is normal.

Special note: Before accessing M.OME, ensure that the DNS in the network adapter is automatically obtained, as far as possible

Use Internet Explorer, otherwise the M.OME domain name may not be resolved. IP can also be used:

192.168.100.1 Direct login

5. The module enables the WiFi function by default, and other wireless terminals can access its WLAN network. meanwhile

It also has a wireless client function, which can be used as a wireless relay to connect to other WiFi to achieve bridge connection

Function of network

6. The router has the wireless client function, which is turned off by default and can be turned on when needed, as a wireless

After the device, you can connect to other WiFi to achieve the Internet function.

7. Supports firewall functions, including MAC/IP/ port filtering, port mapping, port forwarding, UPnP, and DMZ functions

only 4G module (Not IP camera module)

Gateway IP:192.168.100.1(IP address of 4G module)

User name:admin (User name and password of 4G module)

Password:admin (User name and password of 4G module)

AP hot name:MIFI_XXXX

Password:1234567890 (User name and password of 4G module)

Matters needing attention:

1. Wear anti-static bracelet or gloves before work

2. Please wiring in order

3.12V power interface, positive and negative pole should not connect in a wrong way

4. Chip burn, no warranty

ABCDEFG lens selection, pay link

https://www.aliexpress.com/item/1005001340802636.html?spm=5261.ProductManageOnline.0.0.5e5e4edfdlfDxs

Warm Tips:

Wi-Fi Version NOT works with 3G and 4G,

4G Version Works both 4G,Does not support Wi-Fi.

Important Warning:

If you want to use this 3G 4G IP Camera,

You MUST check your SIM card frequency range MUST be in below listed range.

We will not agree any dispute for your own reason for your wrong order.

3G standard: WCDMA

Frequency range: B1(2100MHz), B8(900MHz)

4G standard: FDD-LTE

Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)

(1)This 3G 4G ip camera mostly used for those environment place not have internet but have SIM mobile signal,

you have to put a SIM card into camera and connect internet by your SIM card.

The camera does not support router internet connection !

(2)This 3G 4G IP camera Connection Way: Insert your SIM card into camera, then power on, connect SIM Card internet.

No need to connect network LAN cable ! No need to setup wifi !

(3)The 3G 4G ip camera does not support local PC clients .

It supports mobile phone app (CamHi) and a remote clients CMS.

(4)The 3G 4G ip camera does not support Cloud FTP storage !

4G SIM Card Connection

--You MUST check your SIM card frequency range must be in below listed range.

How to quickly set up 3G/4G

First of all , Download APP "CamHi" from the iPhone App Store or Google Play Store. Or scan the QR code

If you choose the camera has 3G/4G. Then when the camera leaves the factory. The default connection to the 3G/4G module (signal MIFI-XX) has been set.

Note:If you use the reset button. Then you need to re-bind the camera to MIFI-xx

You only need a few simple steps.

Insert the SIM card into the camera. Connect the power adapter , wait 10-20s, camera will be ready.

Then open your phone WLAN setting , you will find "MIFI-XXX" and select to connect, the default password is 1234567890

When your phone is connected to MIFI-XX. Then open the app "camhi". Select "Add Camera."

Because your phone is connected to MIFI-XX. So you can choose "Search Camera from LAN". Or directly scan the QR code of the camera.

Then you can see your camera online. You can control the camera and watch videos from your phone.

NOTE:

If view the 3G/4G camera is offline, please check the SIM card".

Use the mobile phone or PC to connect the WIFI "MIFI_3F41",the WIFI password is "1234567890", you can find the WIFI when the

camera starts working. Access "192.168.100.1" through the browser, the page password

is "admin", you can check the SIM card information on this page.

If your camera display is offline, please note the following:

1.Damaged card or wrong installation direction when prompted "

No SIM Card or SIM Card invalid! ", as shown below:

2.Frequency not supported or SIM card arrears when prompted "No Service" or "Limited Service", as shown below 1):

3.Make sure 3G/4G signal strength is enough, as shown below 2):
