Universal Garage Gate Door Receiver 2CH 433,92Mhz Remote Control Switch 433MHz Receiver For Multi Brand

Special Note:

These remotes are not clone remotes.
These remotes only work with my receiver.
Please do not buy the remote control privately.

Universal 433.92MHz receiver

It is can work for 99.9% remote control brands on the market.

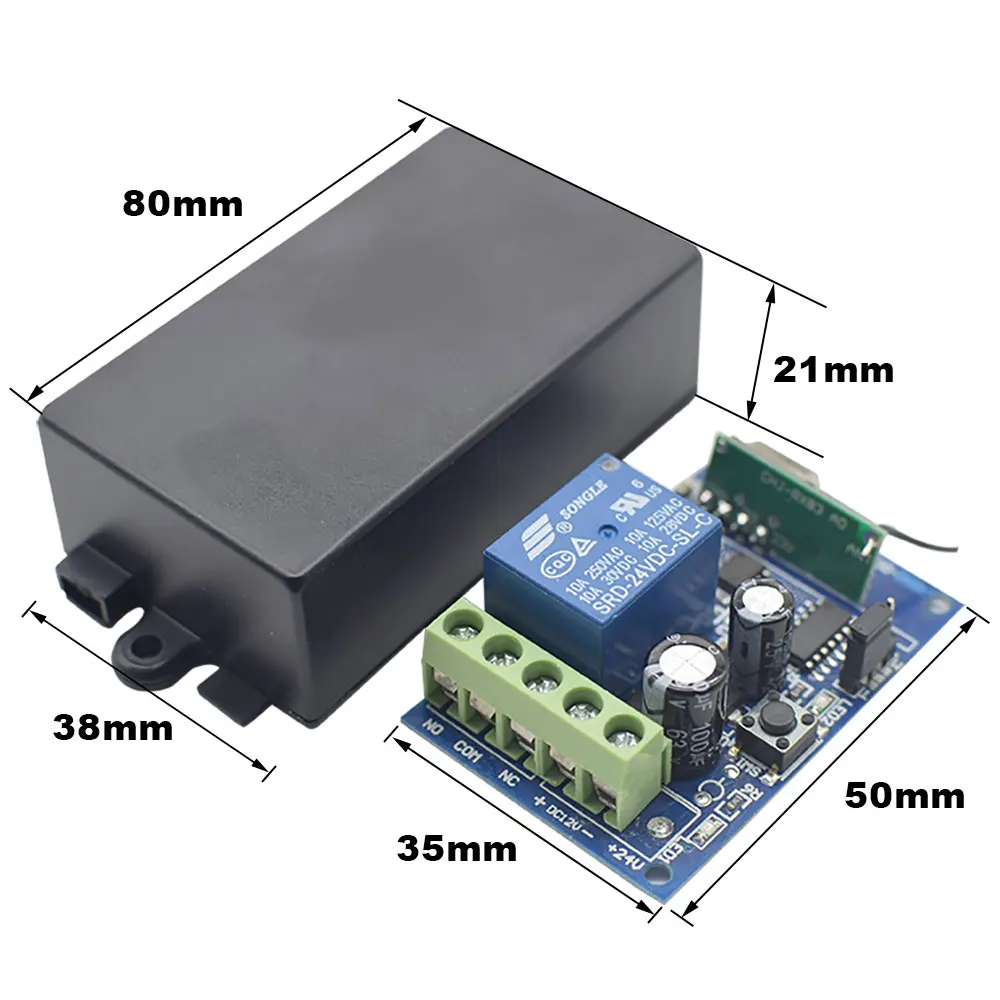

SMG-822 2CH DC 12-24V SECIFICATIONS:

1. Power supply: 12V-24V DC
2. Frequency: 433.92Mhz 433MHz
3. Codes: can work with any fixed/learning/rolling codes
4. 2 channel
5. Working temperature :-40℃- + 80℃
6.Built in Aerial antenna : Reception range 10-100m

Features

The product is a general smart receiver and it can be matched with the majority of the 433mhz 433.92mhz wireless transmitter in the market, including fixed code （2262, 2260,2264,5326,M1E,M5E etc）, learning code （1527, 2240, 6P20B, 6P20D etc）. roling code （HCS301,HCS300,HCS200,HCS201,HSC100,HCS1O1 etc） and learning code.

Products advantage:

1) Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

2) Can learn and use most Original 433,92Mhz Fixed and Rolling code remote controls !!!

3) 2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

4) Very low price.

PROGRAMMING:

Momentary working model:

1.Learning transmitter’s codes:
Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.
• Repeat the above steps for other transmitters.

2.Erasing transmitter’s codes:
Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased.

ANT - Receiver Antenna
CH1 - Relay Output 1
CH2 - Relay Output 2
V+ - Voltage +
GND - Ground

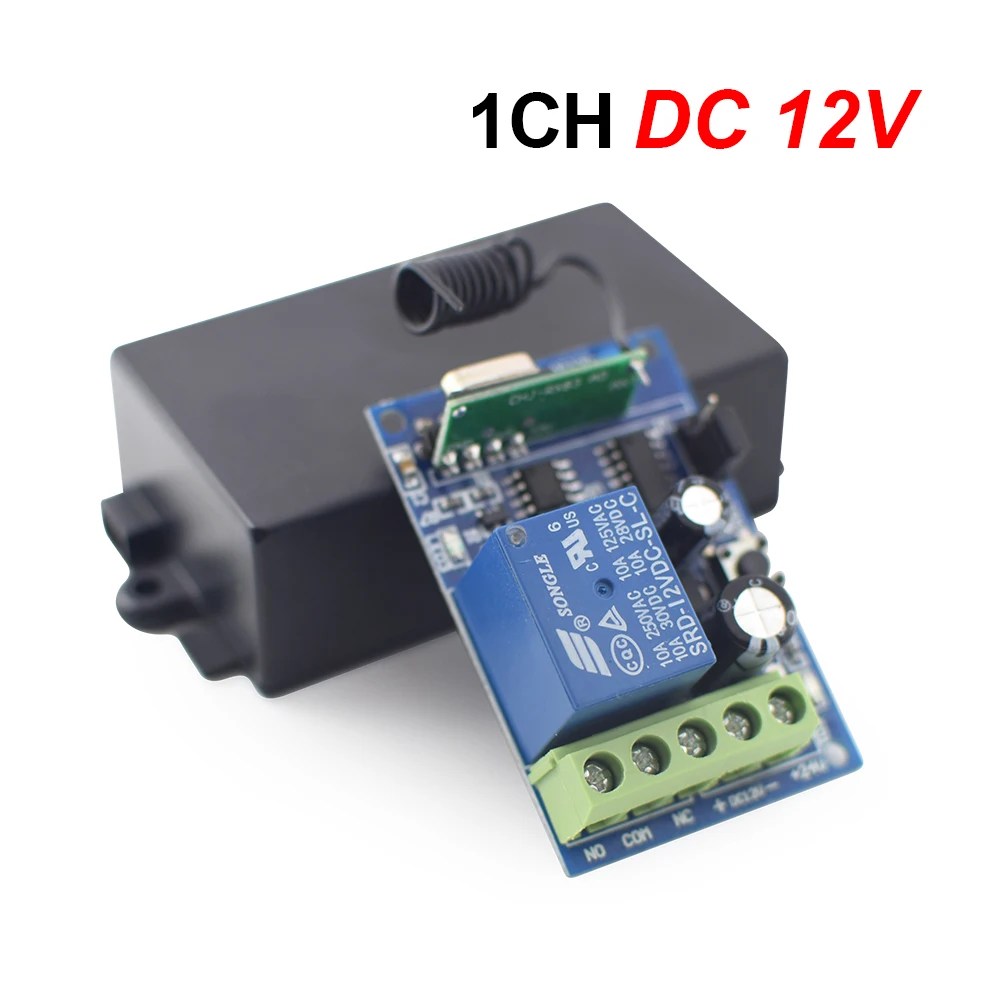

SMG-811 1CH DC12V/DC24V SECIFICATIONS:

1. Power supply: DC12V or DC24V
2. Frequency: 433.92Mhz 433MHz
3. Codes: can work with any fixed/learning/rolling codes
4. 1 channel
5. Working temperature :-40℃- + 80℃
6.Built in Aerial antenna : Reception range 10-100m

Include

1pcs receiver
1pcs English manual

SMG-822

SMG-811

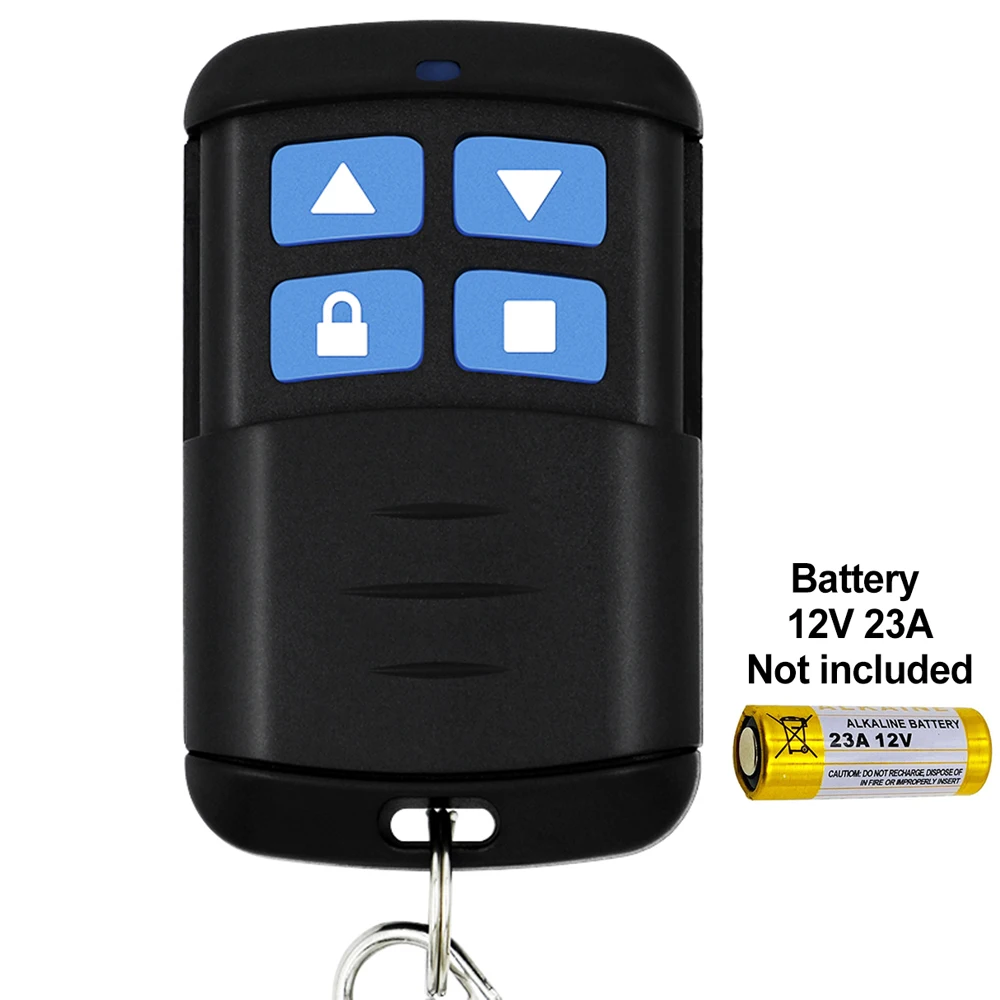

Specifications Of The Remote Control:

Operating frequency: 433MHz
Power by 23A 12V (Battery not included ),
Material: PVC.
Button: 4 buttons
Encoding type: Learning Code.
Transfers distance: 20-50m
