315/433MHz Auto Copy Remote Control Electric Garage Door Opener Remote Controller Duplicator Clone Cloning Code Transmitter

Feature:

Easy to use, the remote control system lets you take control of your gadgets, car, home and garage.

This is not a complete list! If your remote uses the 315/433MHZ frequency it will work with the remote duplicator (note: rolling code remotes will not work).

Descriptions:

With this remote control, you can control all 315/433MHz fixed code key fobs.

Some remotes that use this frequency are listed below.

2-Channel RF Wireless Remote Control Duplicator for Cars, Garage Doors, Gate Doors, Alarm Systems etc.

This is a fixed frequency remote cloner (315/433mhz) for copying common fixed and learning code remote controls.

Specifications:

Operating frequency: 315MHz or 433MHz(please confirm which one you want to buy before place order)

Distance: 50-80 meters

Application: Duplicate Your Existing Remote Controllers

Application example 1: Vehicle central locking systems

Application example 2: Garage doors access control system

Application example 3: Electronic gates access control system

Application example 4: Electrical appliances control

Application example 5: Car sunroofs control

Application example 6: Heating systems control

Application example 7: Light Switch

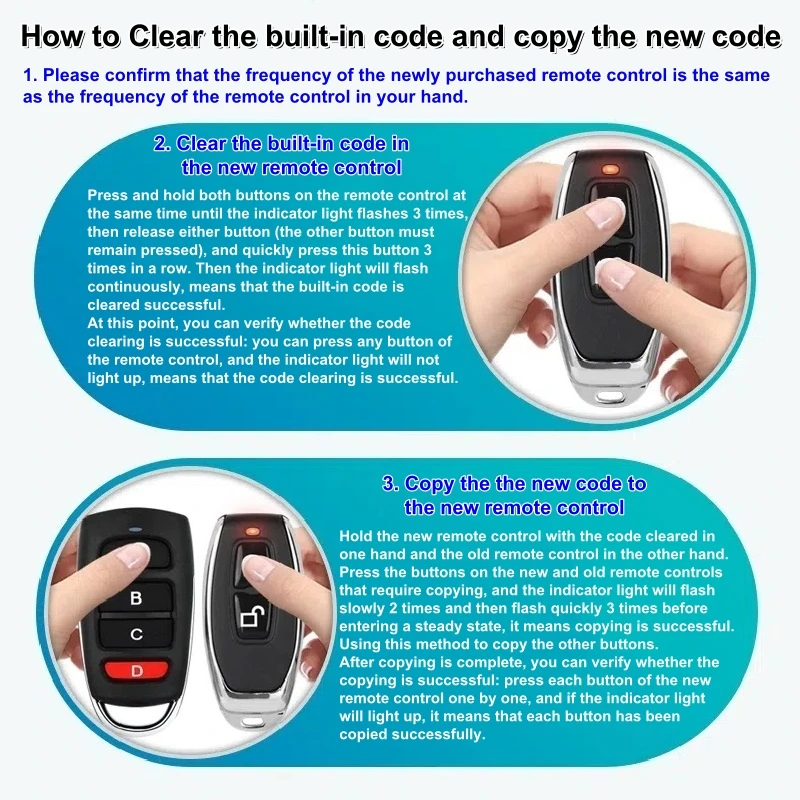

How to Clear the built-in code and copy the new code(please read this carefully when you receive the product and follow it):

1. Please confirm that the frequency of the newly purchased remote control is the same as the frequency of the remote control in your hand.

2. Clear the built-in code in the new remote control

Press and hold both buttons on the remote control at the same time until the indicator light flashes 3 times, then release either button (the other button must remain pressed), and quickly press this button 3 times in a row. Then the indicator light will flash continuously, means that the built-in code is cleared successful. At this point, you can verify whether the code clearing is successful: you can press any button of the remote control, and the indicator light will not light up, means that the code clearing is successful.

3. Copy the the new code to the new remote control

Hold the new remote control with the code cleared in one hand and the old remote control in the other hand. Press the buttons on the new and old remote controls that require copying, and the indicator light will flash slowly 2 times and then flash quickly 3 times before entering a steady state, it means copying is successful. Using this method to copy the other buttons. After copying is complete, you can verify whether the copying is successful: press each button of the new remote control one by one, and if the indicator light will light up, it means that each button has been copied successfully.

NOTE:

1. This product can copy the remote control with the following chip inside: PT2264, PT2262, PT2260, PT2240, SC2262, SC2260, EV1527, SCT527, HS1527, HS2240, SCL1527, FP1527. If you fail in copying with proper operation, you might have to check whether your device has a chip above.

2. If IC chips can not match, it will not be copied, please verify the chip model before you buy.

3. If the frequency is not the same, it will not be copied, please check your old remote control's frequency before you buy.
