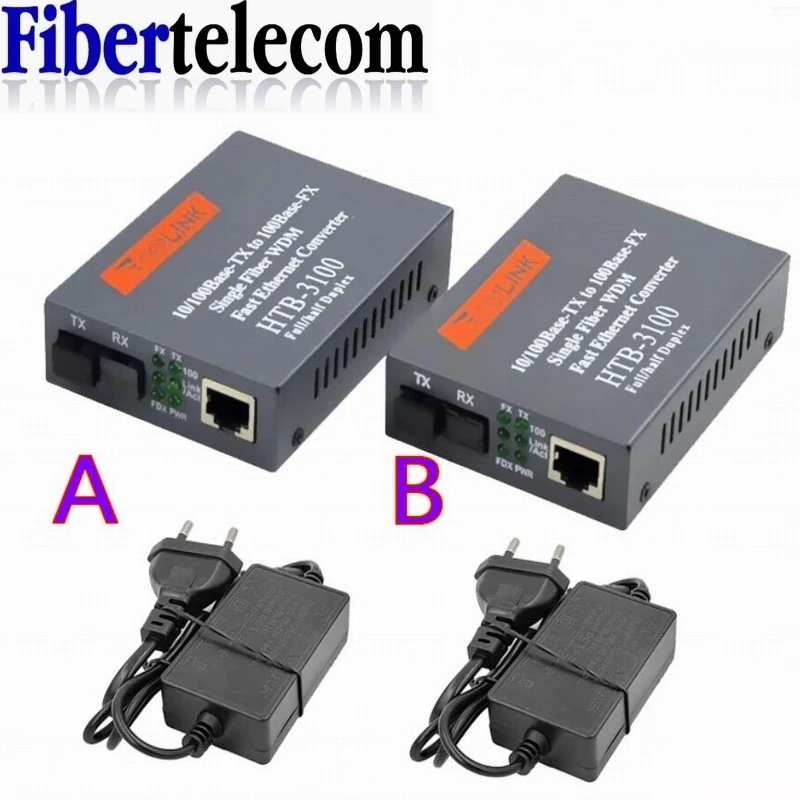

Media Converter HTB-3100 Fiber Optical Single Mode Single Fiber SC Port 25KM External Power Supply 10/100M

Please Note ：

1.Default with EU power adapter.UK,US,BR,AU standards can be provided as request.

2.Bulk order please contact with us , we are factory have the best price for you.

Overview:

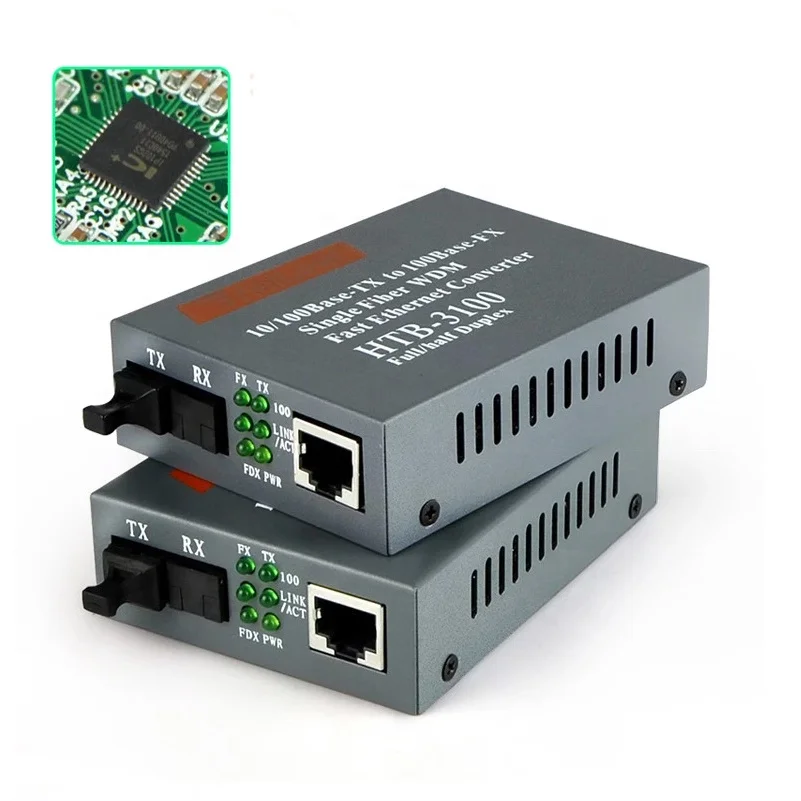

Bidirectional 10/100M adaptive Ethernet fiber optic transceivers , using the latest IC plus 113GHchip, high -quality single-fiber bidirectional optical transceiver module ( brand new manufacturers ) , stable performance and excellent quality. For telecommunications,broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.

Feature:

1. High Quality, 1 years quality guarantee!

2. An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair

(Ethernet )and 100base FX (fiber optic) ;

3. Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission

mode to improve the quantity doubled ;

4. Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards ;

5. Has 10M/100M adaptive capacity ;

6. Ethernet interface can adaptively direct line / crossover cable connection ;

7. Support full / half duplex mode ;

8. Support IEEE802.3X duplex flow control and half-duplex backpressure flow control ;

9. Supports broadcast storm prevention function ;

10.1916 Byte support large data frame ( optional ) ;

11. Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;

12. UTP up to 100 meters ; longest 100 km single-mode fiber ;

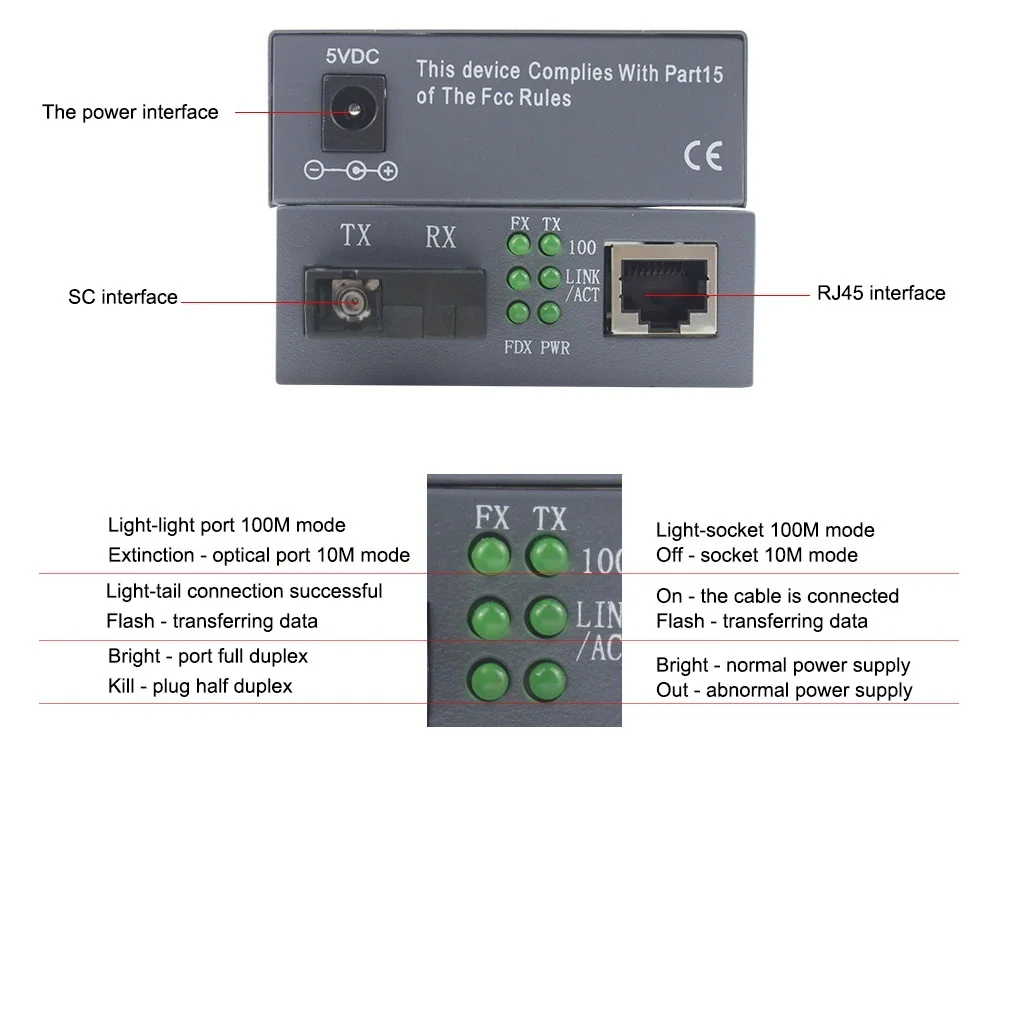

13. There are six LED indicators : Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working

status of the transceiver and determine the cause of the fault ;

14. There are external , internal power supply of two types : AC100 ~ 265V / DC5V switching power supply ;

15. Working temperature : 0 ~ 50 degree;

16. Storage temperature : - 40 ~ 70 degree ;

17. Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm.

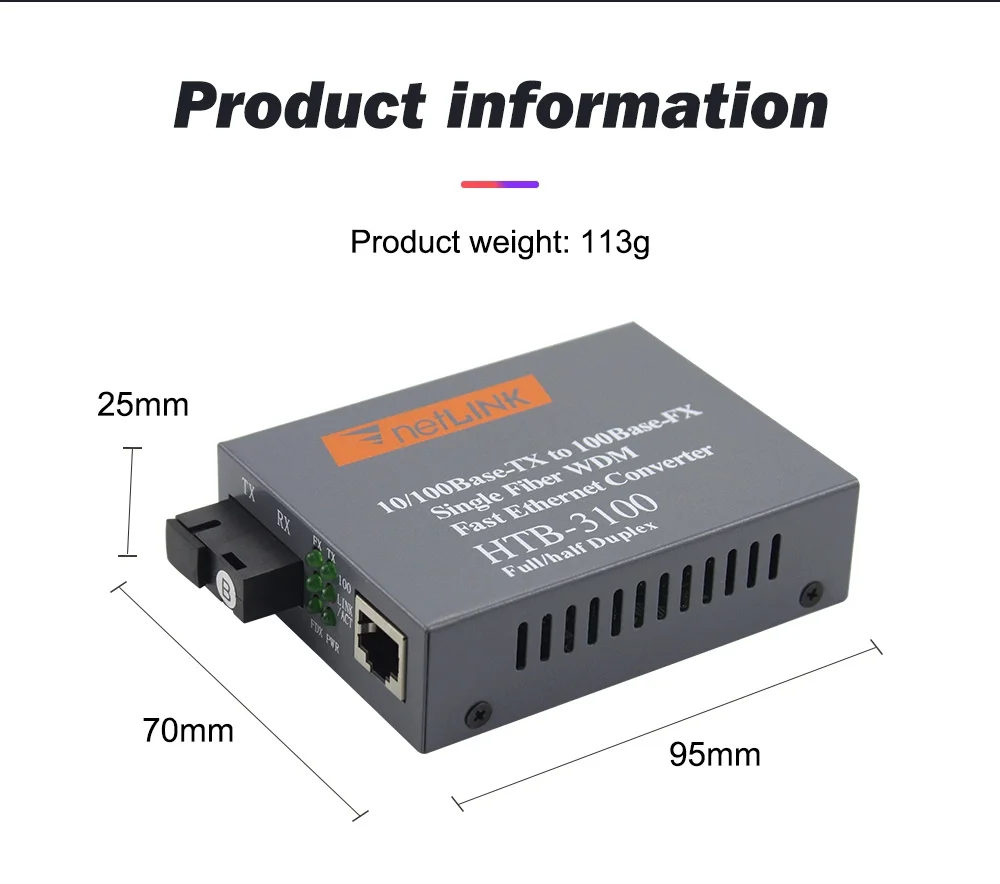

18. outer Dimensions: 95mm × 71mm × 25mm

19. Package: ESD package,Carton

For the environment:

For telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.
