433MHz Universal Garage Door Receiver and ALUTECH AT-4 Rolling Code Remote Control Matching 2CH AC DC 7-32V 220V Rf Relay Switch

You may also like this receiver

My friend, if you need a receiver that uses both WiFi, a 433mhz RF remote and a 433mhz keyboard for control, you can buy it by clicking on the image below.

You can also buy the related RF remote and keyboard to go with the receiver.

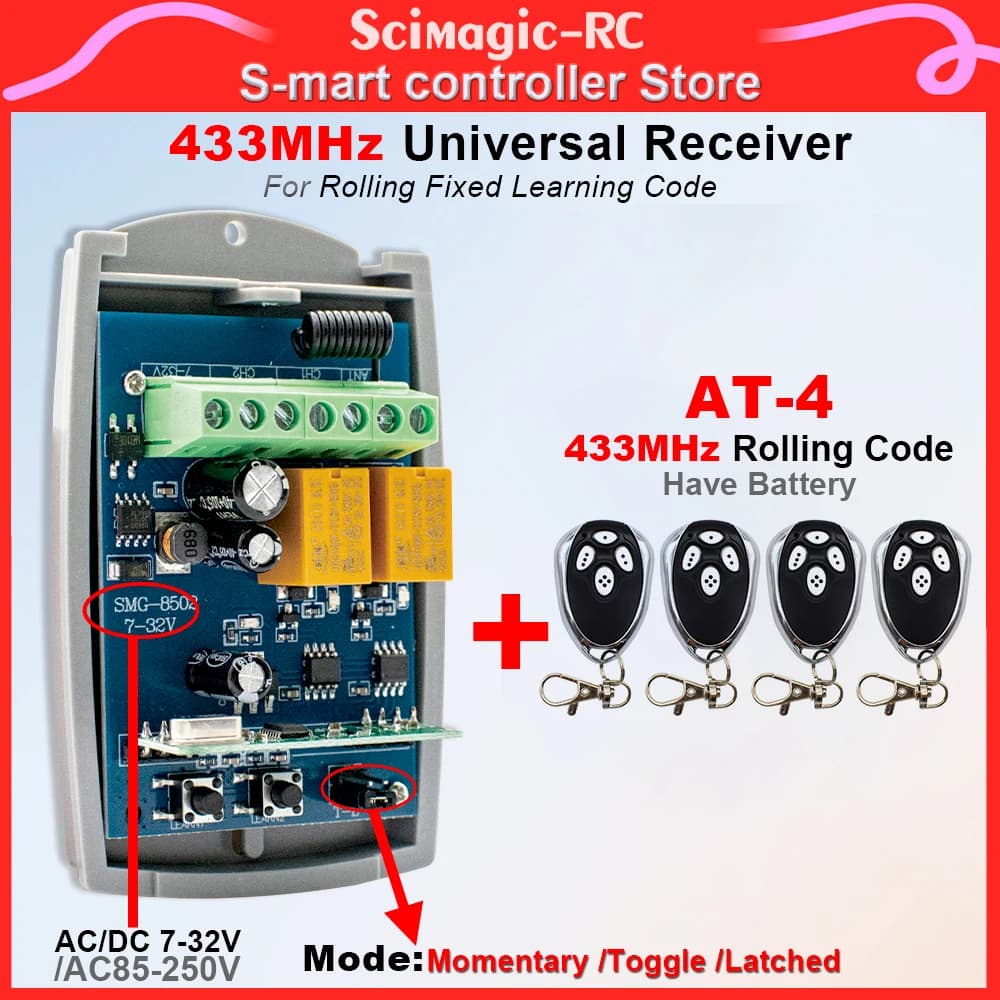

433MHz Universal Garage Receiver 2CH AC/DC 7-32V or AC 85-250V

For 433.92MHz Rolling Code Learning Code Fixed Code Remote Control

AT-4 433mhz Rolling Code Remote Control

Products advantage

1，Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

(The product is a general smart receiver and it can be matched with the majority of the wireless receiver in the market, including fixed code （2262, 2260,2264,5326,M1E,M5E etc）, learning code （1527, 2240, 6P20B, 6P20D etc）. roling code （HCS301,HCS300,HCS200,HCS201,HSC100,HCS1O1 etc） and a part of customized remote controller.)

2，2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

3，The maximum number of remote controllers stored is 400, which is enough for the entire community to use.(using a customised remote control from scimagic)

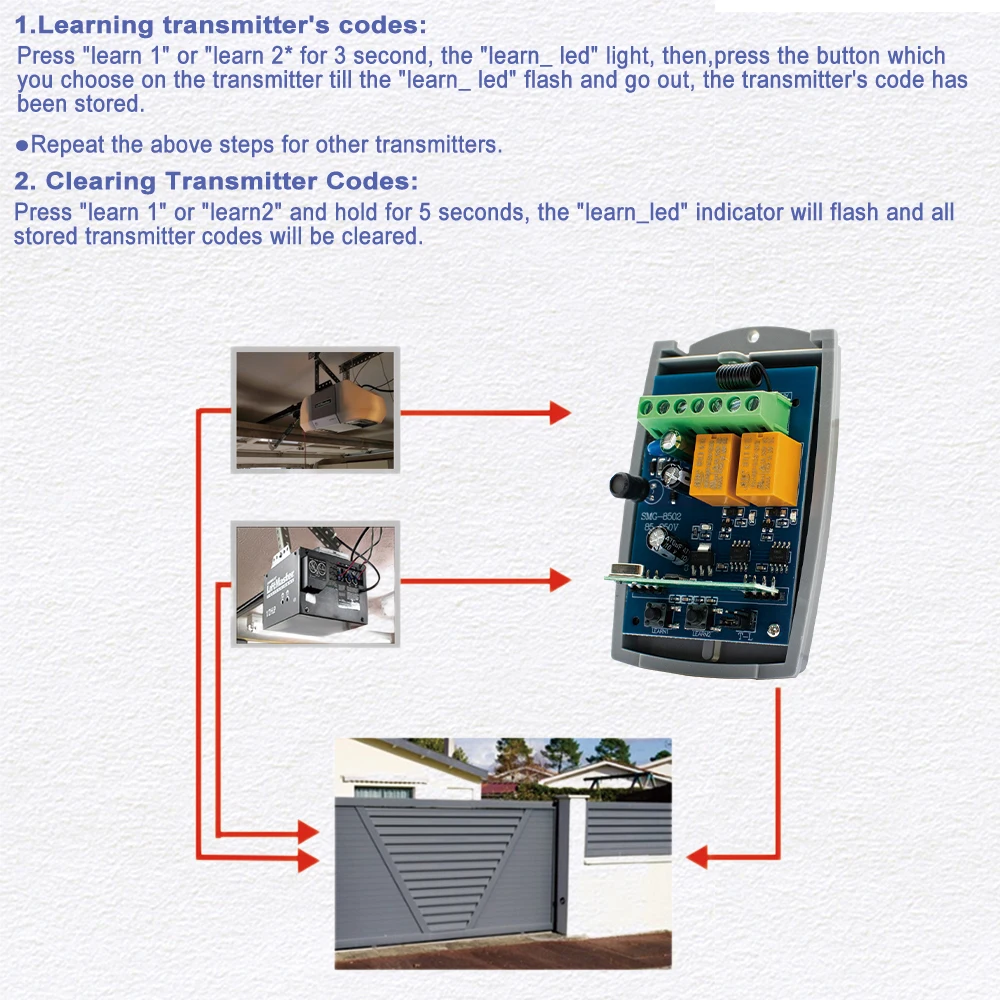

4，It's very easy to connect it to your control board. All you need is to connect 4 wires between receiver and control panel. If you will need any technical support - i'm always at your service!

5,Three working modes:Momentary, Toggle, Latched .

6,Two voltage options:AC DC 7-32V AC 85-250V

SECIFICATIONS:

1. Power supply: AC DC 7-32V AC 85-250V

2. Frequency: 433.92Mhz

3. Codes: can work with any fixed/learning/rolling codes

4. 2 channel

5. Working temperature :-40℃- + 80℃

6.Built in Aerial antenna : Reception range 10-50m

Note

Our 433mhz learning code remote control in this link can only be used for our receiver in this link, the receiver in this link can use the remote control model in our compatibility list, if your remote control model is not in our compatibility list, please don't make the purchase, it may not work.

Compatible with multiple brands

such as:

AT-4

Aprimatic

ATA PTX4

CARDIN
