TC-120 Metal Finder Metal Detector Hand Held Pulse Pinpointer Induction Diving Treasure Waterproof Metal Detector

The TC-120 diving metal detector

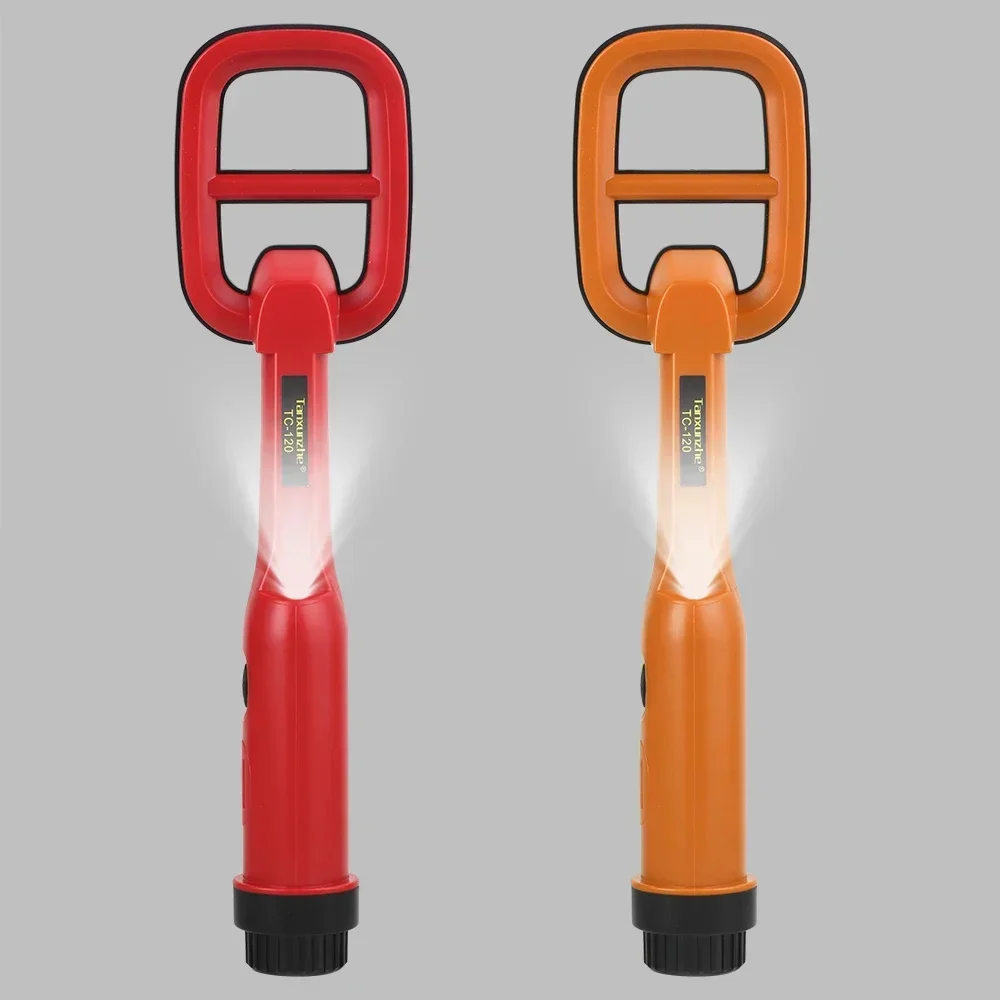

Thank you for choosing TC-120 diving metal detector. The TC-120 is a handheld metal detector. It was designed to pin locate metal (black and non-ferrous metal) objects during treasure hunting. The TC-120 can be used in combination with ground metal detectors to help discover metal targets. It has both sound and vibration to indicate the presence of metal objects. The vibration strength increases while it moves closer to the metal target. The detector has a 4.2-inch coil, which can detect small metal objects easily. It has LED flashlights, which helps detecting in dark or low light conditions. The TC-120 is diving grade waterproof. It provides reliable operation even in complex environments.

Power off

Press and hold the on / off button for 3 seconds and the device will be powered off.

Change Settings

1. After turning on the equipment, the default is (sensitivity of buzzer and vibrator)

2. To adjust mode, press the button (①) for 2 seconds. The device will make 2 beep sounds, and the LED start flashing. Then keep pressing the button ① within 1 second and change settings:

Sound vibration: low to medium to high

Voice: low, medium and high

Vibration: low, medium and high

After setting, the LED will flash five seconds, then the device will automatically confirm the current setting status.

reset

When the soil mineralization is serious, or improper operation may leads continuous error signal. Please quickly press and release the button ①, LED flashing once, the equipment will eliminate the false alarm. The system will quickly reset the detection balance, and back to normal working state.

specifications

Model: TC-120 diving metal detector

Working method: pulse induction

Operating frequency: 3.2kHz

Tuning: Auto or manual (retuning)

Indicated: Audio / vibration / LED

Temperature range: 5° to 158°F (-15° to + 70℃)

Coil: 4.2 in

Net weight: 280 g / 10.5 oz. (Battery is NOT included)

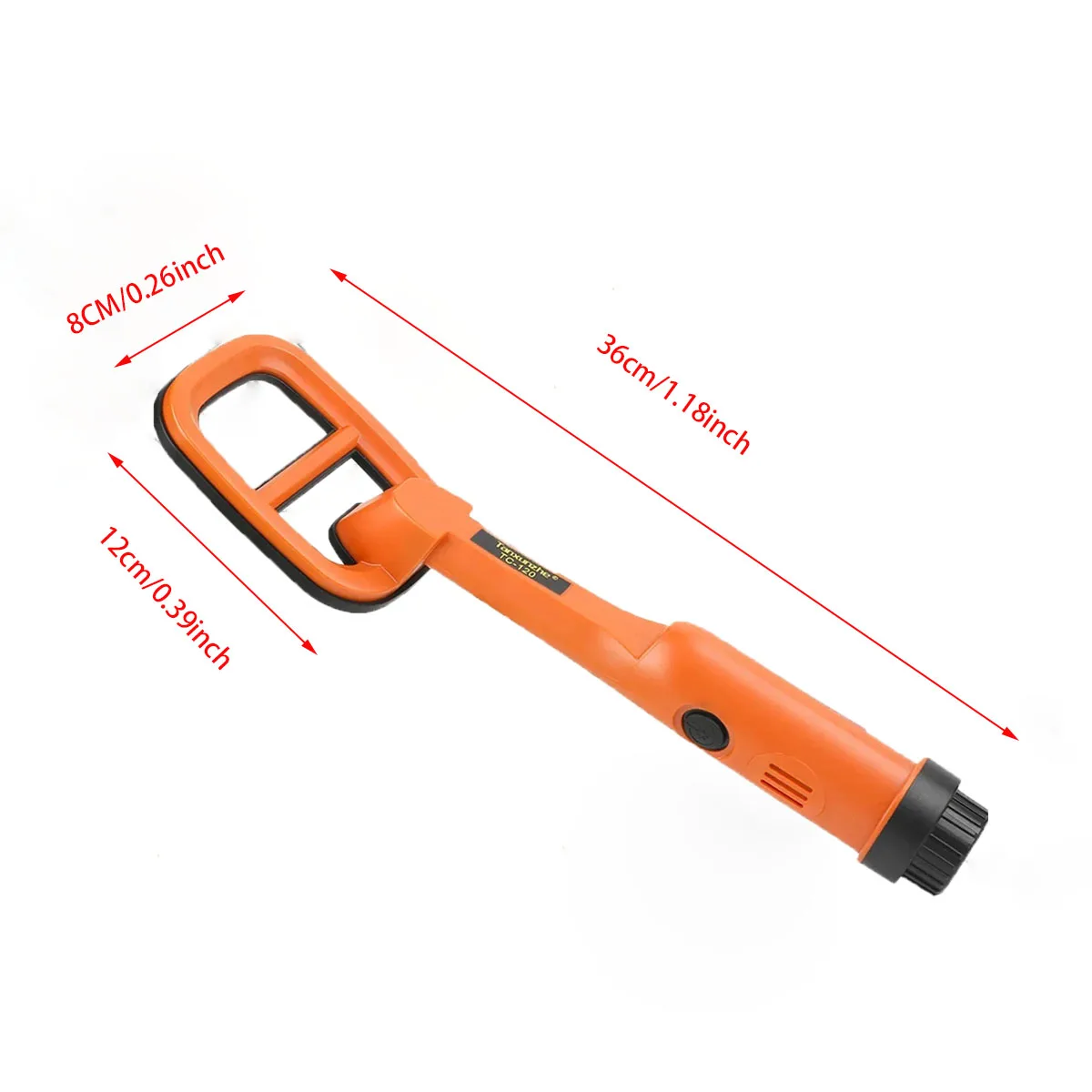

Dimensions: 34.6x9.3x 11.5 cm

Battery: 9V (6F22). Alkaline or rechargeable batteries (Battery is NOT included)

Battery power: generally 20 hours

cleaning equipment

1. Use tap water or soak a clean cloth with a household detergent solution.

2. Wipe the equipment with a wet cloth.

3. Dry the equipment thoroughly.

4. Avoid using chemical cleaners and solvents

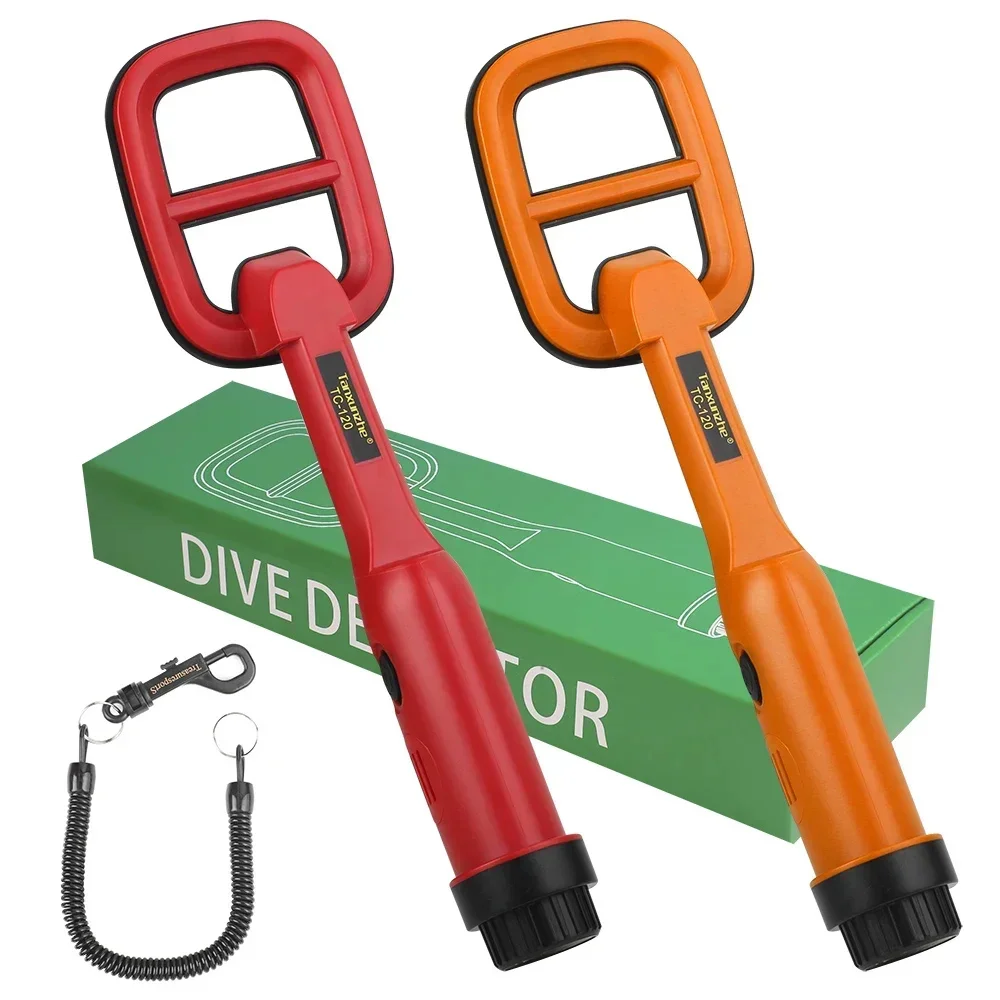

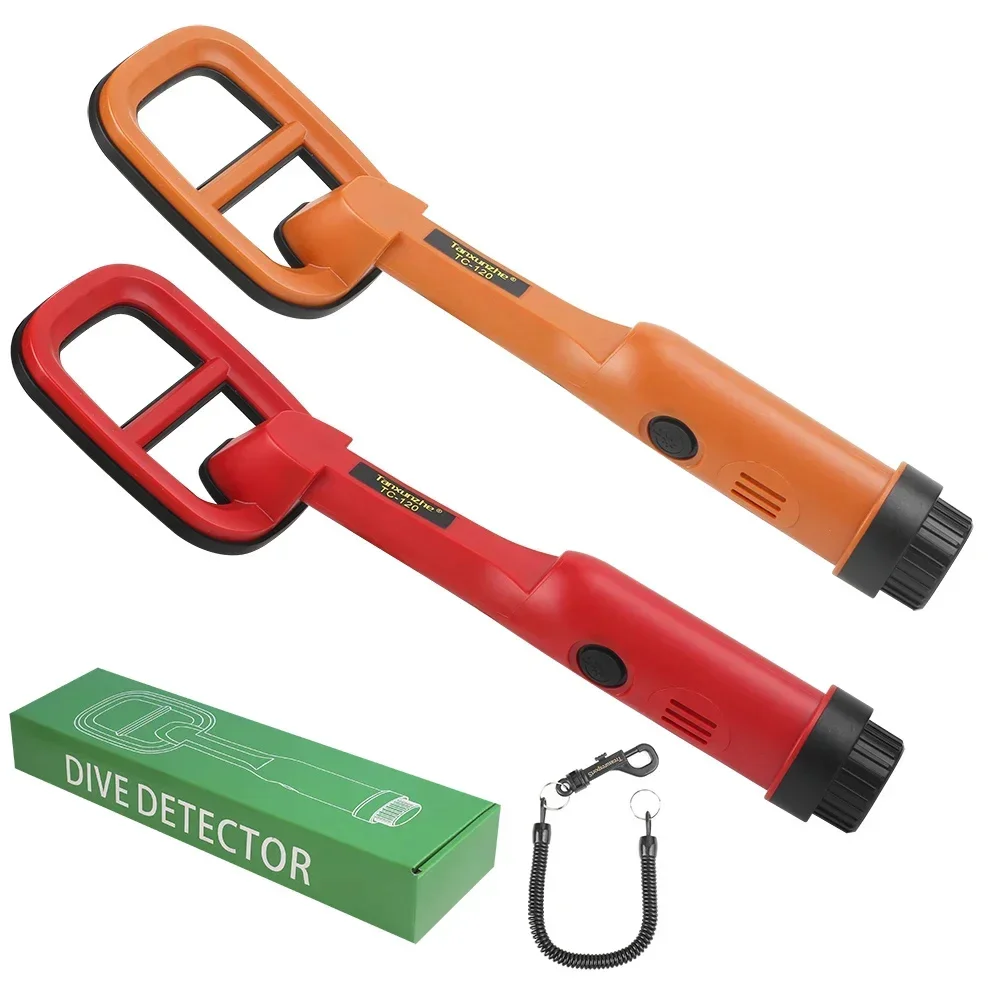

Package Includes:

1x Metal Detector

1x Manual

1x Anti-lost String

Note:

Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.

Due to the difference between different monitors, the picture may not reflect the actual color of the item.
