UNISHEEN UR230A Analog CVBS RCA SVideo Camera USB Tape VHS Capture Box MP3 Video Recorder VCR to Digital Converter

As a video recorder , it easily records audio and video from any devices which has CVBS / S-Video output ( RCA/AV output), such as a  VCR,VHS,Camcorder,RCA,DVD player...

It saves the videos onto the flash USB drives (up to 512 G ) or TF cards (up to 512 G) in MP4 format .The size of each file is 4G(FAT32) or 16G (NTFS/exFAT)

Q1,Which capture system is NTSC or PAL or SECAM

A: UR230A supports NTSC and PAL and SECAM.

Q2, Can this product runs on battery? or do i have to plug it in all the time?

The device is powered by a 5V 1A supply.it supports 7x 24 Hours to work.The battery-powered version will be available soon

Q3,which is what includes and you could bill me

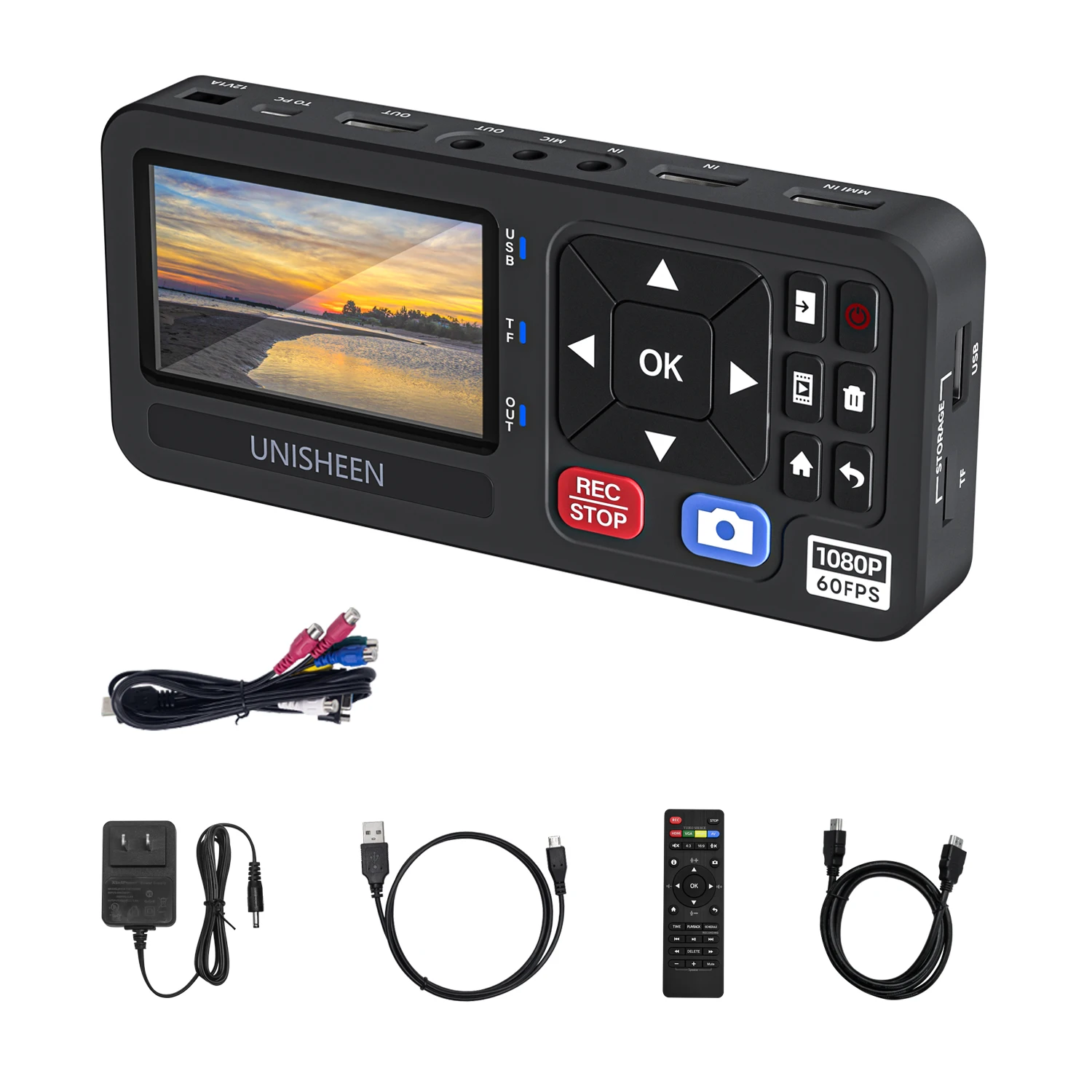

A: Included in Package:

UR230A: 1 piece

RCA Cable 1.2M: 1 piece

3.5mm Audio Cable 1.2M: 1 piece

USB Cable 0.8M: 1 piece

USB Power Adapter 5V1A: 1 piece

Remote Control: 1 piece

Manual: 1 piece

Q4, How many fps the device saves video

A: Select AUTO or 1080P recording

NTSC: Input is 480i60, record 480P30 or 1920x1080P30, and HDMI OUT outputs 1920x1080P60.

PAL: Input is 576i50, record 576P25 or 1920x1080P25, and HDMI OUT outputs 1920x1080P50

Q5,The final video files are 720 or 1080?

A: Select AUTO or 1080P recording

NTSC: Input is 480i60, record 480P30 or 1920x1080P30, and HDMI OUT outputs 1920x1080P60.

PAL: Input is 576i50, record 576P25 or 1920x1080P25, and HDMI OUT outputs 1920x1080P50

Q6,Is the voltage for power supply dual? Does its supports Singapore voltage.?

A: The device is powered by a 5V 1A supply.

The USB power supply is wide-voltage, supporting 100-240V.

We offer three types of power supplies: US, EU and UK standard. Please select the appropriate one when placing your order.

Q7,This device records video from VHS ???

A: The UR230A features composite video and S-video interfaces, capable of capturing devices such as VHS、VCRs and cameras etc
