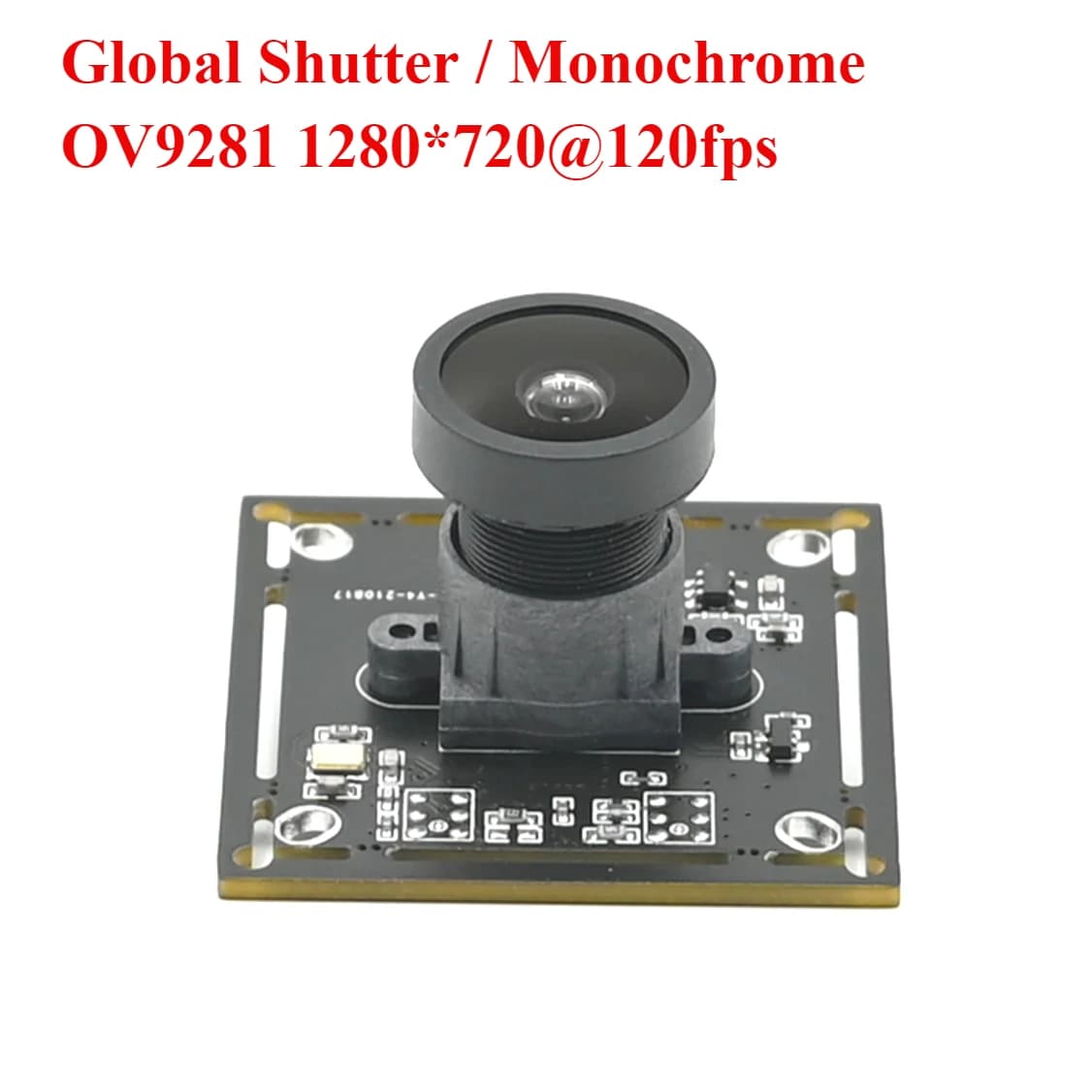

OV9281 120fps 720P Global Shutter USB Camera Module, Monochrome Black and White,1280x720, Quick Recognition Image

OV9281 120fps Global Shutter USB Camera Module 1MP Monochrome 1280x720 ,Fisheye Motion Capture Surveillance Webcam ,Plug and Play.

Feature

HD: This tiny 38mmx38mm camera global Shutter 120fps adopts 1MP OV9281 sensor for sharp image and accurate color reproduction, still picture resolution: 1280x 720 Max.

Angle: Mounted a High quality Focal length M12 lens with IR filter ( distortion-1.3mm、 distortion-2.4mm 、 no distortion-3mm、no distortion-6mm）

High Frame Rates: MJPG 1280*720 120fps、640*400 210fp、640*360 210fps；YUV 1280*720 10fps.

Plug-&-Play (UVC compliant). Just connect the camera with the included USB cable without extra drivers to be installed.

UVC USB camera, Support windows/ linux/Mac/android system. Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.Support OTG protocol and Raspberry Pi.

Parameters changable: (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)

Package include

USB Camera Module Global Shutter 1MP with the lens your choose. And 1 pieces 1M usb cable.

Specifications

Product Display：

Applications

How to use the camera

-------Camera Connect with USB port , then open your camera software and select this camera as video input.

------Parameters changable: (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)

------General software for USB Camera:

Blue iris, ContaCam, Yawcam,iSpy,Motion Eye OS,AMCAP, VideoCap ,Webcam Viewer, IP Camera Viewer, ZoneMinder,V4L2, Camerafi, VLC Player.

-------Recommend using software:

AMCAP/ VideoCap for Windows

V4L2 for Linux

FaceTime for MAC

Camerafi for Android

(Some Android are compatible, the others are not compatible)
