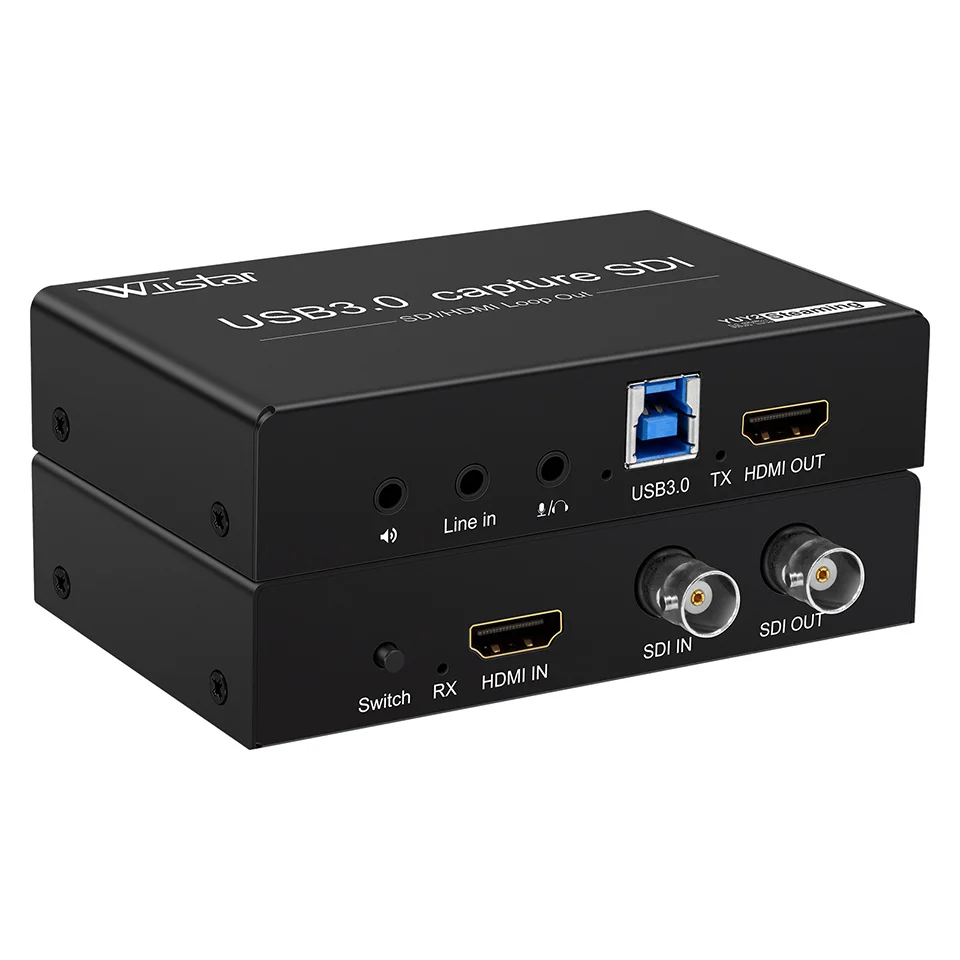

Video Capture Card UVC USB3.0 HDMI SDI To USB 3.0 Live Streaming Plate SDI HDMI Loop 1080p 60fps capture card for Mac Window

SDI/HDMI Video Capture Device with SDI HDMI Loop out .Stream and Record in 1080P 60FPS. Plug and Play - No need install driver,just plug to your PC (Windows, Mac, Linux) you can use any 3rd party software to capture or stream your HD camera video, or other SDI HDMI video sources.

Features:

【SDI/HDMI Video Capture】 -- Based on the high-speed USB 3.0 technology, It can capture SDI HD HDMI Video Sources. Suitable for devices with SDI/HDMI output such as HD Camera,HD Medical endoscope,Medical imaging,TV, Gameplay

【1080P 60fps HD Quality】 -- Capture resolution up to 1080p at 60fps for 1080P video source with hardware accelerated up-scaling/down-scaling. Automatically converts input audio formats to 48 kHz PCM stereo audio

【Live Streaming】 -- Audio & Video recordability from external devices via SDI port, simple file save and share on the computer, compatible with popular streaming software and services like OBS Studio, VLC, etc

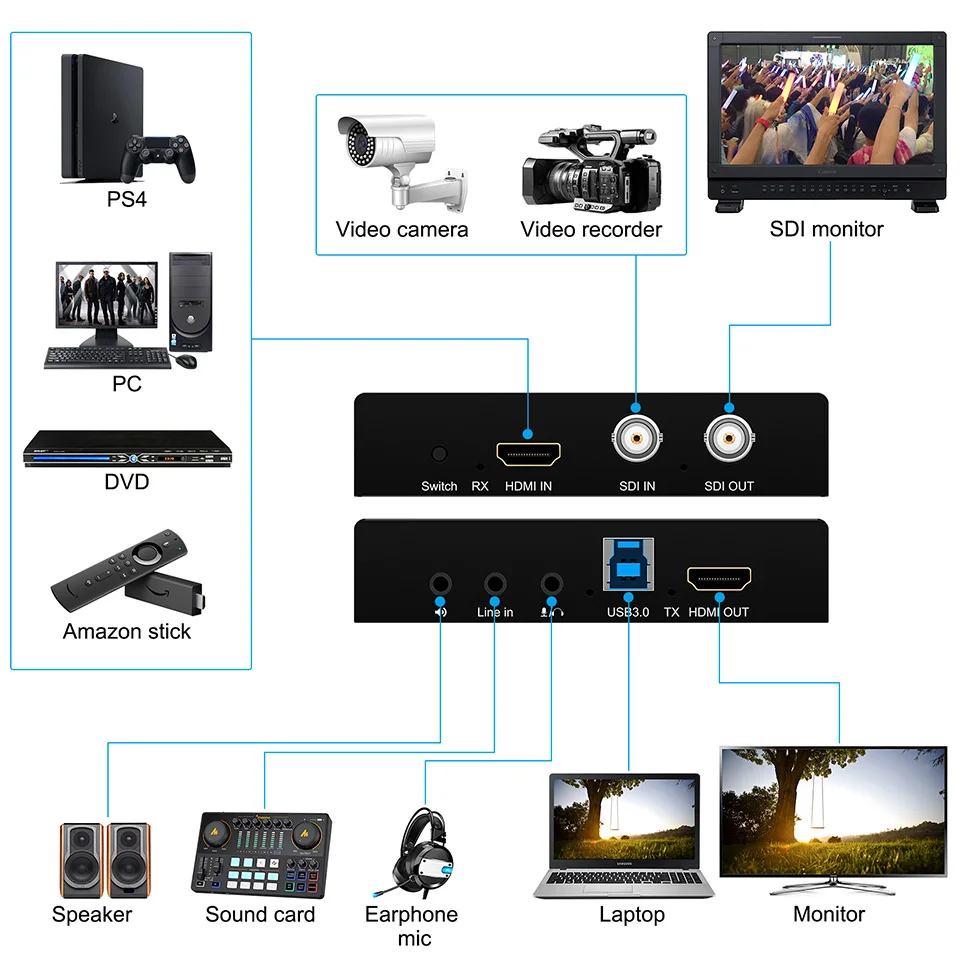

【Easy to set】 -- Easy to Record & Stream for Windows, Mac OS & Linux,Just connect the video capture to a computer with a USB 3.0 cable, connect it to a video source device with a SDI cable, run a recording software on the computer (such as OBS Studio).Take it anywhere,Share gameplay and have fun with your friends wherever you are.

【Plug-N-Play】 -- No driver or external power supply required, a Low latency game, live streaming; Share to youtube, facebook, and twitter.

Specifications:

1. Input interface: 1 HDMI-compatible/SDI interface;

2. Output interface: USB3.0, 300 ~ 350MB / s throughput;HDMI

3. HDMI-compatible input: 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480

4. HDMI-compatible sound input: LPCM sound signal ,MIC;

5. HDMI-compatible input format: compatible with HDMI-compatible 1.4 standard, maximum bandwidth support 1080P/ 60Hz, 12bit deep color;

6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /

1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x1080

frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps;

7. Video sampling rate: HDMI-compatible : 165MHz;

8. Audio and video capture: it conforms to UVC (USB video class) and UAC (USB audio class) standards;

9. Output color space: YUV, RGB;

10. Support operating system: Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS;

11. Software compatibility:

Adobe Flash Media Live Encoder (Windows, OS X);

Real Producer Plus (Windows); VLC (Windows, OS X, Linux);

QuickTime Broadcaster (OS X); QuickTime Player (OS X), OBS, PotPlayer and etc.

12. Power consumption: <= 2.5W;

13. Working temperature: 0-70 degrees Celsius;

14. Storage temperature: -20-120 degrees Celsius;

15. Storage humidity: 5% -90%;

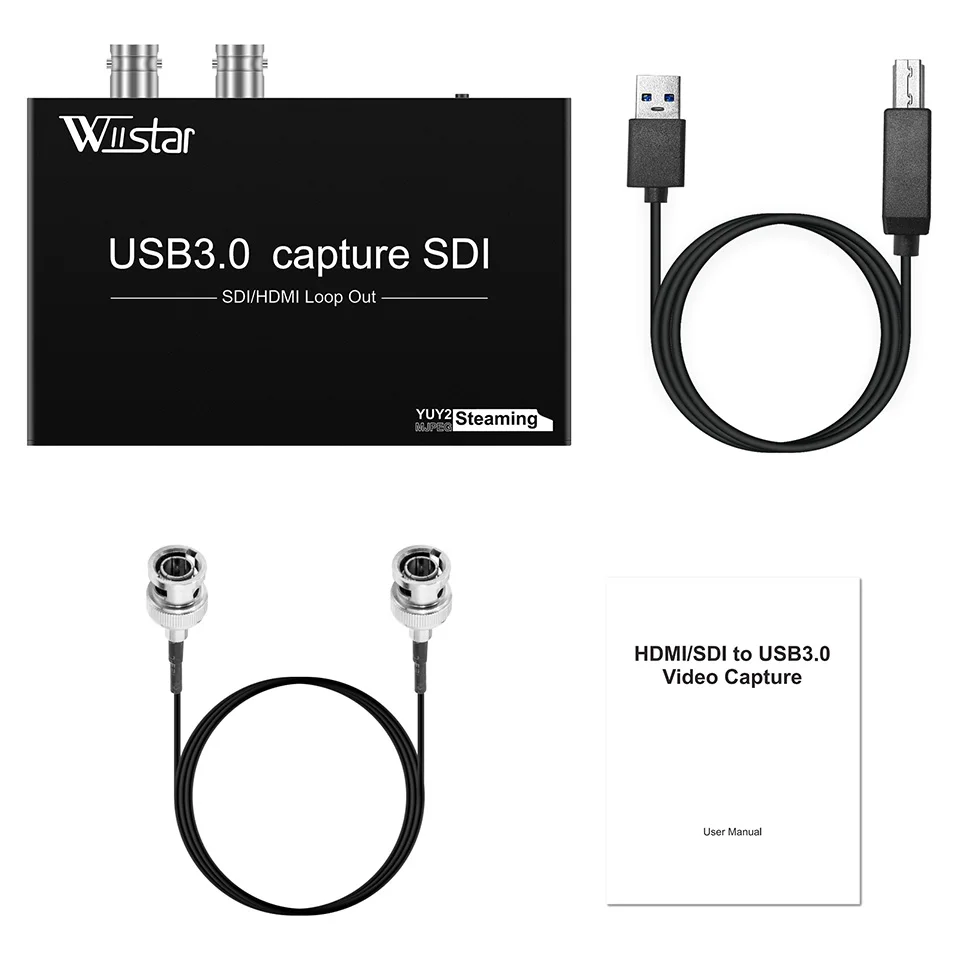

Package:

1* HDMI+SDI Capture Dongle

1* SDI cable

1* USB cable

1*CD

Please note:

This item is plug and play, butit still need video capture softwares to capture video, like PotPlayer orAmcap.

Example:Amcap
