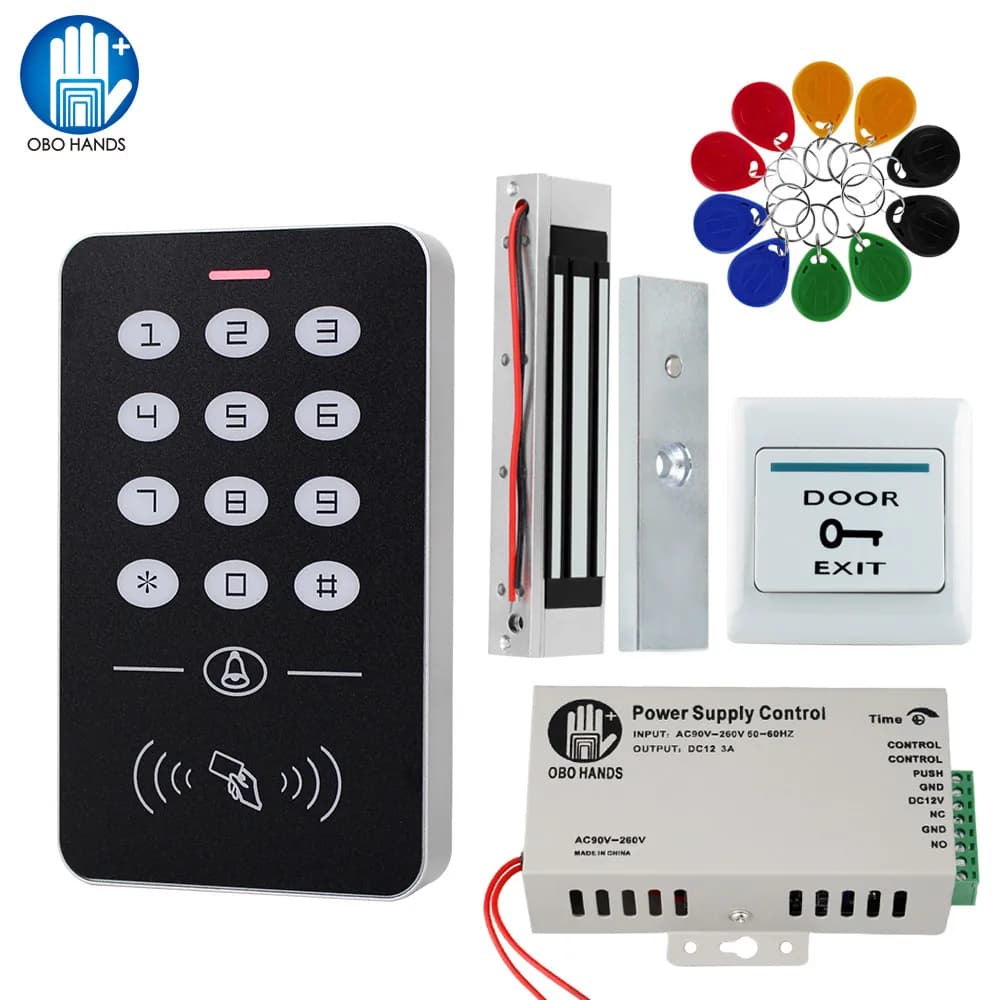

OBO Hands Door Access Control System Kit RFID Keypad + Power Supply + Electric 180KG Magnetic Lock Strike Door Locks for Home

OBO Hands Door Access Control System Kit RFID Keypad + Power Supply + Electric 180KG Magnetic Lock Strike Door Locks for Home A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you. Product Description Access Controller: User capacity: 1000 Card reading type: EM card Card reading distance: 1-5CM Identification method: card, password, card + password Programming password: 123456 Unlocking time: 5 seconds Open the door input: all the way to open the button input Doorbell output: one way wired doorbell output Can be connected to automatic door or gate Working voltage: DC 12V ± 10% Working power supply: <100mA Working temperature: 0 ° C ~ 60 ° C Size of A1: 113*70*20mm Surface Waterproof and dustproof panel The ABS flame-retardant casing is integrally formed. After the installation is completed, a layer of glass glue can be applied to the back cover to achieve a comprehensive waterproof effect. (not IP65 waterproof, can't be used under the rain directly) Support RFID Card, password, RFID Card+ password to open the door Support 1000 card and password user capacity, can set card + password to open the door, the safety factor is higher Power Supply: Material: Steel Output Power: 36W Durability Test: 500000 times Input Frequency: 50-60Hz Input Voltage: 110-260VAC Output Voltage: DC12V/3A Working Temperature: -20 to +65 Time Delay: 0-15 seconds adjustable Relative Humidity: 0%-90% Dimension: 100*65*32mm Door Exit Button: Material:Hard Plastic Maximum Power Rating:36V DC 3A—5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode) Dimension:86X86MM ( L / W ) RFID Keyfobs: 125KHz rfid frequency key card Operating frequency: 125kHz Detection range: 0-10cm Each card pre programmed and has a unique identity number on it. Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us. Package List Kit3: Suitable for wooden door, metal door. convenient and beautiful. No need bracket Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs (We will send the NC type by default, if you want NO type, please leave us a message.) Working Voltage: 12V ± 10% Current: 200mA - 450mA Holding Force: 500kg Surface Temperature: Lower than room temperature +20 Working Temperature: -30-+60 Celsius Degree Operating Humidity: 0~90%(non-condensing) Feature：Fail secure (NO), Fail safe(NC) Material: Stainless steel NC type strike lock: Locked when power on, unlocked when power off NO type strike lock: Locked when power off, unlocked when power on Size: 150 x 28 × 34mm（L / W / H） Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket. Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs Working voltage: 12V Time delay: 0s,3s,6s adjustable Working current: Start state 1.2A ; Persistent state 120mA Coil type: Continuous working Security type: Electric power lock, unlock Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM Locking mode: Magnetic induction Unlock Mode: Fail Safe (Locked when power on, unlocked when power off) Dimension: 150X34X28( L / W / H ) Kit5: Suitable for wooden, metal and glass frame door. No need bracket. Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs Material: Aluminum alloy shell + iron plate Holding force: 180KG/350lbs Working Voltage: DC12V Working Current: 380-430mA Humidity: 0 to 95% Working Temperature: -10 to 55 Celsius degree Working mode: power-on to lock, power-off to unlock Waterproof: Yes. Can be install outside Kit6: Suitable for frameless glass door. Need U bracket. Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs If your door is frameless glass door, then will need a U bracket Size of U Bracket: 130* 33 * 26mm (L/W/H) Kit7:Suitable for wooden, metal door. Need L bracket. Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket. Size of L Bracket: 170* 34 * 25mm (L/W/H) Kit8: Suitable for wooden, metal, glass door. Need ZL bracket. Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs If your door is open from indoor, then need to add the ZL bracket. Size of L Bracket: 170*34*25mm (L/W/H) , Size of Z Bracket: 138*45*45mm (L/W/H) Kit9:Suitable for wooden, metal and glass frame door. No need bracket. Package including: Access Control keypad + Power supply + E mbedded 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs Size of the Lock: 192Lx33Wx20H(mm) Size of Armature Plate: 139Lx32x11H(mm) Holding Force: 180kg(350Lbs) Input Voltage: 12VDC Current: 12V/120mA Wiring Diagram
