868mhz 433mhz garage door command duplicator Digital D302 D304 382 384 remote garage gate control

Purchase Note

The purchase option has two products with different prices and different frequencies.
Please purchase correctly according to your Marantec frequency.
Please don't buy the wrong product because of the lower price.

Garage remote control Digital D302 D304 868.3MHz / 433MHz

Specifications:

Working voltage: 3V (CR2032 battery a including)
Operating Current: ≤ 8mA
Working frequency: 868.3MHz / 433MHz
Modulation Mode: ASK (AM)
The transmission power: ≤ 100mW
Emission Distance: 50 to 100 m (proof)
The encoding type: self Copy
The working temperature: -20 ° C to +50 ° C

Features:

1.Privacy is strong
2.One to one key copy
3.Each key password alone save
4.Can continuous repetitive copy use one million times

Compatible Model:

Digital D302 868
Digital D304 868
Digital D313 868
Digital D321 868
Digital D323 868
Command 131 868

Not compatible with remotes that operate on 433.92MHz

Compatible 433MHZ Model:

Digital 382 433

Digital 384 433

Digital D302 433

Digital D304 433

Digital D313 433

Digital D321 433

Digital D323 433

Command 131 433

Digital 211 433

Digital 212 433

Digital 214 433

Digital 221 433

Digital 222 433

Digital 224 433

Digital 231 433

Digital 232 433

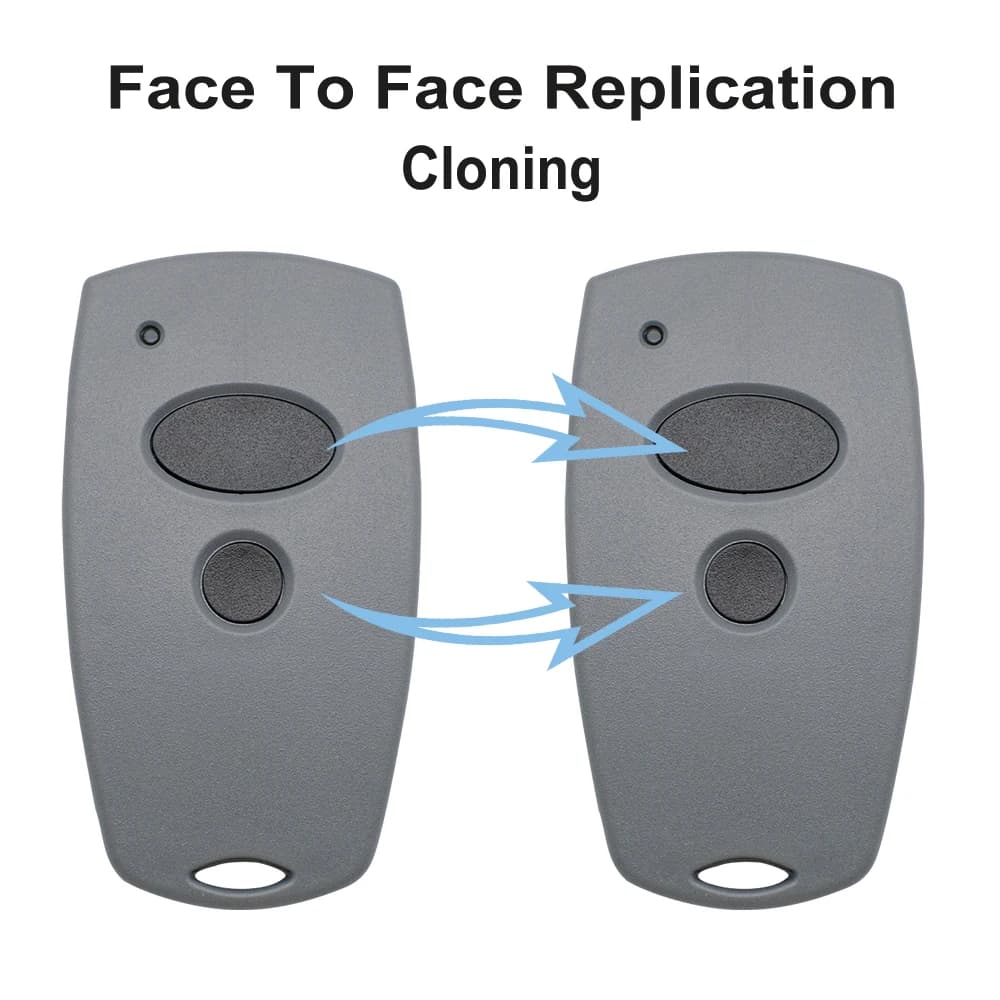

Face To Face Copy Your Original Remote Control

Step:1: Clear the history code from duplicator
1. Press button A and B continuously until LED flash 3 times
2. Release button B (Keep pressing button A),and press button B
Slowly for 3 times.LED flash
3. Release button HAH,finish code clearance.
Step 2: Copy code from original transmitter
1. Put duplicator aside of original transmitter.as close as possible.
2. Press and hold button A of original transmitter,then press and
hold button A of duplicator until you see the duplicator's LED flash
3. Release both buttons,finish code copy.copy other button in same
way.

Include:

Remote Control
Battery
Keychain
English Manual

Marantec 868mhz

Marantec 433mhz
