Tuya Smart WIFI Wireless Security Alarm System Alarm Kit Home Burglar Motion Door Sensor Compatible Google Home Alexa

Tuya Smart WIFI Wireless Security Alarm System Siren 433Mhz Home Burglar Motion Door Sensor Compatible Google Home Alexa

Product description:

●Searching Record of alarm alert.

●All accessories can be set named .

●Compatible with Google home and Amazon Alexa.

●On-site high-decibel alarm, flashing lights and other alarm modes.

●Home Arm, Away Arm, Disarm.

●Low-battery detection.

●System power off detection.

●Tamper detection.

●Built-in battery.

●Volume is adjustabl

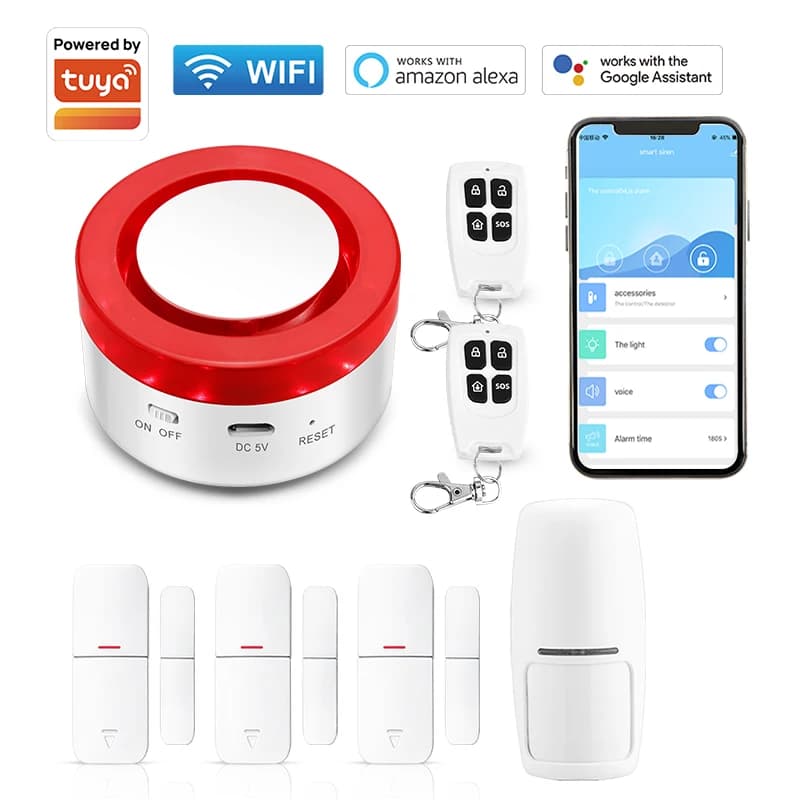

Product Image:

WIFI Alarm Panel

Power Input: DC 5V / 2A;

Standby current:≤150mA;

Alarming current : ≤350mA;

WIFI Standard:802.11b/g/n

Backup Battery: 4.2V 300mAH rechargeable Lithium battery.

Full charged time:5hours.

Wired Siren volume:120DB (The default beep time is 180s when alarm);

Alarm Host RF receiving frequency:433MHz（±75KHz）,

Detectors≤100 meters (in the open distance)

Description of 433Mhz Motion PIR:

Input voltage: 9V 6F22

Standby current: ≤35uA

Alarm current: ≤45mA

Wireless frequency: 433M±75KHZ 330K EV1527

Wireless distance: ≤80M (in open space)

Detection distance: 8M/110°

Working temperature: -10℃～+50℃

Humidity: ＜80% RH

Description of 433MHz Door Sensor:

Input voltage: 12V 23A

Standby current: ≤10uA

Alarm current: ≤45mA

Wireless frequency: 433M ±75KHZ 330K EV1527

Wireless distance: ≤80M (in open space)

Working temperature: -10℃～+50℃

Humidity: ＜80% RH

Description of 433MHZ Remote controller

Input voltage: 3V CR2032

Standby current: ≤10uA

Alarm current: ≤15mA

Wireless frequency: 433M ±75KHZ 330K EV1527

Wireless distance: ≤80M (in open space)

Working temperature: -10℃～+50℃

Humidity: ＜80% RH

Noted:

Alarm Panel

The gateway should be very near to the router to make sure network configuration easily and fast.

Don’t support 5G Wi-Fi network at the moment

Motion PIR

To avoid the false alarm, please pay attention to the following points in stalling the PIR motion detector:

① Do not face the glass door/window.

② Do not face the big object which is easy to swing.

③ Do not face the cold and heat air vent or cold and heat source.

④ The furniture, miniascape, or any other isolations should be away from the detecting scope.

⑤ Do not install 2 or more detectors in the same area or it will cause the interference when alarm.

By sensor

The gap between the magnet and the sensor should be less than 10mm.

② After the installation, if the indicate light of the detector is on when the door is opened, it proves it is

installed successfully.

③ If the indicate light of the door detector flashes when it is triggered, it means the battery of the sensor is in low

voltage, and you need to change the battery as soon as possible.

④ The transmit distance of the detectors is less than 80meters in the open area. Please test the distance before

installing. The obstacles will change the transmitting distance.

Reminder：

System Inspection:

The system need the periodic inspection to ensure the stable and safe work. We suggest the users inspect the

system per three months and inspect the detectors per month.

Alarm Host Inspection：

● Check whether the host can receive the signals from detectors normally and the back-up

battery work normally or not.

● Check whether the host can arm or disarm normally.

● Check whether the host can call through the phone numbers when alarm occurs.

Detector Inspection:

● Trigger the detector by hand to check whether it can send the alarm signal successfully.

● Check the battery of each detector to see whether it is short of voltage

Declaration:

This product is all for physical photography, and due to factors such as angle and lighting, there may be slight differences between the photos and the actual product. The products are mainly based on the actual product.
