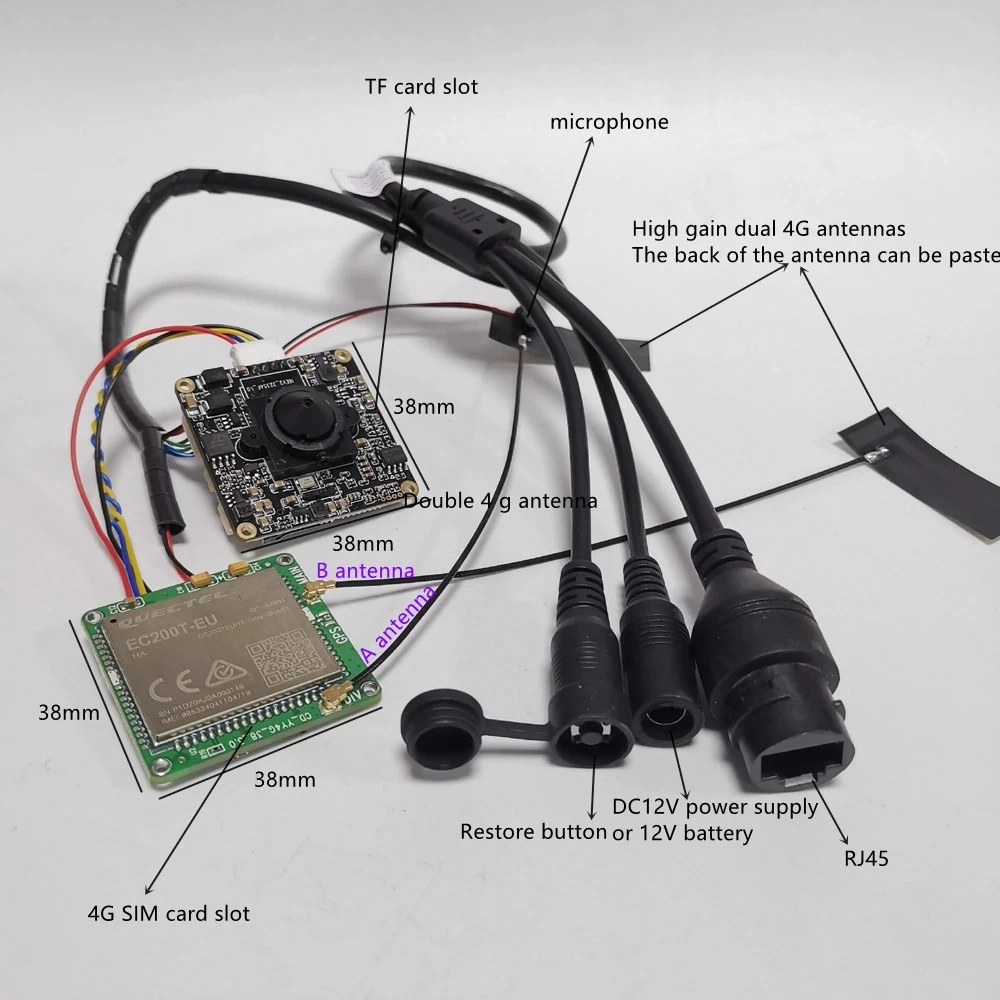

Camhi 4G LTE IP Camera Module Pinhole 1920P IMX335 DIY Secret CCTV Mini 3G/4G SIM Card Surveillance Built-in MIC SD Card Slot

CamhiPro 2MP 5MP Mini 4G Pinhole Camera Wireless Video Security Camhi 3G/4G SIM Card Surveillance Module DIY Secret Onvif CCTV

NOTICE:

Our IP Camera DO NOT Included The Power Adapter,

If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

2MP/5MP Image Quality

See clearer video, provide enough security, a high resolution of 2560x1920 (5 million pixels).

H.265 Video Compression(2MP H264)

5MP With the H.265 video compression technology, more memory space will be saved compared with H.264 in storing the same videos. Meanwhile, it not only transmits clearer and smoother video, but also saves more disk storage space, thus saves the cost of buying an extra HDD.

AI Human Auto Tracking

Human Detection algorithm reduces false motion detection alerts by filtering for human features. Smart Tracking allows the camera to track objects in motion. When enabled the camera will begin to automatically record and follow the object in motion.

Motion Detection and Alert

Mobile detection can be notified via APP to better protect your home, store, garage, etc. When a bad guy enters your home, you can use the APP to warn and drive the bad guys to protect your home.

TF card storage, maximum support 64GB

It can be watched remotely through the mobile APP, at any time, anywhere

ABCDEFGH lens selection, if you need ,welcome to contact with our team custom made for your requirement !

Warm Tips:

4G Version Works both 4G and lan cable RJ45

Important Warning:

If you want to use this 3G 4G IP Camera,

You Must check your SIM card frequency range Must be in below listed range.

We will not agree any dispute for your own reason for your wrong order.

3G standard: WCDMA

Frequency range: B1(2100MHz), B8(900MHz)

4G standard: FDD-LTE

Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)

--You MUST check your SIM card frequency range must be in below listed range.

Related instructions

Three operating modes. Wired, WiFi ,3G/4G.

In the place where the camera is installed, there is no network or WIFI signal. But have SIM mobile signals.

You can install a SIM card to the camera and connect the Internet by your SIM card

Tips: When using 3G/4G. Do not connect the network cable at the same time . Avoid IP assignment conflicts.NO need to set up wifi signal

In 3G/4G mode. The camera does not support the local PC client (unless the PC is connected to the 3G/4G signal MIFI-XX).

In 3G/4G mode. Camera does not support cloud FTP storage

How to quickly set up 3G/4G

First of all , Download APP "CamHi" from the iPhone App Store or Google Play Store. Or scan the QR code

If you choose the camera has 3G/4G. Then when the camera leaves the factory. The default connection to the 3G/4G module (signal MIFI-XX) has been set.

Note:If you use the reset button. Then you need to re-bind the camera to MIFI-xx

You only need a few simple steps.

Insert the SIM card into the camera. Connect the power adapter , wait 10-20s, camera will be ready.

Then open your phone WLAN setting , you will find "MIFI-XXX" and select to connect, the default password is 1234567890

When your phone is connected to MIFI-XX. Then open the app "camhi". Select "Add Camera."

Because your phone is connected to MIFI-XX. So you can choose "Search Camera from LAN". Or directly scan the QR code of the camera.

Then you can see your camera online. You can control the camera and watch videos from your phone.

NOTE:

If view the 3G/4G camera is offline, please check the SIM card”.

Use the mobile phone or PC to connect the WIFI “MIFI_3F41”,the WIFI password is “1234567890”, you can find the WIFI when the

camera starts working. Access “192.168.100.1” through the browser, the page password

is “admin”, you can check the SIM card information on this page.

If your camera display is offline, please note the following:

1.Damaged card or wrong installation direction when prompted "

No SIM Card or SIM Card invalid! ", as shown below:

2.Frequency not supported or SIM card arrears when prompted "No Service" or "Limited Service", as shown below 1):

3.Make sure 3G/4G signal strength is enough, as shown below 2):
