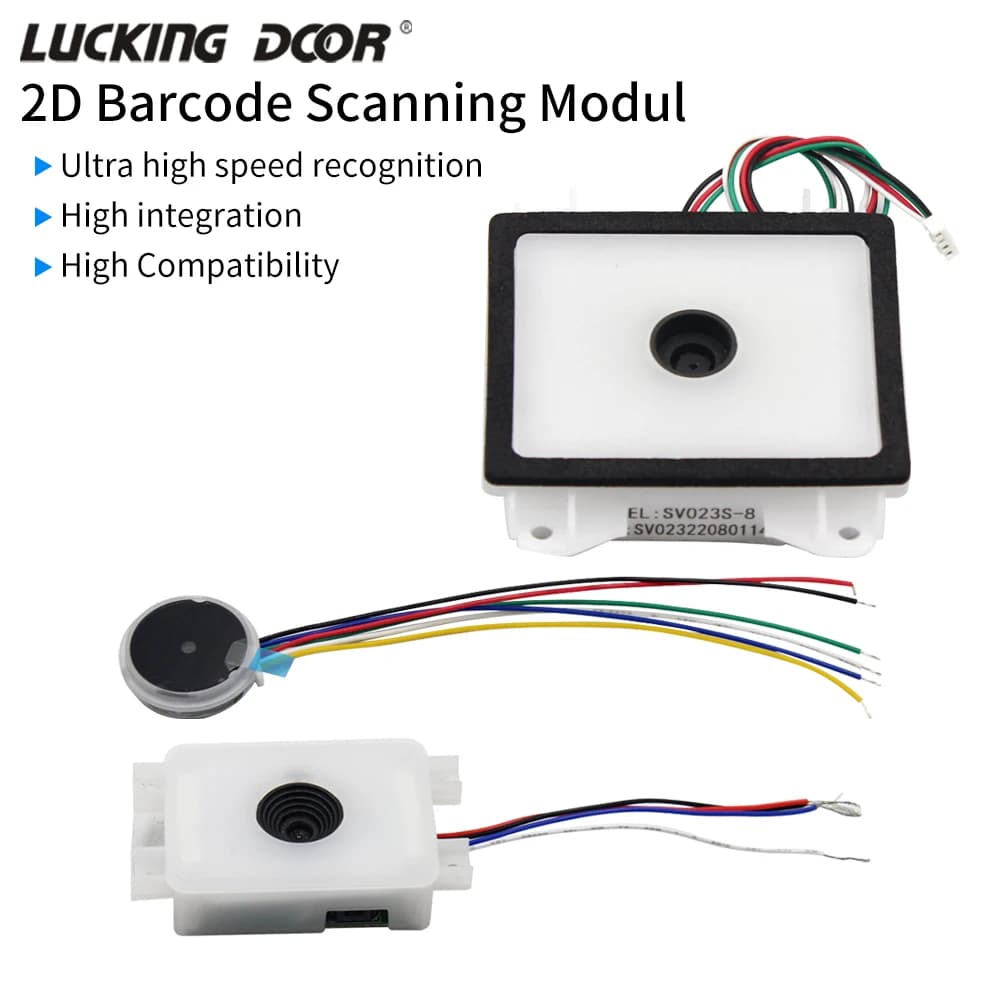

GM861S UART/USB Interface 1D/2D Bar Code QR Code Barcode Reader Module Embedded Fixed Installation White Green LED Plug And Play

GM861S UART/USB Interface 1D/2D Bar Code QR Code Barcode Reader Module Embedded Fixed Installation White Green LED Plug And Play

High speed identification screen bar code two-dimensional scanning engine module integration,

Can be very convenient for payment, gate and other application environment

Highly compatible transmission interface for more devices and more secure data transmission

Symbology Decode Capability

1-D: Codabar、 Code 39、 Code 32 Pharmaceutical (PARAF). Interleaved 2 of 5、 NEc 2 of 5、 Code 93. Straight2 of 5 Industial, Straight 2 of 5 IATA , Matrix 2 of 5 ,Code 11、Code 128、GS1-128、UPC-A.UPC-E.EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、 GS1 DataBar Limited、 Gs1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.

2-D: Codeblock A.CpdeblockF、PDF417、Micro PDF417.Gs1 Composite Codes,QR Code、 Data Matrix.MaxiCode、Aztec、HANXIN.

Interfaces Supported:USB,RS232（Note: Under the serial port, the TX voltage is VCC * 0.85, TX LOGIC HIGH MIN VCC*0.8, TX LOGIC LOW MAX VCC*0.25）
