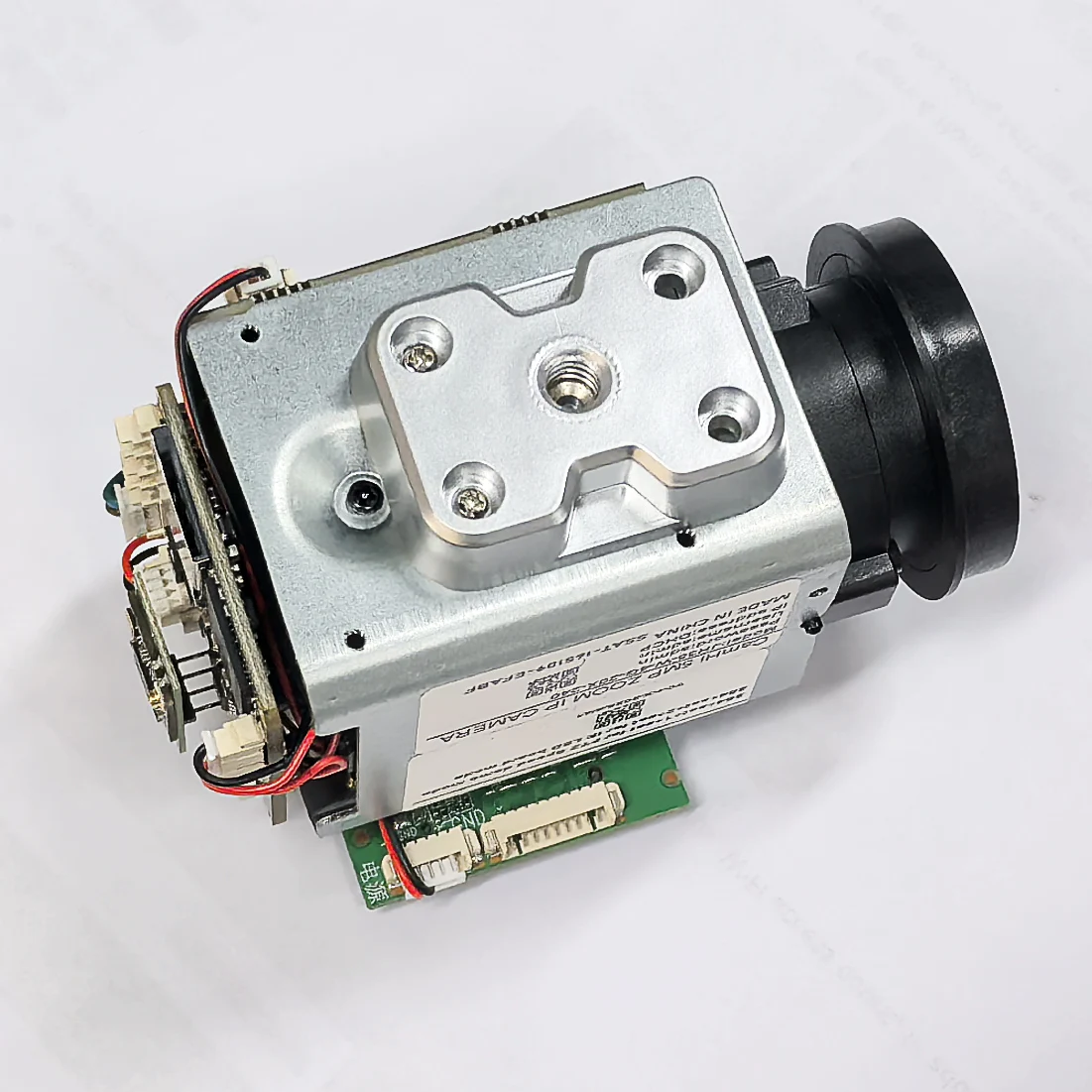

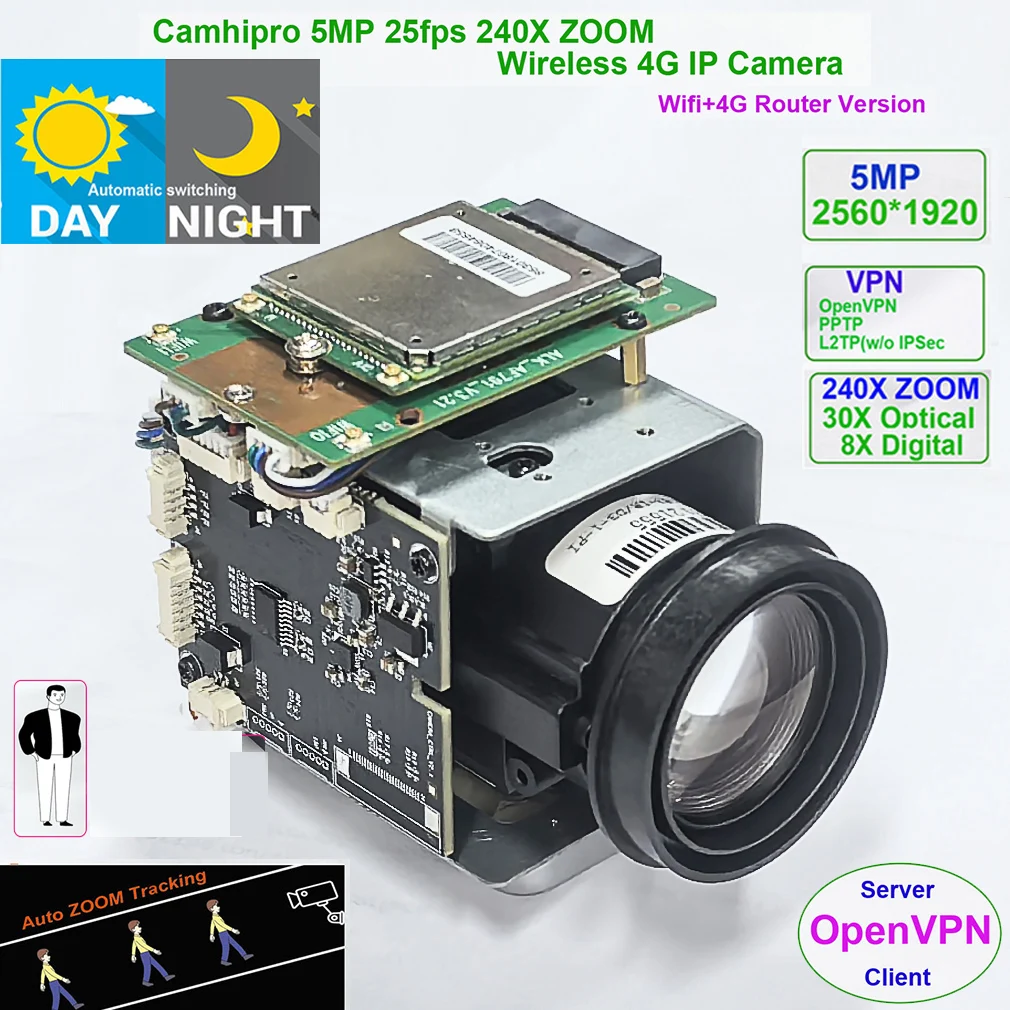

Camhi 5MP 240X Zoom 4G Wireless Auto Zoom Tracking Humanoid IMX 335 IP Camera Wireless AP DV Recorder SD 4G SIM

You can ask us for Manual

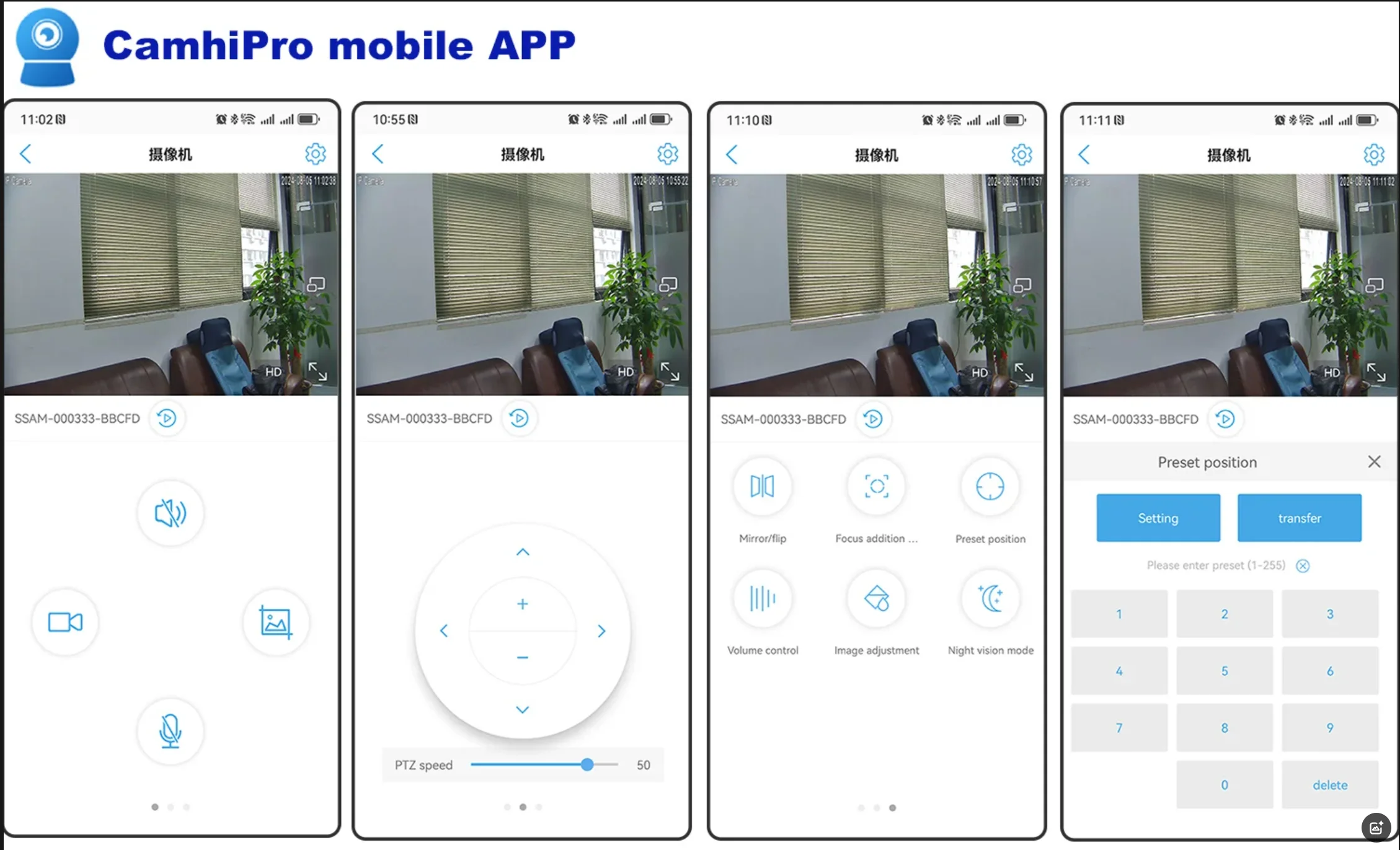

APP:CamHipro

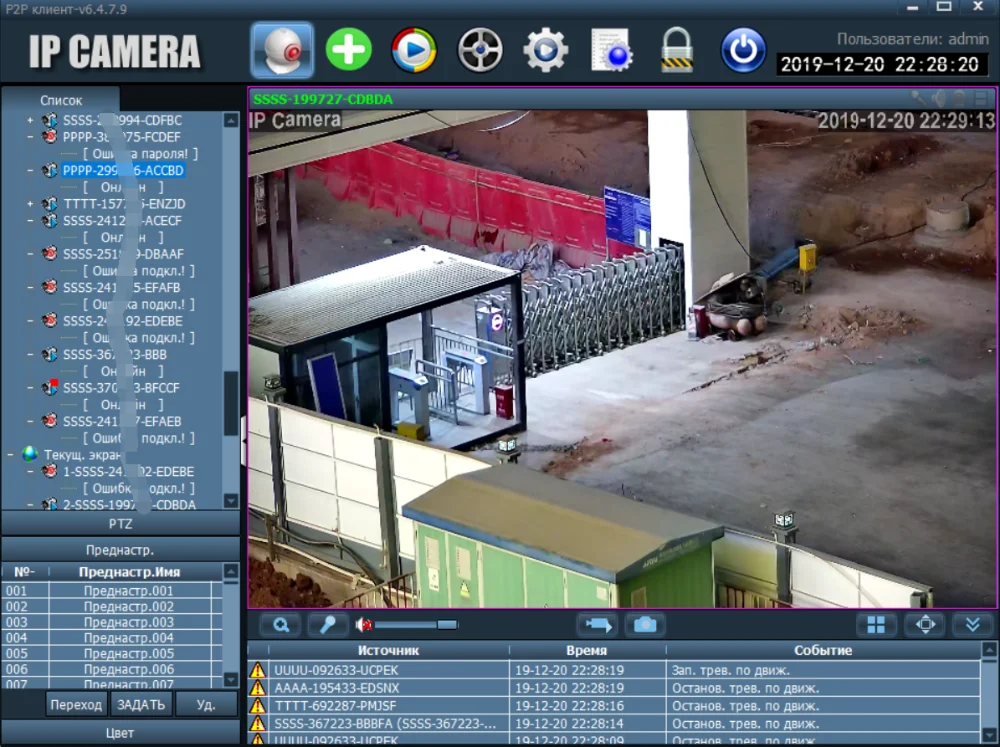

PC software:

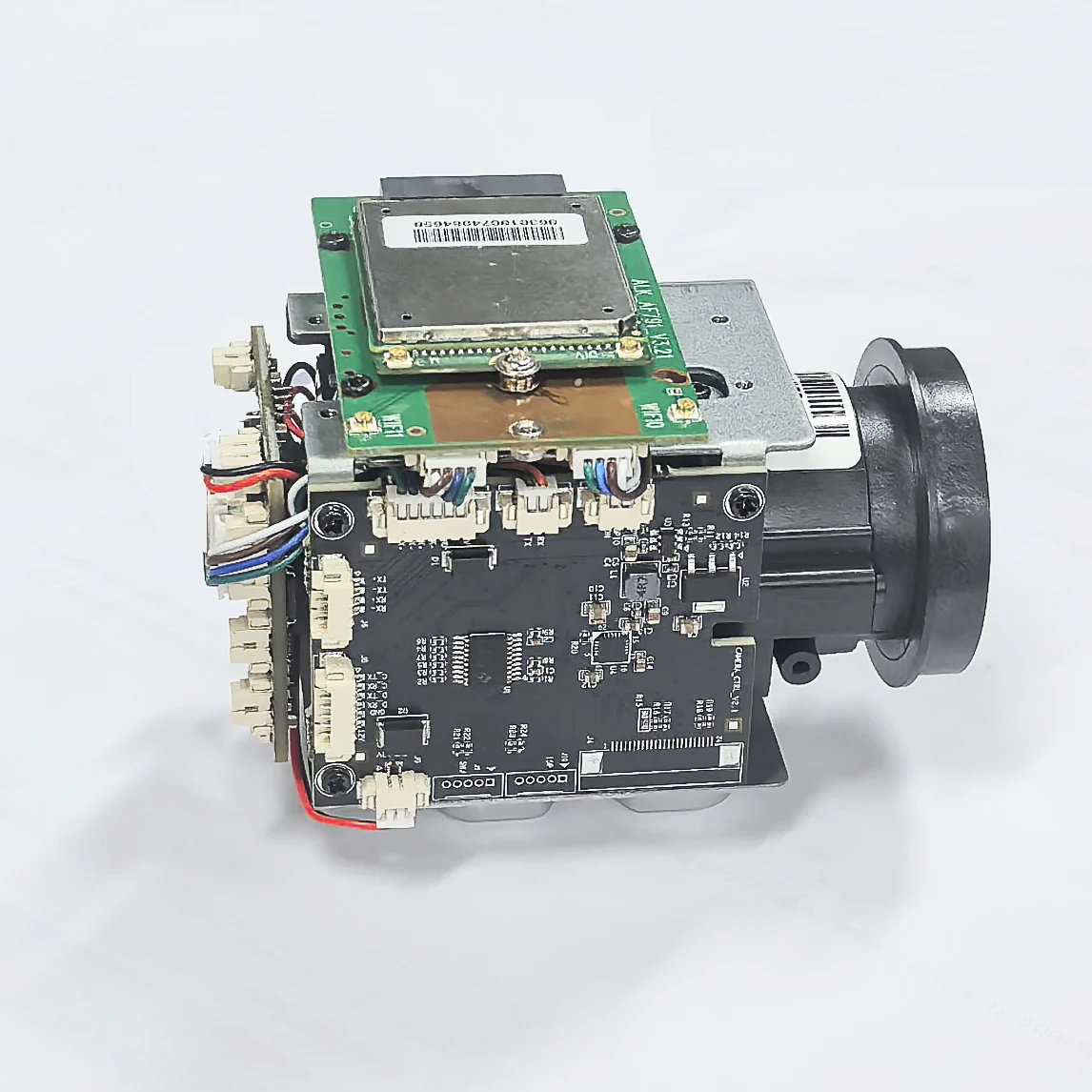

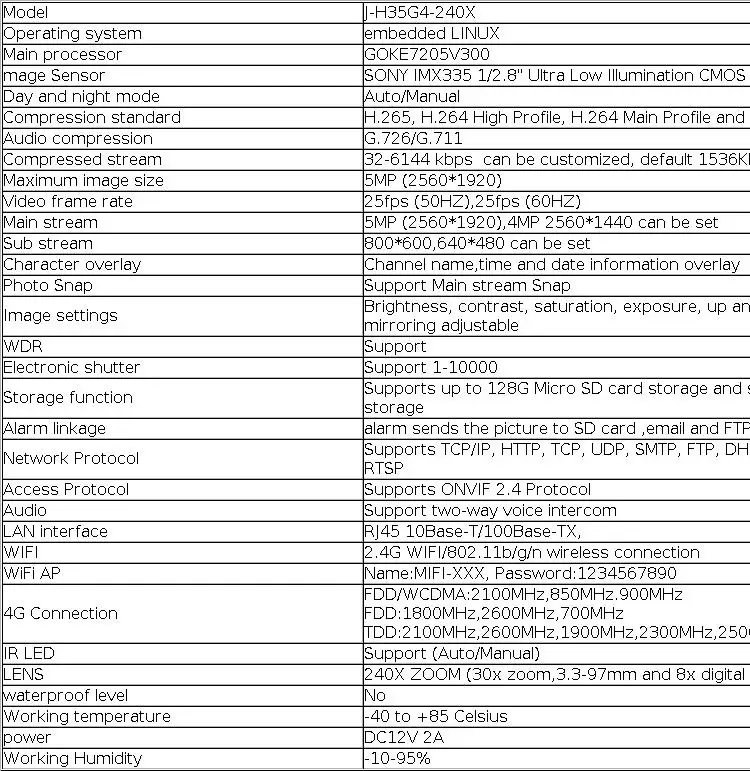

This is a high-performance chip pairing solution using GOKE 7205V300+IMX335. The highest resolution supports 5MP (2560 * 1920) and supports real-time transmission of 25 frames. Support dual bit rate design. And equipped with a high-definition lens with 30x optical zoom. And it supports up to 10 times digital zoom function. This camera, when paired with WIFI and 4G modules, can achieve WIFI and 4G connection functions (depending on whether your camera has installed them). The camera supports day night switching mode and multiple lighting control modes. Supports ONVIF, RTSP, FTP, SMTP and other protocols, with excellent compatibility.

Main functions of the product:

1. Supports multilingual design, including Chinese, English, French, German, Italian, Spanish, Russian, Japanese, Korean, and Polish.
2. Supports 5MP 25 frame real-time connection (in wired connection mode), with a maximum resolution of 2560 * 1920
3. Supports H.264 and H.265 encoding formats, resulting in faster and smoother image transmission while occupying less storage space.
4. Supports WIFI (2.4GHz) wireless bridging mode to connect to WIFI and MIFI hotspot connection.
5. Supports FDD, TDD/WCDMA 4G connections (frequency band supports European version), but currently does not support North American users.
6，Support external infrared LED, white LED light board (PWM)

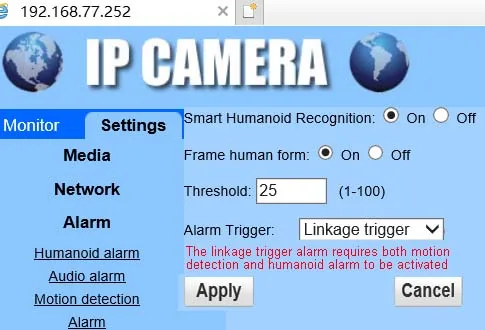

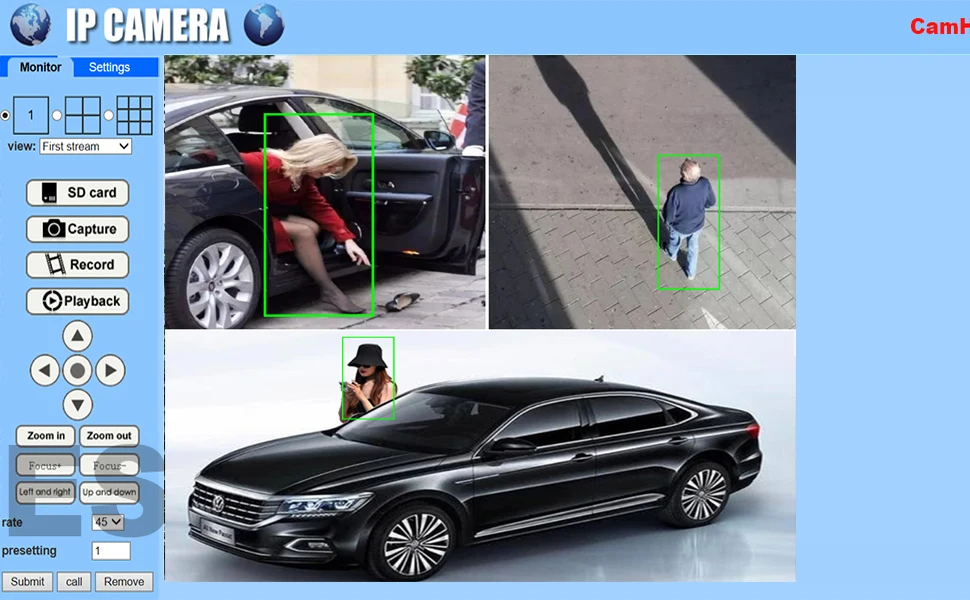

7. Supports human shape recognition, vehicle shape recognition, and sensitivity adjustment.
8. Supports SD card storage, with a maximum capacity of 128GB.
9. Support main stream capture, alarm capture, and timed capture,
10. Support alarm or customized snapshot image upload only via FTP or email
11 Supports ONVIF protocol and RTSP.
12. Supports two-way voice intercom. Support sound alarm and APP message push alarm
13. Supports humanoid and vehicle tracking, as well as fixed-point tracking, cruise tracking, etc.
14. Supports P2P connections, plug and play.

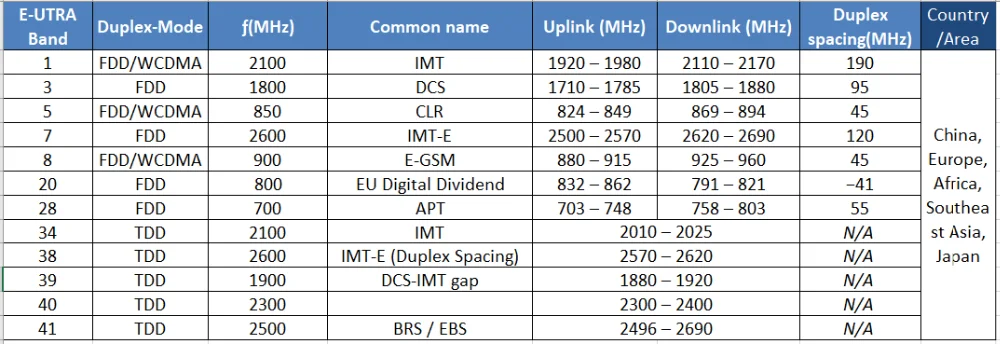

List of frequency bands supporting 4G connection

This camera supports Europe, Africa, Asia, Australia, Japan and other countries. It does not support the United States. Before buying, please check the 4G frequency table. If you use 4G frequency is not in the The frequency list, please do not buy it.

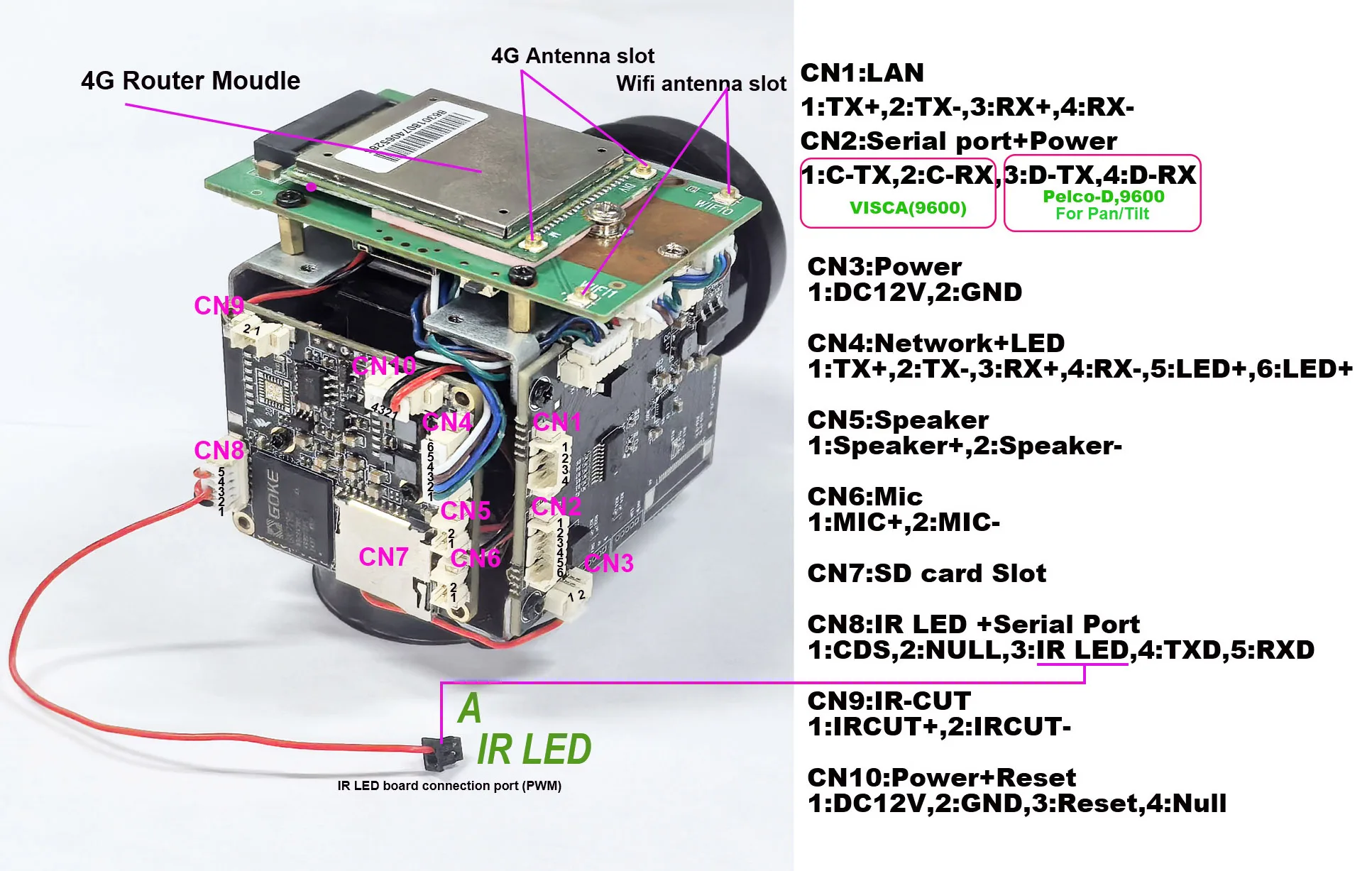

IR LED board control logic

1,,When the camera switches from color mode to infrared night vision mode, a 3V voltage will be output at port A (IR LED) to control the passive activation of the infrared LED light board.

2,When the camera switches from infrared night vision mode to color mode, a 0V voltage will be output at port A (IR LED) to control the passive shutdown of the infrared LED light board.

3,Therefore, you need to use an infrared LED light board that supports soft photoresistor control.

How to achieve day night switching:

1. Automatic day night switching:
When the camera detects low ambient brightness, it will automatically switch to night mode. At the same time, the alarm out port of the camera outputs a 3.3V voltage.
When the camera detects an increase in ambient brightness, it will automatically switch to color mode. At the same time, the alarm out port of the camera outputs a 0V voltage.

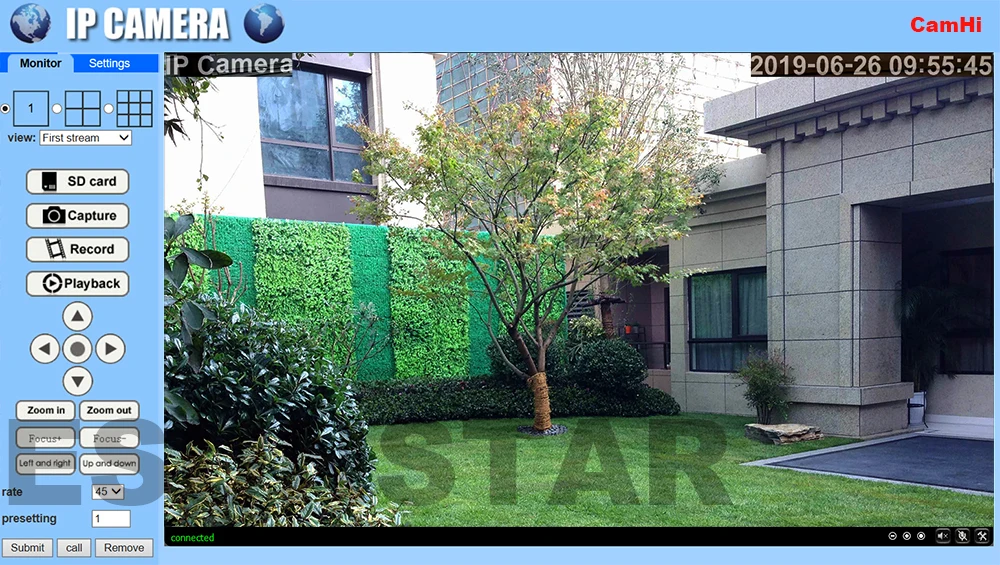

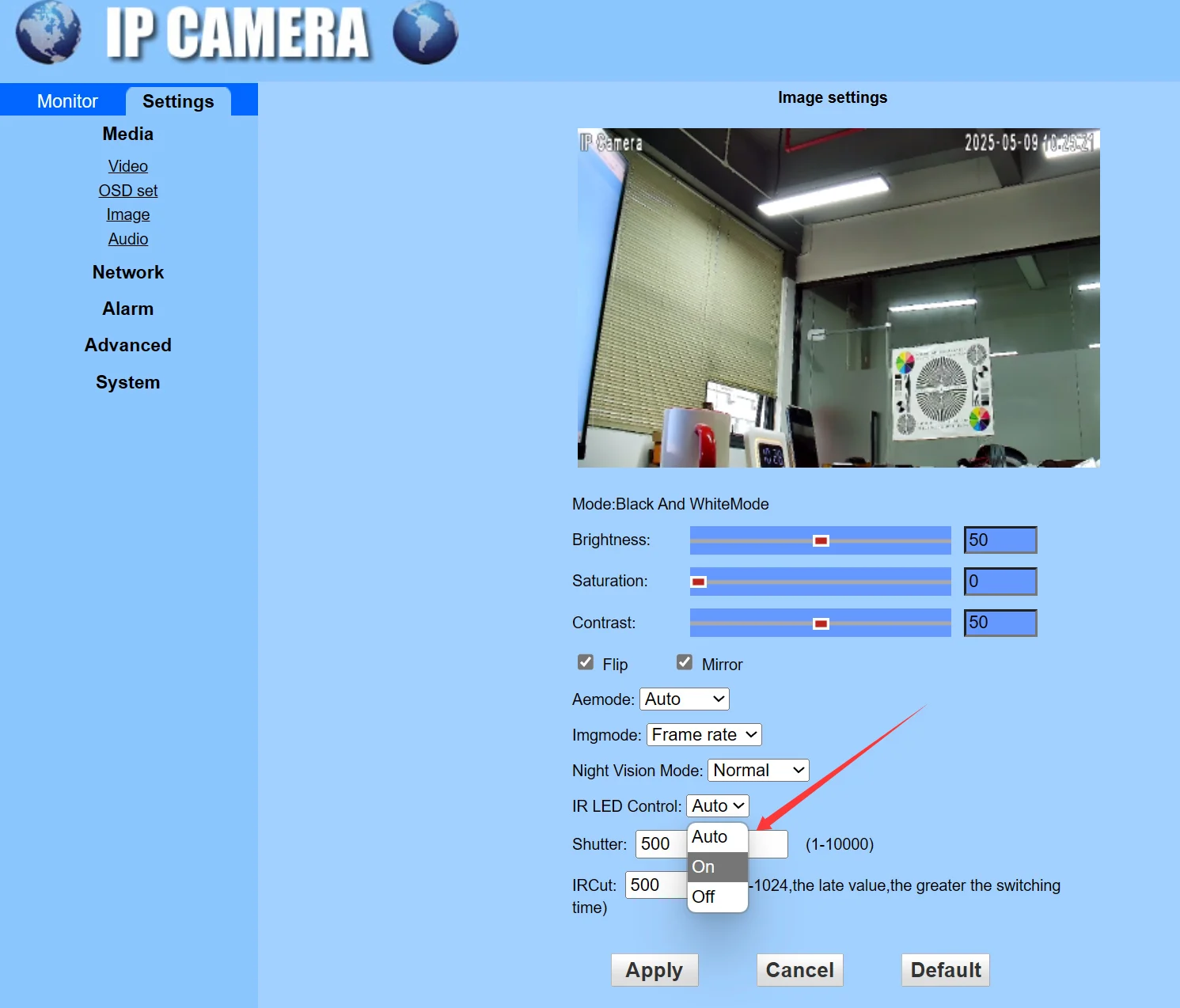

2. Manual control:You can manually control the day and night switching of the camera on the web interface of the camera, as shown in the following figure.

Click on the image below to watch a video demonstrationClick on the image to view a video demonstration of how to manually switch day and night.

Support Corridor auto zoom tracking:（Click on the image below to view the video display）

How to Turn ON/OFF tracing:

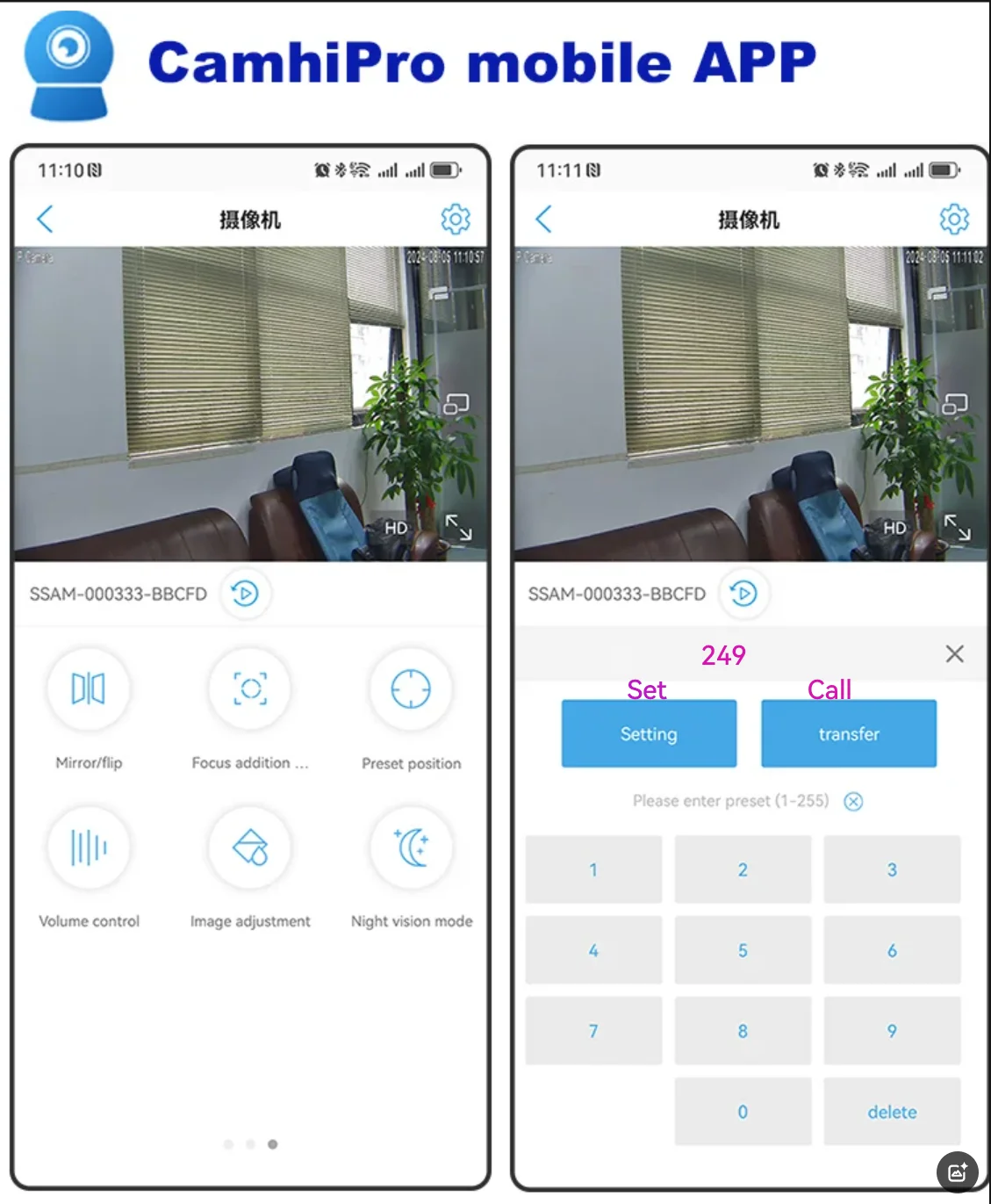

249+call for turn on auto zoom tracking
249+set for turn off auto zoom tracking

4G router menu display

http://192.168.2.1,login user:admin,login password:admin

Functional Block Diagram:

Figure 2 FunctionalBlock Diagram

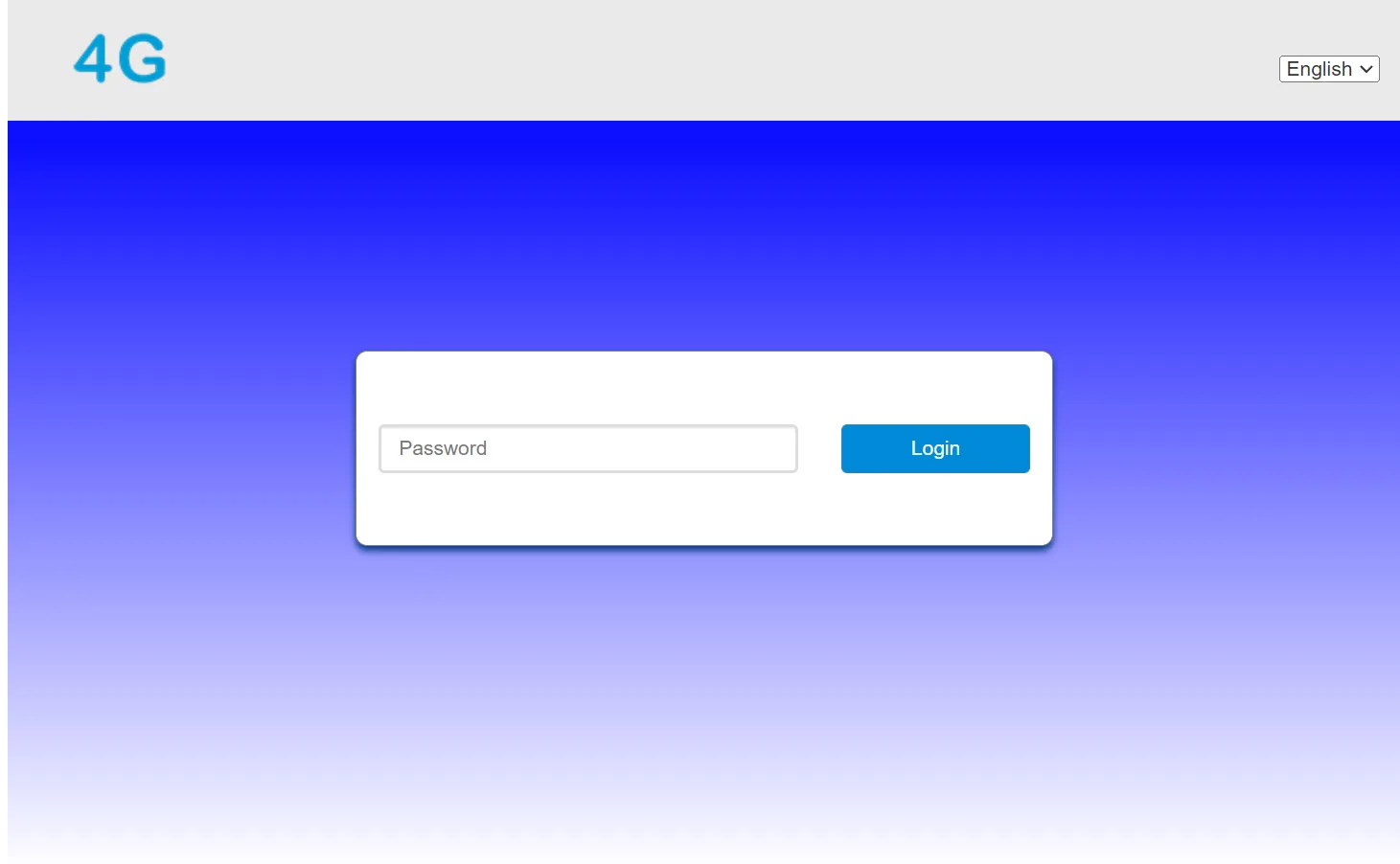

Figure 2 FUI Introduction The device supports webUI function. After successfully connecting the device to a computer or mobile phone, enter 192.168.2.1
​in the browser address, enter the password admin, and then click to confirm login; There is a language selection in the upper right corner, which defaults to Chinese and supports English.unctionalBlock Diagram

After logging in, you can make a series of settings for the router.

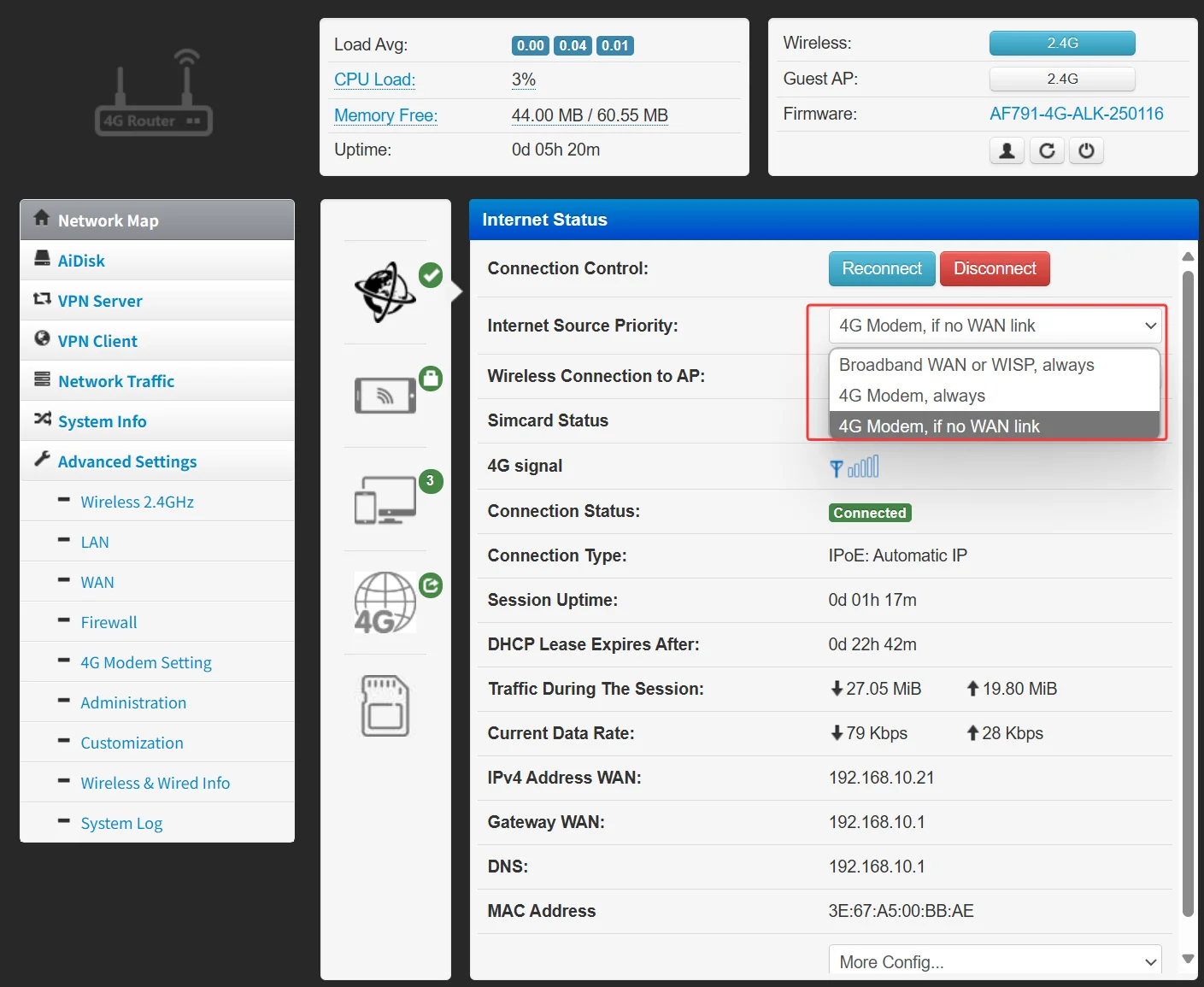

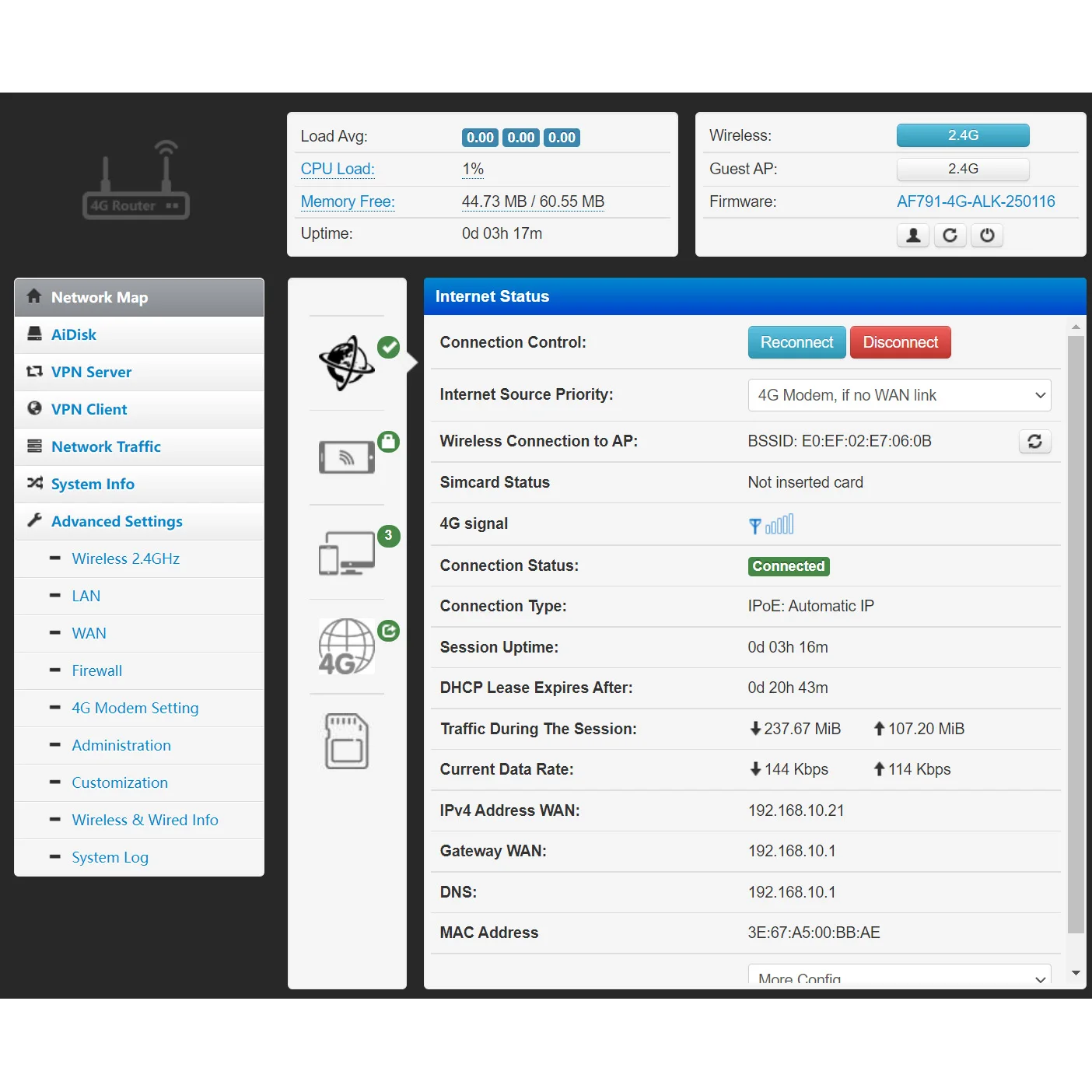

1) Home page: Display device connection status, signal strength, operator, card status, WiFi access count, IP address, software version, etc.

2) Internet Source Pioity:

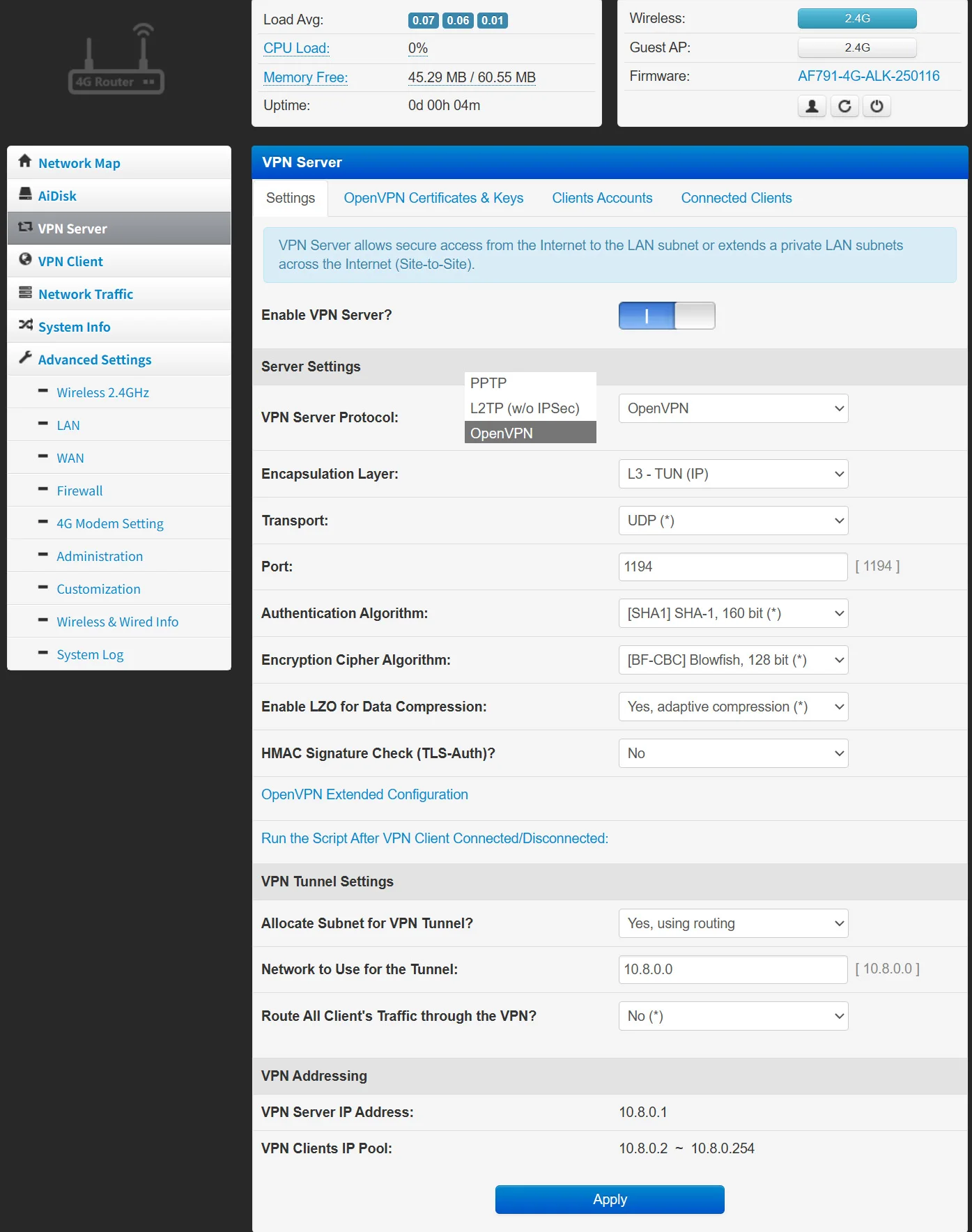

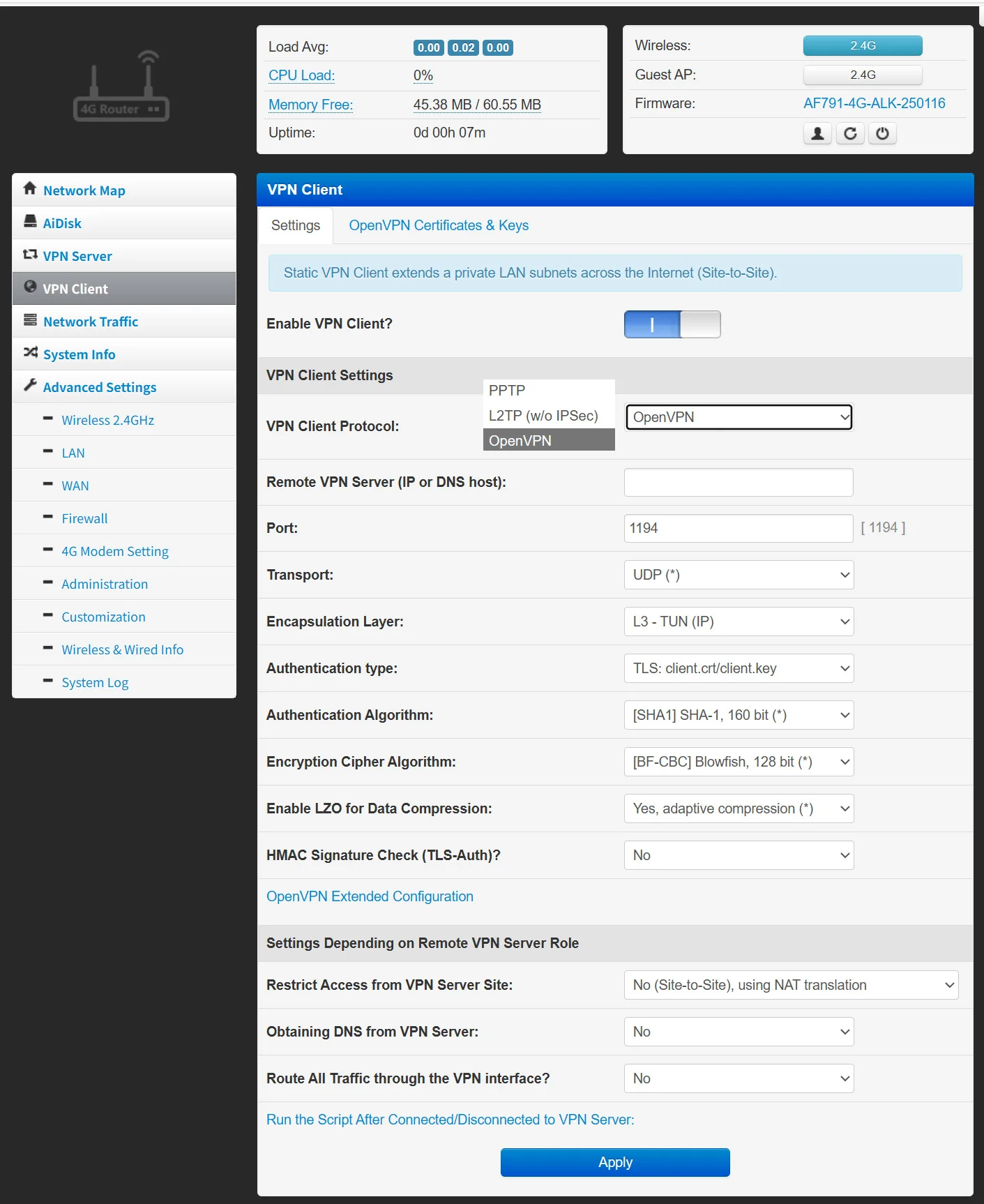

3)VPN setting:

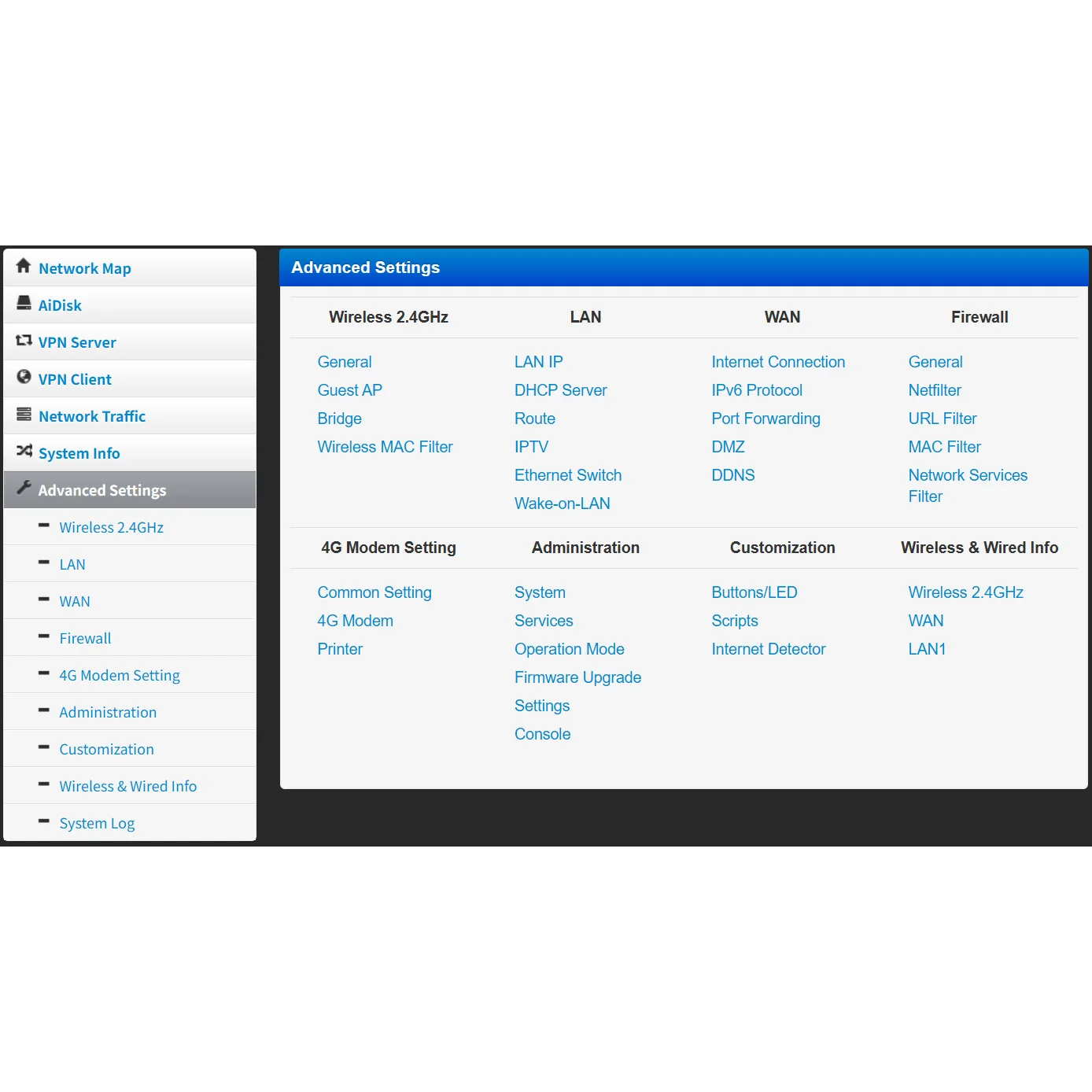

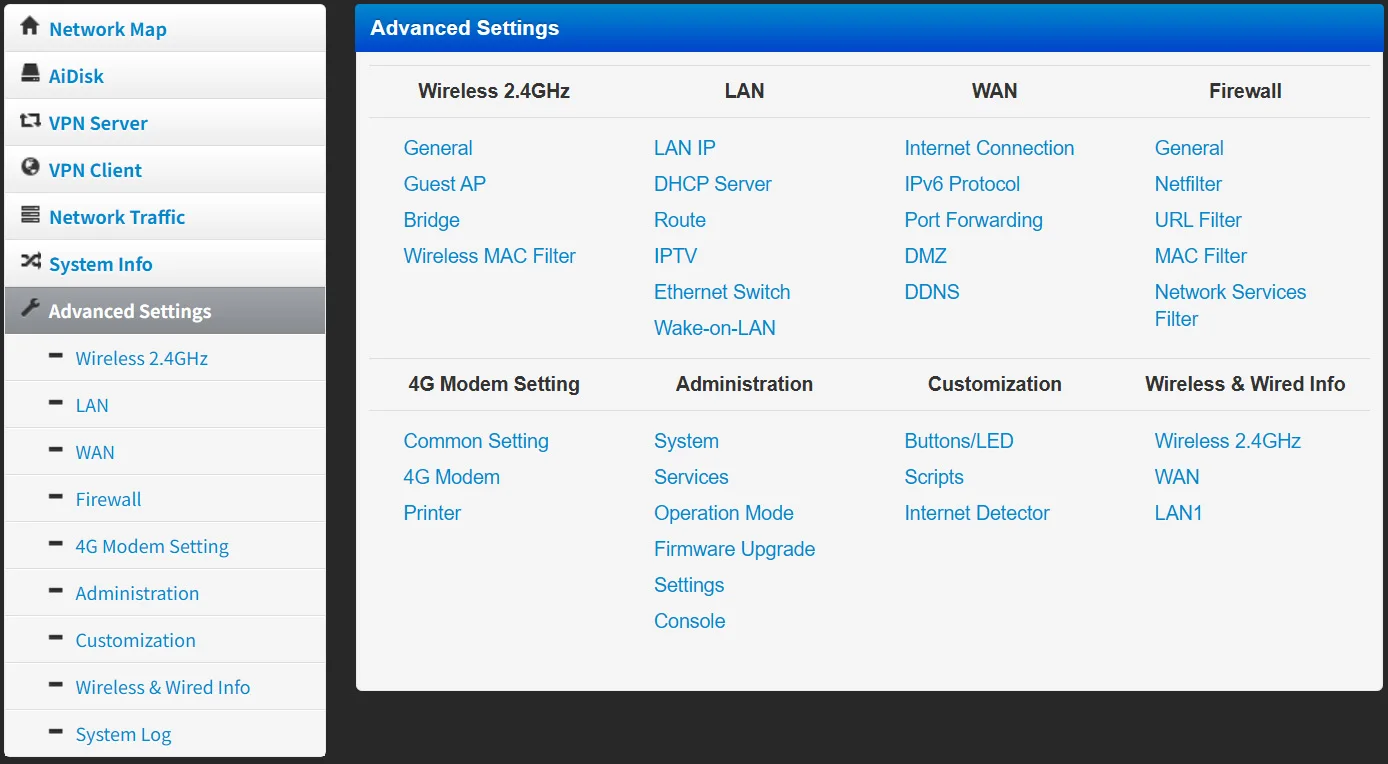

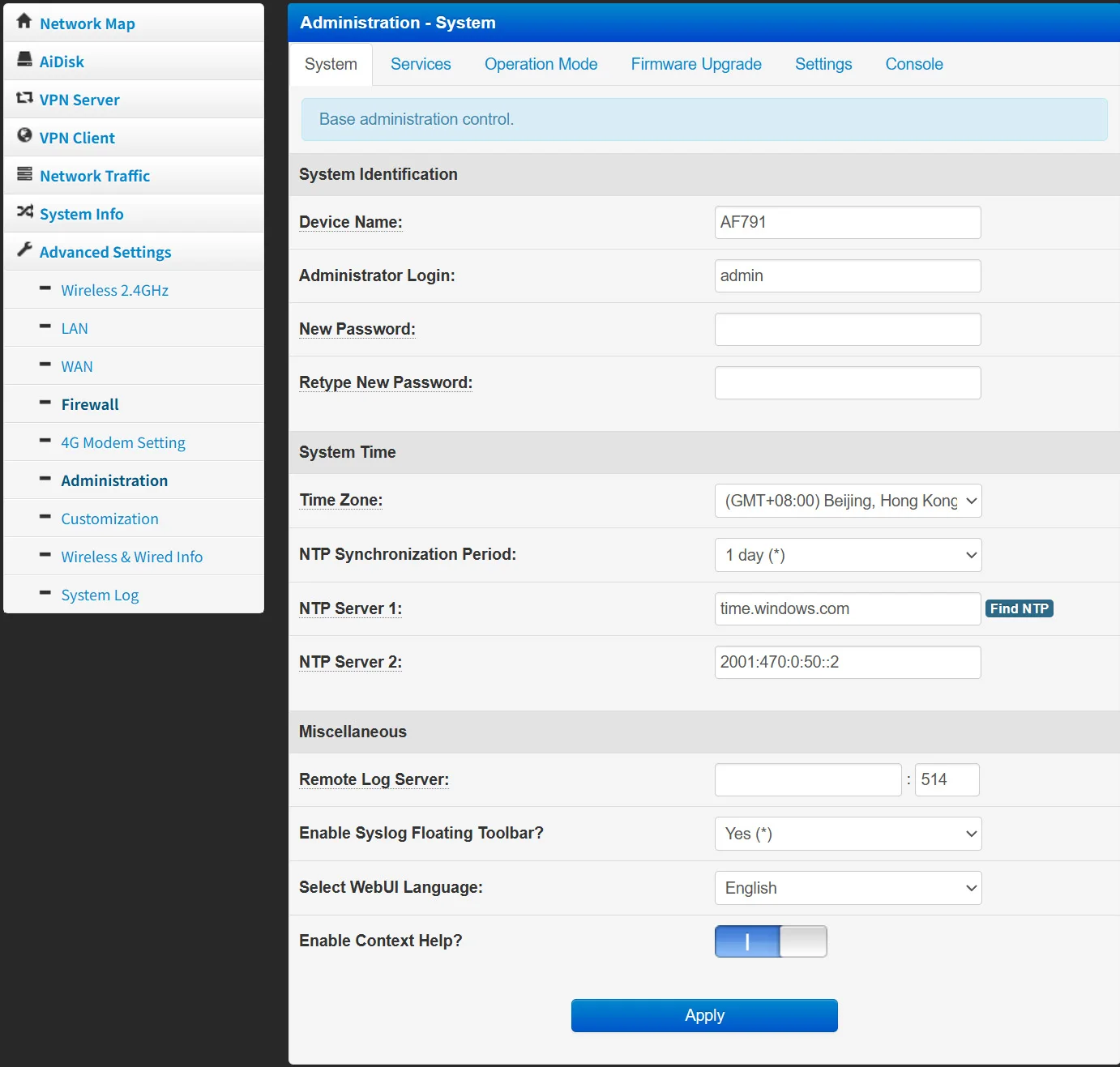

4）4G Routher Advanced Settings:

Support Wireless/LAN/WAN/Firewall/4G modem/Administration/Customization/Wireles/Wired Setting

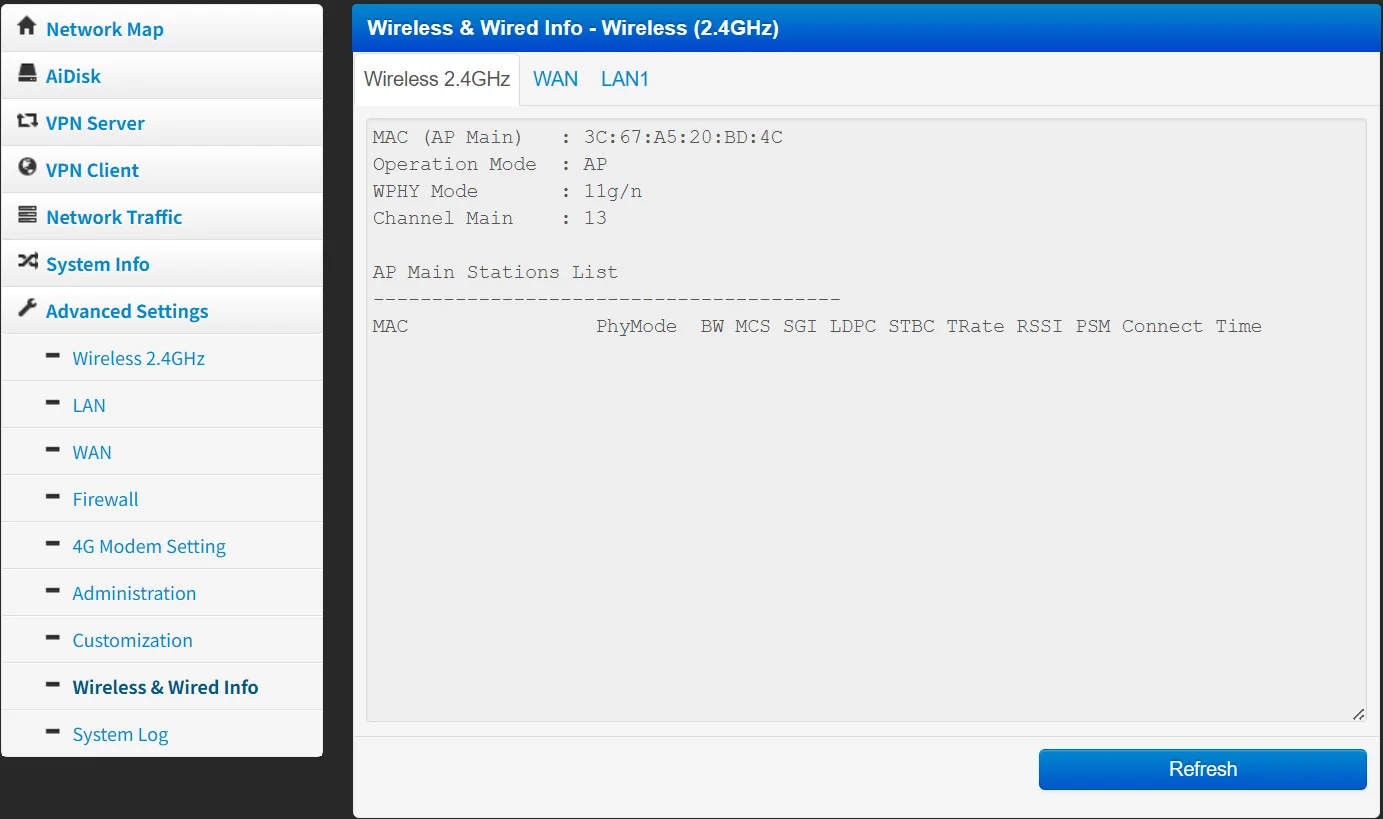

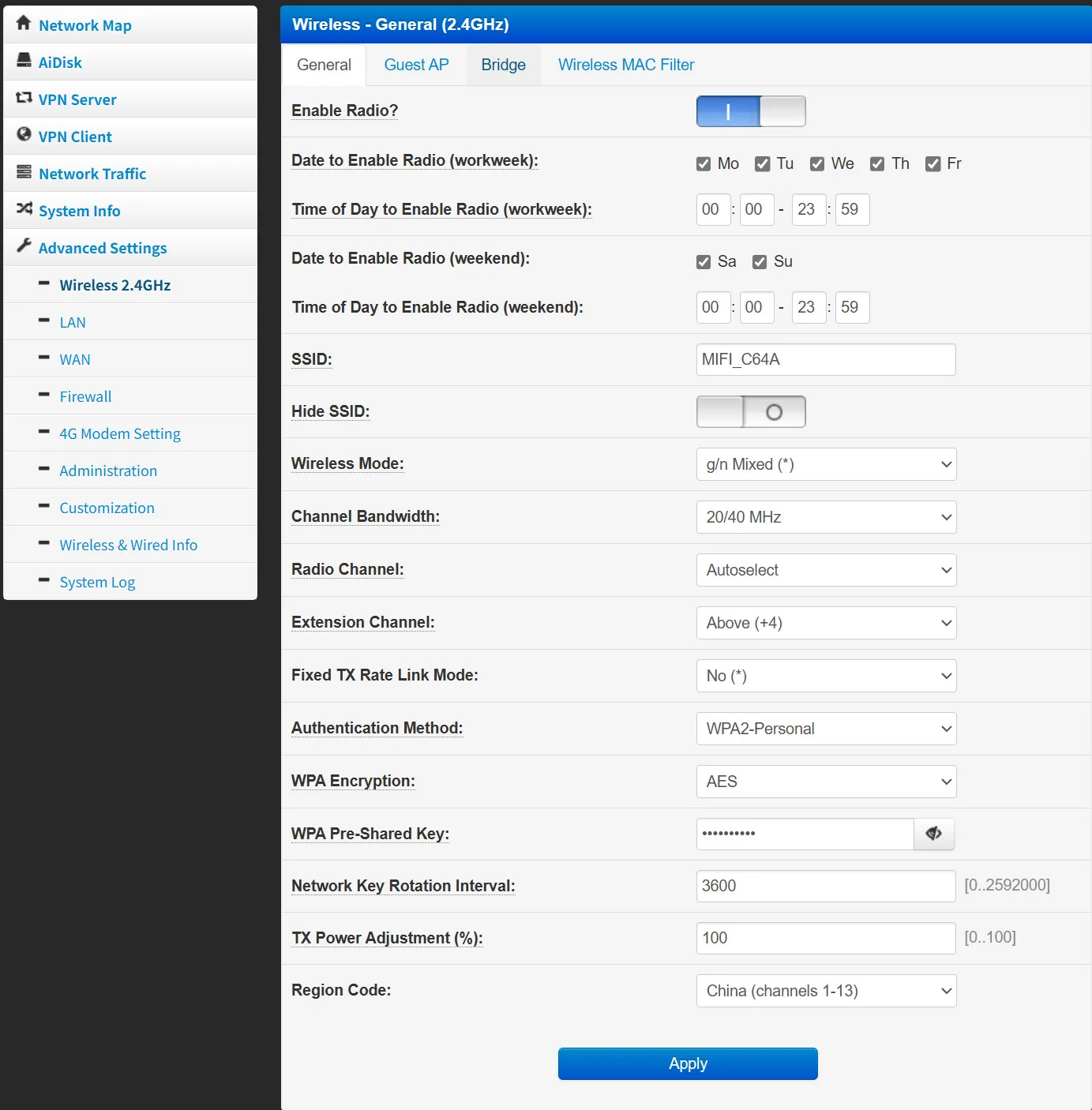

5)Wireless 2.4GHz setting:Support the setting of wireless WIFI name, frequency band, encryption method, and password login. Support parameter settings in AP mode, wireless bridging modes (AP Client, WDS bridge, WDS repeater, AP Client+AP), MAC Filter Model, and more.

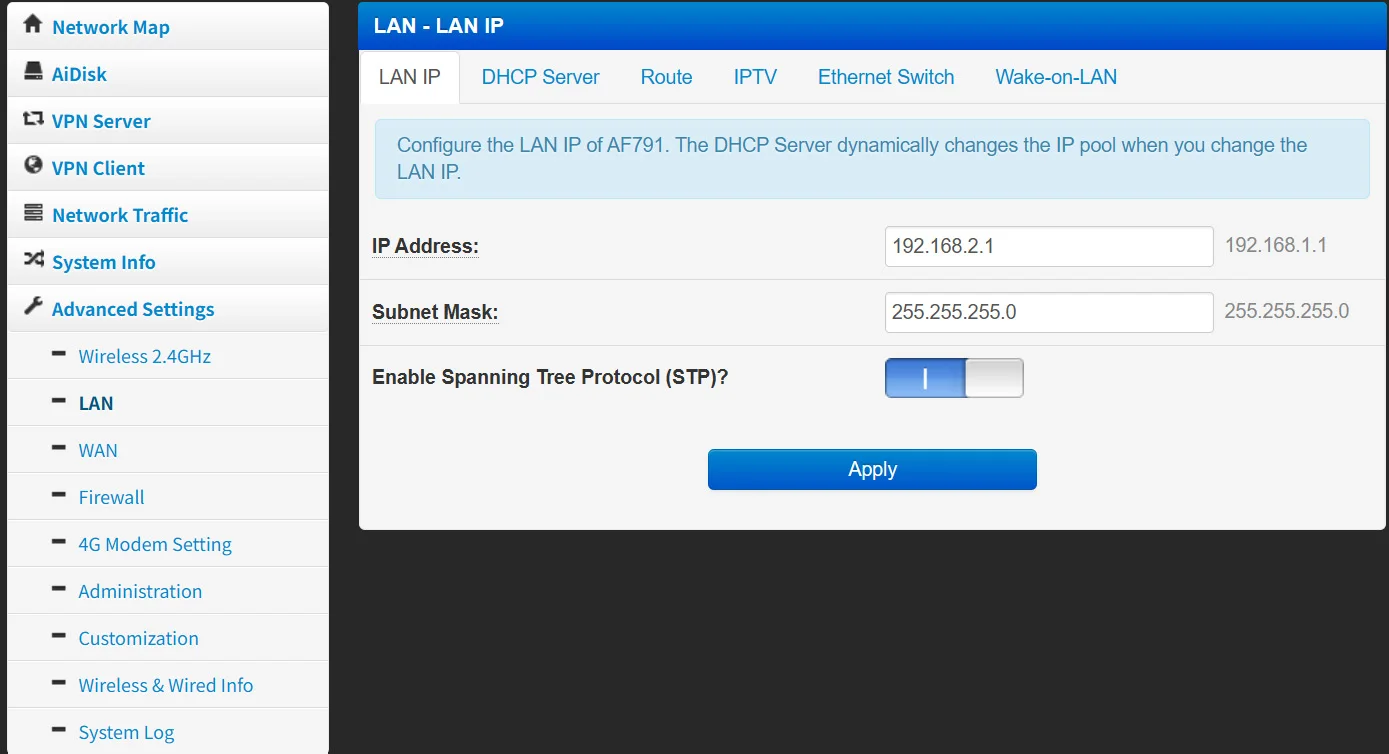

6) LAN:Support LAN IP, DHCP Server, Router, IPTV, Ethernet Swithch, Wake on LAN and other settings

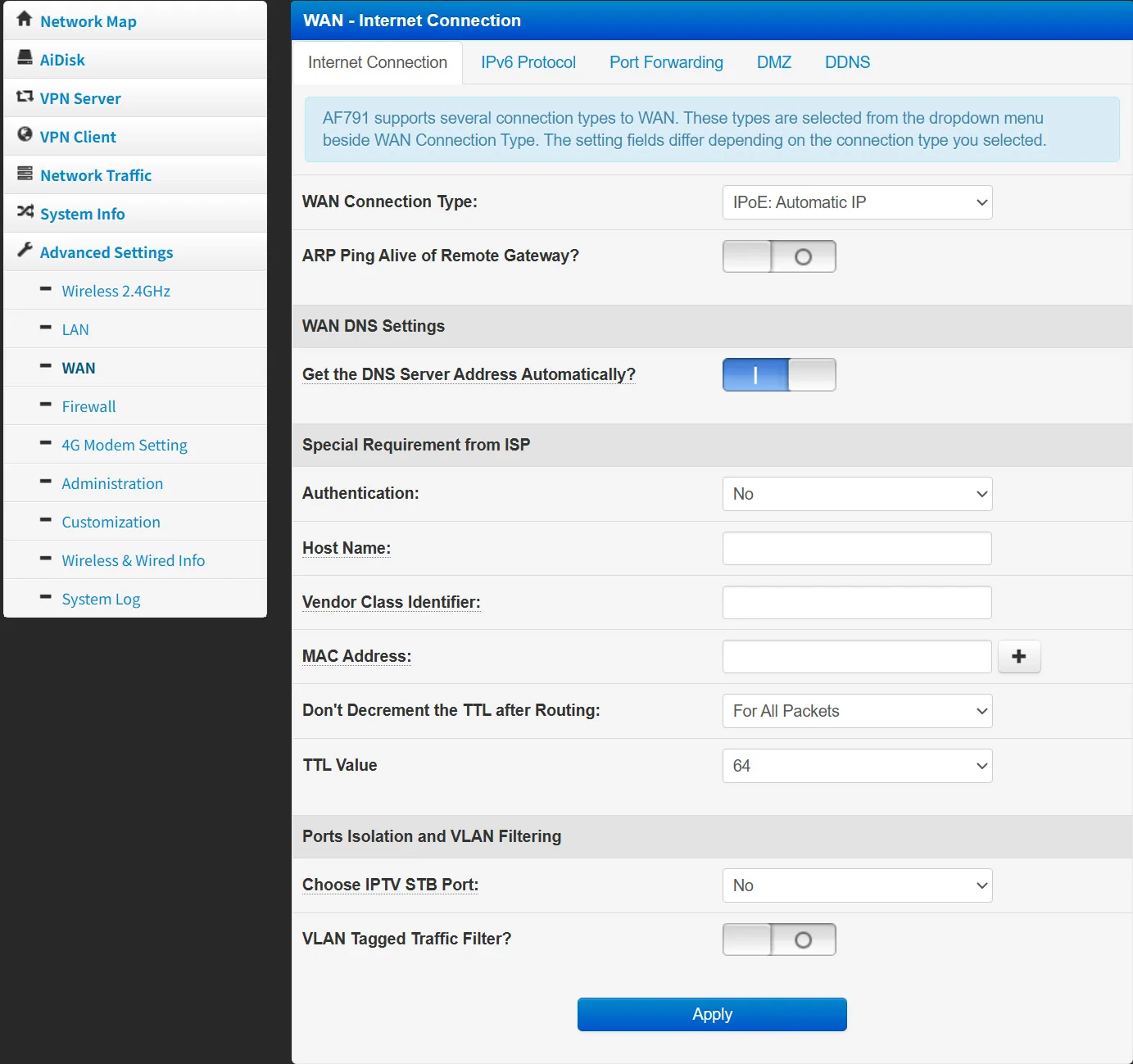

7)WAN Setting

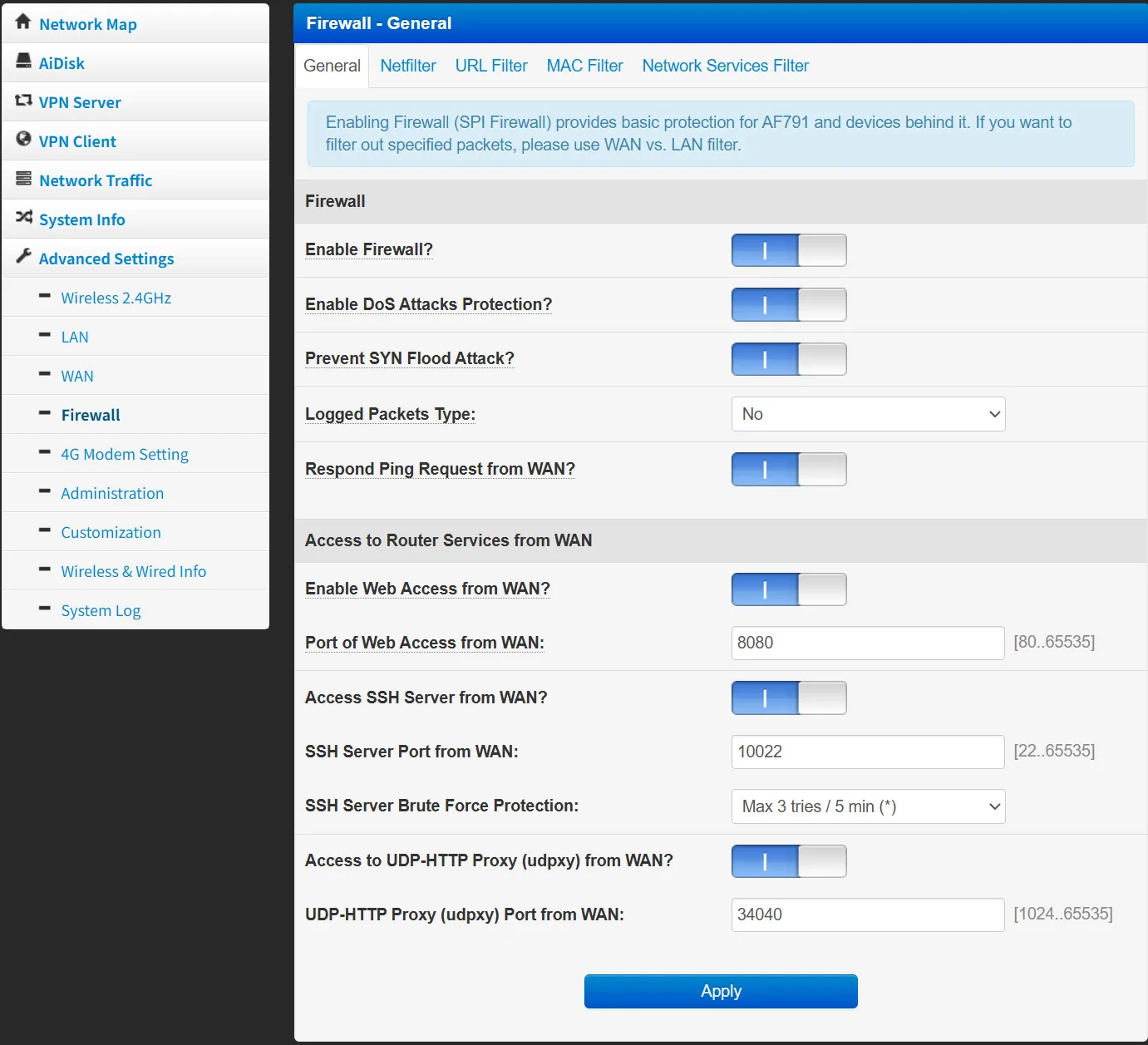

8)Firewall Setting

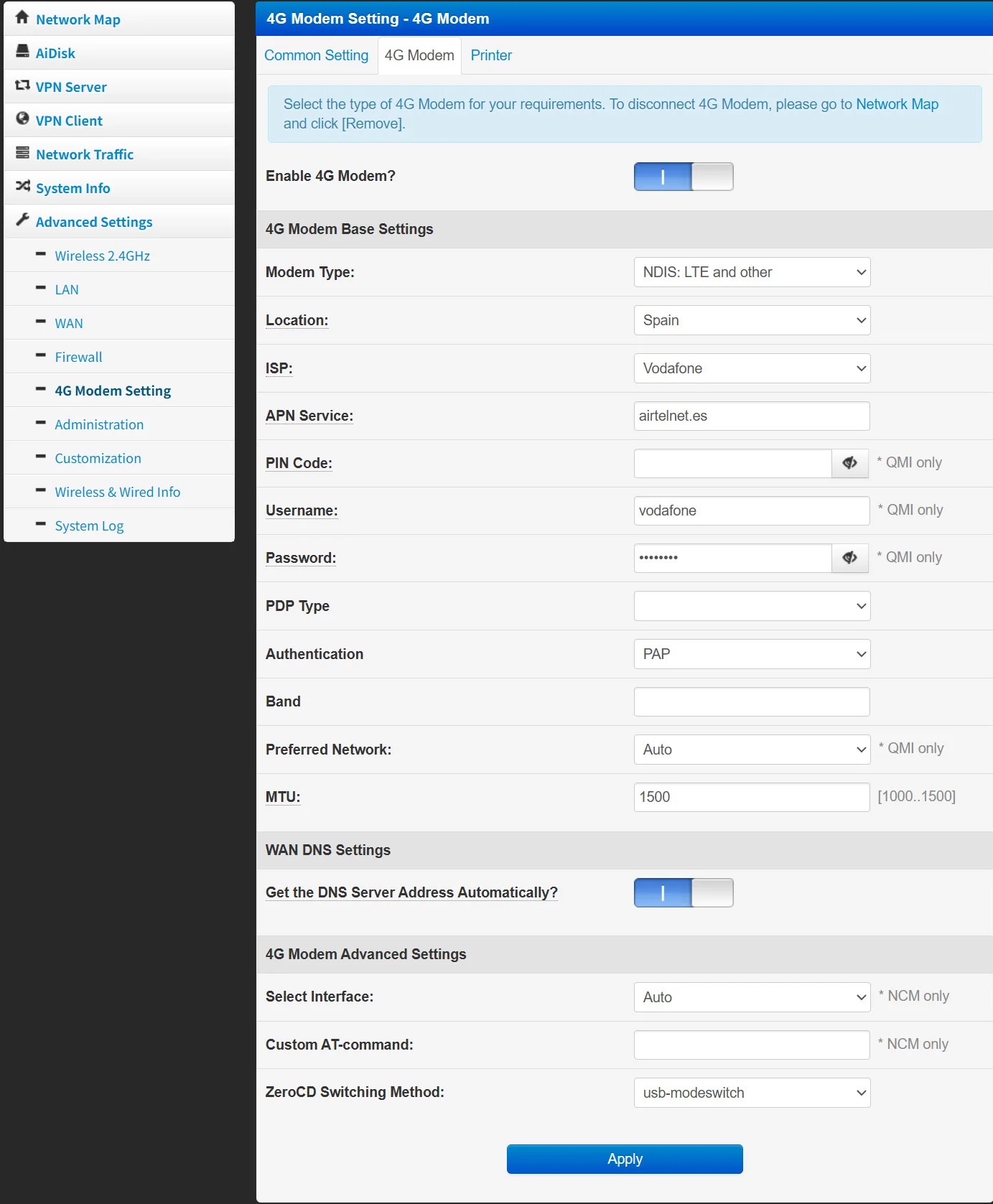

9)4G Modem Setting

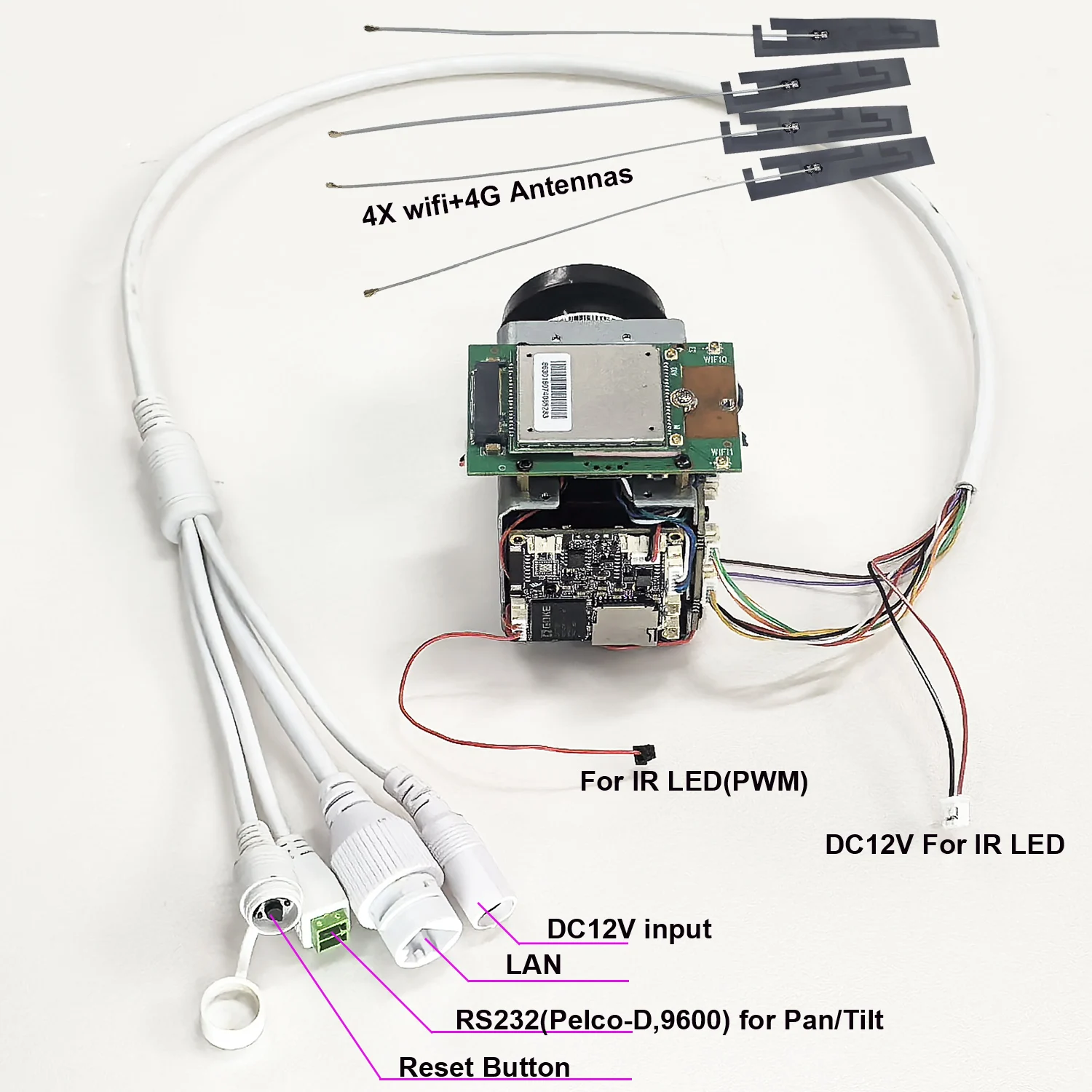

1 X 30X 4G IP DV Camera
1 X Cable for connect camera4
X Antenna for 4G and WIFI
​1 X Tail cable for LAN and POWER
1 X manual
1X DC12V 1A power adapter
