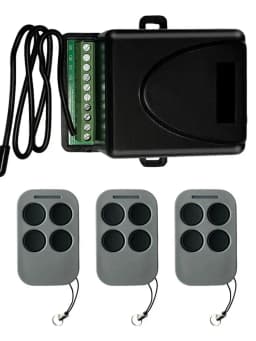

433.92mhz Rolling Code Garage Door Gate Opener Remote Control

Garage Door Gate Receiver For 99% of the 433mhz remote control in the market

Item condition - New
Brand - GATE-RC
Frequency - 433.92MHz.
Operating voltage - 12V DC-24V DC AC
Codes：Fixed / Learning / Rolling Code
Transmit distance - 50-100m in open space. Open space means no any interference. No walls, no doors, no trees or any other obstructions. Interference like garage door or brick wall can reduce remote control range significantly.

1 receiver can store 200pcs of rolling code remote control

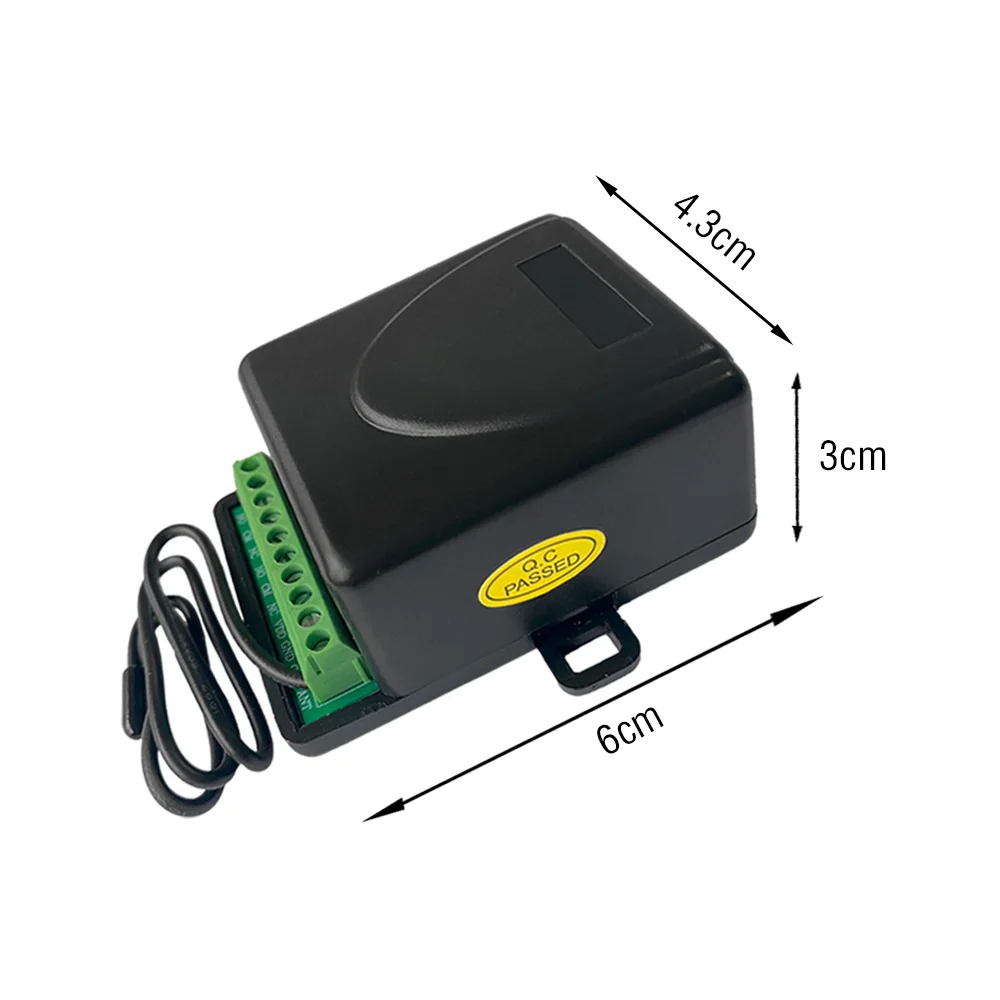

receiver

1) Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

2) Can learn and use most Original 433,92Mhz Fixed and Rolling code remote controls !!! ( Such as : BFT, V2 , Ditec，CAME, MOOVO, MHOUSE PUJOL, GIBIDI, DOORHAN, ATA PTX4, MARANTEC )

3) 2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

4) 1 relay can store 200 pcs remote control, the receiver can store 400 pcs remote control

INSTALLATION:

Position the receiver in a place adequately protected from atmospheric agents 1) Connect the wires coming from the power supply to the VDD+ and GND- terminals 2) Connect the wires coming from the device to the NO and CM terminals of the chosen channel

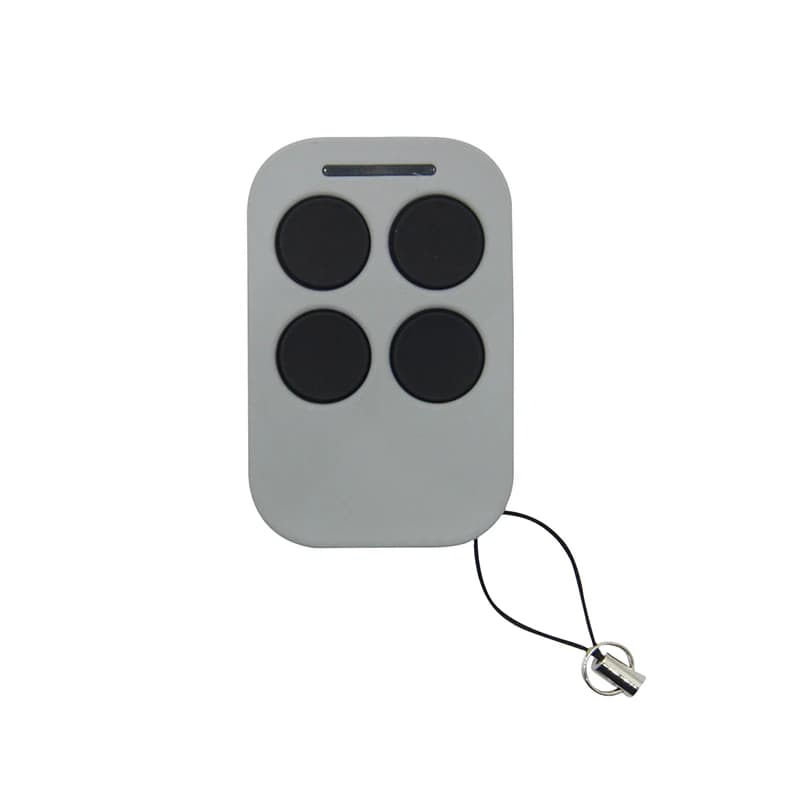

Remote control transmitter

Decoder IC - rolling code.
Frequency - 433.92MHz.
Operating voltage - 12V DC 23A (Free battery included)
High safety factor chip, scrolling code, unable to be copied

Ultra long transmission distance, To be used with our receiver, can reach a distance of 50-100 meters
If you need to purchase a remote control separately,
Please confirm that your original remote control is the same as our remote control 'Grey'
If it is not the same remote control, it will not work

Wide range of uses:

Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e. lights, Alarm system, access control system

Sometimes you need more remote controls for your gate, alarm, fire alarm or any other system. To buy a few additional original remotes for your gate and alarm system is quite expensive.
So this is the best and much cheaper solution for you!!!

Easy to use:

Relay 1 Momentary Mode programming
Press once P1 button (the learning key P1 on the receiver board), The LED lights up for 1 second, then goes out and lights up again. At this point, press any key on the remote control, the learning code light will flash, and the learning code will be successful. Then release the remote control button

Relay 2 Momentary Mode programming
Pressing 2 times P1 button (the learning key P1 on the receiver board), The LED flashing 2 times. At this point, press any key on the remote control, the learning code light will flash, and the learning code will be successful. Then release the remote control button

Relay 1 self-locking Mode programmin
Pressing 3 times P1 button (the learning key P1 on the receiver board), The LED flashing 3 times. At this point, press any key on the remote control, the learning code light will flash, and the learning code will be successful. Then release the remote control button

Relay 2 self-locking Mode programmin
Pressing 4 times P1 button (the learning key P1 on the receiver board), The LED flashing 4 times. At this point, press any key on the remote control, the learning code light will flash, and the learning code will be successful. Then release the remote control button
