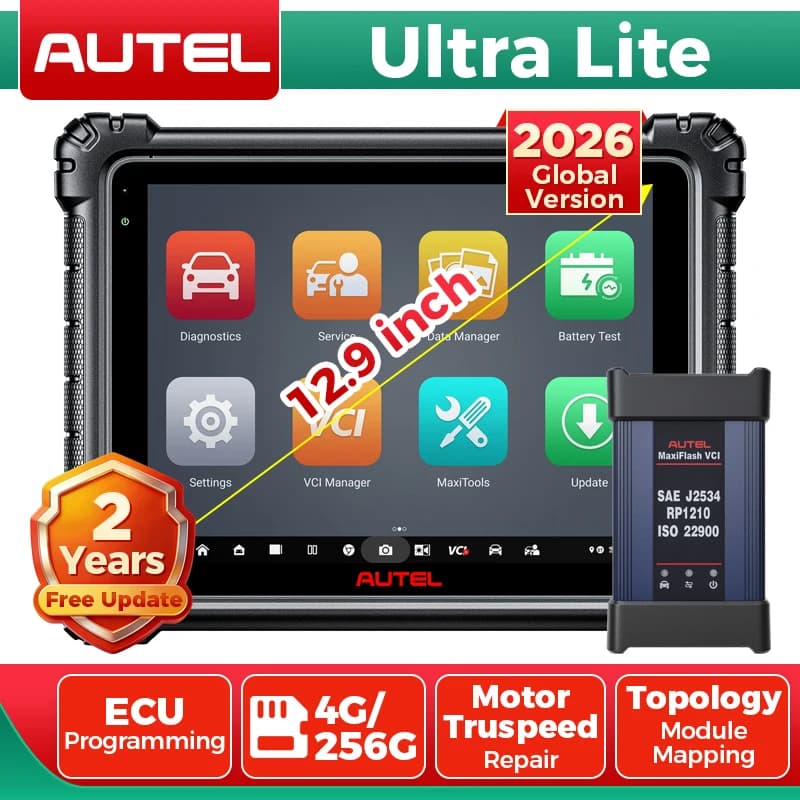

Autel MaxiCOM Ultra Lite Scanner Top Diagnostic Tool OBD Scanner 2 Years Update ECU Programming Automotive Scanner Topology Map

Autel MaxiCOM Ultra Lite Scanner [2026 New Upgraded], Top Diagnostics with 2 Years Update, Same as MaxiSys Ultra MS919 MS909, Topology Map, ECU Programming/Coding, 40+ Service, 4G&256G

Updated of Maxisys MS908S Pro/Elite II/MS909/MS919, Same as MaxiSYS Ultra, Autel MaxiCOM Ultra Lite optimizes its hardware and updates diagnostic functions to OE/Snap-on level but enormously cut your budget. Newly adding: intuitive topology map, ECU programming & coding, 40+ repairs, 10+ high-end functions,150+brands support etc., solves 99% of repairs for large-scale garages and 2 Years free updates.

2​ Years Free update

2026 NO.1 SCANNER, WITH 2 YEARS UPDATE

Upgrade of MaxiSys MS909/ MS919, Autel MaxiCOM Ultra Lite owns all features of Autel Ultra while cuts budget in half: ✅2-Year Free Software Update ✅ECU Programming & Coding ✅Topology Map ✅10+ High-end Functions ✅21+ Languages ✅NO IP Restriction etc. Top-hardware makes fastest diagnose: Exynos 8895 Octa-core OS, Android 7.0, 4G&256G, Dual WIFI, 12.9’’ TFT-LCD, Multi-App Navigation etc.which is a best choice for large-scale garages, workshops.

TOPOLOGY MAPPING & DEMONSTRATION FUNCTIONS

Dynamic topology module mapping sorts out the relationship between various systems at a glance. Take BMW as an example, click "Diagnosis" - "Topology" - "Fault Scan" in sequence, the color-coded topology map intuitively clarifies the relationship of vehicle components and quickly eliminates faults. Autel Ultra Lite adds Preview function: Click "Demonstration" APP, you can pre-select vehicles, simulate repair process and rehearse repair in advance.

ECU PROGRAMMING & ECU ONLINE CODING

Autel car diagnostics scan tool MaxiCOM Ultra Lite supports ECU programming & coding on Benz & BMW. It enables replace existing software/ firmware, reprogram control modules after replacement, upgrade vehicle version to latest etc. ECU online coding allows you match/ code newly replaced ECU, refresh hidden functions, activate high-end features, customize existing parameter values to improve vehicle fuel efficiency/ power loss/ durability issues.

40+ SERVICES, BI-DIRECTIONAL CONTROL

Same as MS Ultra, Autel MaxiCOM Ultra Lite supports 40+ services and constantly increase as car updating, such as Oil Reset, SAS, Injector Coding, ABS, TPMS Reset, EPB Reset, Suspension, BMS, etc. Also, Bi-directional control Autel Ultra Lite carries out an array of special active test such as, PCM, Injectors, Coils, Fuel Pump, A/C Clutch, etc test status of the actuator to quickly pinpoint issues and fixed it. Pls send VIN# to 🚗auteldirect @outlook. com🚗.

DOIP/ CAN FD PROTOCOL, TESLA/ MCLAREN COVERAGE, FCA AUTO AUTH

Autel MaxiCOM Ultra Lite comes with J2534 (value $1099) to comfort Do IP/ CAN FD bus Protocol, expanding vehicle coverage to 2022, even including Tesla, McLaren. Autel MaxiCOM Ultra lite can bypass security gateway, directly connect 2017 & later FCA cars (Chrysler, Dodge, Jeep, Alfa Romeo, Fiat) special functions. Note: FCA Auto Auth only can be used in US, Canada, Mexico.

2026 NEW FEATURES: BATTERY TEST + WIFI INSTANT PRINT + VAG GUIDED FUNCTION

Updating to the latest software version, Autel MaxiCOM Ultra Lite added newest features to expand functionality: ✅Battery Test (work with BT506) to perform cranking test and charging test; ✅VAG Guided Functions for VW, Audi, Seat, Skoda; ✅Autel Cloud Management; ✅Endoscope Functions (Work with MV108). With WIFI printing, Autel scanner Ultra Lite can print reports directly from any page even without PC.

The Key Reasons to buy Autel MaxiCOM Ultra Lite with 2 Years Update

Autel MaxiCOM Ultra has upgraded 2 Years F-ree Software Update, it means that you can save 1 year update fee (saving 1295usd) than Autel Ultra/ MS919/ MS909 scanner.

1. One-stop diagnosis: fault code priority, according to tips repair vehicles step by step

2. Topology Module Display: View the system error codes and the system where the error codes reside, saving maintenance time

3. Split Screen Multi-app Navigation: Same as Ultra, you can operate multiple APP simultaneously

4. ECU Programming: For M-rcedes-B-nz/ B-MW

5. Local-Smith ECU Online Coding: Refresh hidden function, Customization, Specialization for most of vehicles

6. 10+ High-end Functions: Battery Test, IMMO, Guided Functions etc.

7. 21+ Language Support: Unlike other scanner, Ultra Lite supports multiple languages, just send S/N to us to no-worry switch

8. 40+ Services: Sweep all issues meeting daily needs

9. Bi-directional Control/ Active Test: According to the response of the actu-ator, judge whether this system is normal

10. 15,000+ Vehicle Coverage: By far, most extensive vehicle coverage of the diagnostic scanner, including US, EU, Asia, German cars

11. Dual WIFI Faster Diagnose: Increased diagnostic speed by 200%

12. Autel MaxiCOM Ultra Lite is identical to Autel MaxiSys Ultra in hardware configuration: Android 7.0, Samsung Exynos8895 Octa-core Processor, 4GRAM & 256G ROM, 18000mah battery, 12.9’’ TFT-LCD, 2732 x 2048 resolution, Dual WIFI, 16MP&5MP Rear&Front Camera, Dual Speakers, etc.

ECU Programming & ECU Online Coding & ECU Adaptation

ECU Programming/ Reprogramming

With ECU programming, after M-rcedes-B-enz & B-W releases the latest vehicle version,ULTRA LITE can update the car's built-in operating software to the latest version, optimize the historical legacy of the car's old version, and unlock advanced functions.

ECU programming is only available for Me-cedes and B-W.

Specific Steps: You can downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the scan tool is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle's ECU.

Coding (ECU Coding and ECU Online Coding):

also known as Teach-in Program, Component Adaptation, apply to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

Here are some samples:

Deactivating the Start/Stop function

Beeping when unlocking and locking

Sea-tb-elt war-ning sounds

Mirrors automatically folding and unfolding

Closing the windows after locking the car door with the key

Also including: Lighting coding, Flashing the brake lights during emergency braking, Activating/deactivating daytime running lights, Changing the brightness of daytime running lights, Flashing of the headlights when locking or unlocking the doors via the remote control, Flashing of the headlights when the alarm system is triggered, Dashboard coding, Displaying of the real speed via GPS signal, Displaying the amount of fuel consumption at a given speed, Changing the brightness of the dashboard etc.

ECU Offline for Ford, Mazda, Jaguar, Vaxhal, Opel etc.

Autel Ultra Lite------Unique Topology Module Analysis

Autel Ultra Lite automotive diagnostics scan tool can generate a topology map that visually presents all module diagnostic results (DTC status and number) in different colors, allowing you to ravel out the communication structure between modules and quickly locate the fault of the car.

Supported brands include:

For BM-W, Ford, Volkswagen, Au-di, GM, Chrysler, Nissan, Honda, Toyota-Lexus, Jaguar L- and Rover, Merce-des-B-enz, Hyundai, Kia, Volvo, Land Rover, Fiat and more.
Warm Prompt:

Some vehicle models may not be supported, it is necessary to send vehicle make, year, model, VIN and the specific functions you need to us.

Release Motor TruSpeed Repair

Autel Ultra Lite diagnostic tool supports Motor TruSpeed Repair, much more powerful than intelligent diagnostic, this feature has integrated OE-sourced maintenance schedules, repair procedures, specifications, TSBs, wiring diagrams, OEM Position Statements, and ADAS-related repair details etc to give technicians the most completed & instant solution for car repairs. 📢NOTE: Motor TruSpeed Repair requires extra purchase (650bu-cks/ year).

40+ Service Functions------Upgrade of MS Ultra MS919 MS909

Why do you need to maintain your car regularly?

Regular maintenance can ensure driving safety, reduce the fuel consumption of the car, prolong the service life of the car, reduce the failure of car parts.

Autel MaxiCOM Ultra Lite multilingual scan tool is designed with 40+ service functions to meet daily vehicle maintenance needs, such as Oil Reset, SAS Calibration, EPB, Suspension Calibration, Thr-ottle Matching, Trans Adaptation, ABS Bleeding, BMS Reset, Headlamp, IMMO Keys, TPMS Reset, Seat, Odometer, Lang Change, TEC Learn, A/F Setting, Airbag, Win DR Roof, Battery Replacement, Zero Point Calibration, Weight Sensors Calibration, VGT Turbo Calibration, Injector Coding, etc. More functions and models are being researching. Autel will update software at first once work out.

Oil reset: After changing the oil or oil filter, reset the oil life system and turn off the oil light to start a new cycle.

EPB Reset: Safely and efficiently maintain the electronic braking system by deactivating and activating the brake control system, setting the brakes after changing discs or pads, etc.

SAS calibration reset: After replacing the steering angle position sensor and the mechanical components of the steering system, the steering angle will calibrated after replacing

ABS Bleed: Bleeds air from the brake system to restore ABS braking sensitivity.

BMS: Re-match the control module and motor sensor to make battery detection more accurate, clear the original low battery info.

IMMO (Anti-theft matching): by disabling the lost car key to protect car from being stolen.

Se-at Calibration: Calibrate the memory on the replaced or repaired sea-ts.

Thrott-le Matching: Initialize the thro-ttle actua-tors to the default state

10+ High-end Functions------Your Vehicle Doctor

1. Full Battery Test: With BT506, it will perform complete battery detect functions: starter cranking test, generator test, monitor battery system health, etc.

2. VAG Guided Functions: For V-AG vehicles, there are professional V-AG guidance steps, you can follow the screen instructions repair vehicles step-by-steps

3. Demonstration APP: 2024 new added App modules: “Demonstration” APP allows you pre-select vehicles, simulate repair process and learn the repair sequence in advance. Demonstration feature is very user-friendly for novices as it equals to veteran mechanics guides you.

4. DTCs Priority Ranking: OBD II/EOBD Codes have a priority according to their emi-ssion severity, with higher priority codes overwriting lower-priority ones. The priority of the code determines the illumination of the Malfunction Indicator Light (MIL) and the codes erase procedure.

5. Autel Could Diagnostic Report: Autel MaxiCOM Ultra Lite adds new functions: Diagnostics report upload to Autel Cloud, it will reduce the operating burden of the scanner and collect data in the Autel cloud to speed up diagnostics and centralize data management.

6. IMMO Keys: Add new keys, key learning, for low anti-theft grade Asian vehicles.

7. Quick Charging Hub: Same as MS Ultra, Just put on the charging pile and you can work without power forever

8. MV108/MV105 Compatibility: Autel Ultra Lite in conjunction with the MV105/ 108, provides a clear view of the vehicle's internal conditions on this item, allowing for deeper vehicle diagnostics

9. Remote Experts: When you don't know how to solve this complicated problem, you can turn to “Remote Experts” for professional help and guide you repair car. (Auxiliary accessories need to be purchased. If you have requirements, please tell us for specific auxiliary tools.)

5X Faster Than Other Scanner

Compare to 2020 launch MS909 MS919 MS Ultra, Autel Ultra Lite as 2024 newest diagnostic scanner, equipped most top-of-the-line hardware to show 5 times faster than ordinary diagnostic devices, its Google search popularity is also increasing.

Autel MaxiCOM Ultra Lite has same hardware as MS Ultra: 12.9inch Split-screen experience, Android 7.0, Exynos8895 Oct-core processor, 4G & 256GB capacity, 18000mah double battery, 5 times faster than traditional diagnostic scanner and bring you fast multi-app diagnostic experience.
Autel MaxiCOM Ultra Lite with J2534 Pass-Thru supports 2024 newer diagnostics protocols:D-PDU/RP1210 & DoIP/CAN FD to enhance vehicles coverage from 10000+ to 15000+ vehicle including:
US: For For-d, Chr-ysler, G-MC, Jee-p, Chevr-olet, Bui-ck, Humm-er, Lin-coln, Dod-ge, etc

Europe: For A-udi, BM-W, M-rcedes-B-enz, O-pel, Pors-che, Volk-swagen, Sk-oda, Volv-o, etc

Asia: For Toyot-a, Hon-da, Niss-an, Maz-da, Suzu-ki, K-ia, Maz-da, Lexu-s, Mitsubi-shi, etc

Newly Added Functions, More Reasons You Choose It!

1. Battery Test:

Autel MaxiCOM Automotive diagnostic scan tool has been designed with built-in battery test ability. With the additional purchase of Autel MaxiBAS BT506 Battery Tests, MaxiCOM Ultra Lite can help you test all 6V and 12V 100-2000CCA batteries including the most regular Flooded, AGM, AGM Spiral, EFB and GEL batteries. It can perform in-vehicle & out-of-vehicle tests to determine the health status of the battery, the starter, and the generator respectively.

2. VAG Guided Function:

Autel MaxiCOM Ultra Lite provides detailed step-by-step operation guidance to simplify all the complicated functions implement. It is compatible with VW, with Audi, with Seat, with Skoda cars.

3. Autel Cloud Management:

Through Autel Cloud Service, you can uploade Data and Diagnostic Reports to Autel Cloud Management without loss and share reports with customers through QR Code/ email/ text message easily, so that customers can view the reports at cellphone anytime.

4. WiFi Printing：

MaxiCOM Ultra Lite offers you super convenient feature --- WiFi Printing, that is, you can print reports directly from any page, no need to connect to PC, click the "Print" from your Scanner Ultra lIte and you'll get the report right away. No need the PC to print like Autel old models of MaxiSys Elite, Mk908, MK908P, MS908S Pro, etc.

5. Remote Expert Service:

With this scan tool , it can help you get access to sophiscated mechanic expert to solve difficult problems related to diagnosis & repair.

OE-Level All System Diagnostics

The same all system diagnostics as MaxiSys Ultra, MaxiCOM Ultra Lite can also read/ clear codes, view live data, freeze data frame, turn off the light to resolve vehicle issues on all electrical systems like ABS, SRS, TPMS, Engine, IC, Transmission, BCM, Chassis, Steering, Airbags, Air Conditioning, IMMO, Air Suspension, Air Suspension, Cruise Control etc.

Bi-directional Control / Active Test

Same as Autel MaxiSys Ultra, Autel MaxiCOM Ultra Lite is able to perform Bi-directional Control (Active test) to control various sub-systems or components to perform active tests (also known as component tests).
Such as turn fuel pump on/off, cycling the A/C Clutch on/off, EVAP test, windows, doors, sunroofs, wipers, to determine the integrity, monitor the operations to check whether they are functioning properly or not and quickly locate the fault causes, which can not be achieved on these old models.

Advanced Functions

MaxiCOM Ultra Lite Specification:

Operating System: Android 7.0
Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM & 256GB On-board Memory
Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS
USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
Camera Rear: 16 Megapixel, Autofocus with Flashlight
Camera Front: 5 Megapixel
Sensors : Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
Power and Battery : 18000mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage: 12V/3A Adapter
Operating Temp: 0 to 50°C (32 to 122°F)
Storage Temp: -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D): 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight: 2.18kg (4.81 lb.)
Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20),
TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS),
Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Autel MaxiCOM Ultra Lite Package List

1x MaxiCOM Ultra Lite Main Unit
1x MaxiFlash VCI
1x Docking Station
1x Main Cable V2.0
1x USB 2.0 Cable V2
1x AC/DC Adapter(12V)
1x Auxiliary Power Outlet Adapter
2x Spare Fuse 6x30mm
1x Clamp Cable
1x USB to Enthernet Adapter
1x Quick Reference Guide
1x Packing List
1x Soft Cloth
