19 Languages 2 Axis LCD DRO/3 Axis LCD DRO SET Digital Readout AC220V/110V with 2/3 Pieces 100-1000mm Linear Scale Lathe Milling

19 Languages 2 Axis LCD DRO/3 Axis LCD DRO SET Digital Readout AC220V/110V with 2/3 Pieces 100-1000mm Linear Scale Lathe Milling

HXX GCS909-2 or GCS909-3 is LCD DRO Set in 19 languages, which is convenient for users in different countries, easy to operate, and complete functions. Widely used in lathes, milling machines, grinders, wire cutting, drilling machines, etc.

Support English, Russian, German, French, Spanish, Portuguese, Italian, Polish, Ukrainian, Croatian, Slovak, Dutch, Czech, Turkish, Japanese, Korean, Vietnamese, Simplified Chinese, Traditional Chinese.

How to choose the length of ladders after placing an order? (Full order)?

First method.

Click "contact seller" to write a message about the travel length of the ladders needed or the actual total length of the ladders.

Second method.

When confirming and paying for the order, write "leave a message for this seller" that you need the travel length of the scales or the actual total length of the scales.

Please write clearly if the length you need is the travel length of the ladders or the total length of the ladders, or we will default to the travel length. Thank you to all buyers!

What in package?

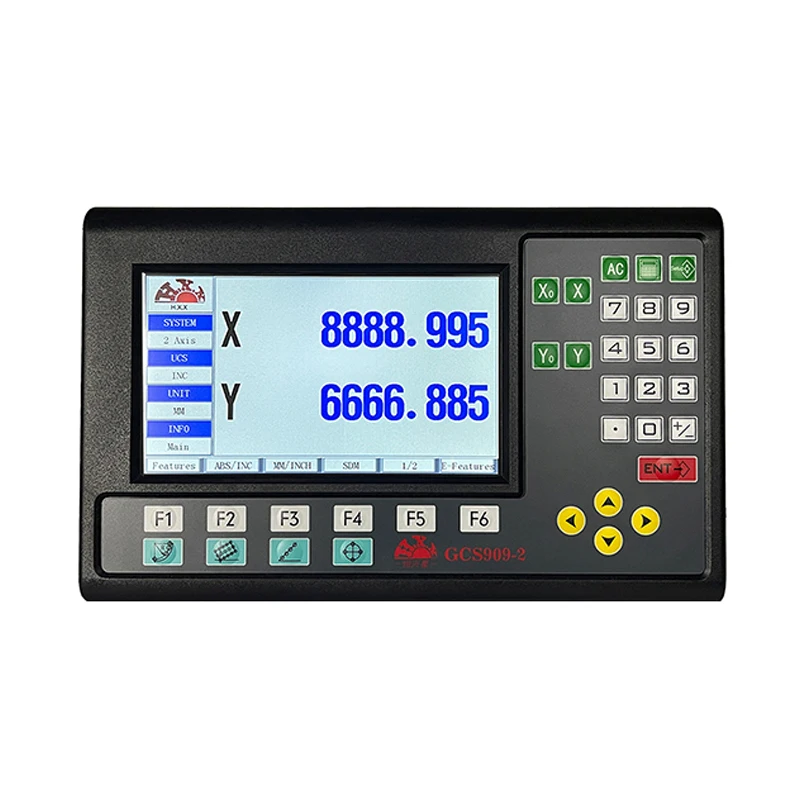

GCS909-2 DRO SET

-1 piece 2-axis lcd dro, power cable, display protector, mounting arm, screw bag, user manual

-2 pieces 0.005mm（5um） 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bags

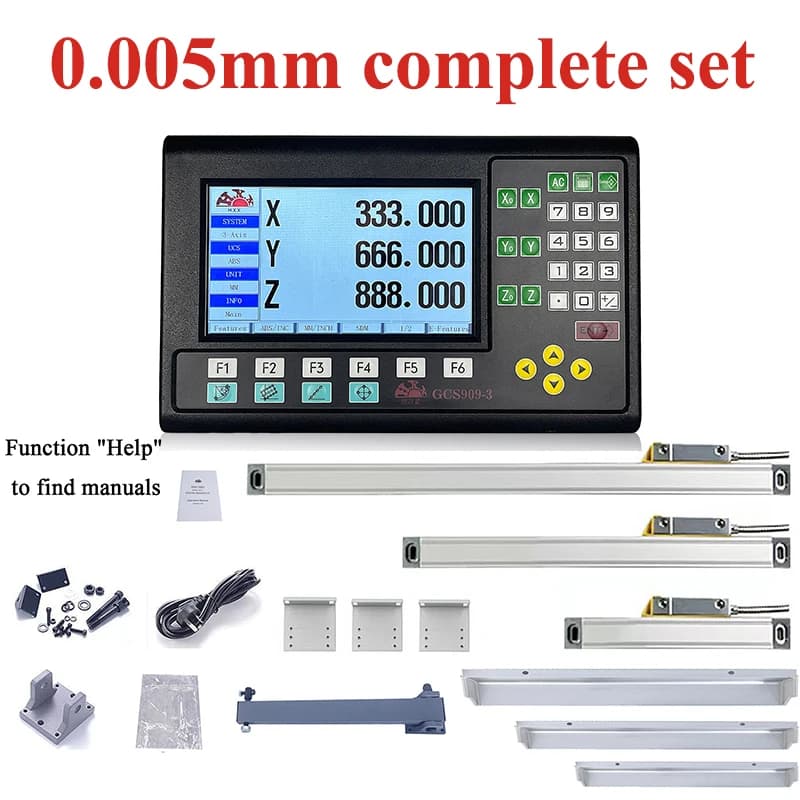

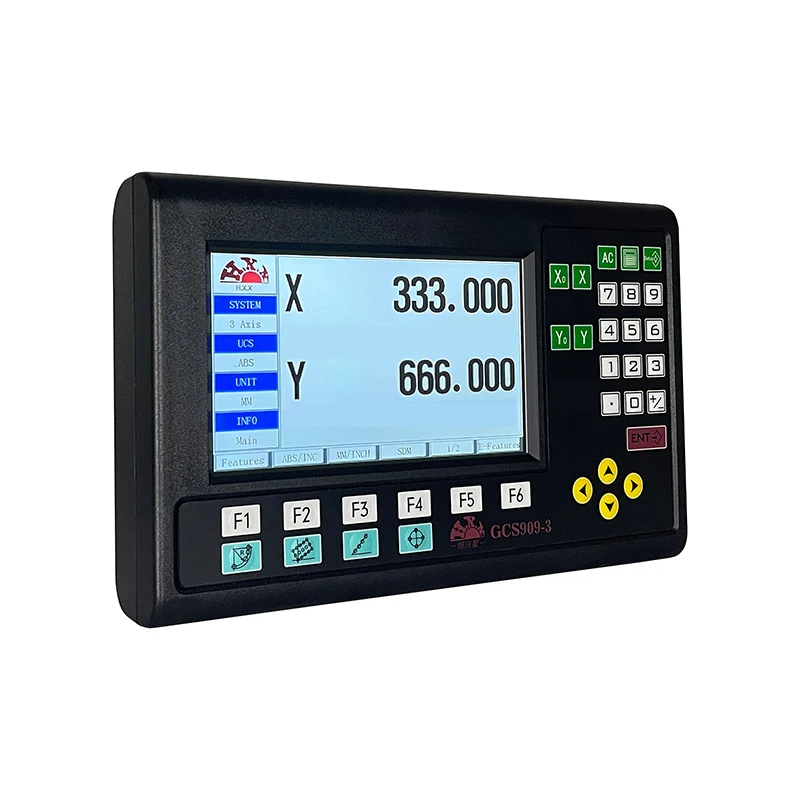

GCS909-3 DRO SET

-1 piece 3-axis lcd dro, power cable, display protector, mounting arm, screw bag, user manual

-3 pieces 0.005mm（5um） 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bags

2 Axis DRO (No Scale)

-1 piece 2-axis lcd dro, 1 piece power cable, 1 piece display protector,1 piece mounting arm, 1 bag screws, 1 piece user manual

3 Axis DRO (No Scale)

-1 piece 3-axis lcd dro, 1 piece power cable, 1 piece display protector,1 piece mounting arm, 1 bag screws, 1 piece user manual

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Note: Products “GCS909-2 DRO SET” and “GCS909-3 DRO SET” are custom-made items. Please contact the to specify the required travel length of the linear scales. Failure to do so will result in non-delivery. Thank you for your cooperation.

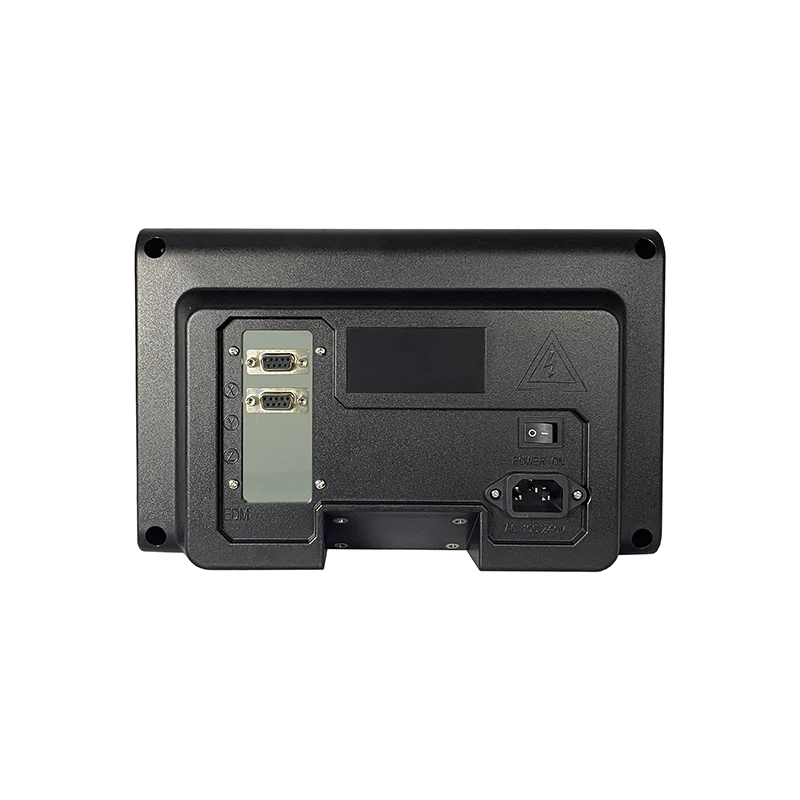

DRO digital readout parameter:

1.Voltage Range: AC 80V~264V/50HZ~60HZ

2.Acceptable Signal: TTL square wave/ EIA-442

3. Plug: DB9

4.Acceptable resolution: 20um ,10um ,5um ,2um ,1um ,0.5um ,0.1um

DRO digital readout advantage:

1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting etc.

2. The wide voltage AC80-250V can be widely used in all over the world.

3. We offer US, AU, EU, UK different type plug suite for different countries if need.

4. Only the signals need to be modified and can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.

5. Big LCD display, easy to read date when working.

DRO digital readout basic functions:

1.Factory Reset

2.Setup Location display method

3.Signal Interface Type

4.Setup the Resolution

5.Setup Positive Direction for Counter

6.Setup Compensation Type

7.Setup Encoder linear

8.Setup Screw clearance

9.Setup Coordinate Joint

10.Setup INCH Unit Dot

11.Setup the Anti- Filtering

12.Setup the Angle Display Mode

13.Setup Screen saver time

14.Setup Language

15.Setup Anti-shake

16.Setup RS485 Baudrate

17.Zeroing

18.Preset Data to Designated Axis

19.Toggle Display Unit between inch and mm

20.Absolute/Incremental/200 groups SDM

21.1/2 Function

22.Clear All SDM Datum

23.Screen Saver Function

24.Power Interruption Memory

25.Linear Compensation

26.Non Linear error Compensation

27.Anti-shake Function

28.R/D Function

29.Anti-shake Function

30.Coordinate Joint Function

31.Brightness adjustment

32.200 Groups SDM coordinate

33.Zeroing at the Current Point

34.Preset datum of SDM coordinate

35.Calculator

DRO digital readout special functions:

1.Circumference Holes Processing

2.Linear Holes Processing

3.Smooth ARC Processing

4.Simple ARC Processing

5.Slope Processing

6.Network holes Processing

7.Rectangle Inner Processing

8.EDM Processing

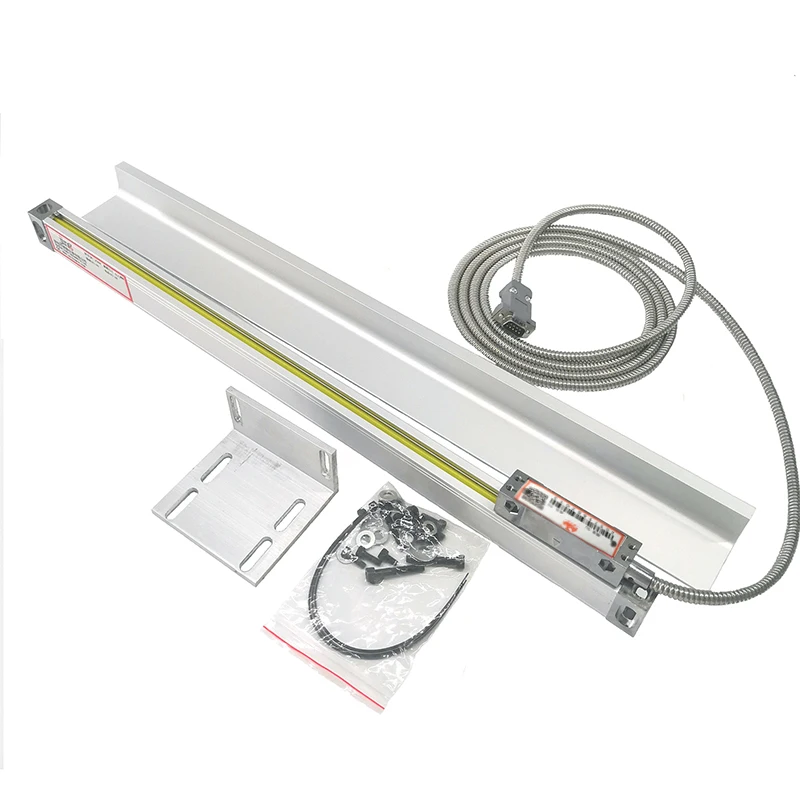

Linear scale features

Model: GCS898

Available measurement: 50mm to 1000mm

Total length: measurement+138mm

Size cross section size: 21mmx33mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um(0.005mm)

Cable length: 3 meters

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales total length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Shipping

If your purchase includes linear scales, please note the order or leave us a message about the required travel length of the linear scale.Thank you.

When placing an order, please select the shipping method and pay the order fee including shipping costs (except for free shipping). We will ship the item(s) within the specified time after the payment is completed.

For shipments from China, the buyer is responsible for all additional customs fees, brokerage fees, duties and taxes for importation into your country.(Shipping costs do not include any import taxes, customs duties are the responsibility of the buyer).

Shipping from Poland, Spain and Russia is free of customs duties to the respective countries where the goods can be received.

Returns

If you return an item for any reason within 15 days of receipt, we will refund you.Please contact us before returning an item and we will provide you with a return address.The buyer shall ensure that the returned merchandise is in its original condition. If the item is returned damaged or missing, the buyer will be responsible for the damage or loss and we will not issue a full refund to the buyer.

The buyer is responsible for the shipping cost of the return.

Service

We will provide you with good service, please feel free to contact us if you have any questions, looking forward to your visit!
