2 Axis 3 Axis Dro Set Digital Readout and 2/3PCS Linear Scale Encoder Ruler 0.005mm TTL Travel Length 0-1000mm for Lathe Milling

2 Axis 3 Axis Dro Set Digital Readout and 2/3PCS Linear Scale Encoder Ruler 0.005mm TTL Travel Length 0-1000mm for Lathe Milling

Package Includes:

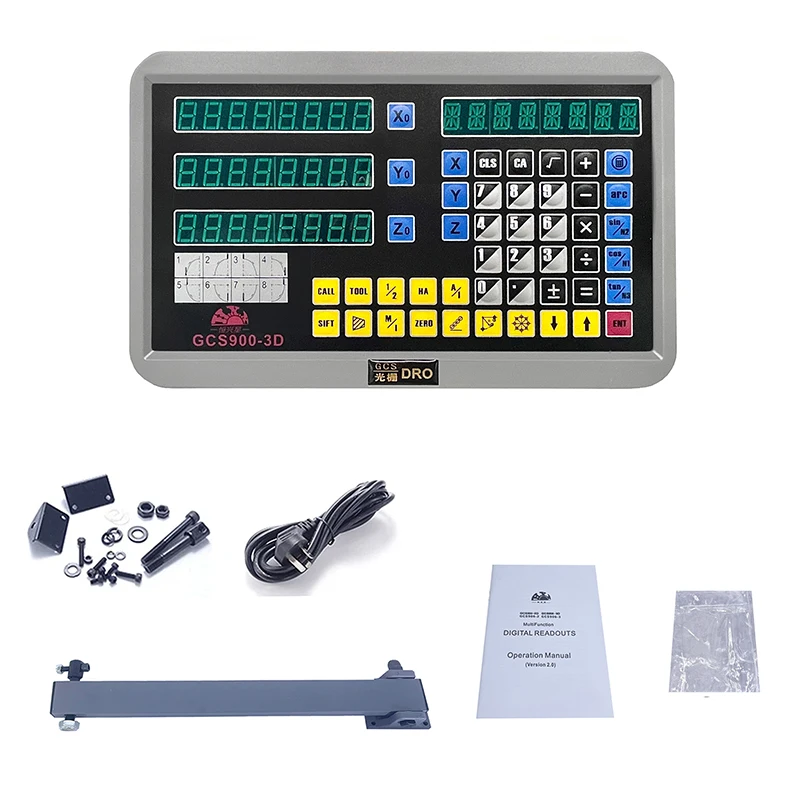

GCS900-3D DRO SET

-1 piece 3 axis dro, display cover, mounting bracket, screw bag, user manual(English or Русская электронная версия)

-3 pcs linesr scales with an accuracy of  0.005mm(5um) and travel lengths of 50mm-1000 mm., linear scales covers, mounting brackets, screw bags

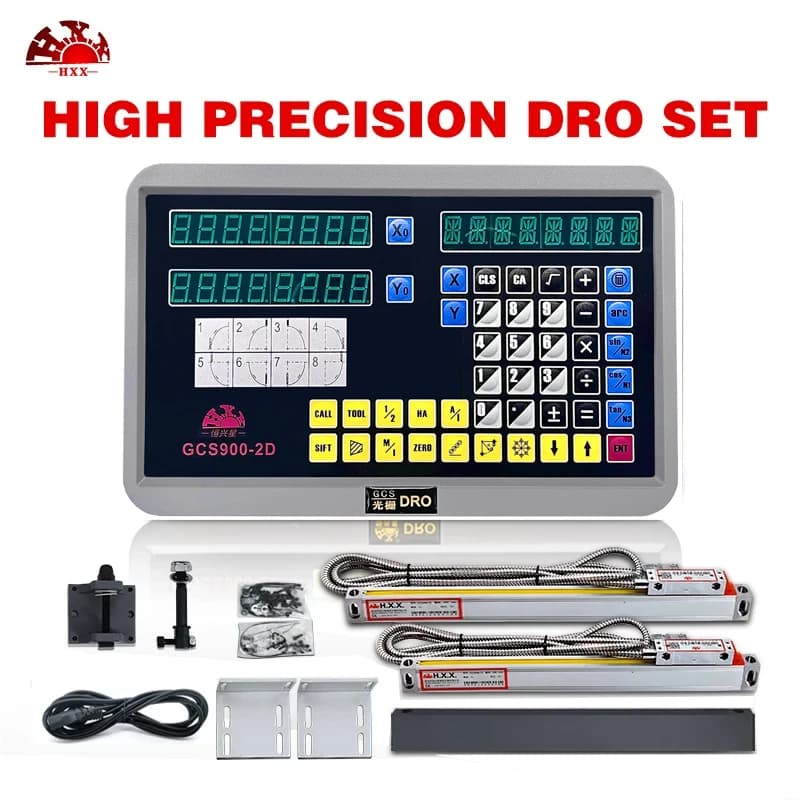

GCS900-2D DRO SET

-1 piece 2 axis dro, display cover, mounting bracket, screw bag, user manual(English or Русская электронная версия)

-2 pcs linesr scales with an accuracy of  0.005mm(5um) and travel lengths of 50mm-1000 mm., linear scales covers, mounting brackets, screw bags

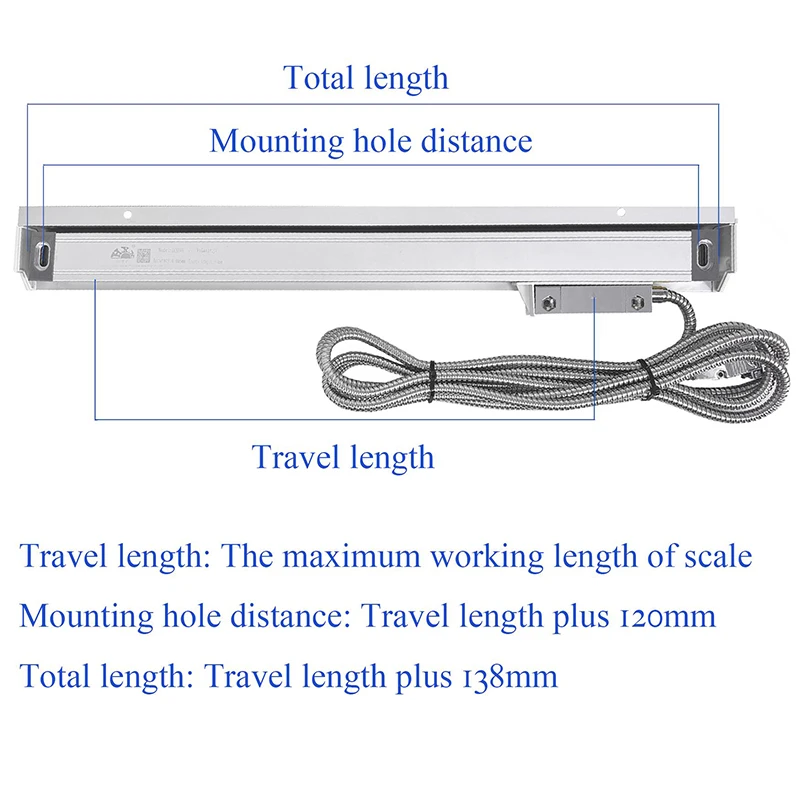

Linear scale (measuring / working)travel length：50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm.

Linear scale (total)overall length：travel length+138mm.

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Note: Products “GCS900-3D DRO SET” and “GCS900-2D DRO SET” are custom-made items. Please contact the to specify the required travel length of the linear scales. Failure to do so will result in non-delivery. Thank you for your cooperation.

GCS900 DRO Digital Readout Display System parameter:

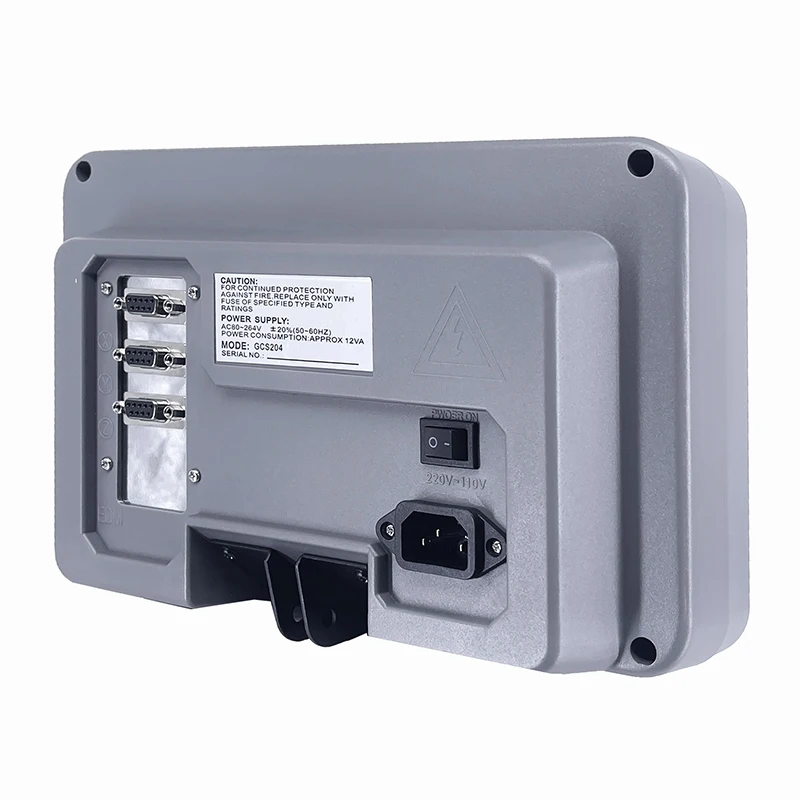

1.Voltage Range: AC 80V~260V/50HZ~60HZ

2.Acceptable Signal: TTL square wave/ EIA-442

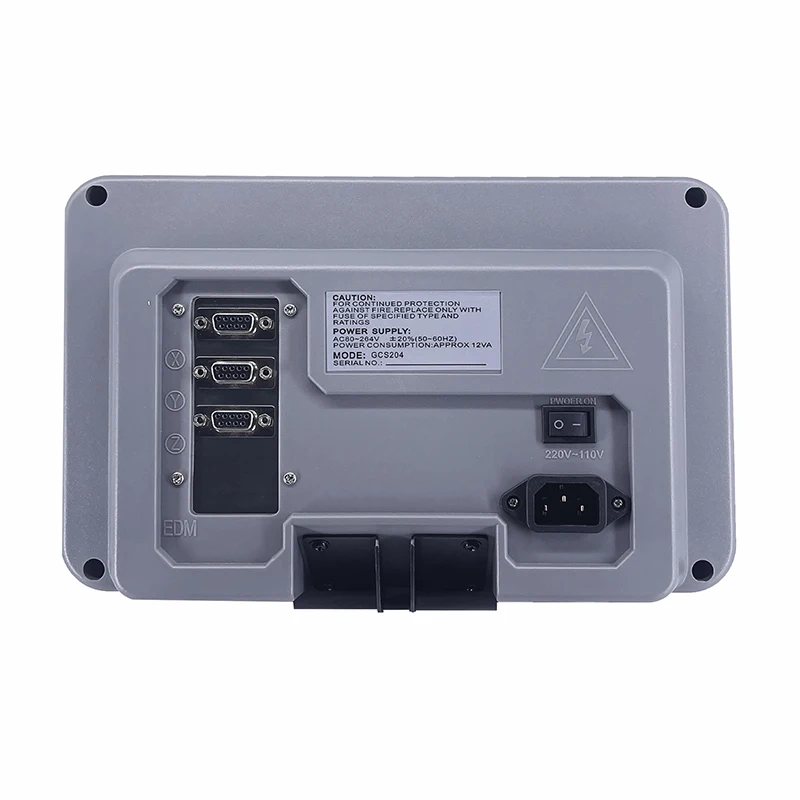

3. Plug: DB9

4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um

GCS900 DRO Digital Readout Display System Advantage:

1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting etc.

2. The wide voltage AC 80V-260V can be widely used in all over the world.

3. We offer US, AU, EU, UK different type plug suite for different countries if need.

4. Only the signals need to be modified and can be matched for HXX, Sino, Rational, Easson and all the China brand linear scales, very easy to operate.

GCS900 DRO Digital Readout Display System Functions:

1:English language display

2:Zero clearing

3:Reset

4:mm/inch mode

5:Metric/imperial conversion function

6:Absolute/relative counting transformation function

7:ABS/INC coordinate conversion

8: 200sets sub datum

9:Power off Memory;

10:Center of 1/2

11:Liner error compensation

12:Sleepping mode

13:Clear 200 sets Sdm datum;

14:ABS/INC mode

15:Calculator

16:Drilling of circumference

17:Drilling of oblique line

18:Machining of inclined plane

19:Machining of circular arc

20:Lathe function(match)

21:Rectangular lumen gradual processing

22:Digital filtering

23:Vibration filtering

24:Radius /Diameter fucntion

25:Self-motion middle parted function

26:Arc surface processing function

27:PCD function

28:Cant processing function

29:PLD function

30:Lathe function

31:EDM function(If necessary, please contact us, we choose for you GCS900-3DB+ or GCS900-2DB+)

Linear Scale/Linear Encoder/Linear Sensor/Ruler Parameters:

1. Travel (measuring) length: 0mm-1000mm / 0-40inch

2. Total (overall) length: Travel length + 138mm (0mm-1138mm)

3. Plug: DB9

4. Resolution: 0.005mm(5um)

    we can offer you 0.001mm(1um), need extra fee.Please contact us. Thank you.

5. Input voltage: 5V

6. Cable length: 3 Meter

7. Normal size: 21mm*33mm

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

The Signal of 5u Linear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear Sensor

Pin 1 Red +5V

Pin 2 White 0V

Pin 3 Yellow A

Pin 4 Black B

Pin 5 Blue R
