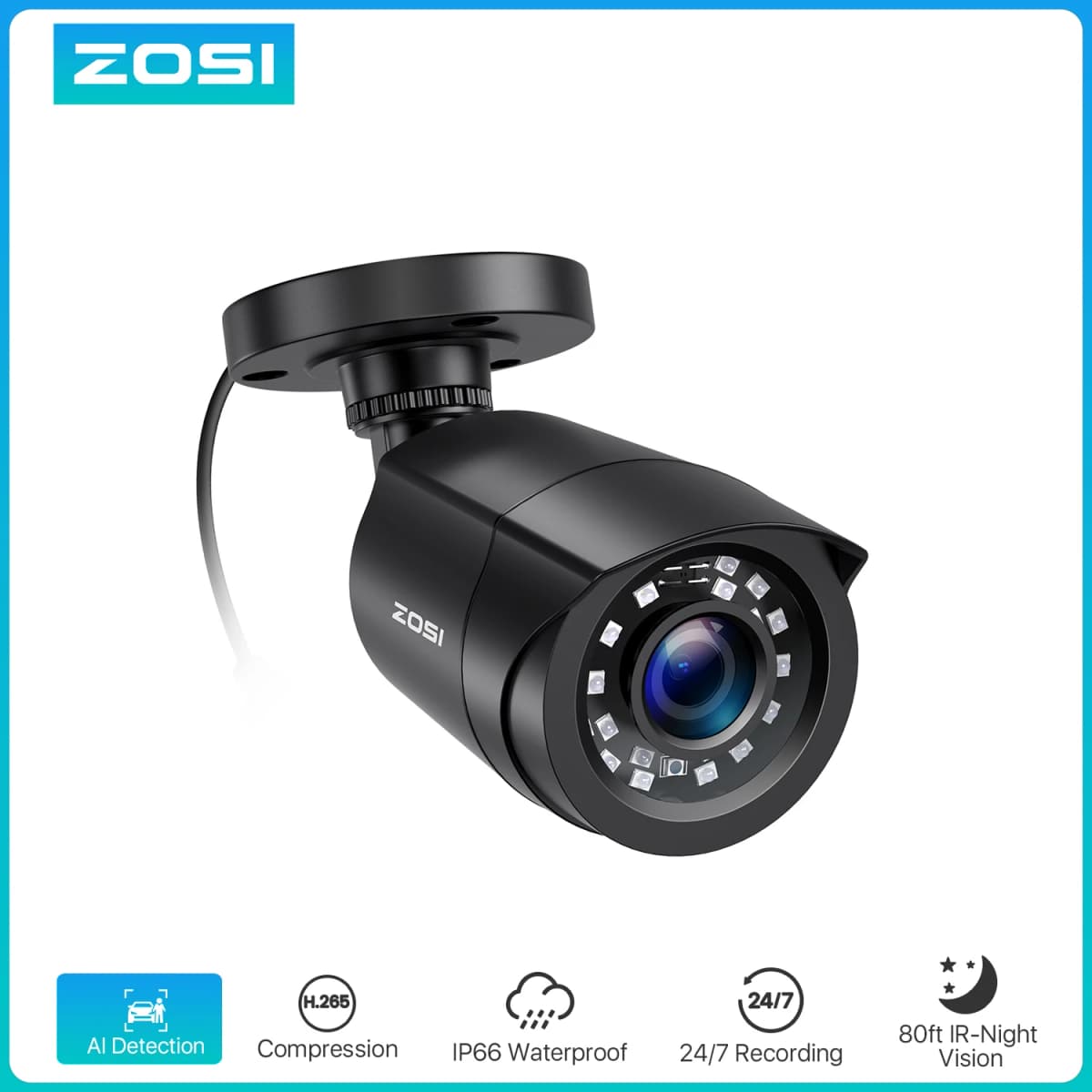

ZOSI 1080P 4-in-1 CCTV Security Camera ,3.6mm Lens 24 IR LEDs,80ft Night Vision ,Outdoor Whetherproof Surveillance Camera

Noted Before Buy

1. This camera is recommended to work with a security DVR.
2. This camera needs to be wired with power supply &video power cable.
3. This camera did not come with DVR, power supply &video power cable!

Troubleshooting

Q: Video Loss appears where the image from my camera should be displaying on my DVR?
A: 1.Check the extension cable (power and video) is securely connected to the camera.
2.Check the video output from the camera is securely connected to a video input channel on the DVR.
3.Check the power from the camera is securely connected to a power supply.
4. The camera mode do not match your DVR.there is 2 ways to setup . (1) Press OSD Joystick “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR. (2) Make sure the signal of your DVR, Use OSD Joystick to change the mode of the camera according to your DVRs video Mode.

Q: Poor image quality?
A:Default video mode is analog 960H mode.If your DVR supports 4 in 1(or 5 in 1),it is recommended to set the camera to TVI,AHD or CVI mode which the image achieve the best effect.

Package Include

1 x Outdoor/Indoor 1080P IR Color CMOS Camera
1 x Mounting Screw bag
1x Instruction Manual

ZOSI 4-IN-1 Security Camera Specification

Image Sensor: 1/3〞CMOS CMOS with IR-Cut.

Active Pixels: 1920(H)×1080(V).

Resolution: 1080P .

Lens: 3.6mm

LEDs Amount: 24pcs, 5mm LEDs

Singal mode: TVI/AHD/CVI/CVBS 960H.

IR Distance: up to 80ft

Weather - Resistant

1080p Full HD Resolution

See everything in details with true 1080p HD resolution. Get clearer and smoother images/videos than 720p cameras.

CVBS/CVI/AHD/TVI 4-In-Camera

This 1080p full HD camera has a built-in OSD menu that can change the 4 different video outputs：HD-TVI, AHD, CVI, and CVBS(960H)， and adjust the video settings.

Operation Mode：

Switch from AHD: Press Leftward for 5 Seconds

Switch from TVI: Press Rightward for 5 Seconds

Switch from CVBS: Press Upward for 5 Seconds

Switch from CVI: Press Downward for 5 Seconds

Noted: Default Video Mode is Analog 960H Mode

Weather resistant camera

Camera used high quality materials, can effectively prevent rust, water, etc. Can be installed outdoor or indoor.

Multiple Application Camera

It could be widely installed in home, store, office, school and any place. Protect your family, parents, baby, property and everything.
