HXX GCS906 2 Axis 3 Axis LCD DRO Kit Milling Lathe Grider Digital Readout Display with 5um/1um Linear Scale Ruler Encoder

HXX GCS906 2 Axis 3 Axis LCD DRO kit Milling Lathe Grider Digital Readout Display with 5um/1um Linear Scale Ruler Encoder

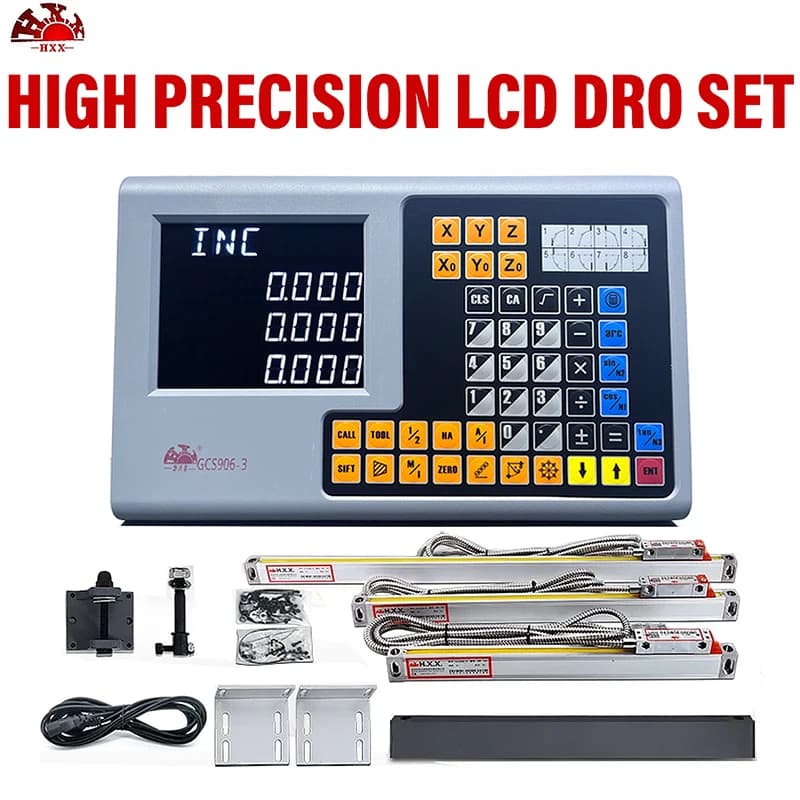

Package includes:

5um 2 Axis Dro Set

-1 piece 2 axis lcd dro, display cover, mounting bracket, screw bag, user manual

-2 pieces 0.005mm（5um） 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bag

1um 2 Axis Dro Set

-1 piece 2 axis lcd dro, display cover, mounting bracket, screw bag, user manual

-2 pieces 0.001mm（1um） 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bags

5um 3 Axis Dro Set

-1 piece 3 axis lcd dro, display cover, mounting bracket, screw bag, user manual

-3 pieces 0.005mm（5um） 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bag

1um 3 Axis Dro Set

-1 piece 3 axis lcd dro, display cover, mounting bracket, screw bag, user manual

-3 pieces 0.001mm（1um） 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bags

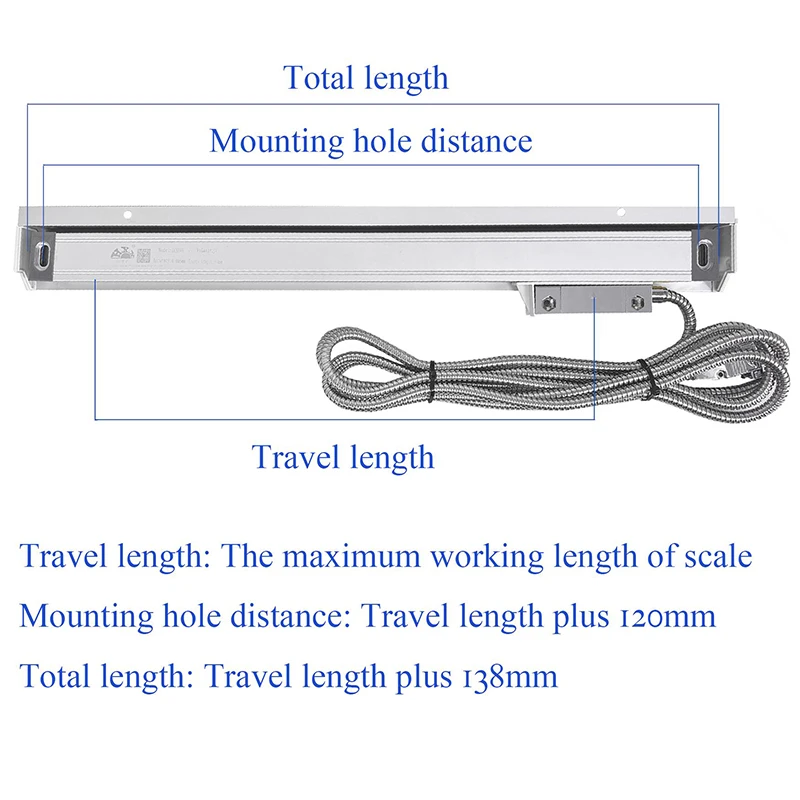

Linear scale (working)travel length：50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm.

Linear scale (total)overall length：travel length+138mm

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Note: Products “5um 2 Axis Dro Set,” “1um 2 Axis Dro Set,” “5um 3 Axis Dro Set,”and “1um 3 Axis Dro Set” are custom-made items. Please contact the buyer to specify the required travel length of the linear scales. Failure to do so will result in non-delivery. Thank you for your cooperation.

DRO Digital Readout Display System parameter

1. Voltage range: AC 100V-240V, 50HZ-60 HZ

2. Power consumption: 25VA

3. Operating temperature: -20°C-40°C

5. Relative humidity: <90% (20±50°C)

6. Weight: about 1.8kg

7, the number of coordinates: two coordinates, three coordinate

8. Display: Signed 7-bit display (two-axis or three-axis) data, the information window adopts 8-bit meter display symbol output

9. Multiplier: 4X

10. Display box allows input signal: TTL square wave

11. Allowable input signal frequency: > 100KHz

12. Resolution: 5um (optional 1um, 0.5um, 0.1um)

13. Signal: TTL (optional EIA-422 or RS-422)

14. Voltage: 5V (optional 24V)

15. Cable length: 3M (customizable)

DRO Digital Readout Functions

1:English language display

2:Zero clearing

3:Reset

4:mm/inch mode

5:Metric/imperial conversion function

6:Absolute/relative counting transformation function

7:ABS/INC coordinate conversion

8: 200sets sub datum

9:Power off Memory;

10:Center of 1/2

11:Liner error compensation

12:Sleepping mode

13:Clear 200 sets Sdm datum;

14:ABS/INC mode

15:Calculator

16:Drilling of circumference

17:Drilling of oblique line

18:Machining of inclined plane

19:Machining of circular arc

20:Lathe function(match)

21:Rectangular lumen gradual processing

22:Digital filtering

23:Vibration filtering

24:Radius /Diameter fucntion

25:Self-motion middle parted function

26:Arc surface processing function

27:PCD function

28:Cant processing function

29:PLD function

30:Lathe function

31:EDM function(If necessary, please contact us, thank you!)

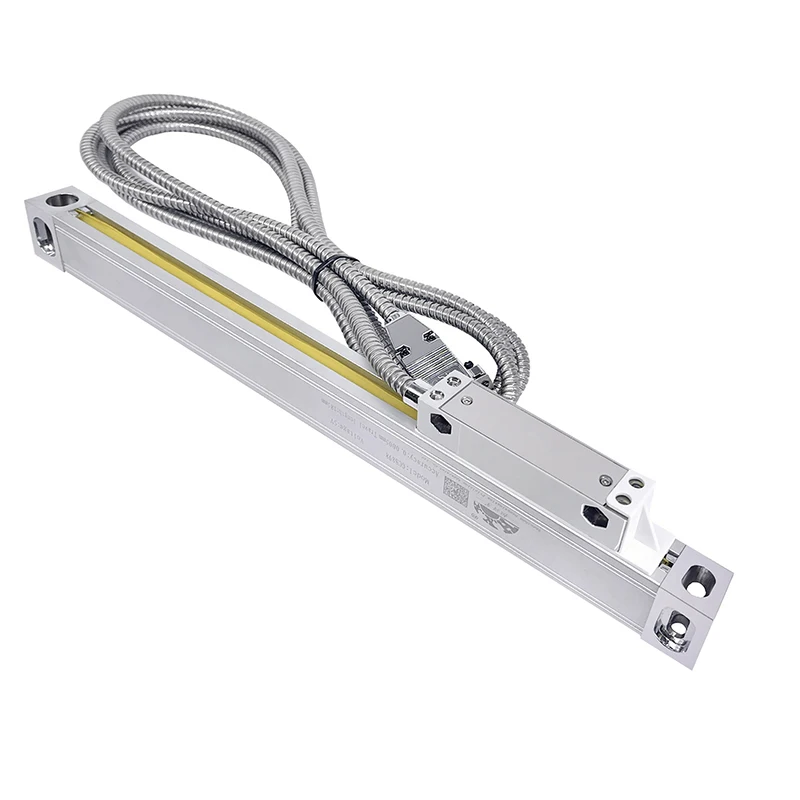

About Linear Scale

Model: GCS898

Travel length (Available measurement): 50mm to 1000mm

Total length: measurement+138mm

Size cross section size: 21mm*33mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um/0.005mm

Cable length: 3 meters

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Shipping

If your purchase includes linear scales, please note the order or leave us a message about the required travel length of the linear scale.Thank you.
