TwoTrees Laser Engraver CNC Router TTS-10/TTS-55 Pro 40W/80W Metal Laser Engraving Cutting Machine With Wifi Offline Control

Features:

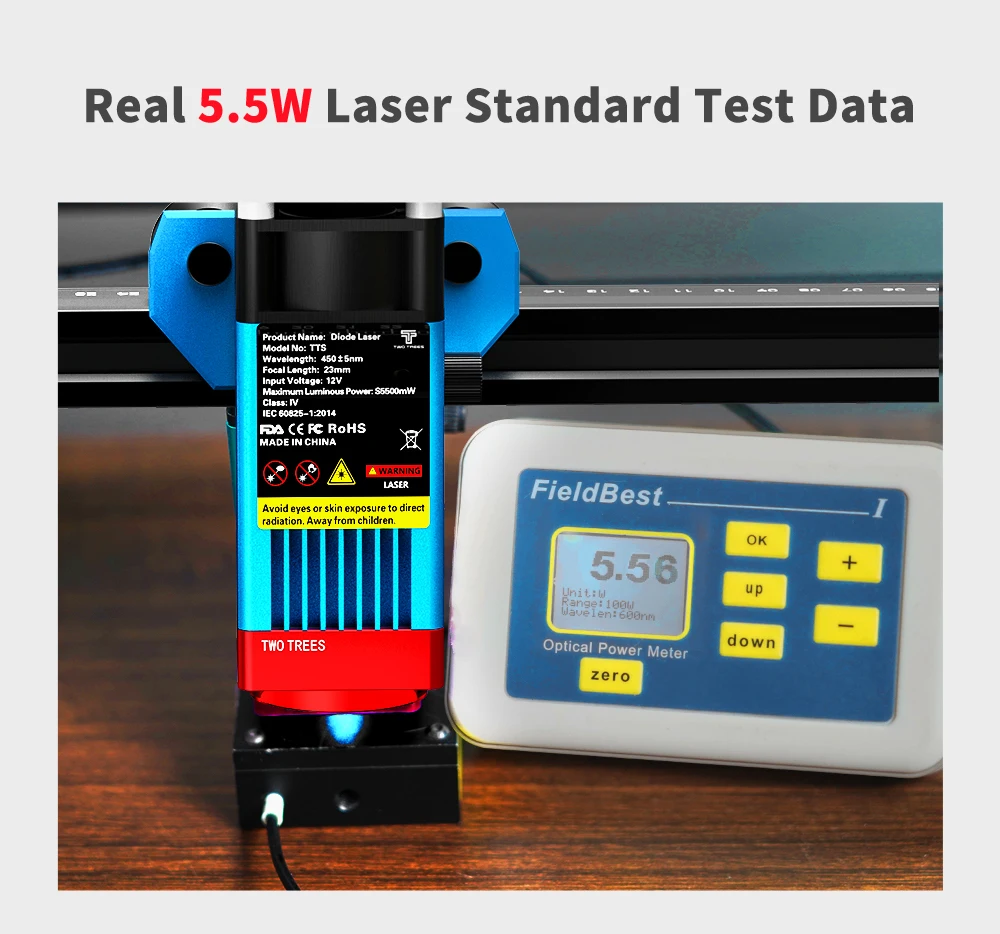

Latest Laser Beam Shaping Technology:TTS-55 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.

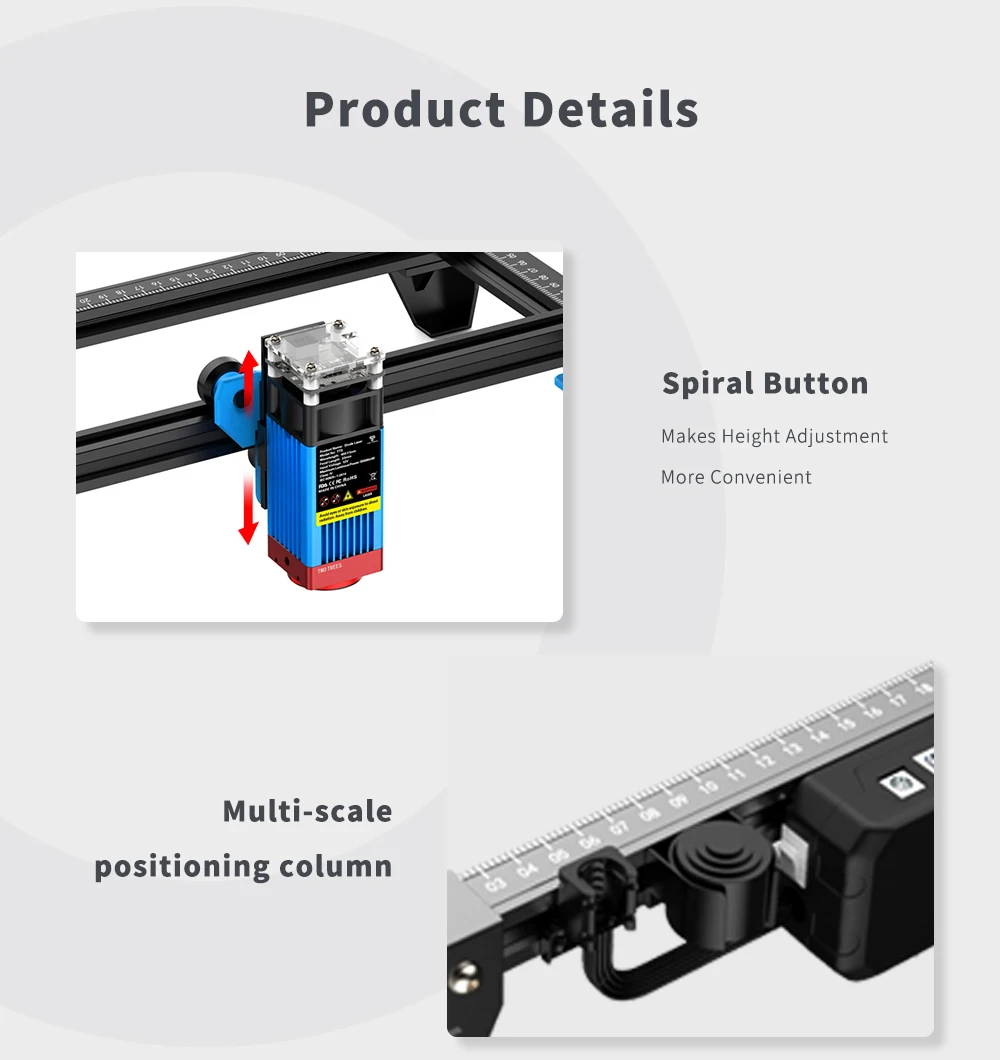

Fast focus design:Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.

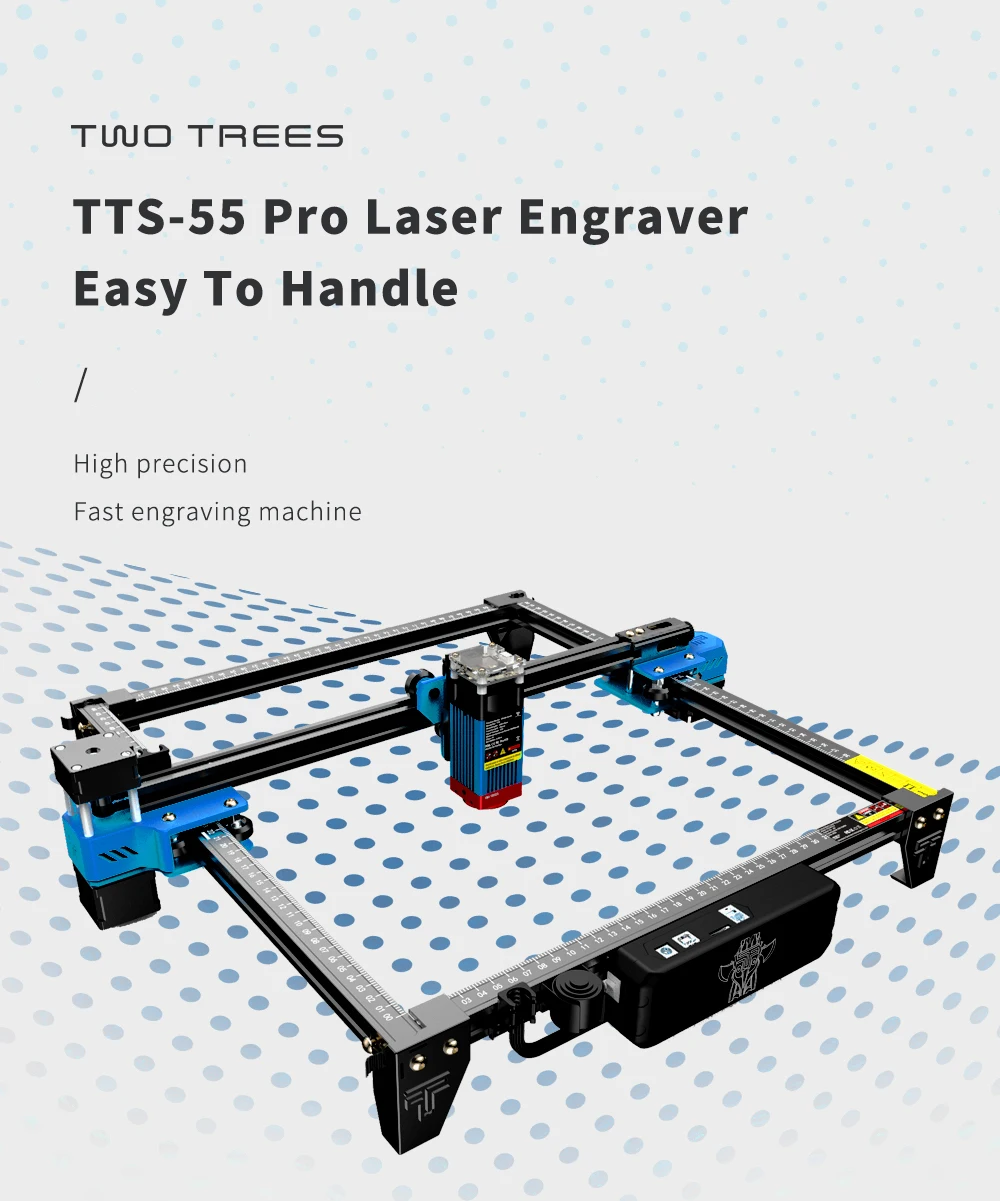

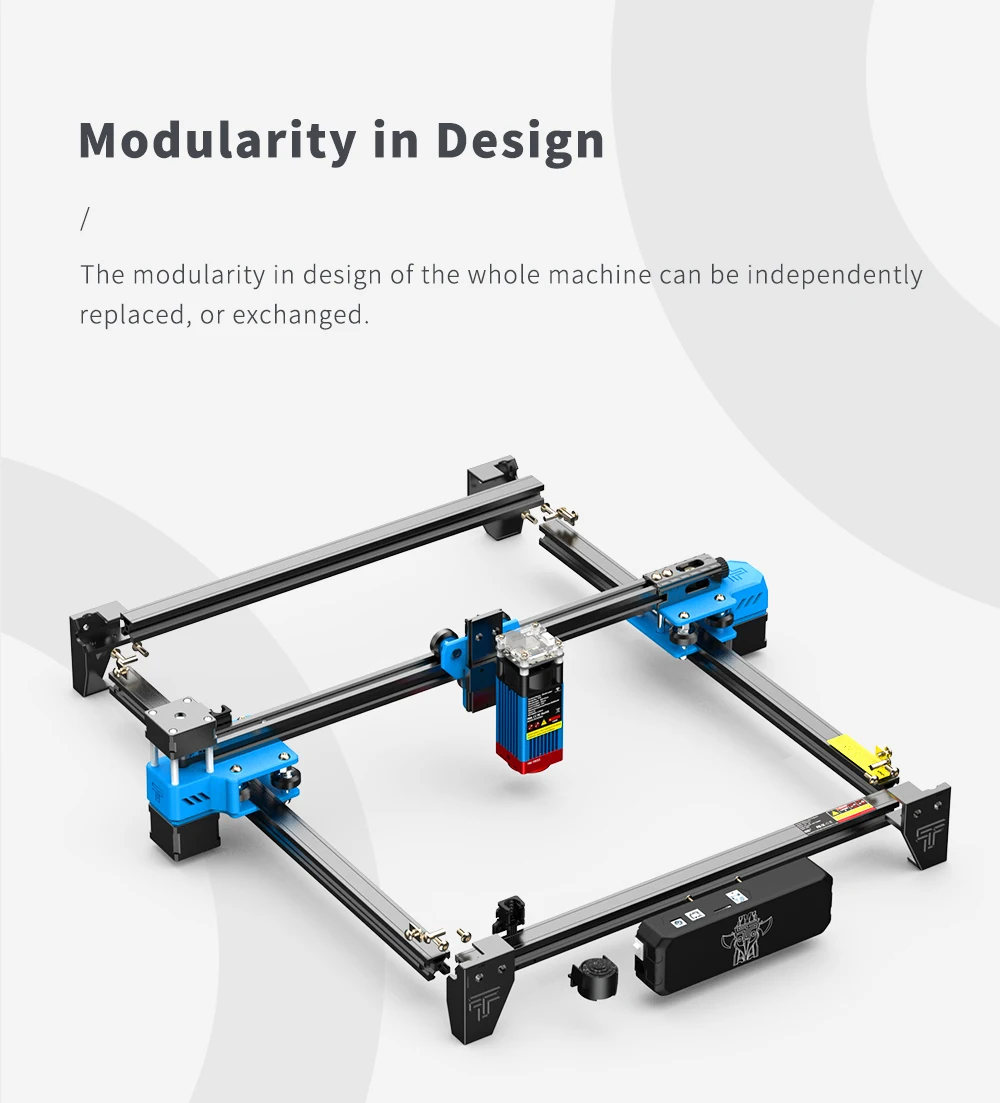

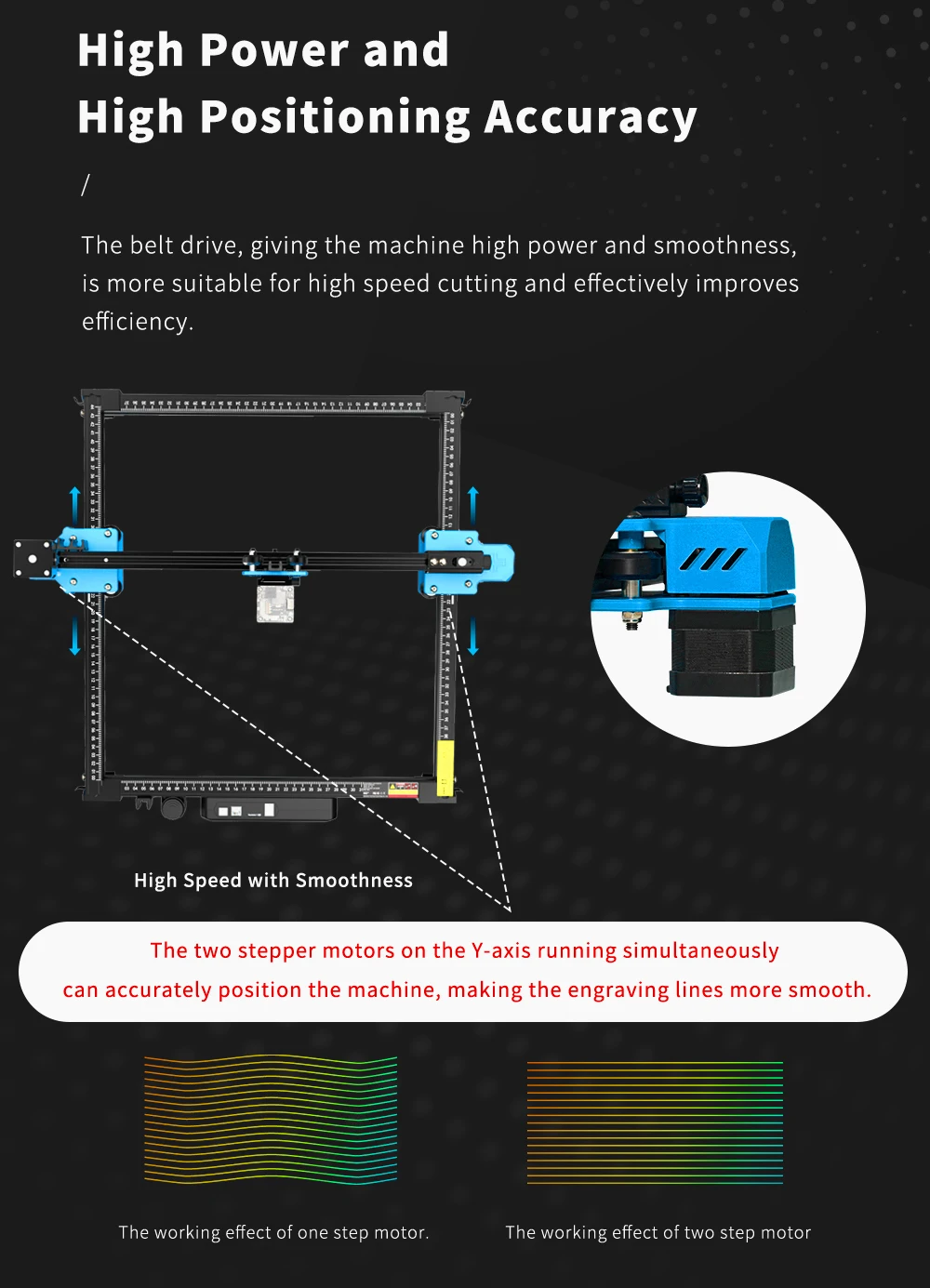

Easy assembly structure:aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.

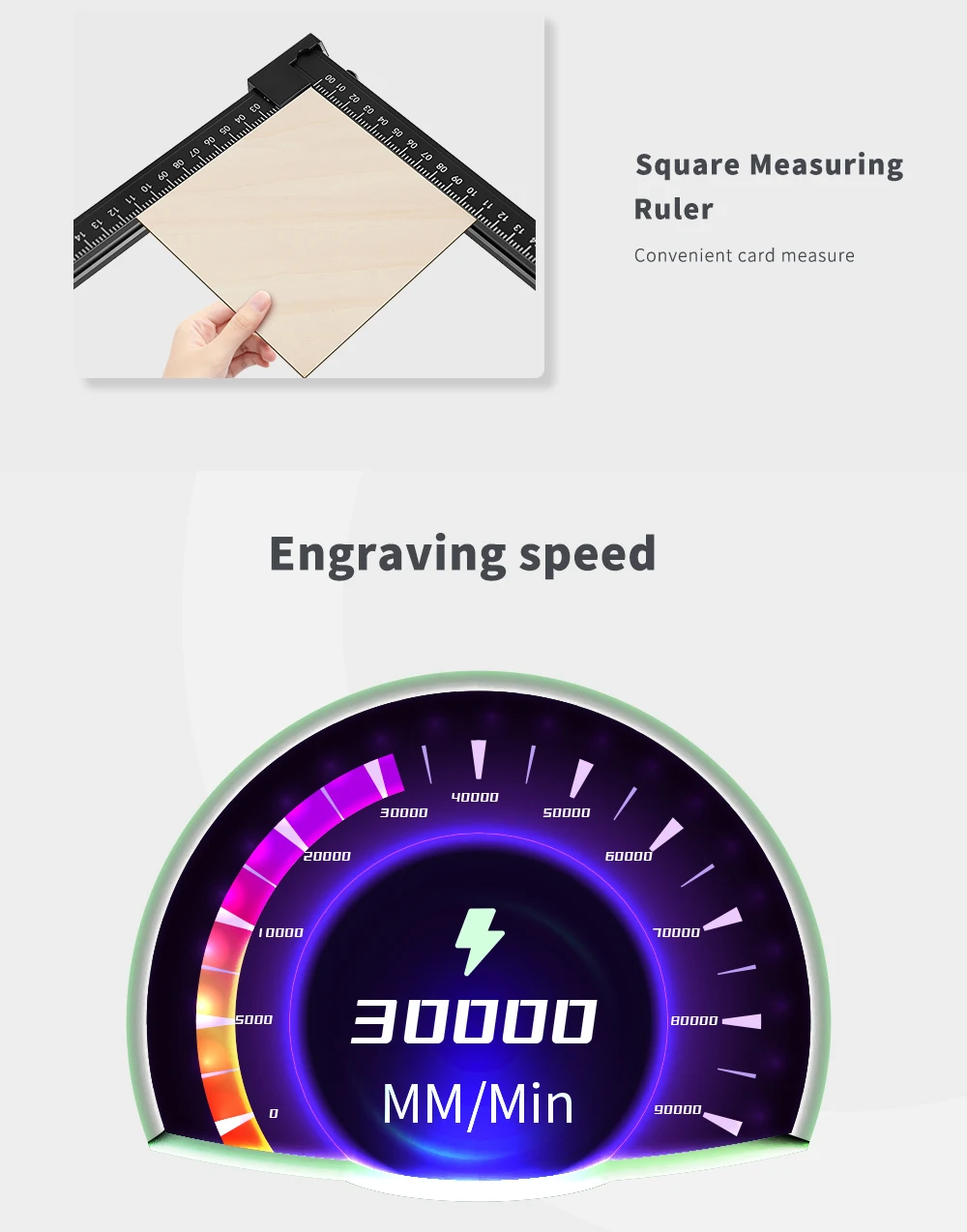

Square measuring ruler:X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.

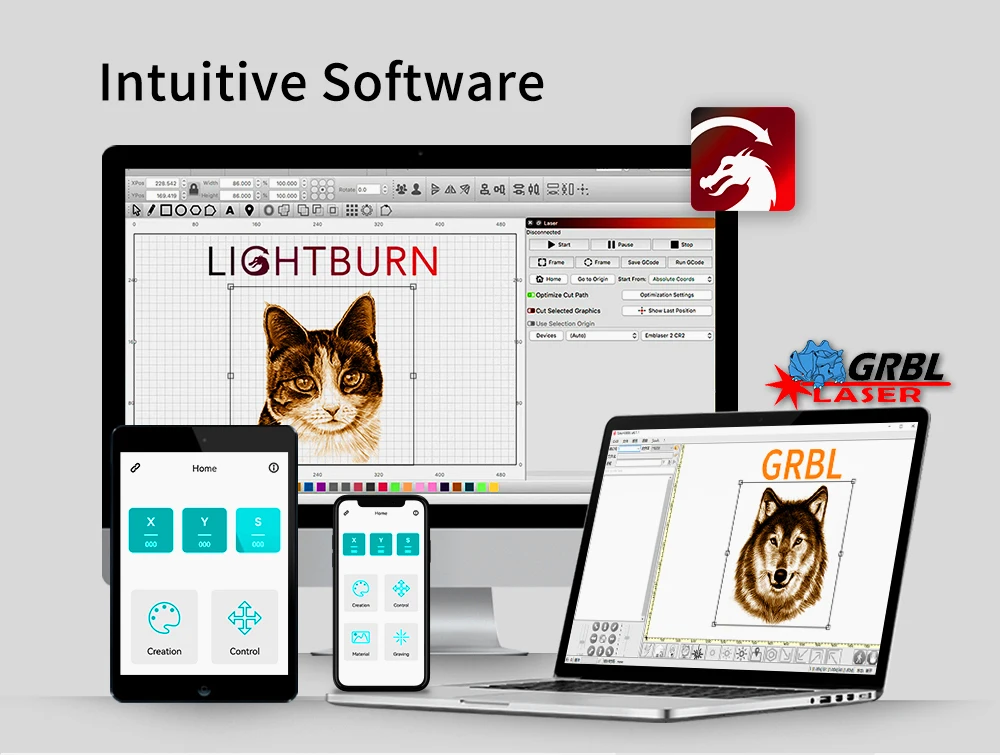

Wide Compatibility:Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

Safe Design:The laser filter cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.

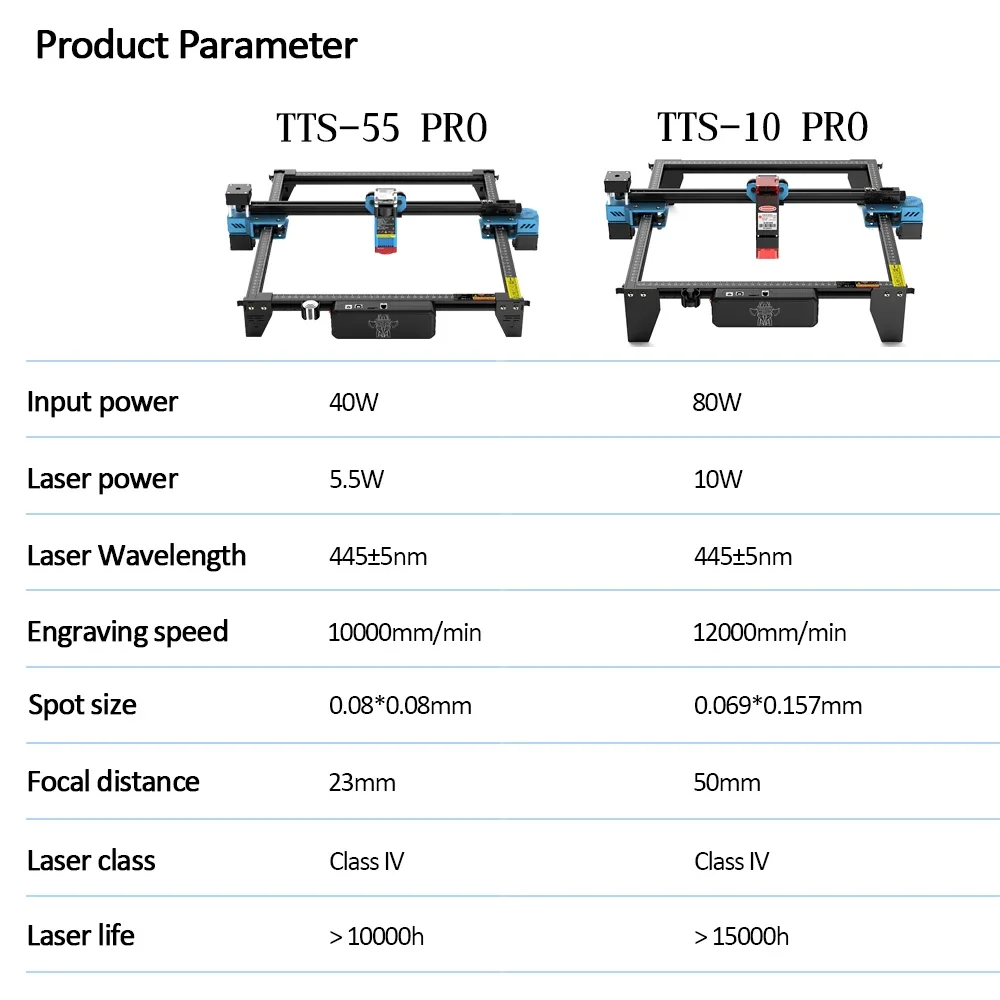

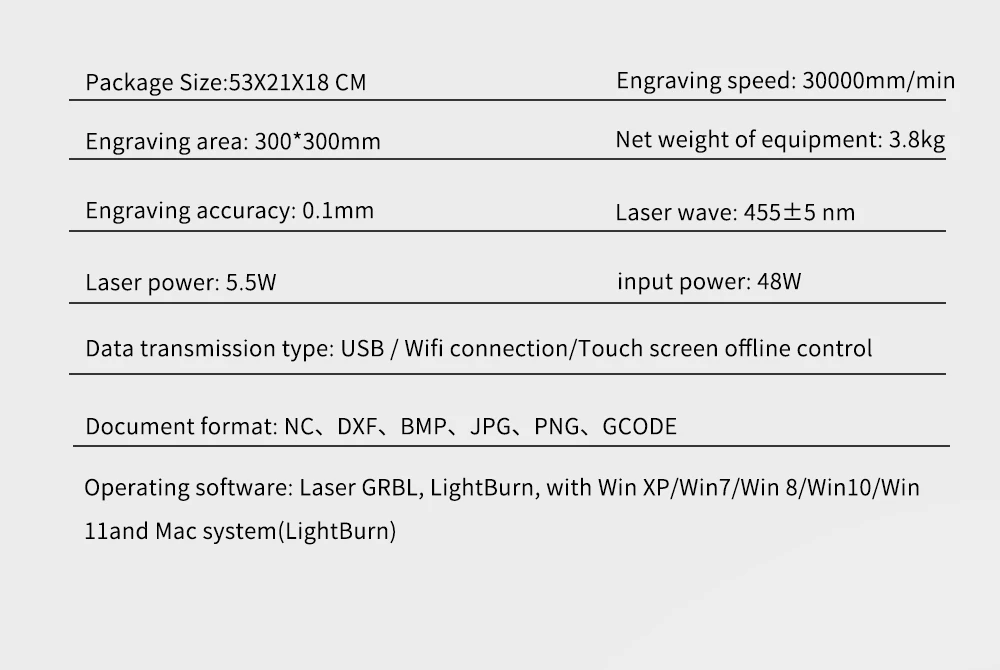

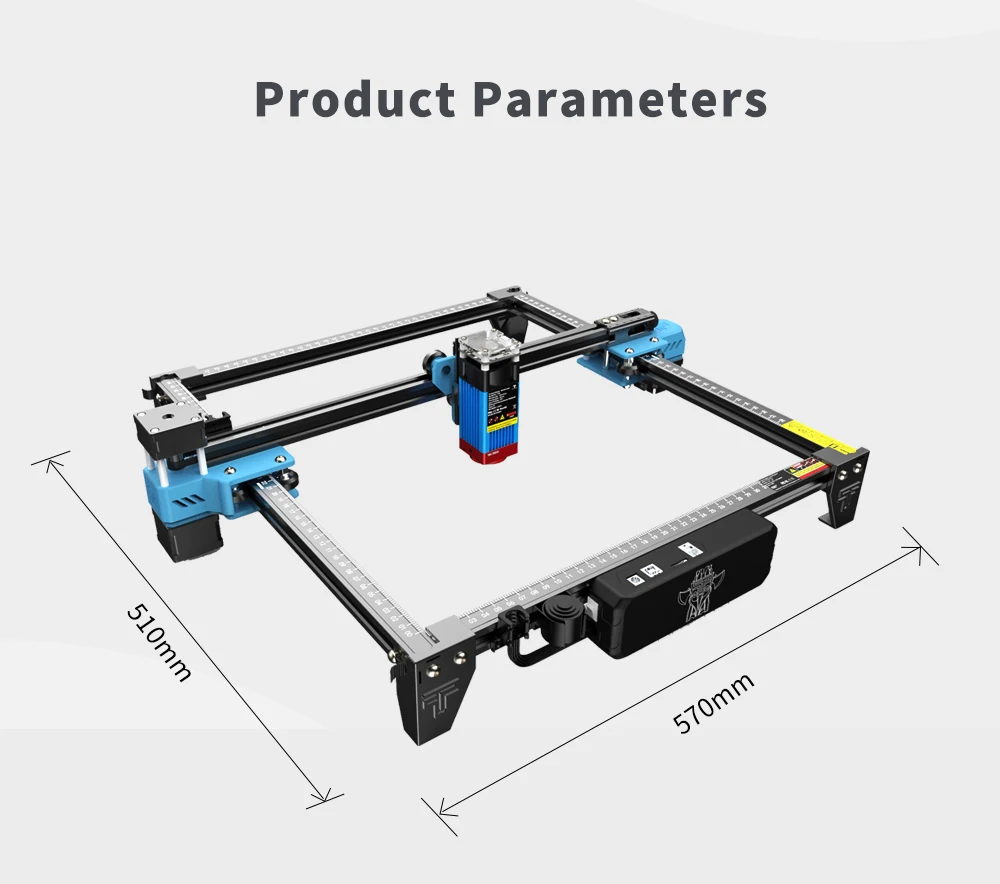

Specifications:

Model: TTS55 Pro/ TTS10Pro

Machine Weight: 3kg

Engraving Range: 300 * 300mm

Laser Wavelength: 445 ± 5nm

Engraving Accuracy: 0.1mm

Engraving Speed: 10000mm / min

Software Support System: MAC, Windows

Machine Material: Aluminum Profile + Plastic Parts

Power Supply: 12V 4A DC

Control Board: LTS esp32 Motherboard (32bit)

Laser Power: 2.5w/5.5w/10w (optional)

Input Power: 15w/40w/80w  (optional)

Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc

Supporting software: Lasergrbl (Windows system), Lightburn (General)

Power type: European standard / American Standard (Optional)

Languages Supported By The Software: Chinese, English, Italian, French and German

Working Environment: Temperature 5-40 ℃, Humidity 20-60%

Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)

Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc

Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving

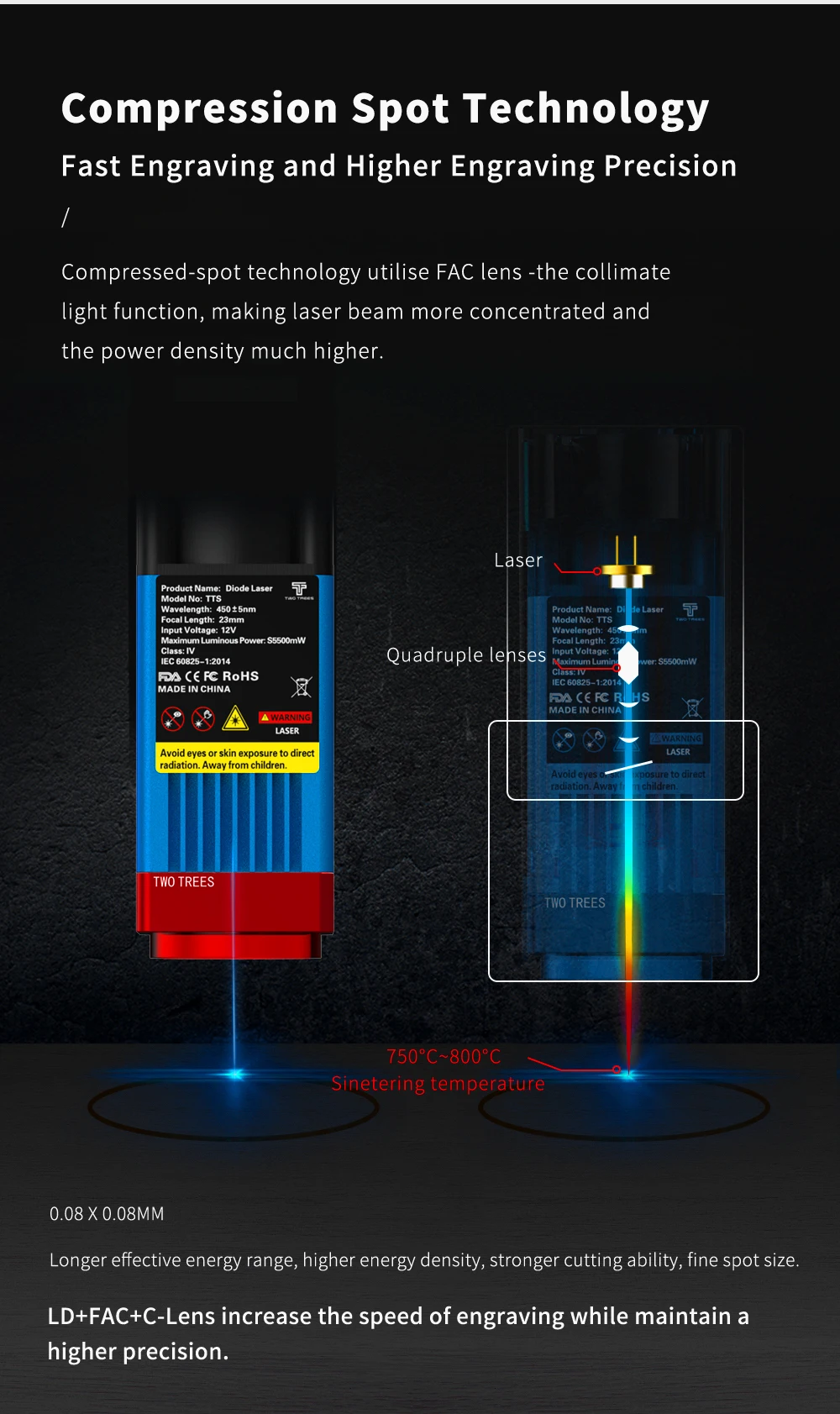

Compression Spot Technology ,Fast Engraving and Higher Engraving Precision

1. Compressed-spot technology utilise FAC lens-the collomate light function,making laser beam more concentrated and the power density much higher.
