HXX High Precision 0.001mm Linear Scale 1micron DRO Encoder 50 100 150 200 250 300 350 400mm 20x29mm Optical Grating Ruler

HXX High Precision 0.001mm Linear Scale 1micron DRO Encoder 50 100 150 200 250 300 350 400mm 20x29mm Optical Grating Ruler

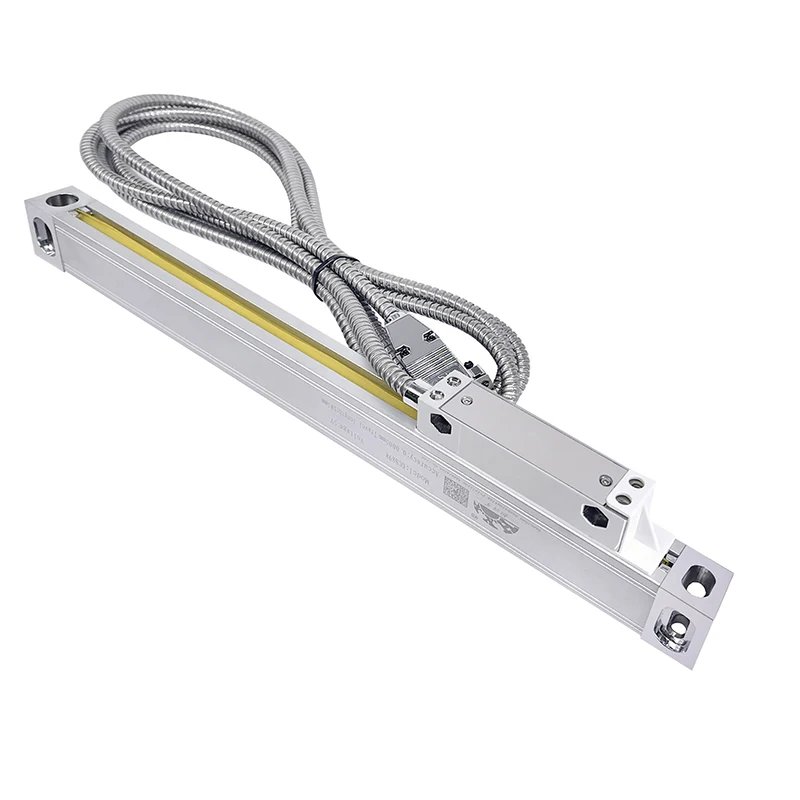

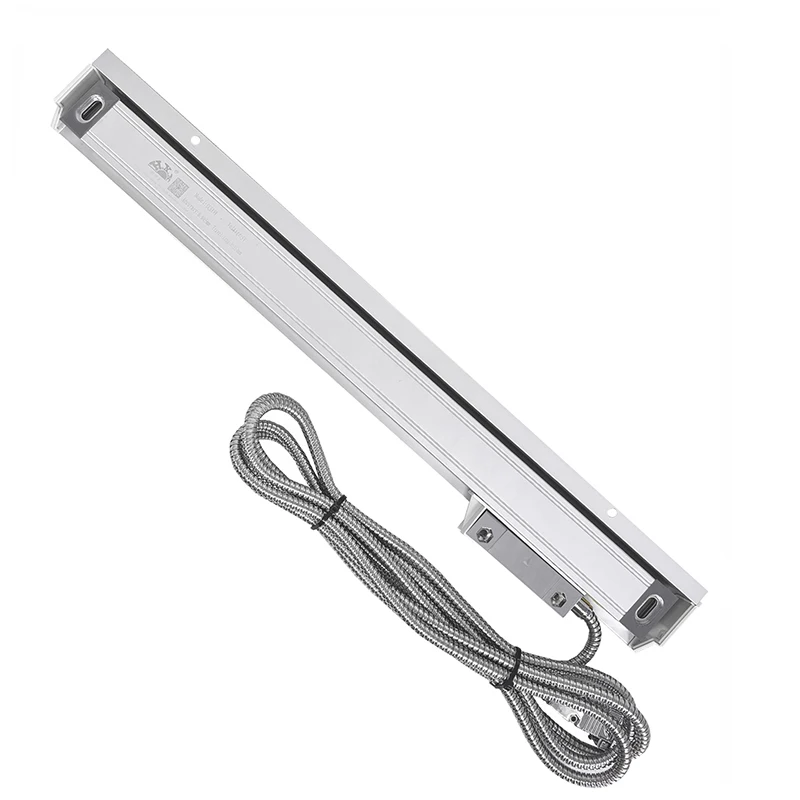

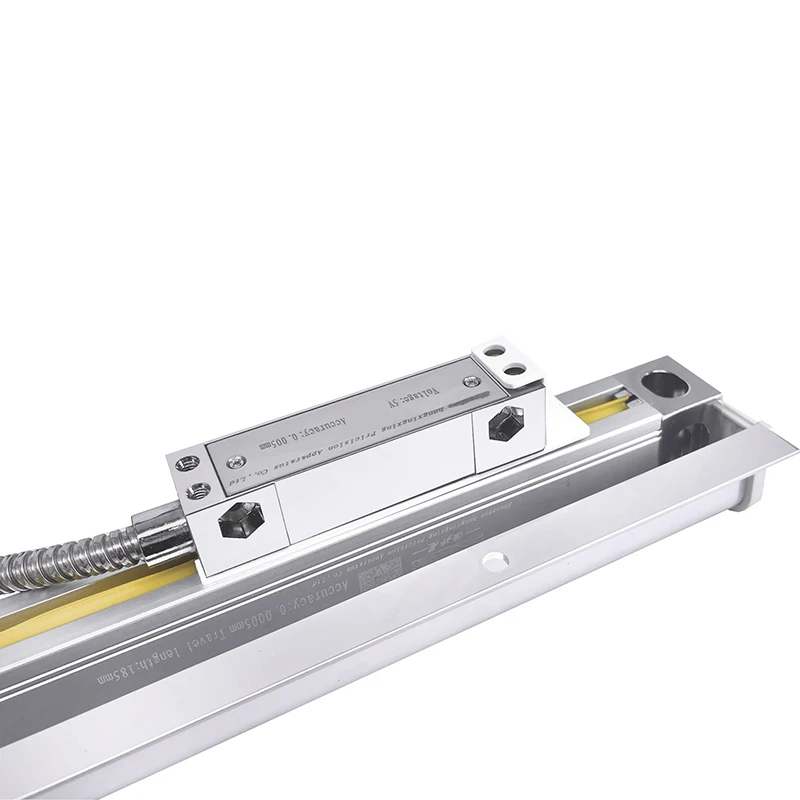

GCS898-S linear encoder available in 50mm-400mm, cross section size is 20x29mm.

The linear scale can replace HXX, Sino, Easson, Sinpo, Rational & all Chinese brands linear scales.

parameter

Product name: GCS898-S Linear scale

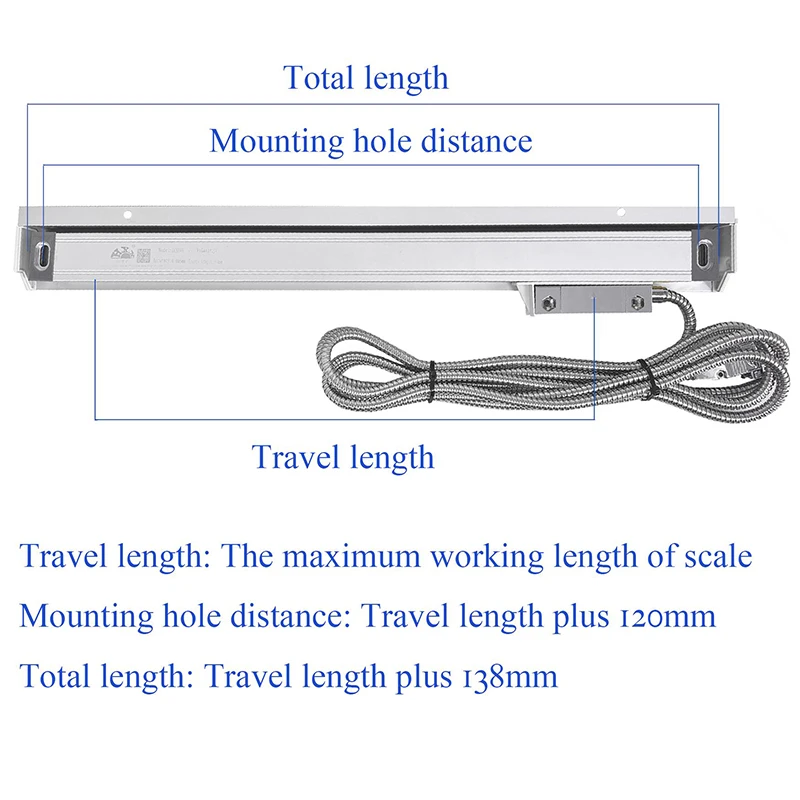

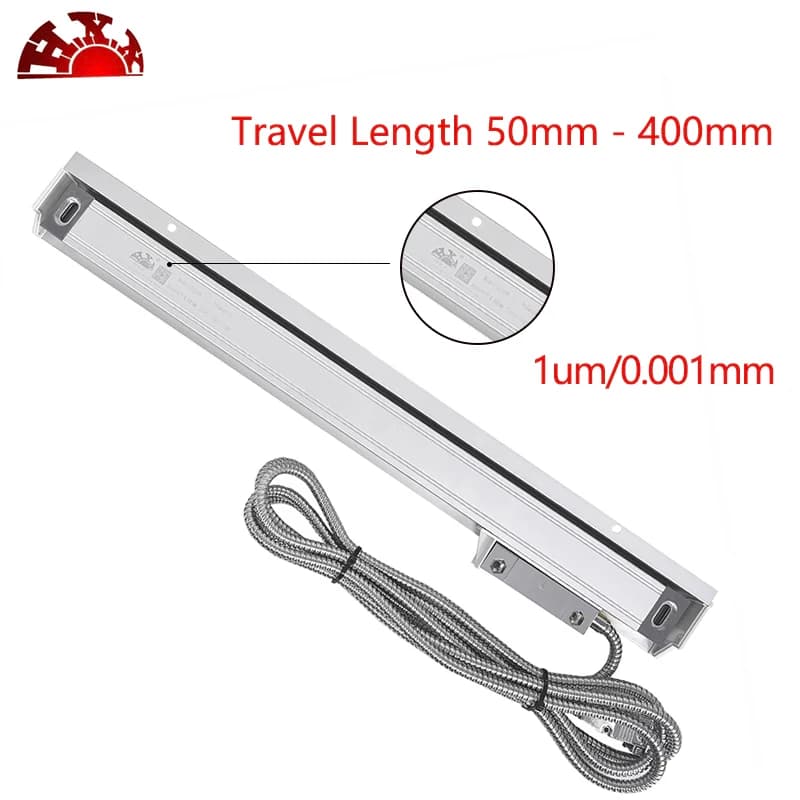

Measurable length: 50mm 100mm 150mm 200mm 250mm 300mm 350mm 400mm

Cross Section: 20x29mm

Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)

Max of Measuring speed: 60m/min

Protection level: IP55

Resolution: 1um(0.001mm)

Output signal: TTL

Cable standard: 3 meters

Bar Pitch: 0.02mm

Power: +5V±5%, 80mA

Operating temperature:0-45 degree centigrade

Connetor: 9 Pins

Package includes

1 pcs linear scale

1 pcs scale cover

1 pcs L connecting bracket

1 pcs screw bag
