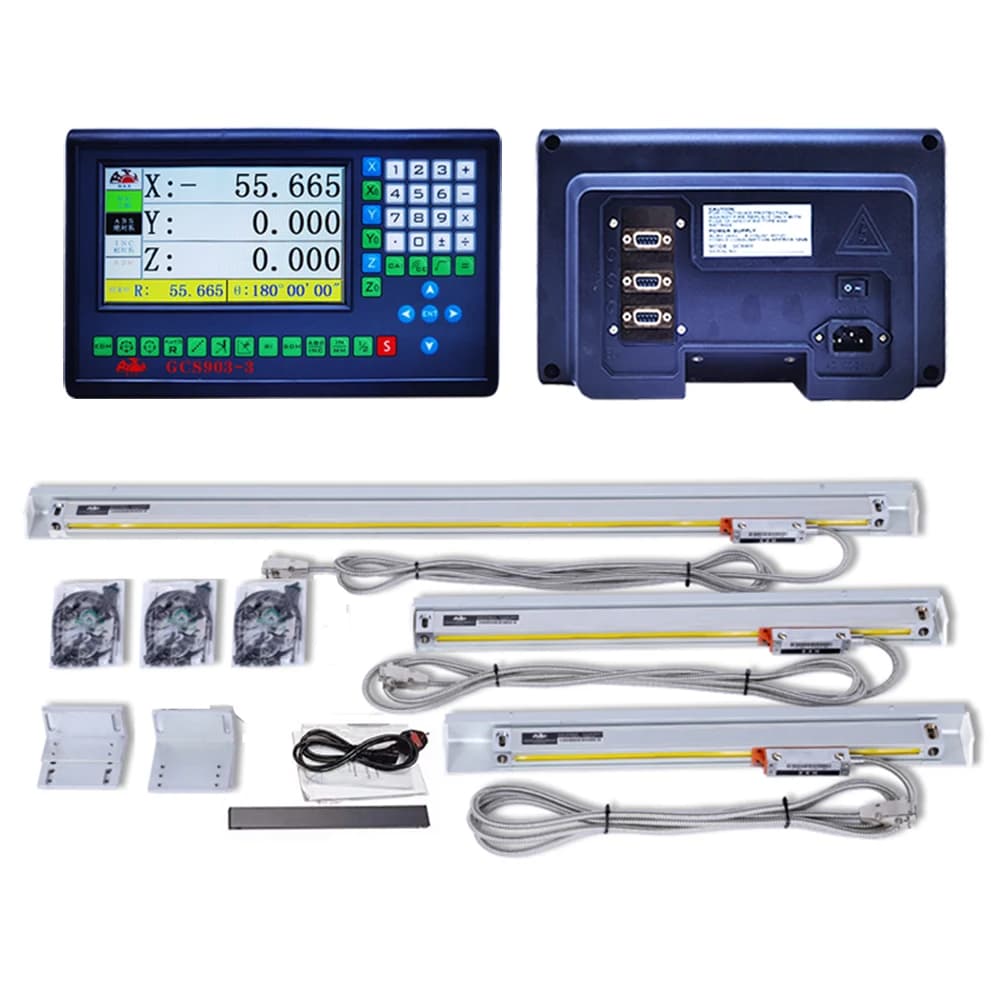

Large LCD Display HXX GCS903 3 Axis LCD DRO Kit & 3pcs 0-1000mm High Precision Linear Scale Optical Encoder Ruler Milling Lathe

Large LCD Display HXX GCS903 3 Axis LCD DRO Kit & 3pcs 0-1000mm High Precision Linear Scale Optical Encoder Ruler Milling Lathe

What in package:

GCS903-3 LCD DRO SET

1 piece GCS903-3 3 axis lcd dro display(with power cable, user manual, mounting arm, screw bag, display protector)

3 pieces linear scales with an accuracy of 0.005mm(5um) (with covers, mounting bracket, screw bag)

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

GCS903 DRO Parameter:

1.Voltage range AC 80V ~ 264V / 50Hz ~ 60Hz

2. Acceptable Signals TTL Square Wave / (we can offer you EIA-442, when make order, leave the message, thanks)

3. Plug DB9

4. Acceptable Resolution 10 micron, 5 micron, 2 micron, 1 micron, 0.5 micron

GCS903 DRO Advantages:

1. full functions, can be widely used for milling, turning, drilling, boring, wire cutting, etc.

2. AC80-250V wide voltage, can be widely used in all over the world.

3. Different types of plug kits for different countries such as US, UK, AU, EU, etc. are available as required.

4. large LCD display, easy to read the date while working.

5.All accessories are complete, rest assured that the choice.

GCS903 Functions:

1:English language display

2:Zero clearing

3:Input Coordinate

4:INCH/MM mode

5:ABS/INC mode

6:1/2 Function

7:RI

8:Metric/imperial conversion function

9:Absolute/relative counting transformation function

10: 200sets sub datum

11:Power off Memory

12:Liner error compensation

13:Sleepping mode

14:Clear 200 sets Sdm datum

15:Lathe function

16:Drilling of circumference

17:Drilling of oblique line

18:Machining of inclined plane

19:Machining of circular arc

20:Radius/Diameter Function

21:Rectangular lumen gradual processing

22:Digital filtering

23:Vibration filtering

24:Calculator

25:Self-motion middle parted function

26:Arc surface processing function

27:PCD function

28:Cant processing function

29:PLD function

30:SDM(300 Group)

31:Circle Hole

32:Ellipse Hole

33:Line Hole

34:Arc Hole

35:Smooth Arc

36:Slant

37:EDM Function

About Linear Scale

Model: GCS898

Travel length (Available measurement): 100mm to 1000mm

Total length: Travel length (Available measurement)+138mm

Size cross section size: 21mm*33mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um(0.005mm)

Cable length: 3 meters
