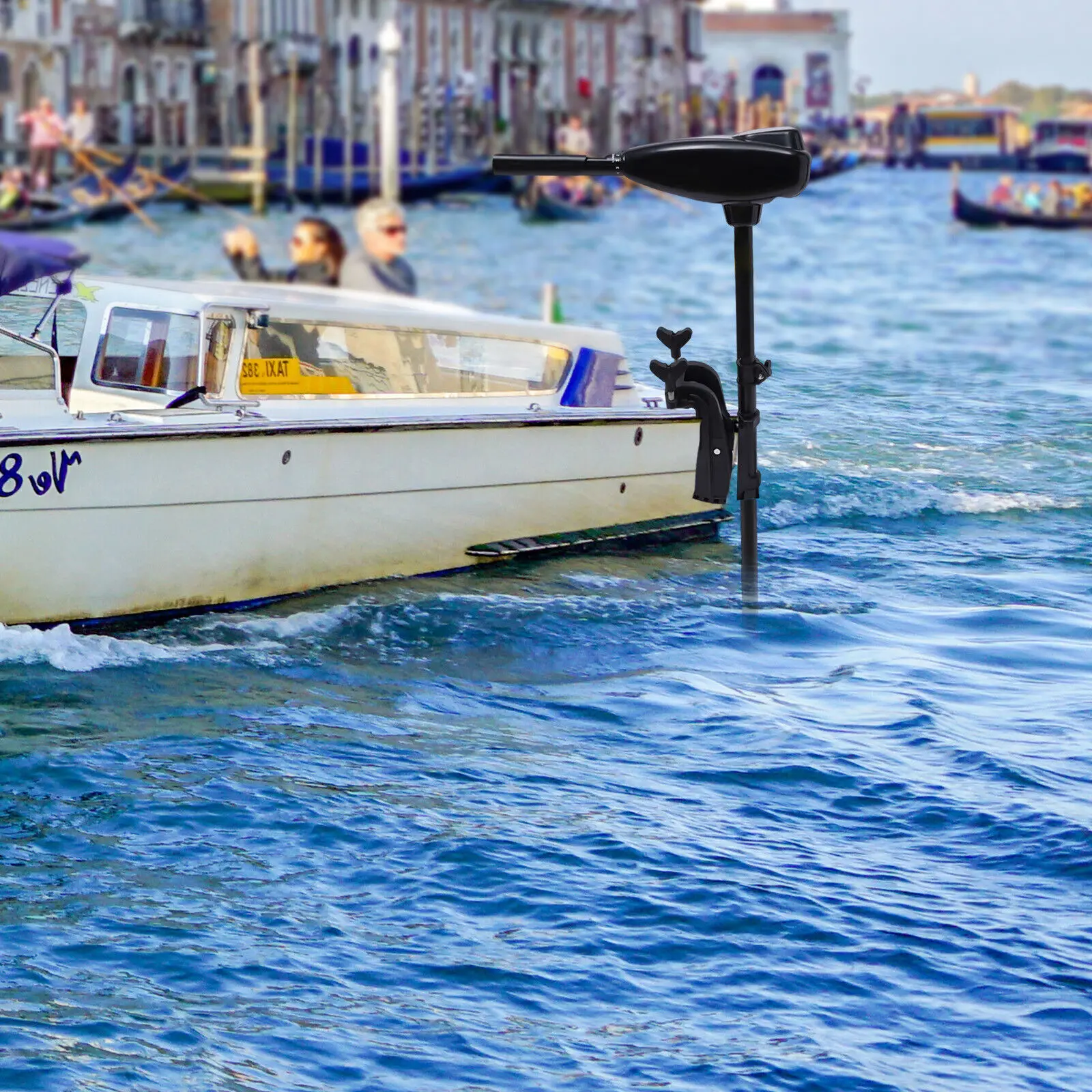

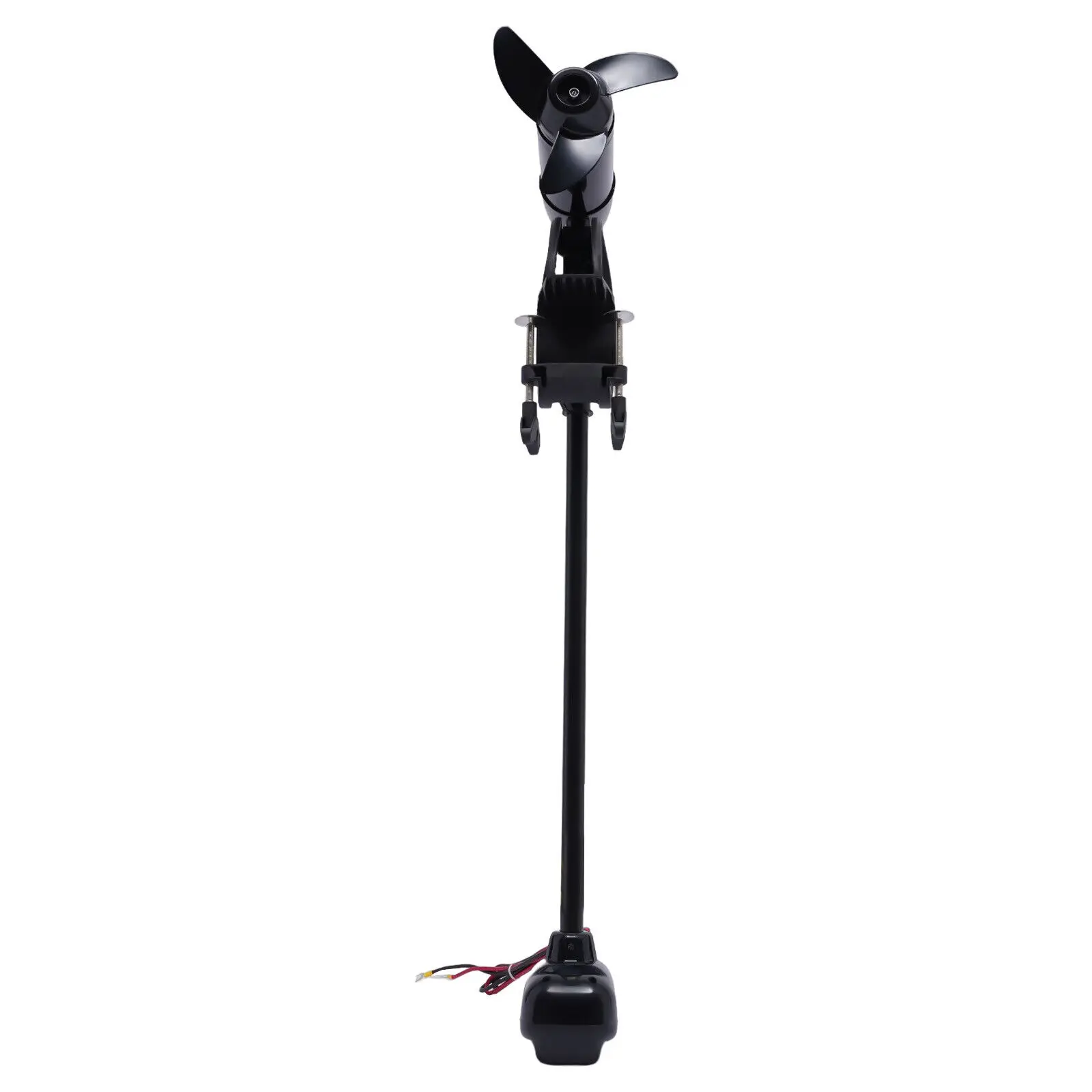

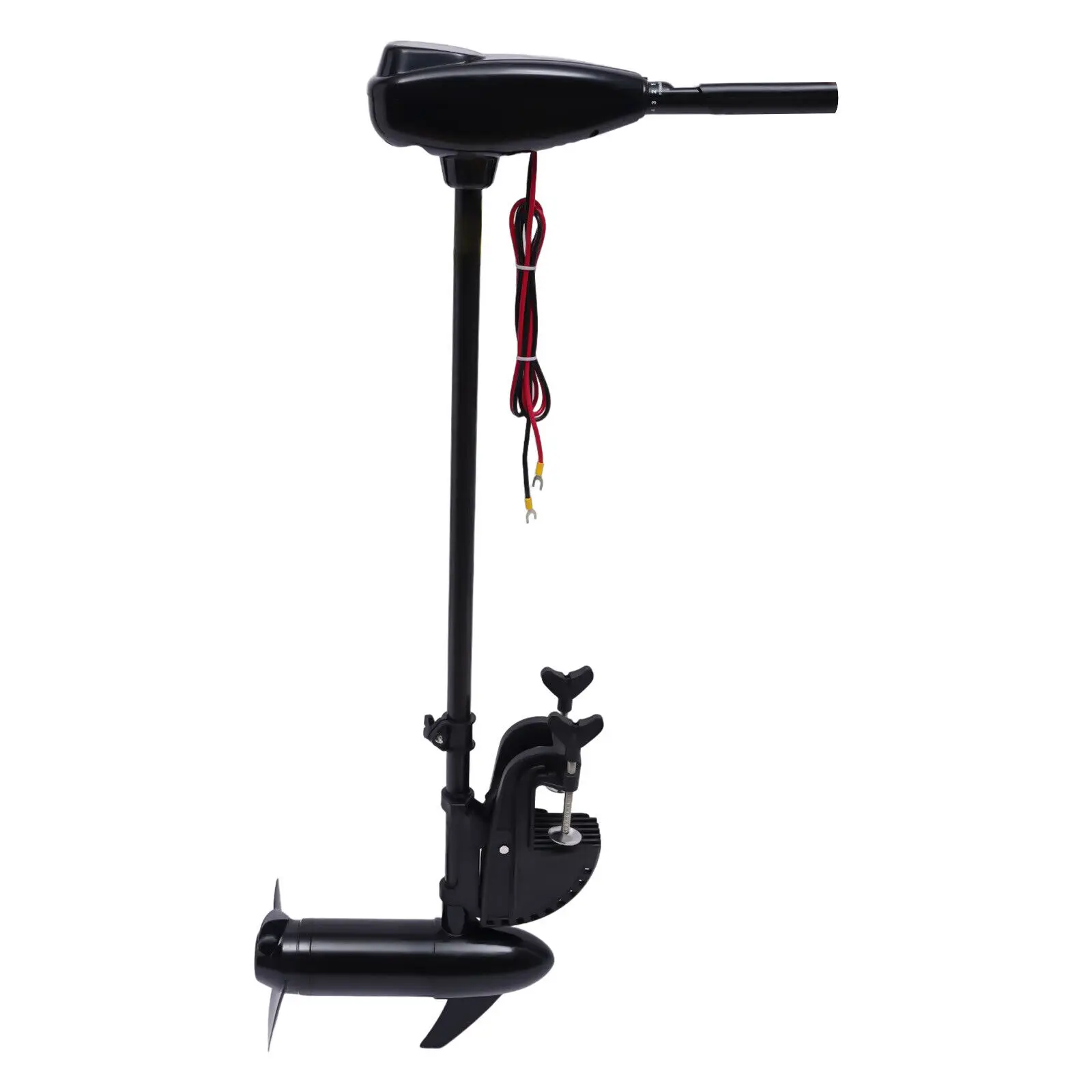

12V 1.2HP 80LB Thrust Electric Trolling Motor Outboard Engine Manual Control With Brush For Boats Inflatable Boats Kayaks Boats

Application
It is suitable for kayaks, plastic boats, and other ships with a length of no more than 13.12ft, a width of no more than 4.92ft, and a suitable hull height.

Specifications
Material: Aluminum Alloy, Nylon, ABS, Copper
Color: Black
Style: Modern
Motor Type: Pure Copper
Surface Treatment: Powder Coating
Battery Required: Yes (Battery Excluded)
Assembly Required: Yes
Input Voltage: 12V
Power: 626w
Suitable Number of People: 6-8 People
Speed Regulation: 5 Gears Forward, 3 Gears Reverse
Number of Propeller Blades: 3
Idle Speed: 1900r/min
Thrust: 25kg/55lbs
Traction Force: 1850kg/4078lbs
Max. Speed: 7km/4.34mi/h(Boat Size 2.3m/7.54ft, Loading 90kg/198lbs, Quiet Water)
Applicable Water Depth: ＞1.5m/4.92ft
Applicable Ship Width: ＜1.5m/4.92ft
Applicable Ship Length: ＜4m/13.12ft
Gross Weight: 11.15kg/24.58lbs
Net Weight: 9.2kg/20.28lbs
Propeller Diameter: 20cm/7.87in

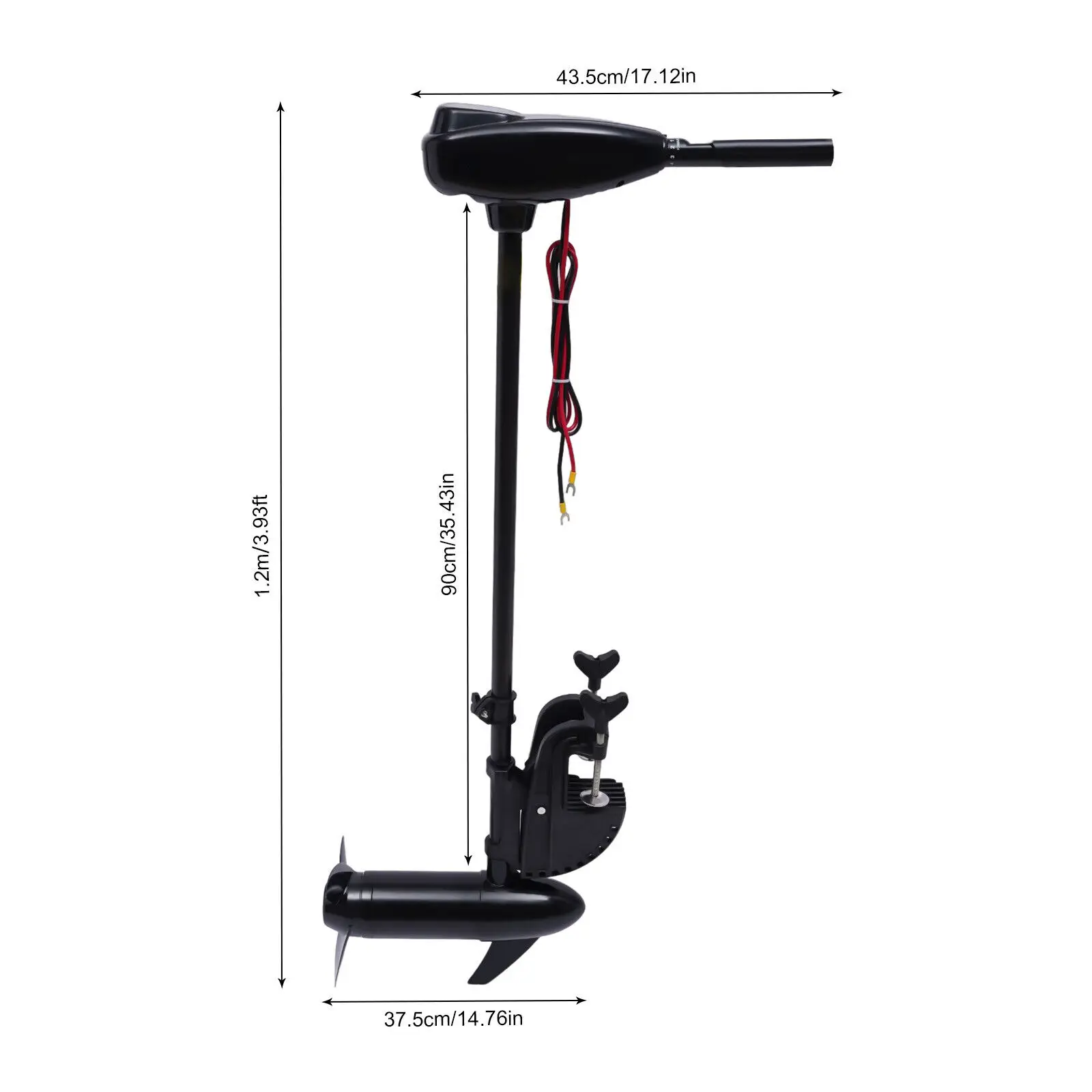

Main Pole Length: 91cm/35.82in
Clamp Bolt Gap: 9cm/3.54in
Control Handle Length: 45-56cm/17.71-22in
Product Size(L*W): 124*37cm/48.81*14.56in
Package Size: 130*49*15.5cm/51.18*19.3*6.1in

Package Included
1*Electric Outboard Engine
1*Propeller Assembly
1*English Manual
All Accessories for Assembly

Notes
1.Please carefully read the instruction manual and strictly follow the precautions and daily maintenance.
2.Please note that this product does not include batteries.
3.The actual correct power rating of the product is 626W. Please disregard the information on the product label.
4.During use, please pay close attention to the pushing force and avoid prolonged operation (not exceeding 2 hours per time) or overload operation.
5.When the propeller is entangled or stuck, please immediately turn off the power, otherwise, it will cause the motor to stall, overheat, and burn out.
6.Please ensure that the propeller of the thruster is running smoothly, and completely immerse the motor in water at a depth of 1-1.65ft, with a slope of 15 ° to the ship's side (recommended for use on lakes with a depth of 4.92ft or more).
7.Please pay attention to the positive and negative poles of the wires and battery when using them to avoid short circuits caused by this.
8.If used in saltwater, please clean this product with fresh water.
9.The switch, propeller component, and electric brush are vulnerable parts of this product. Please pay attention to replacement.
10.Please note that in situations of fast water flow, waves, or heavy wind and rain, this product may not be able to function properly. Please make a correct judgment of the weather to avoid unnecessary safety issues.
11.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Description
Have you encountered any difficulties in venturing into deep water? Does the high fuel consumption, loud noise, and choking exhaust brought by fuel-powered outboard engines make your navigation boring? The more advanced and convenient electric outboard engine can provide you with assistance! The powerful engine enables you to overcome obstacles in various environmental waters and quickly reach the places you need to go at an excellent speed. With its companionship, you can fully enjoy the pleasure of sailing and become a reckless captain!

Key Features
Multiple Gears: It has 5 forward gears and 3 reverse gears, so you can smoothly switch driving speed and change direction according to the gear during driving.

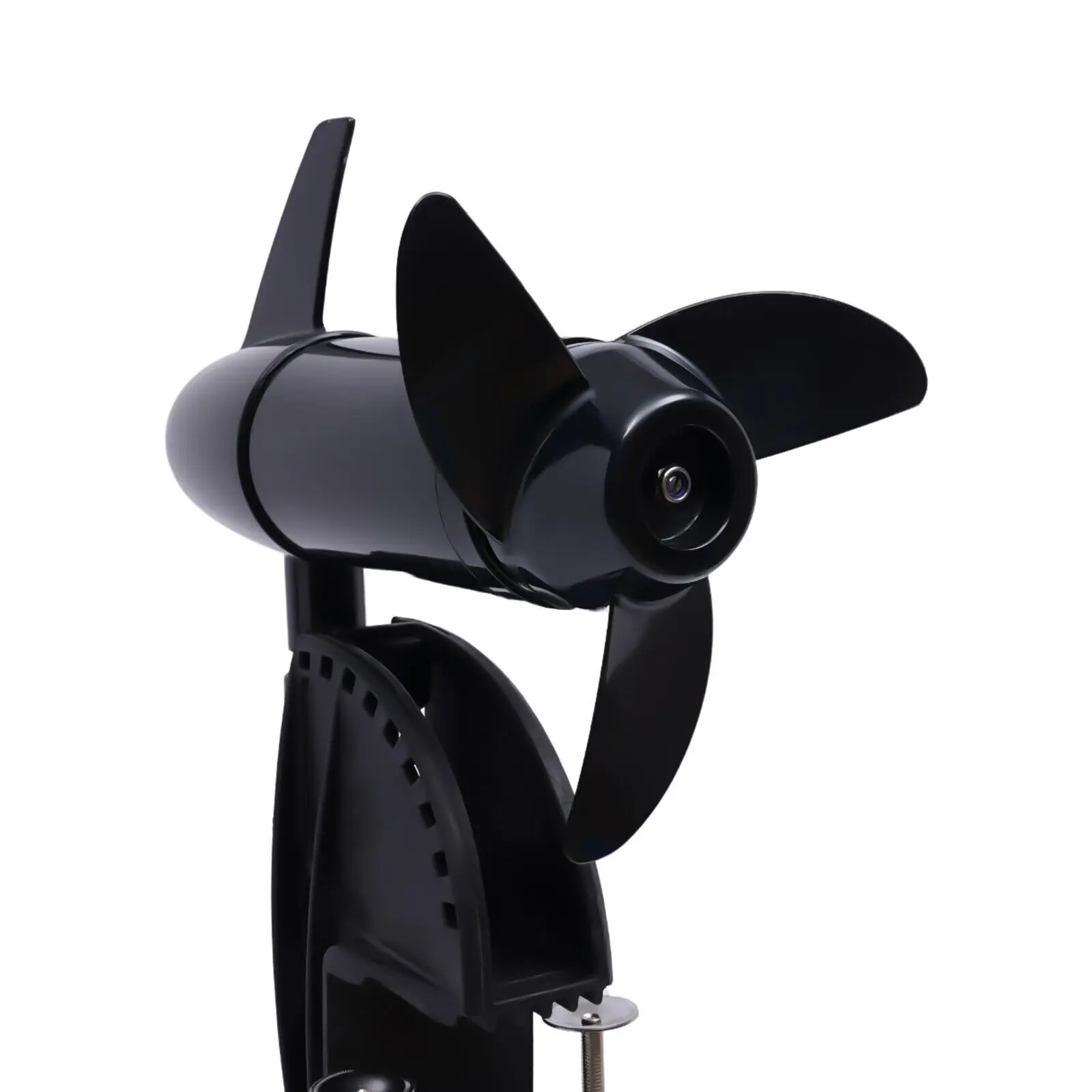

Highly Efficient: This electric outboard engine has a speed of up to 1900r/min, ensuring high power and high driving speed. Combined with anti-winding three-blade propellers, it greatly enhances work efficiency.

Powerful Traction: With its high-quality pure copper motor, it has a powerful traction force of up to 4078 pounds, with a maximum speed of 4.34mi/h(Boat Size 7.54ft, Loading 198lbs, Quiet Water), and can be used by 6 to 8 people.

Battery Monitoring: The top screen displays the real-time battery level, making it easy for you to check the battery level at any time and prepare for charging in advance to avoid running out of battery during navigation.

Adjustable Design: The height and angle of the suspension bracket can be adjusted to accommodate people driving ships at different heights; In addition the retractable control handle can be selected to the appropriate length (17.71-22in) according to your operating habits.

Durable & Sturdy: The main pole is made of high-strength aluminium alloy, and the bracket is made of high-strength nylon with special composite materials. The bracket is equipped with anti-collision devices to prevent motor damage caused by collision forces.

Silent Operation: It is battery-powered, which is convenient, simple, environmentally friendly, and has low noise. You can quietly enter the fishing spot without disturbing the school of fish, and easily return with a full load!

Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details
Anti-slip Handle: The handle adopts an ergonomic design that is easy to grip, while the uneven surface is designed to be anti-slip.

Installation Bracket: It has an installation bracket on the main pole, which is used to firmly fix the engine on the ship.

Power Wiring: The connecting wires adopt a copper core with guaranteed quality, which is effectively wearable and anti-corrosion.
