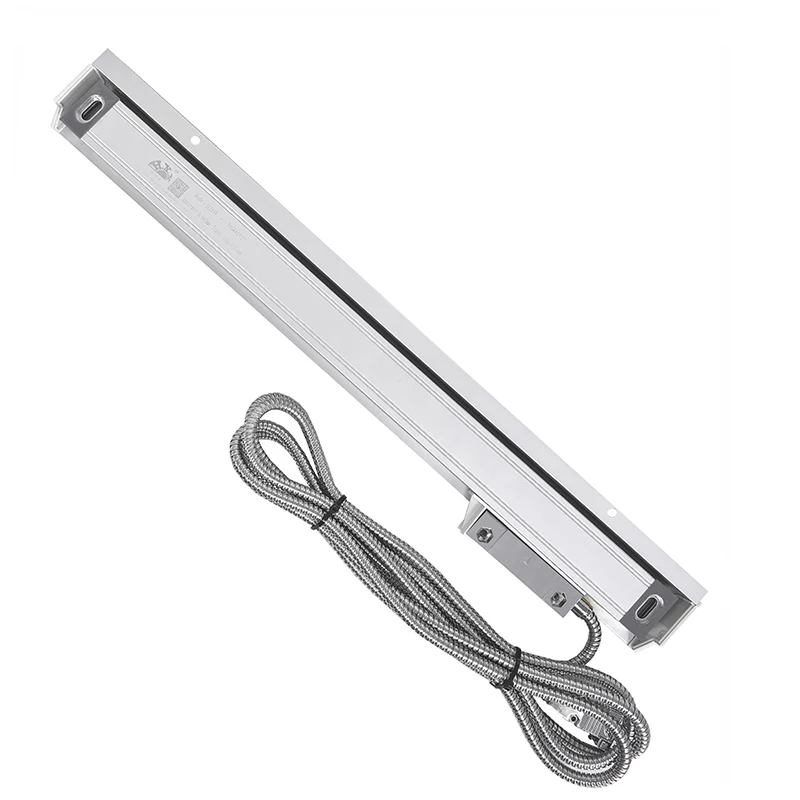

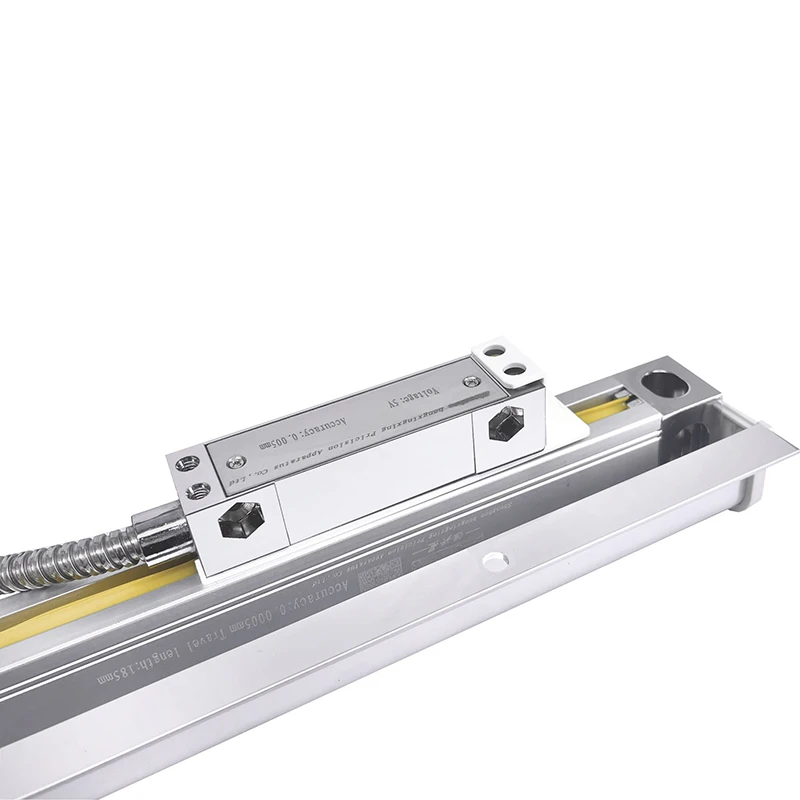

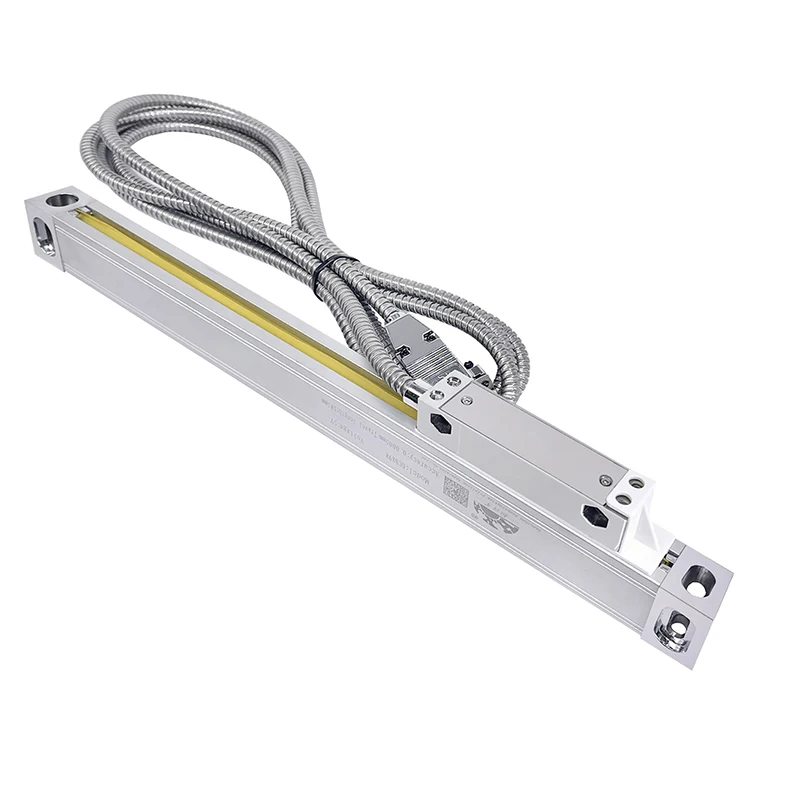

HXX High Accuracy 0.001mm TTL 5VDC 500 600 650 700 750 800 850 900 1000mm Linear Scale 1um Optical Encoder Optical Grating Ruler

HXX High Accuracy 0.001mm TTL 5VDC 500 600 650 700 750 800 850 900 1000mm Linear Scale 1um Optical Encoder Optical Grating Ruler

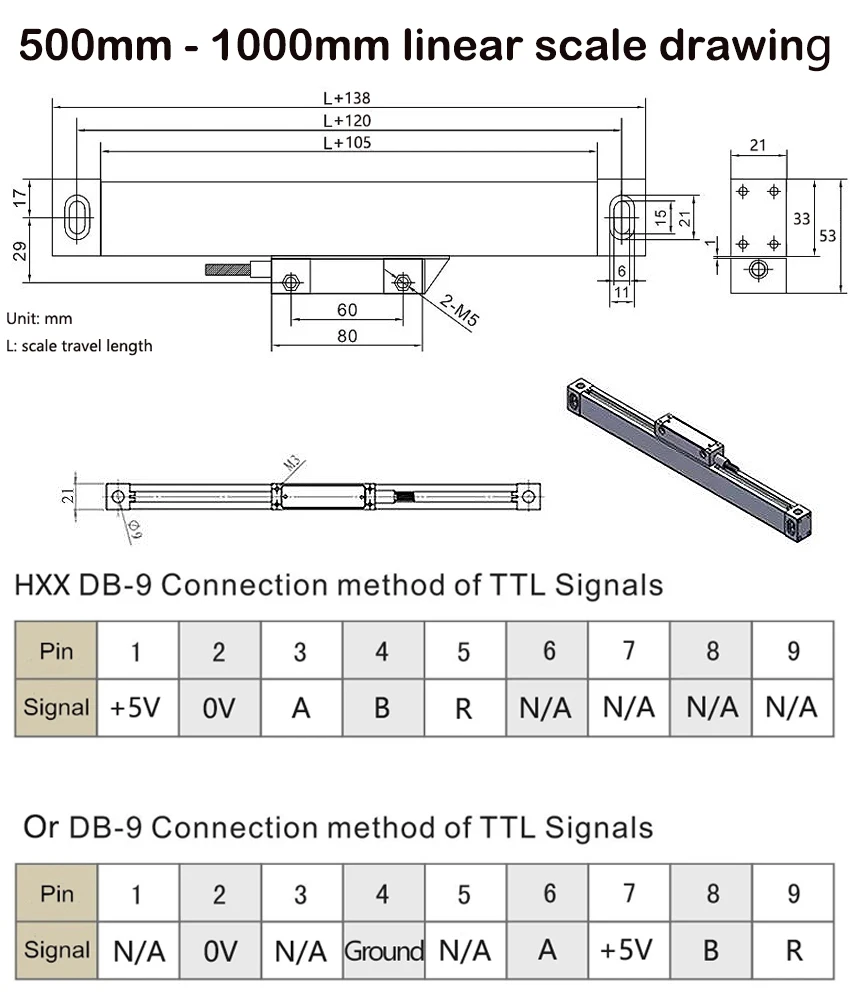

GCS898 Linear Scale Parameters:

1. Travel (measuring) length: 450mm 500mm 550mm 600mm 650mm 700mm 750mm 800mm 850mm 900mm 950mm 1000mm

2.Total (overall) length: Travel length + 138mm

3.Hole distance: Travel length + 120mm

4.Plug: DB9

5.Resolution: 0.001mm(1um)

6.Input voltage: 5V

7.Cable length: 3 Meters

8.HXX scale can completely replace Sino, Easson, Sinpo, Rational and all Chinese brands scales.

9.Scale includes: 1 scale cover, 1 L-shaped attachment bracket, 1 screw pocket

Customized length is available, please leave us a message, thank you buyers!
