Milling Lathe 3 Axis LCD DRO And 3PCS High Precision 50-1000mm Linear Scale Optical Ruler Encoder 19 Languages Digital Readout

Milling Lathe 3 Axis LCD DRO And 3PCS High Precision 50-1000mm Linear Scale Optical Ruler Encoder 19 Languages Digital Readout

Packing Includes:

ONLY LCD DRO (without linear scale)

Only 1 piece GCS908-3 LCD display, user manual, mounting bracket, power cable, screw bag

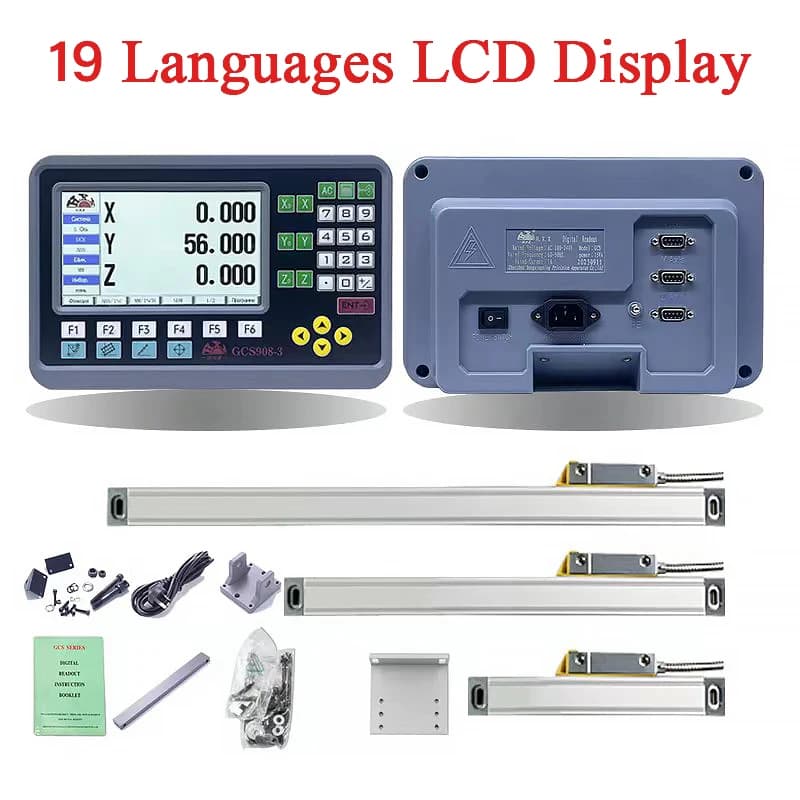

GCS908-3 LCD DRO KIT

1 piece GCS908-3 LCD display, user manual, mounting bracket, power cable, screw bag

3 pieces linear scales, scale covers, mounting brackets & screw bags

0.001mm LCD DRO KIT

1 piece GCS908-3 LCD display, user manual, mounting bracket, power cable, screw bag

3 pieces linear scales with accuracy of 0.001mm, scale covers, mounting brackets & screw bags

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Note: Products "GCS908-3 LCD DRO KIT"  and "0.001mm LCD DRO KIT" are custom-made items. Please contact the buyer to specify the required travel length of the linear scales. Failure to do so will result in non-delivery. Thank you for your cooperation.

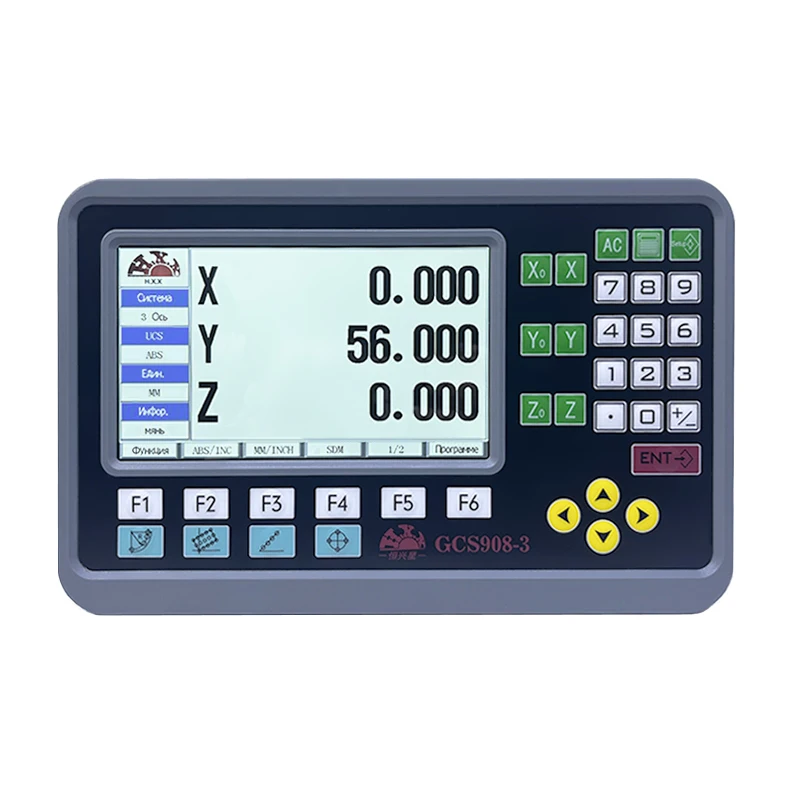

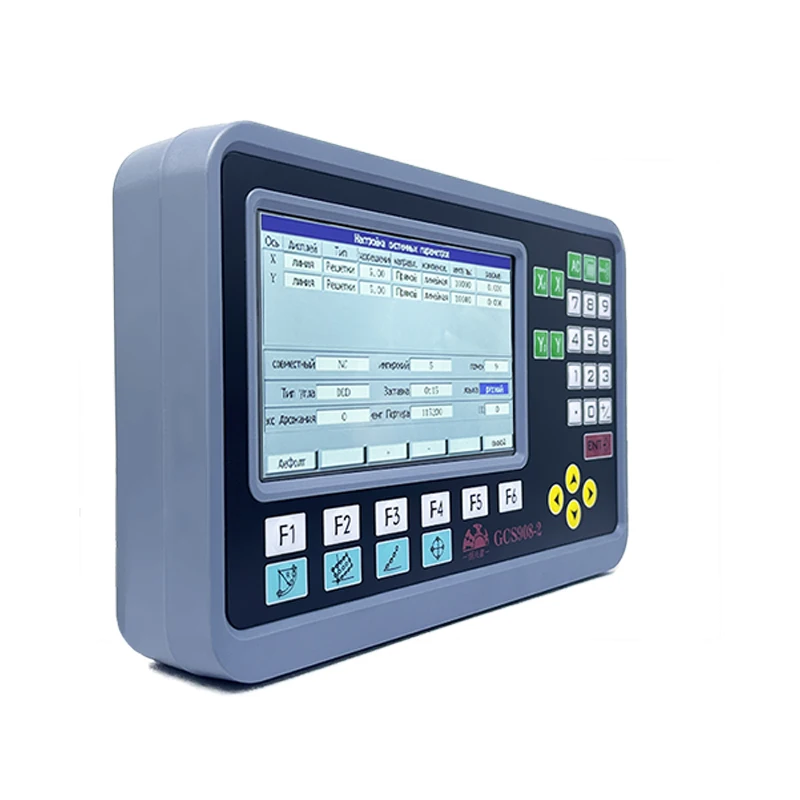

About GCS908 LCD DRO

HXX GCS908-3 is 3 axis LCD DRO Set in 19 languages, which is convenient for users in different countries, easy to operate, and complete functions. Widely used in lathes, milling machines, grinders, wire cutting, drilling machines, etc.

Support English, Russian, German, French, Spanish, Portuguese, Italian, Polish, Ukrainian, Croatian, Slovak, Dutch, Czech, Turkish, Japanese, Korean, Vietnamese, Simplified Chinese, Traditional Chinese.

GCS908 DRO Parameter:

1.Voltage range AC 80V ~ 264V / 50Hz ~ 60Hz

2. Acceptable Signals TTL Square Wave / (we can offer you EIA-442, when make order, leave the message, thanks)

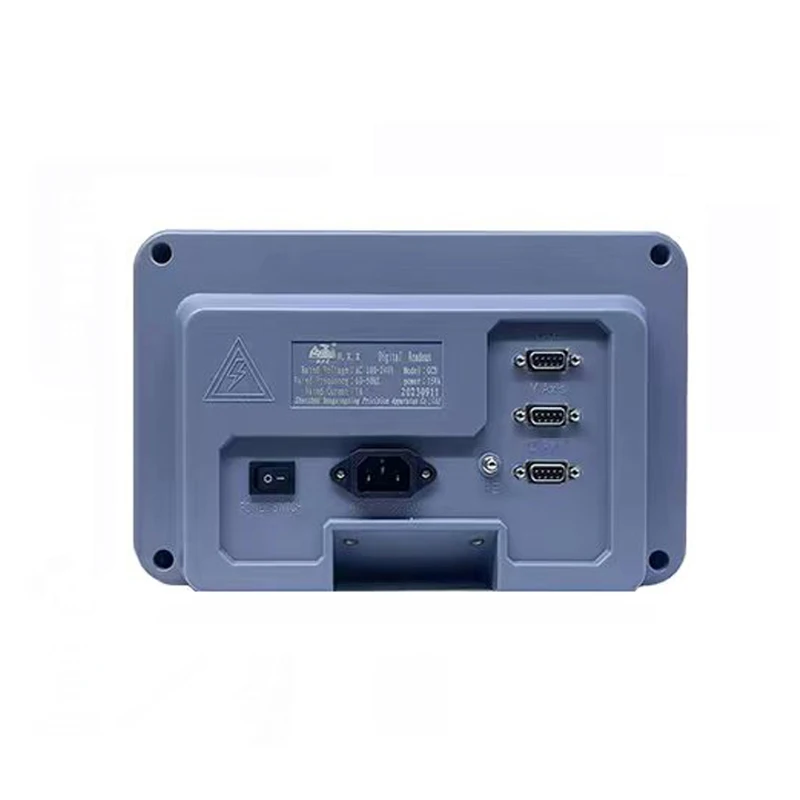

3. Plug DB9

4. Acceptable Resolution 10 micron, 5 micron, 2 micron, 1 micron, 0.5 micron

GCS908 DRO Advantages:

1. full functions, can be widely used for milling, turning, drilling, boring, wire cutting, etc.

2. AC80-250V wide voltage, can be widely used in all over the world.

3. Different types of plug kits for different countries such as US, AU, EU, UK, etc. are available as required.

4. It can be used with all Chinese brands of linear scales such as HXX, Sino, Rational, Easson, etc. with easy operation.

(Just change the signal and feel free to message us).

5. large LCD display, easy to read the date while working.

6.All accessories are complete, rest assured that the choice.

GCS908 DRO Functional Description:

The DRO GCS908-3 is a multi-functional digital readout. It can be adapted to different machining needs by modifying the system parameters. It has a variety of graphic machining functions, such as Arc Calculation Function, Circumferential Equalisation of Holes, Drilling Along Diagonal Line, Angular Surface Machining, Arc Calculation Function, Circumferential Equalisation of Holes, Drilling Along Diagonal Line, Angular Surface Machining, and Circular Arc Calculation Function.

GCS908 DRO Basic Functions:

1.Factory Reset

2.Setup Location display method

3.Signal Interface Type

4.Setup the Resolution

5.Setup Positive Direction for Counter

6.Setup Compensation Type

7.Setup Encoder linear

8.Setup Screw clearance

9.Setup Coordinate Joint

10.Setup INCH Unit Dot

11.Setup the Anti- Filtering

12.Setup the Angle Display Mode

13.Setup Screen saver time

14.Setup Language

15.Setup Anti-shake

16.SetupＲS485 Baudrate

17.Zeroing

18.Preset Data to Designated Axis

19.Toggle Display Unit between inch and mm

20.Absolute/Incremental/200 groups SDM

21.1/2 Function

22.Clear All SDM Datum

23.Screen Saver Function

24.Power Interruption Memory

25.Linear Compensation

26.Non Linear error Compensation

27.Anti-shake Function

28.R/D Function

29.Anti-shake Function

30.Coordinate Joint Function

31.Brightness adjustment

32.200 Groups SDM coordinate

33.Zeroing at the Current Point

34.Preset datum of SDM coordinate

35.Calculator

GCS908 DRO Special Function:

1.Circumference Holes Processing

2.Linear Holes Processing

3.Smooth ARC Processing

4.Simple ARC Processing

5.Slope Processing

6.Network holes Processing

7.Rectangle Inner Processing

8.EDM Processing

GCS908 DRO showcase:

About Linear Scale

Model: GCS898

Travel length (Available measurement): 50mm to 1000mm

Total length: Travel length (Available measurement)+138mm

Size cross section size: 21mm*33mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um/0.005mm

Cable length: 3 meters

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers

Attention all buyers: please be sure to tell us the length of the linear scale you need, thank you!

Travel length can be selected：50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm.

Total length：travel length+138mm.
