TWOTREES TTS-55 Laser Engraving Machine With Wifi Offline Control 1064nm Red Laser Engraver for Engraving Jewelry Ring Bracelet

TWOTREES TTS-55 Laser Engraving Machine With Wifi Offline Control 1064nm Red Laser Engraver for Engraving Jewelry Ring Bracelet

Latest Laser Beam Shaping Technology: TTS-55 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.

Fast focus design: Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.

Easy assembly structure: aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.

Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.

Wide Compatibility:Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.

Note: TTS-1064nm laser module for engraving various metals and jewelry.

Machine parameters:

Model: TTS-25 / TTS-55 / TTS-10

Machine Weight: 3kg

Engraving Range: 300 * 300mm

Laser Wavelength: 445 ± 5nm

Engraving Accuracy: 0.1mm

Engraving Speed: 10000mm / min

Software Support System: MAC, Windows

Machine Material: Aluminum Profile + Plastic Parts

Power Supply: 12V 4A DC / (TTS-10=24V 4A DC)

Control Board: LTS esp32 Motherboard (32bit)

Laser Power: 2.5w/5.5w/10W (optional)

Input Power: 15w/40w/80W (optional)

Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc

Supporting software: Lasergrbl (Windows system), Lightburn (General)

Power type: European standard / American Standard (Optional)

Languages Supported By The Software: Chinese, English, Italian, French and German

Working Environment: Temperature 5-40 ℃, Humidity 20-60%

Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)

Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc

Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving

Note: 1064nm red light module has a separate adapter 12V 9.9A. (Please do not mix with other adapters to protect the life of the laser module)

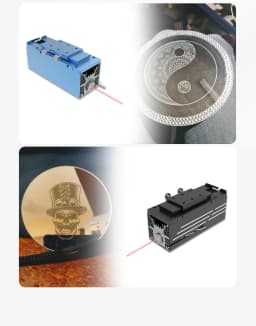

1064nm Laser module introduction

Heavy News:

We are the first to launch an infrared fiber laser module to adapt to TwoTrees older model machines.

It is well known that Fiber laser has unparalleled advantages for engraving on metal and plastic surfaces.This is something that a conventional diode blue laser cannot do. If you want to engrave on a variety of metal surfaces better, then the T20 infrared fiber laser module is a great choice because it can be installed and used on your existing TwoTrees equipment.

Feature:

【Engrave on Most Metals】

Different from normal laser modules (455nm) on the market, xTool 1064nm infrared laser module is born for jewelcrafting and metal engraving, like gold, silver, platinum, copper, aluminum, zinc, titanium, iron, stainless steel, metal oxides and alloy

【Better Result on Plastic and Acrylic】

With fewer burnt marks and higher-quality images, 1064nm infrared laser module performs better on leather, opaque plastic, black acrylic, paint glass, paint ceramics and circuit board

【160mm/s Ultra-fast Processing Speed】0.03*0.03mm compressed spot shows more details

【Start Your Own Business】Signature on metals makes jewelry precious and unique. Start your jewelry business by customizing necklaces, bracelets, rings, etc.

Applicable Models:TWOTREES Totem5.5S TTS series  ATOMSTACK A5 Pro  ATOMSTACK A10 Pro etc..

Note:

- Please read the Users Manual before use.

- Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!

- Do not engrave the mirror objects or metals with strong mirror reflectivity, which may cause injury to the operator or burn the laser.
