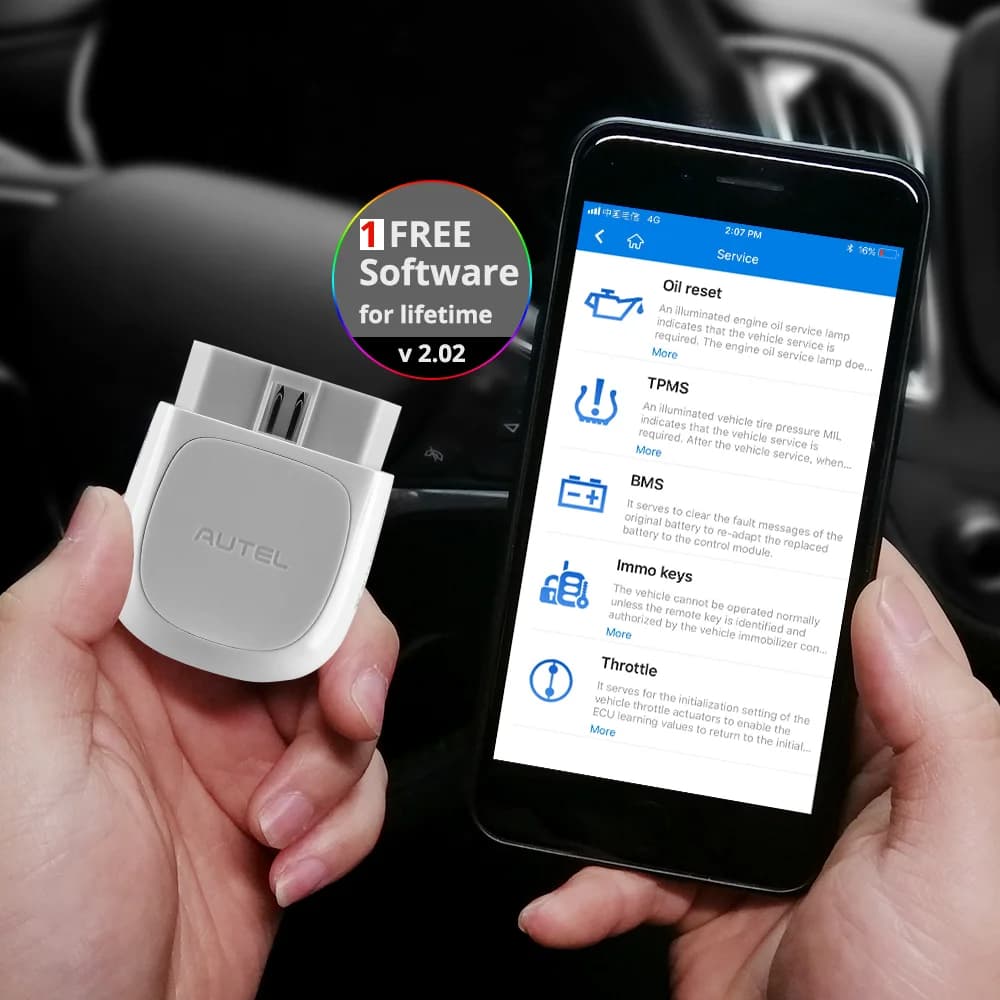

Autel AP200 Bluetooth Auto Scan Tool OBD2 OBD 2 Code Reader Full System Diagnostic Scanner EPB SAS TPMS DPF IMMO For DIYers

Autel AP200 Bluetooth OBD2 Scanner Code Reader with Full Systems Diagnoses, AutoVIN, Oil/EPB/BMS/SAS/TPMS/DPF Resets IMMO Service for Family DIYers

Autel AP200, as an innovative Bluetooth OBD2 scanner, equipped with its own App -'Maxi AP200', complete OBD2 functions, along with various reset services (Oil/EPB/BMS/TPMS/SAS Resets, DPF Regeneration and IMMO Service etc.), is a compact option for family DIYers to troubleshoot vehicle's issues in no time.

■ Note

- One vehicle’s software Lifetime Free Update, for More Vehicle you need to spend $21.99/year (iOS & Android Device) for each Vechicle

- All OBDII functions are available and free.

Does it apply to my car？

1. Show us your car model and which function you want ; Our service will conifrm with u

2. Check in Link :https://www.autel.com/vehicle-coverage/coverage2

3.Not all models under the same brand are supported

4.AP200 supports most vehicles before 2018. Please contact customer service before purchasing to confirm whether the model is supported?

BLUETOOTH CONNECTION:

This portable OBD2 scanner is characterized by Bluetooth connection, and you can download the free APP 'MaxiAP200' on your iOS or Android devices to get the car diagnosis going on without any worries about the compatibility.

Please note that AP200 is not able to work with your laptop/pad. It works with your smart phone, both for Android and IOS system. Thanks~

VERSATILE CAR DIAGNOSIS:

As an innovative obd2 scan tool, this AP200 includes but is not limited to OBD2 functions, it also provides users with a wide variety of reset services including Oil/EPB/BMS/TPMS/SAS Resets, DPF Regeneration and IMMO Service.

How to Use it ？

1. Download and install the app-MaxiAP200 in Google Play or App Store to your device;

2. Register and log in the MaxiAP200 APP;

3. Get one free car software through Mall after binding VCI for the first time;

4. Plug the MaxiAP200 tool into the vehicle’s Data Link Connector (DLC);

5. Turn on the vehicle ignition while turn the engine off;

6. Tap Me/Setting button of your device to pair the MaxiAP AP200 with your device;

7. Start to diagnose your car.

How to change Language ?

Language Support :English , Traditional Chinese ,French ,German,Spanish , Portuguese , Dutch, Polish, Swedish, Korean, Japanese , Russian, Italian

Autel AP200 language is synchronized with the phone language ； Change your mobile phone language then AP200 language will update

SUPERIOR SYSTEMS DIAGNOSES

With superior systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems'ECU information to facilitate the vehicle diagnosis. The complete systems vary from different cars and they usually include Engine, transmission, ABS, SRS, SAS, TPMS, EPB and Fuel systems etc.
Read DTCs from the vehicle's control systems to locate problem areas, and offer solutions;
Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
Live data shows each parameter item displayed in analog, text, waveform graph modes etc.;
The active test used to access vehicle-specific subsystem and component tests.

19 RESET SERVICES

This Bluetooth OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. There is some commonly-used special reset services are listed for your reference:
Oil Reset --Perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.
EPB Reset --Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
BMS Reset --Evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
SAS Reset --perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the sensor EEPROM.
TPMS Reset --quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS replacement and sensor test.
IMMO Service --Disable the lost vehicle keys and program the replacement key fob.
DPF Regeneration --Manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

COMPLETE OBD2 FUNCTIONS:

Read extensive current, pending and permanent codes in OBD system quickly
Clear detected fault codes and turn off the Check Engine Light efficiently
View graphical live data of vehicle's computer module(s) for easy analyses
View the vehicle's operating parameters at the moment a DTC is detected
Read I/M readiness status to have a vehicle inspected for state emissions compliance
Perform O2 sensor test to check fuel efficiency and vehicle emissions
Read the results of on-board diagnostic monitoring tests for specific components/systems
Retrieve the vehicle information of VIN, CINs, and CVNs completely
Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system

HISTORY RECORDING DISPLAY:

While offering you detailed diagnostic result, this car scanner is capable of recording history diagnostic information and the history recordings can be used as an effective data reference in the period of car diagnosis.

Auto VIN

The Auto VIN function of the AP200 helps quickly reveal car's info, including the vehicle type, country of origin, engine size, etc. and the report about the car info can be transformed as PDF file for better PC Printing.

Specifications:

Communications: BL 4.2 Dual-Mode
Wireless Frequency: 2.4 GHz
Input Voltage Range: 9 VDC to 26 VDC
Supply Current: 100 mA@12 V
Sleep Mode Current: 3 mA@12 V
Length\Width\Height: 59.2 mm (2.33'') * 48.5 mm (1.91'') * 24.6 mm (0.97'')
Weight: 35g (0.07 lb.)

Package List:

1 * Main Unit
