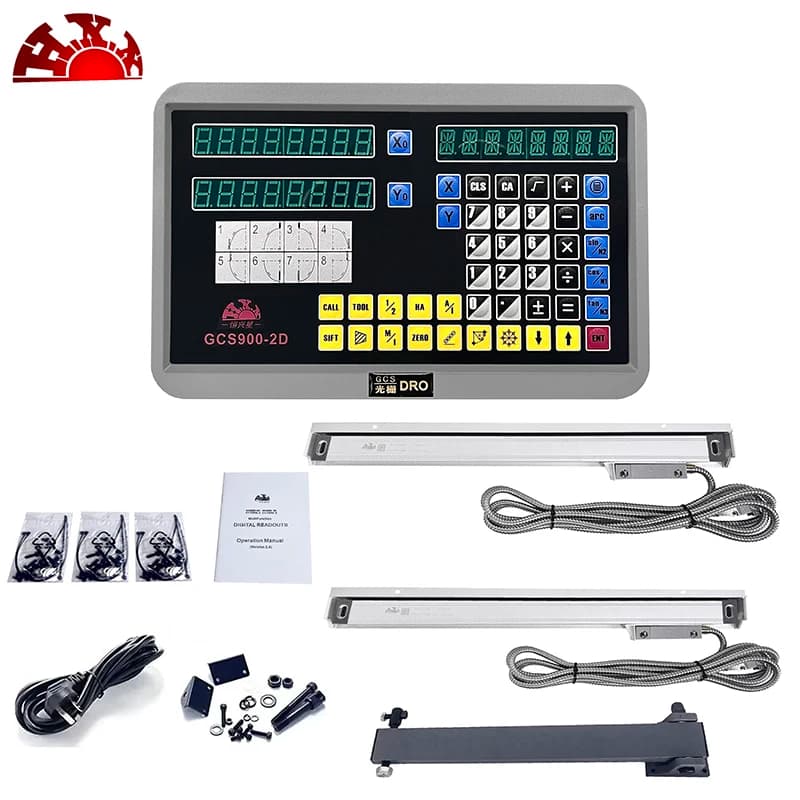

New GCS900-2D 2 Axis DRO Digital Readout AC110V/220V Display and 2 Pcs 50-1000mm Linear Scale Encoder For Milling Lathe Dro

New GCS900-2D 2 Axis DRO Digital Readout AC110V/220V Display and 2 Pcs 50-1000mm Linear Scale Encoder For Milling Lathe Machine

Package includes:

only 2 axis dro (without linear scale)

1.Only 1 piece GCS900-2D 2 axis dro display(with user manual, mounting arm, screw bag) (Instructions for use in English and Russian)

2 axis 0.005mm kit

1. 1 piece GCS900-2D 2 axis dro display(with user manual, mounting arm, screw bag) (Instructions for use in English and Russian)

2. 2 pieces 0.005mm linear scales (with covers, mounting bracket, screw bag)

2 axis 0.001mm kit

1. 1 piece GCS900-2D 2 axis dro display(with user manual, mounting arm, screw bag) (Instructions for use in English and Russian)

2. 2 pieces 0.001mm linear scales (with covers, mounting bracket, screw bag)

2 axis 0.5um kit

1. 1 piece GCS900-2D 2 axis dro display(with user manual, mounting arm, screw bag) (Instructions for use in English and Russian)

2. 2 pieces 0.5um linear scales (with covers, mounting bracket, screw bag)

2 axis 0.1um kit

1. 1 piece GCS900-2D 2 axis dro display(with user manual, mounting arm, screw bag) (Instructions for use in English and Russian)

2. 2 pieces 0.1um linear scales (with covers, mounting bracket, screw bag)

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Note: Product “2 axis 0.005mm kit, 2 axis 0.001mm kit, 2 axis 0.5um kit, 2 axis 0.1um kit” are custom-made items. Please contact the buyer to specify the required travel length of the linear scales. Failure to do so will result in non-delivery. Thank you for your cooperation.

GCS900-2D Functions:

1:English language display

2:Zero clearing

3:Reset

4:mm/inch mode

5:Metric/imperial conversion function

6:Absolute/relative counting transformation function

7:ABS/INC coordinate conversion

8: 200sets sub datum

9:Power off Memory;

10:Center of 1/2

11:Liner error compensation

12:Sleepping mode

13:Clear 200 sets Sdm datum;

14:ABS/INC mode

15:Calculator

16:Drilling of circumference

17:Drilling of oblique line

18:Machining of inclined plane

19:Machining of circular arc

20:Lathe function(match)

21:Rectangular lumen gradual processing

22:Digital filtering

23:Vibration filtering

24:Radius /Diameter fucntion

25:Self-motion middle parted function

26:Arc surface processing function

27:PCD function

28:Cant processing function

29:PLD function

30:Lathe function

31:EDM function(If necessary, please contact us, we choose for you GCS900-2DB+)

GCS900-2D Techincal Parameters:

1.Voltage range:AC 85V-250V/50Hz-60hZ

2.Power consumption:25VA

3.Coordinates:2 axis

4.Display:8-bits digits display

5.Input signal: TTL square

6.Input signal frequency: 100KHZ

7.Reading resolution: 10um,5um,2um,1um,0.5um

Linear Scale Specification:

Resolution: 0.005mm(5um)

Cross section:21mm*33mm

Output signal:TTL(RS422 option)

Input voltage:DC 5V +/-5%

Available measuring distance:0mm-1000mm

Overall length: available measuring distance + 138mm

Working speed:60m/min

Working temprature:-20℃-40℃

Cable length:3m(longer option)

Accessories:aluminum protective cover/L connection board/screws bag

There is slim scale 20mm*29mm option, please contact seller if need or leave a message after placing order.

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Linear scale drawing

L1 means linear scale travel(working) length

L means linear scale total length

Shipping

If your purchase includes linear scales, please note the order or leave us a message about the required travel length of the linear scale.Thank you.

When placing an order, please select the shipping method and pay the order fee including shipping costs (except for free shipping). We will ship the item(s) within the specified time after the payment is completed.

For shipments from China, the buyer is responsible for all additional customs fees, brokerage fees, duties and taxes for importation into your country.(Shipping costs do not include any import taxes, customs duties are the responsibility of the buyer).

Shipping from Poland, Spain and Russia is free of customs duties to the respective countries where the goods can be received.

Returns

If you return an item for any reason within 15 days of receipt, we will refund you.Please contact us before returning an item and we will provide you with a return address.The buyer shall ensure that the returned merchandise is in its original condition. If the item is returned damaged or missing, the buyer will be responsible for the damage or loss and we will not issue a full refund to the buyer.

The buyer is responsible for the shipping cost of the return.

Service

We will provide you with good service, please feel free to contact us if you have any questions, looking forward to your visit!
