TwoTrees TTS-55 PRO CNC Laser Engraving Machine 40W/80W APP Wifi Control Metal Laser Engraver MDF Acrylic Acid Cutting Machine

TwoTrees TTS-55 PRO CNC Laser Engraving Machine 40W/80W APP Wifi Control Metal Laser Engraver MDF Acrylic Acid Cutting Machine

Video Tutorial

Machine Assembly: https://www.youtube.com/watch?v=fHCIDjI_WUc

600x600mm extension: https://www.youtube.com/watch?v=oPQum8-yFZk

Rotary Roller: https://youtu.be/ouUop5t-KTE

WIFI control: https://www.youtube.com/watch?v=Fup6BeAQMJc&t=87s

Lightburn software: https://www.youtube.com/watch?v=ZojwGSIP3Ec

GRBL software: https://www.youtube.com/watch?v=FdycWVwb-fM&t=207s

Latest Laser Beam Shaping Technology: TTS-55 PRO uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.

Fast focus design: Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.

Easy assembly structure: aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.

Square measuring ruler: Machine frame contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.

Wide Compatibility:Smart phones APP control, wifi connection, USB connection

The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

Safe Design: The laser protective cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.

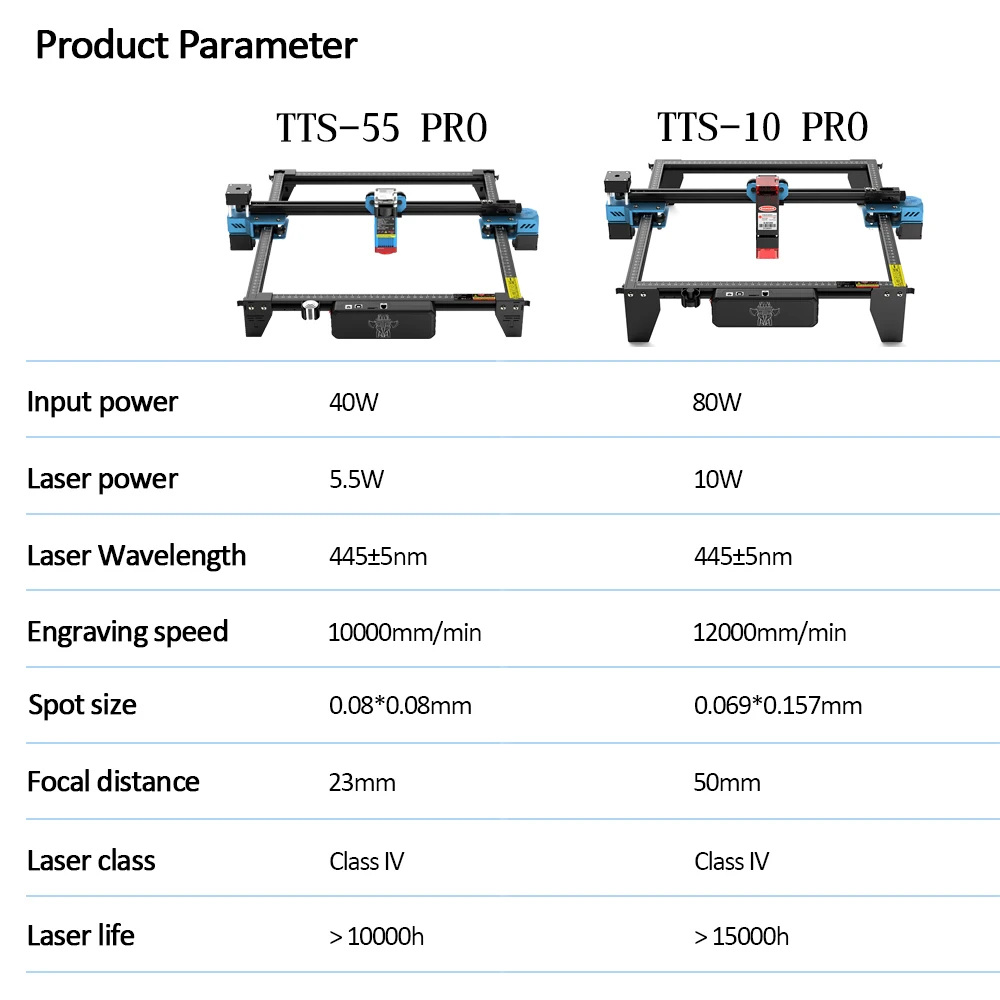

Machine parameters:

Model: TTS-55 PRO /TTS-10 PRO

Machine Weight: 3kg

Engraving Range: 300 * 300mm

Laser Wavelength: 445 ± 5nm

Engraving Accuracy: 0.1mm

Engraving Speed: 10000mm / min

Software Support System: MAC, Windows

Machine Material: Aluminum Profile + Plastic Parts

Power Supply: 12V 4A DC

Control Board: LTS esp32 Motherboard (32bit)

Laser Power: 5.5w/10w (optional)

Input Power: 40w/80w  (optional)

Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc

Supporting software: Lasergrbl (Windows system), Lightburn (General)

Power type: European standard / American Standard (Optional)

Languages Supported By The Software: Chinese, English, Italian, French and German

Working Environment: Temperature 5-40 ℃, Humidity 20-60%

Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)

Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc

Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving

Note: Transparent materials cannot be cut or engraved directly, and the surface needs to be covered.

Nota:

-Por favor leia o Manual do Usuário antes do uso.

-Use óculos de laser durante o uso e evite tocar o laser diretamente com seus olhos e pele!

-Não grave os objetos espelhados ou metais com forte refletividade espelhada, o que pode causar ferimentos ao operador ou queimar o laser.

A vida útil é 12 meses da data da compra

1. Faltando/danificado/peças defeituosas

A. Dentro de 7 dias após a data de entrega, substituiremos todas as peças gratuitamente, incluindo o transporte

B. Após 7 dias a partir da data de entrega, substituiremos todas as peças gratuitamente. Mas os clientes precisam pagar pelo transporte

2. Peças danificadas do cliente: O cliente deve pagar pelo custo das peças e custos de transporte

3. peças perdidas, ausentes, danificadas e defeituosas pela empresa de correio

1. As reclamações por mercadorias perdidas ou danificadas devem ser comunicadas à transportadora dentro da janela de reclamação da transportadora,

E o cliente precisa nos notificar dentro de 7 dias após a data de entrega

2. Para todas as peças perdidas ou danificadas durante o transporte, o cliente deve tomar fotos ou vídeos e enviar-nos a informação

3. Assim que a disputa da transportadora for resolvida, forneça-nos todas as comunicações com a transportadora.

O cliente é responsável por nos manter informados de todas as comunicações com a transportadora a tempo

4. Para peças faltantes, os clientes devem contactar o serviço ao cliente.

5. Para peças danificadas, os clientes devem entrar em contato com o atendimento ao cliente e enviar fotos ou vídeos para nós
