DRO 3 Axis Dro Kit Digital Readout Display Monitor For Milling Lathe Dro SINO HXX Linear Scale Linear Encoder Length 0MM-1000MM

DRO 3 Axis Dro Kit Digital Readout Display Monitor For Milling Lathe Dro SINO HXX Linear Scale Linear Encoder Length 0MM-1000MM

This link provides two product options. Please note the distinction between them and select the appropriate one for your order according to your actual requirements. Thank you very much.

What in package?

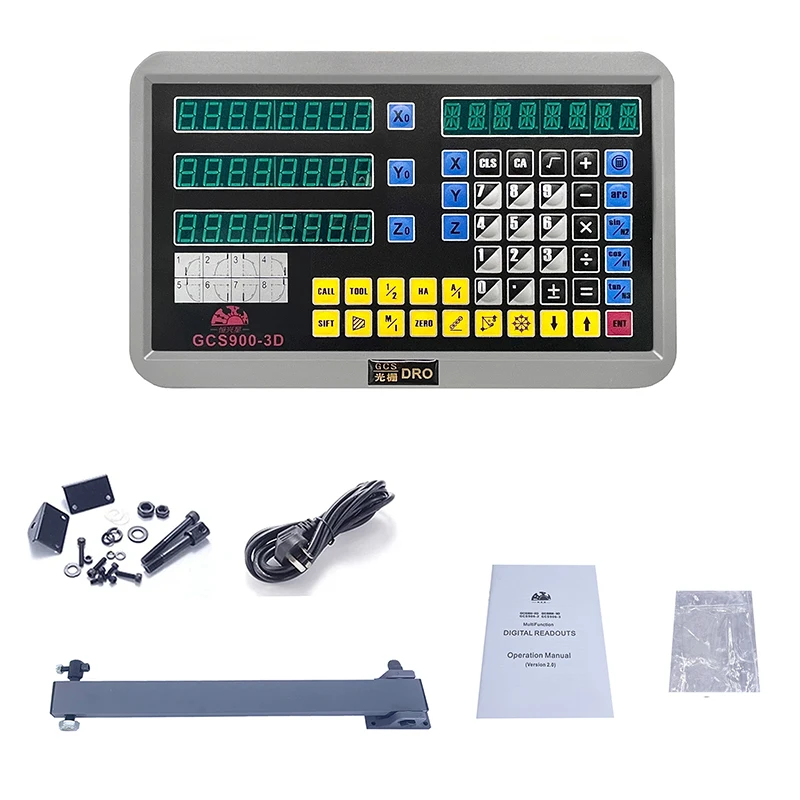

Only Dro-No Scales (Note: Does not include the linear scales)

-Only 1 piece 3 axis dro, display cover, mounting bracket, screw bag, user manual

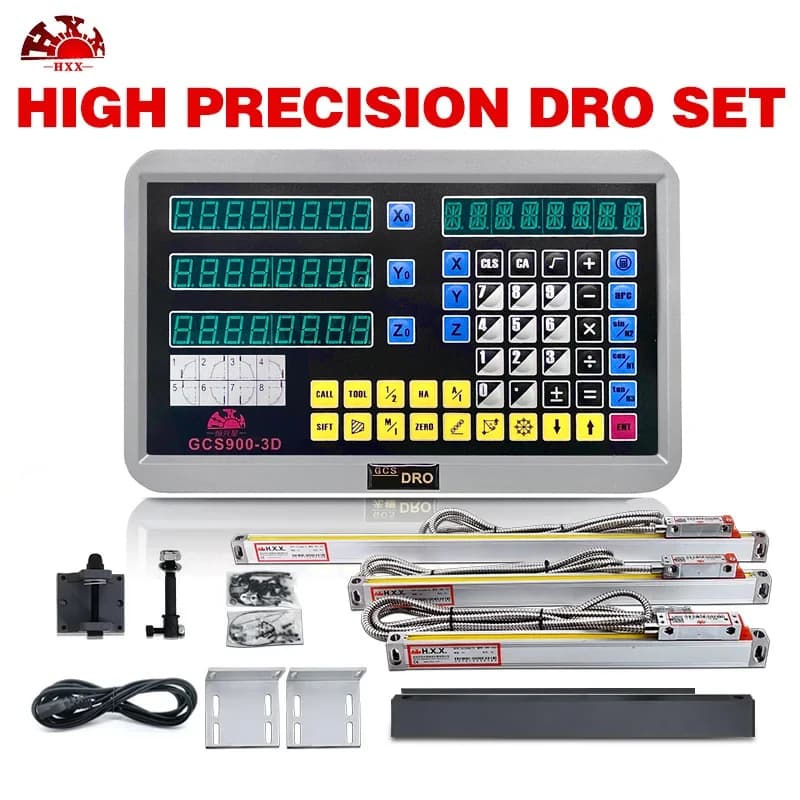

3 Axis Complete Set

-1 piece 3 axis dro, display cover, mounting bracket, screw bag, user manual

-3 pieces 0.005mm（5um） 50mm-1000mm travel linear scales, scales covers, mounting brackets, screw bags

Travel length : 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm.

Total length：travel length+138mm

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!

Note: Product “3 Axis Complete Set” is custom-made items. Please contact the buyer to specify the required travel length of the linear scales. Failure to do so will result in non-delivery. Thank you for your cooperation.

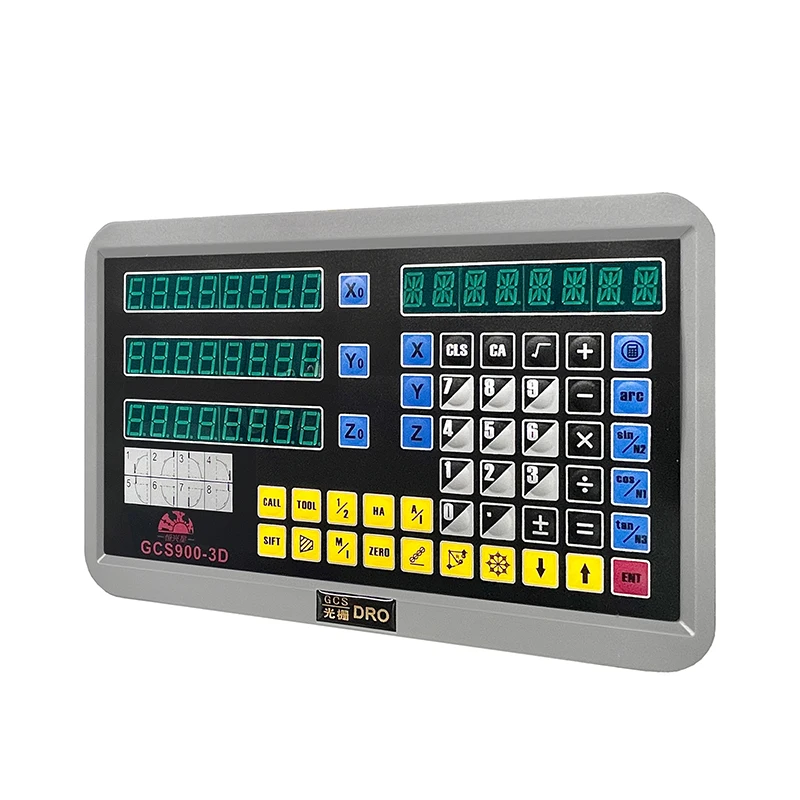

GCS900-3D DRO Digital Readout Parameter:

1.Voltage Range: AC 80V~260V/50HZ~60HZ

2.Acceptable Signal: TTL square wave/ EIA-442

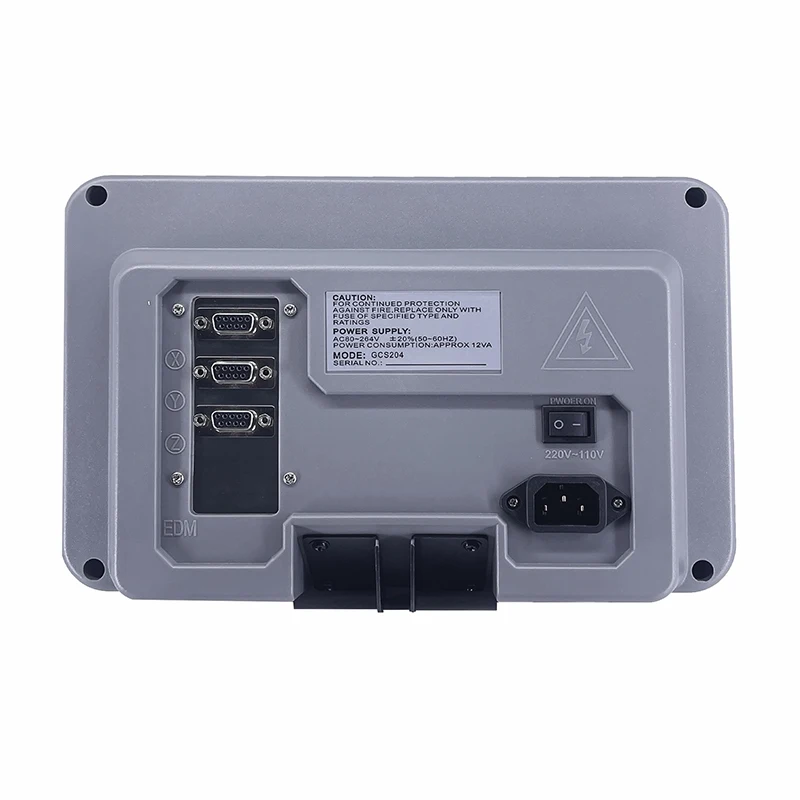

3. Plug: DB9

4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um

GCS900-3D DRO Digital Readout Advantage:

1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting etc.

2. The wide voltage AC 80V-260V can be widely used in all over the world.

3. We offer US, AU, EU, UK different type plug suite for different countries if need.

4. Only the signals need to be modified and can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.

GCS900-3D DRO Digital Readout Functions:

1:English language display

2:Zero clearing

3:Reset

4:mm/inch mode

5:Metric/imperial conversion function

6:Absolute/relative counting transformation function

7:ABS/INC coordinate conversion

8: 200sets sub datum

9:Power off Memory;

10:Center of 1/2

11:Liner error compensation

12:Sleepping mode

13:Clear 200 sets Sdm datum;

14:ABS/INC mode

15:Calculator

16:Drilling of circumference

17:Drilling of oblique line

18:Machining of inclined plane

19:Machining of circular arc

20:Lathe function(match)

21:Rectangular lumen gradual processing

22:Digital filtering

23:Vibration filtering

24:Radius /Diameter fucntion

25:Self-motion middle parted function

26:Arc surface processing function

27:PCD function

28:Cant processing function

29:PLD function

30:Lathe function

31:EDM function(If necessary, please contact us, we choose for you GCS900-3DB+)

About Linear Scale:

Resolution: 0.005mm/5um

Cross section:21mm*33mm

Output signal:TTL(RS-422 option)

Input voltage:DC 5V

Available measuring distance:0-1000mm

Working speed:60m/min

Working temprature:-20℃-40℃

Cable length:3m(Customisable longer)

How to choose the length of the scales after placing an order? (Complete Set Order) ?

First method.

Click "contact seller" to write a message about you needed scales travel length or scales actual overall length.

Second method.

When confirm & pay order, at "leave a message for this seller" write you needed scales travel length or scales acutal overall length.

Please write clearly whether the length you need is scales travel length or scales total length, or we will default send travel length.Thank you all buyers!
