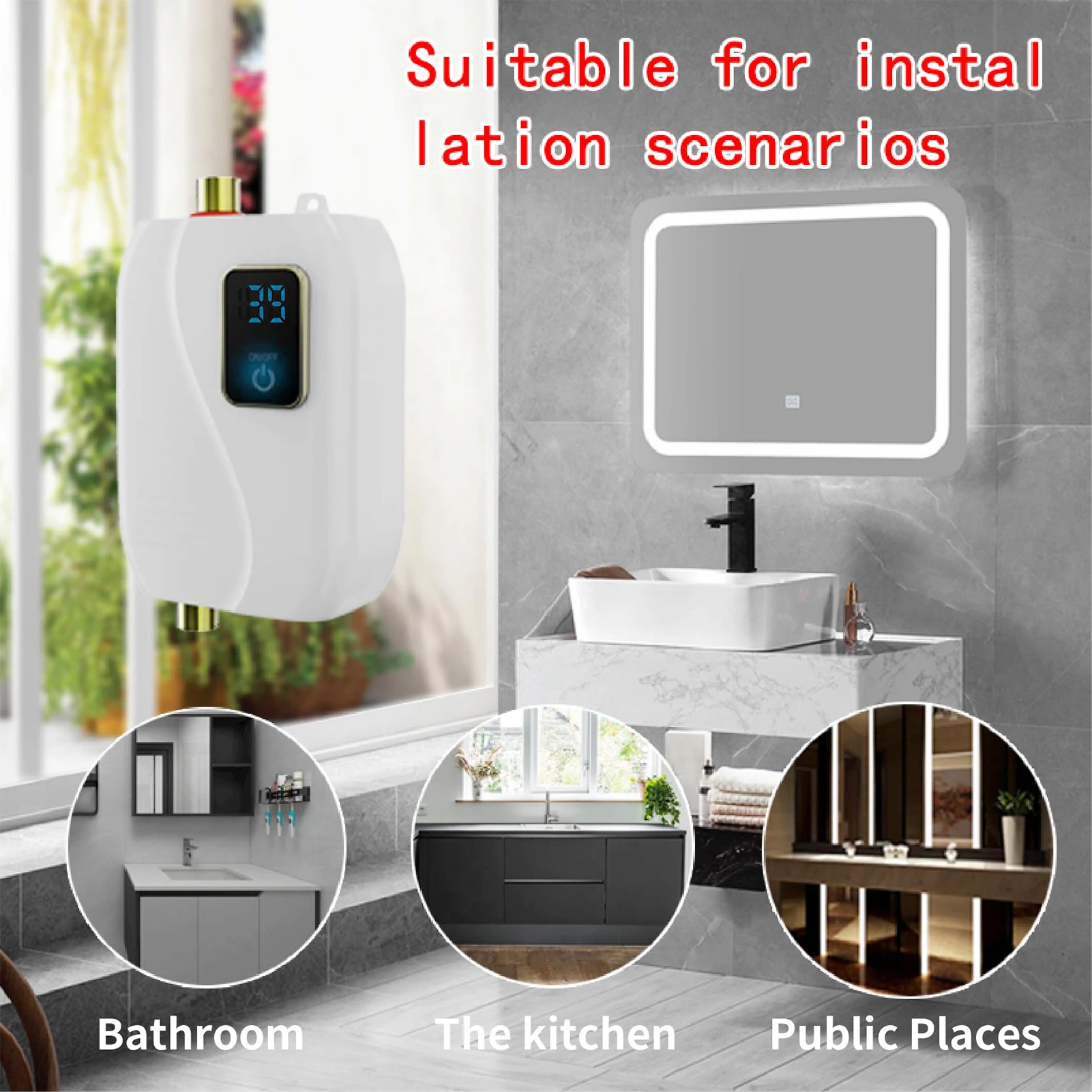

Instant Water Heater 220V 3500W White Mini Electric Tankless Hot Water Heater with LCD Display for Shower Bathroom Kitchen

be.

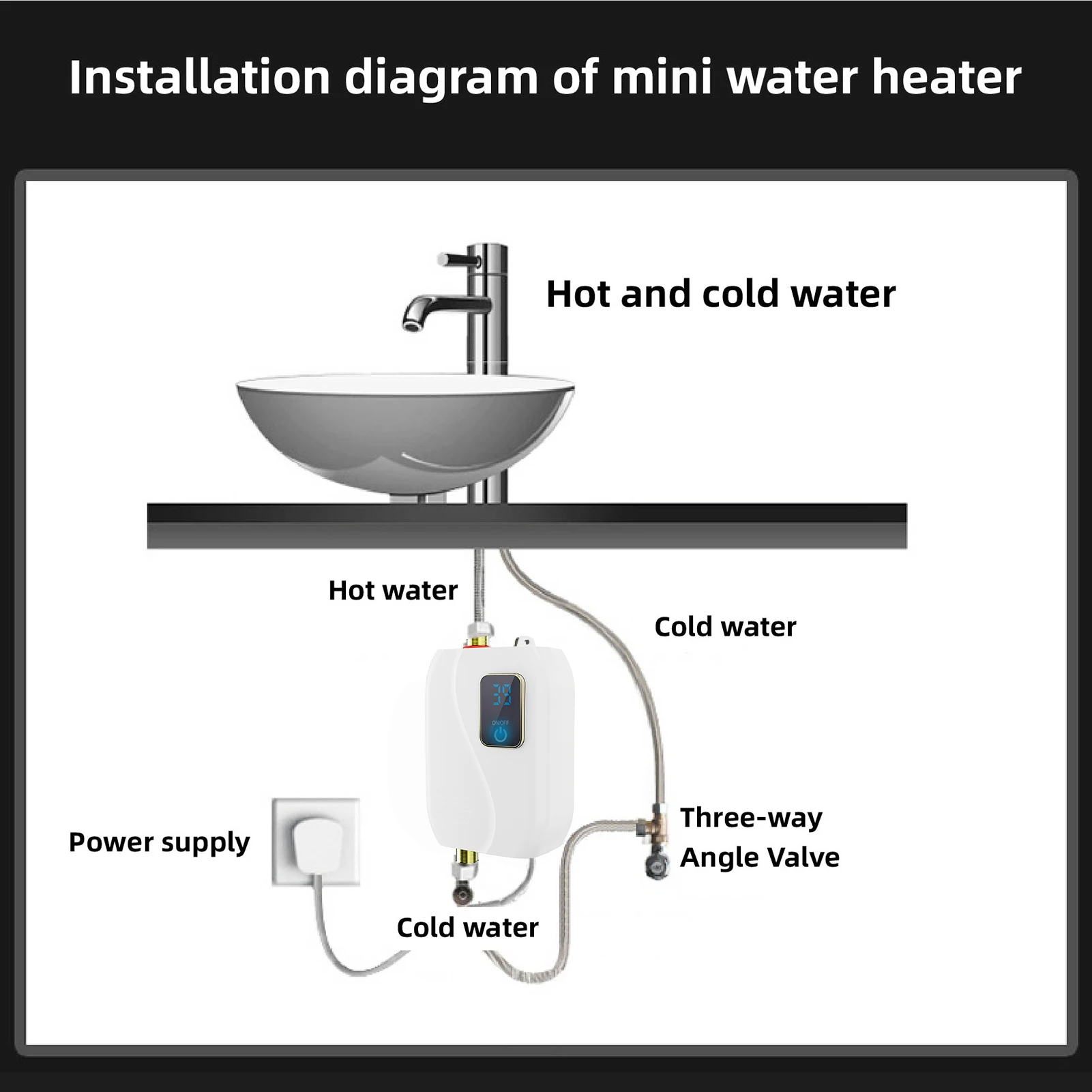

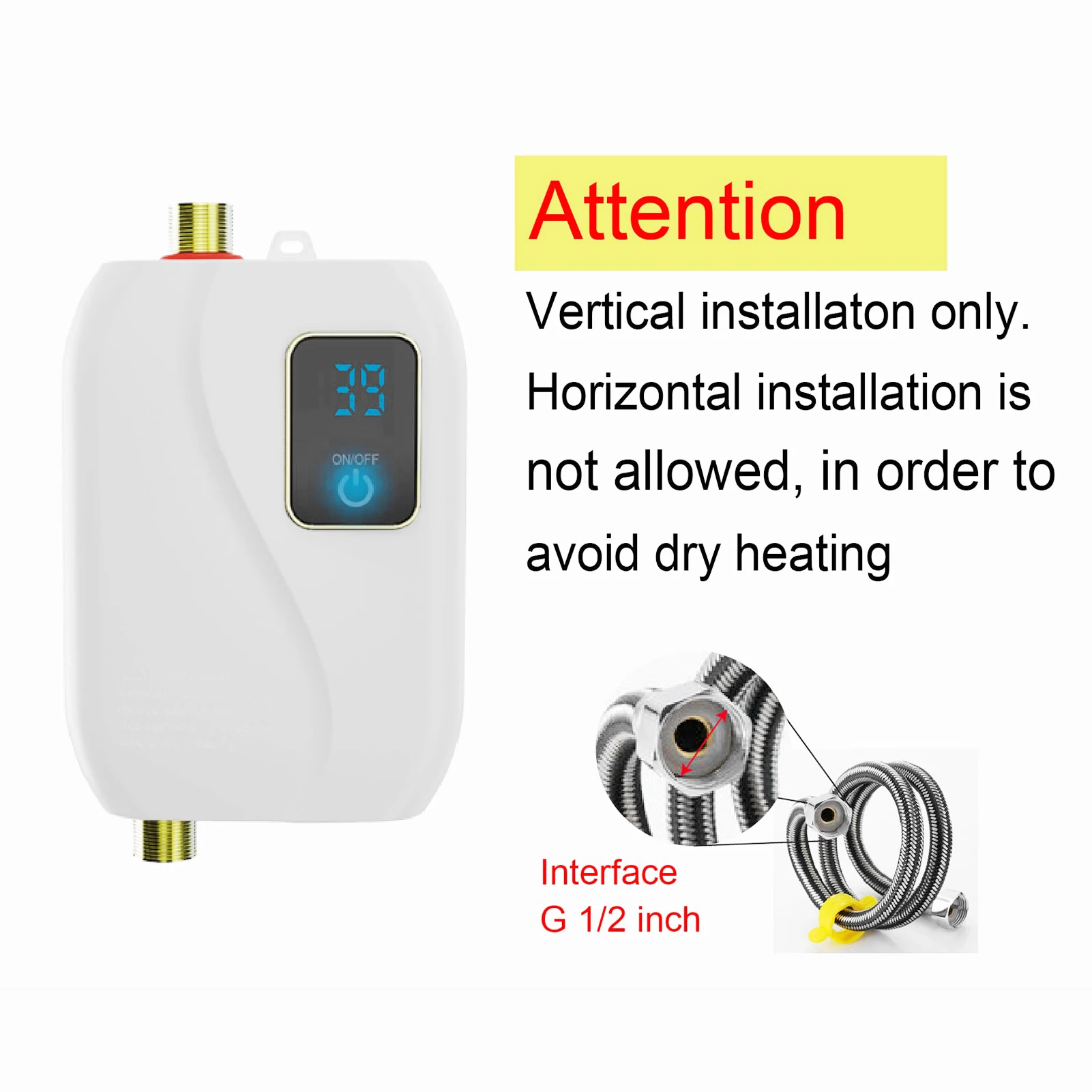

4. If the display does not heat, the display running lights turn around, that the water flow did not pass through the water heater, or the water pressure is too low, or the installation direction is wrong, pay attention to the water inlet and outlet to be installed correctly, but if the water pressure is enough, there is a water flow is not heated, then check the water heater inlet turbine, there may be dirt stuck turbine, resulting in the water heater does not start.

5. Water heater outlet pipe length is recommended not to exceed 3 meters, if exceeded may be due to the water pipe long water pressure difference, water pressure is not enough to start. (If the water tower is used in rural areas, the height of the water tower is required to be higher than 10 meters, so that the water pressure reaches the value of the start.)

6. The display shows E1 over-temperature, E3/E4 or temperature sensor failure, the first power off, with cold water over the machine, and then energized to use, pay attention to the usual use of water flow is not too small!

7. heating tube failure display E2, need to replace the heating tube.

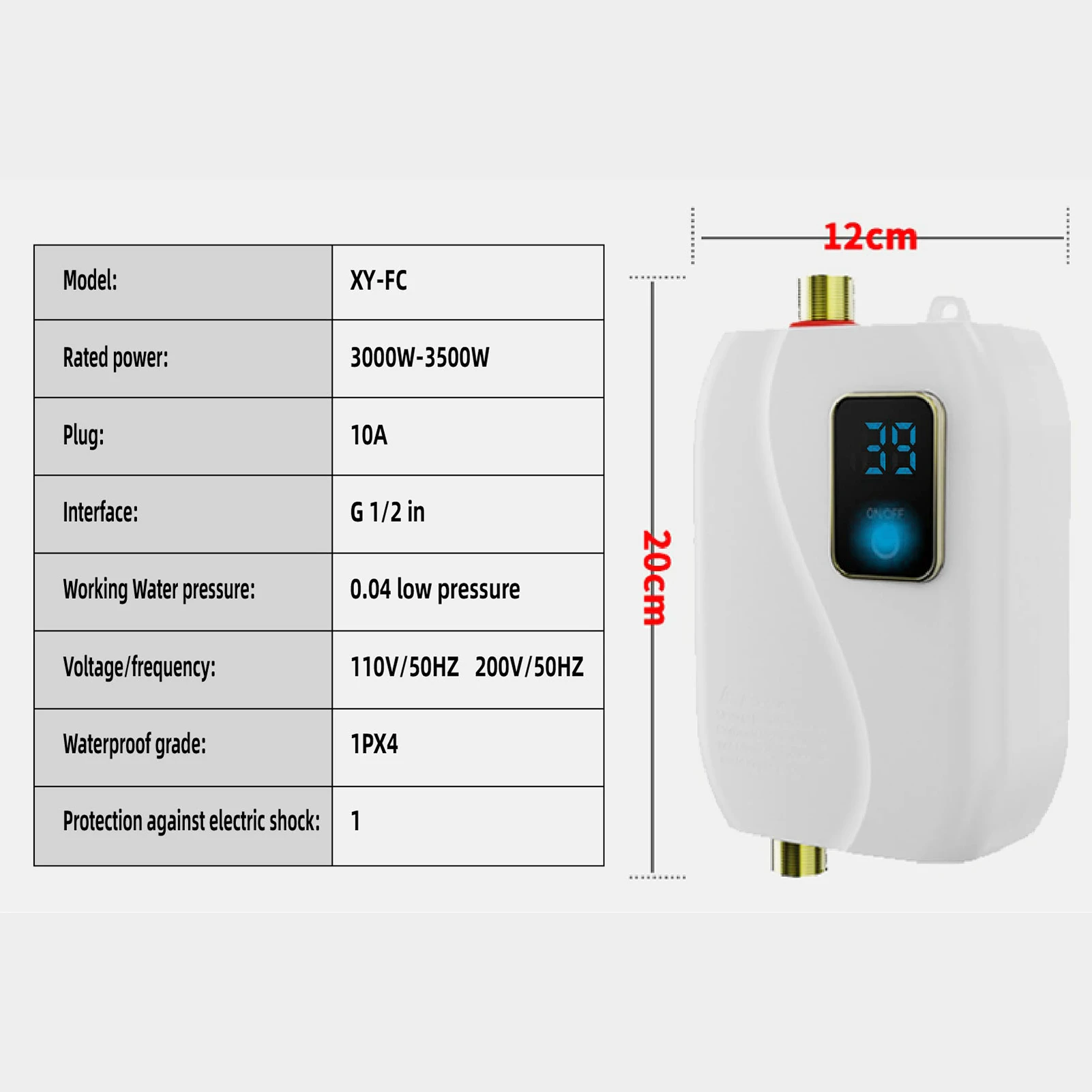

Specifications:

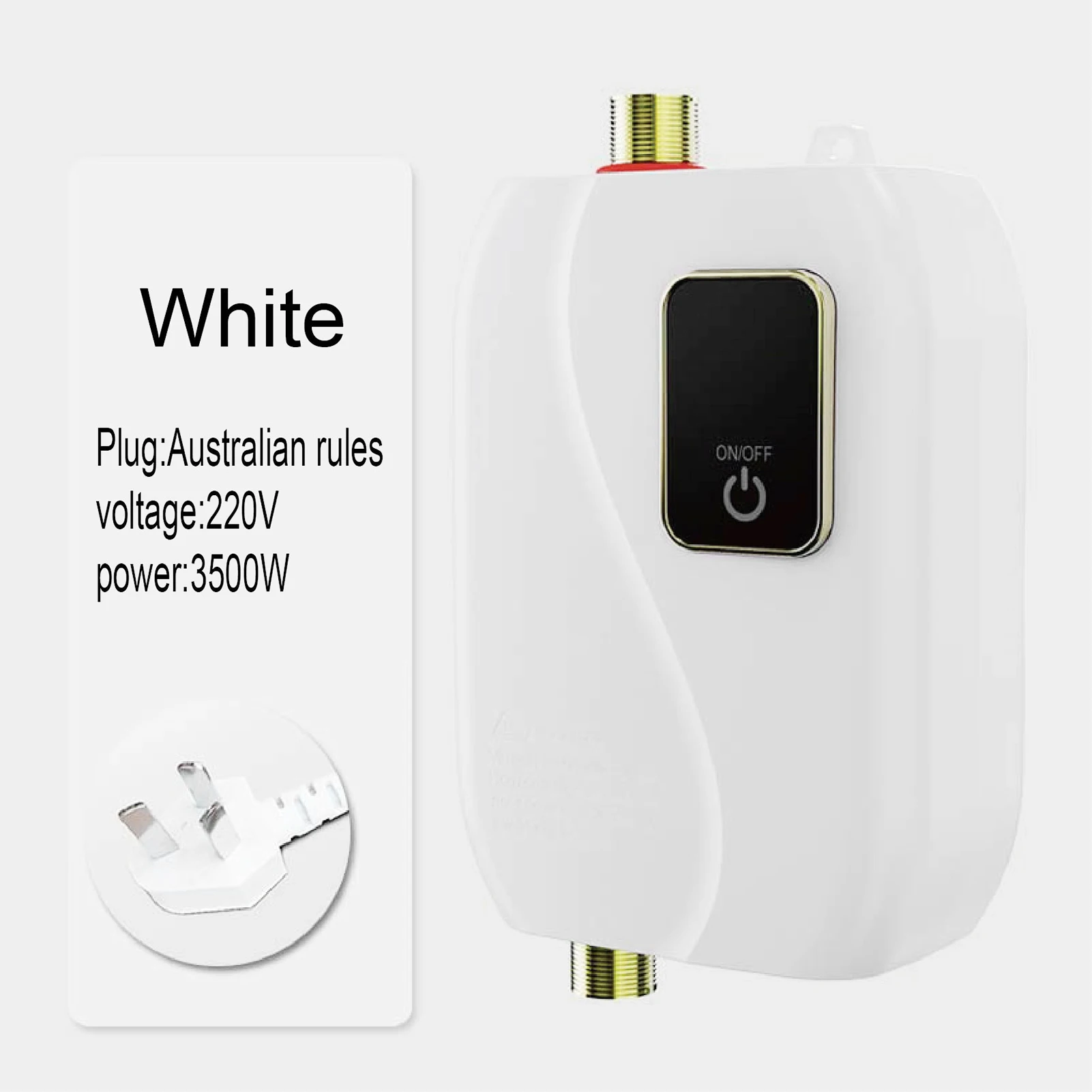

Plug: EU / US / UK / AU (Optional)

Material: ABS

Color: White

Voltage: 110V(US), 220V(EU/UK/AU)

Power: 3000W(US/UK), 3500W(EU/AU)

Wire Requirements: 1.5mm² (UK), 2.5mm² (EU/US/AU)

Trip Switch: ≥16A (UK), ≥32A(EU/US/AU)

Frequency: 50-60Hz

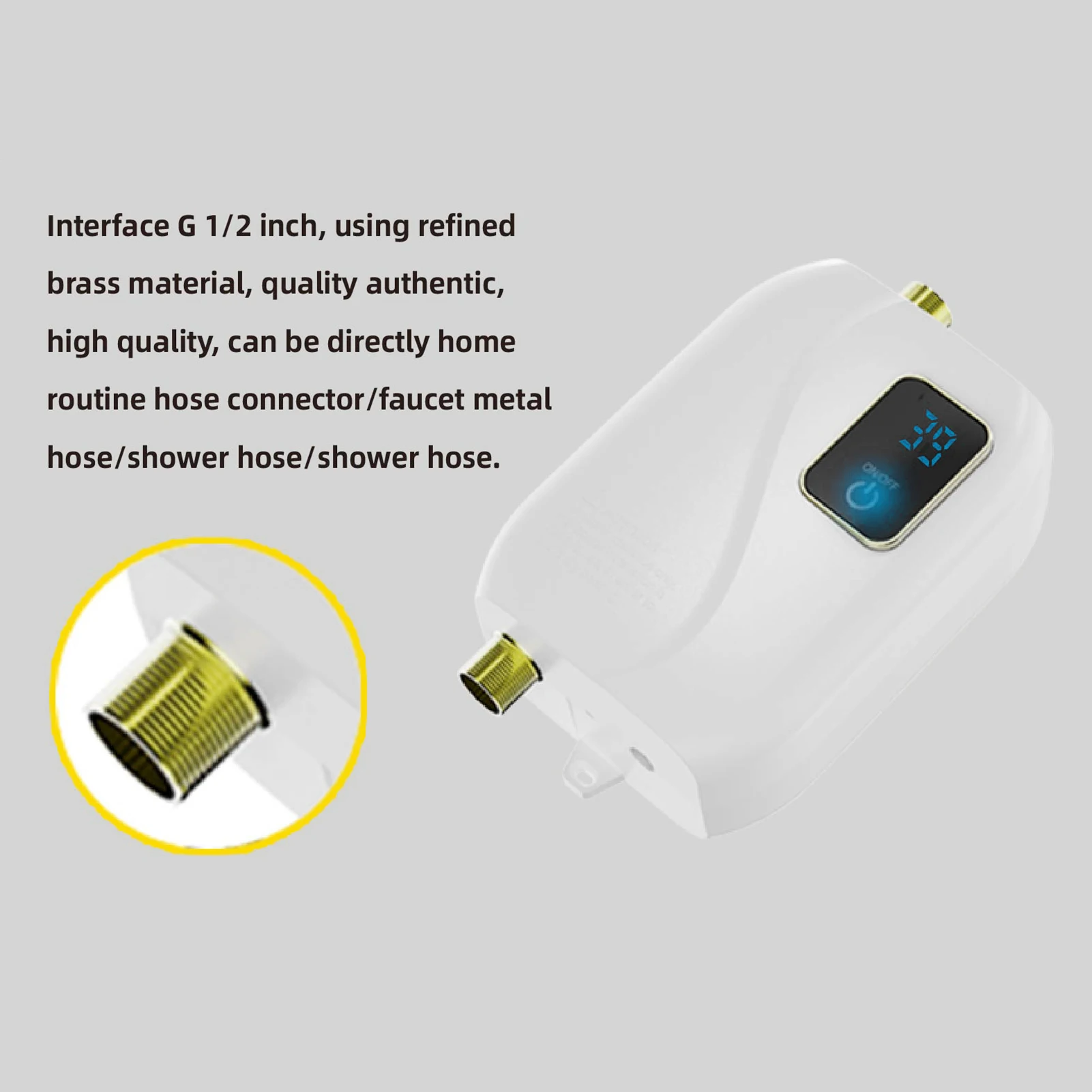

Water Pipe Interface: G 1/2in

Working Water Pressure: 0.01 low pressure

Waterproof Grade: 1PX4

Range of Temperature Regulation: 20℃-50℃ / 68℉-122℉

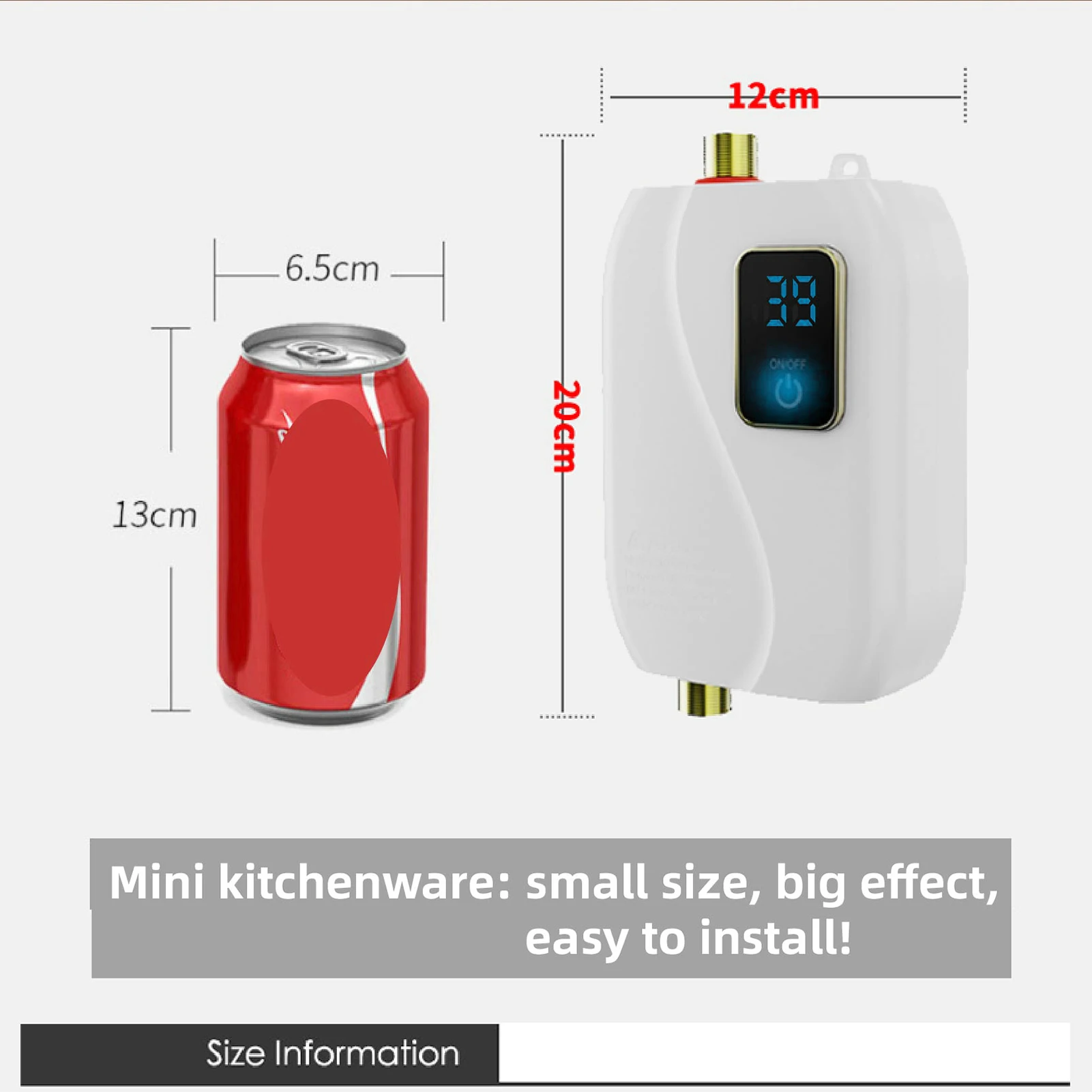

Item Size: 195 * 116 * 70mm / 7.68 * 4.57 * 2.76in

Item Weight: 1000g / 2.20lb

Package Weight: 1100g / 2.43lb

Package Size: 23.5 * 19 * 10cm / 9.25 * 7.48 * 3.94in

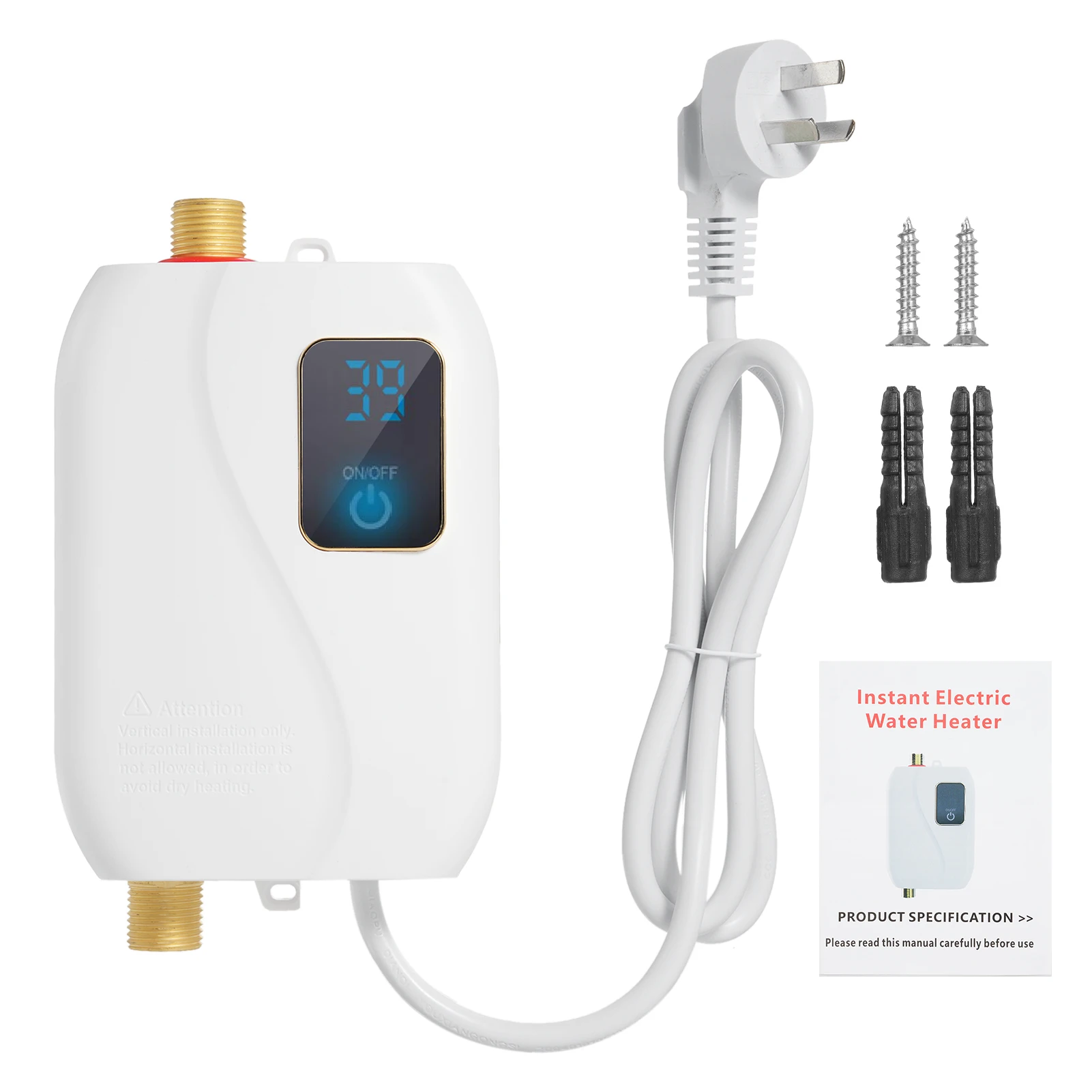

Package List:

1 * Mini Water Heater

2 * Fixing Screws

2 * Screws Protector

1 * User Manual (English)
