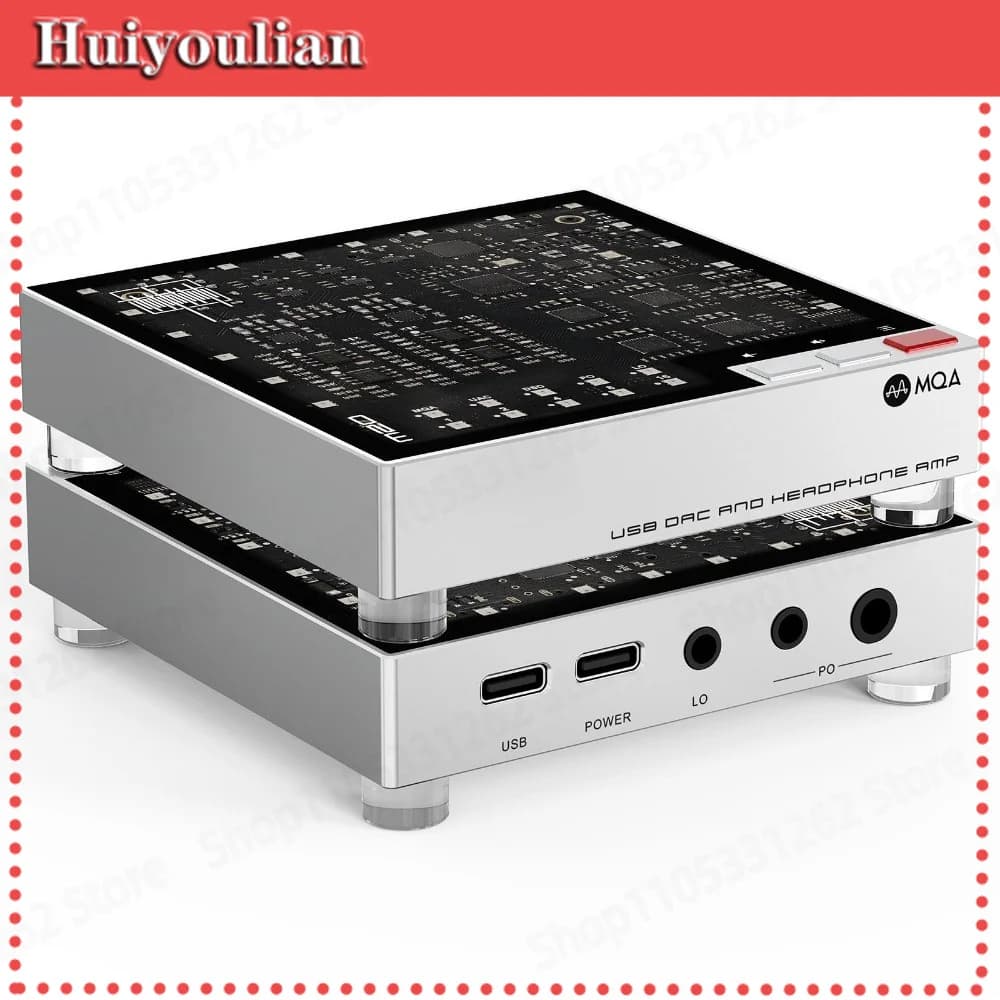

HiFi M20 MQA DAC Audio Decoder 4xCS43131 XMOS for PS5

High-Performance USB DAC & Headphone Amplifier

Experience studio-grade audio with this compact and powerful USB DAC. Built with exceptional precision, it delivers outstanding audio quality with minimal distortion and maximum clarity.

Key Features & Advantages:
- Powerful Headphone Amplifier: Provides up to 700mW of power at 16Ω and 32Ω. Supports demanding headphones from 16Ω to 600Ω (40mW at 600Ω) with near 0Ω output impedance.
- Balanced 4.4mm Output: Offers superior dynamic range and SNR of 124dB (vs 119dB on 3.5mm). The 4.4mm output provides 5 Vrms for high-fidelity balanced listening.
- Ultra-Low Distortion: THD+N as low as 0.0001% (-115dB) ensures pure sound reproduction.
- High-Resolution Support: Supports bit depths of 1bit and 16-32bit. Decodes PCM up to 768kHz and DSD up to 11.2896MHz via asynchronous USB transmission for low jitter.
- Wide Compatibility: Plug-and-play with Windows 7/8/8.1/10/11, Android, iOS, Mac OS X10.6+, and Linux.
- Compact Design: Small footprint of 85x22.4x85mm and weighs only 165g, perfect for desktop or portable setups.

Usage Scenarios & Competitive Edge:
Perfect for upgrading PC/Mac audio, use with smartphones or tablets, music production, and gaming. Its combination of massive power output and high-end 4.4mm balanced capabilities makes it a standout performer in its class.

Technical Specifications:
- Input Interface: USB
- Output Interface: 3.5mm Line, 3.5mm Headphone, 4.4mm Headphone
- Output Level: Line 2.5 Vrms; 3.5mm HP 2.5 Vrms; 4.4mm HP 5 Vrms
- Output Impedance: Line 22Ω; Headphone Amp Near 0Ω
- Headphone Output Power: 16Ω 700mW; 32Ω 700mW; 64Ω 350mW; 150Ω 160mW; 300Ω 80mW; 600Ω 40mW
- THD+N: 0.0001% (-115dB)
- Dynamic Range: Line 119dB; 3.5mm HP 119dB; 4.4mm HP 124dB
- SNR: Line 119dB; 3.5mm HP 119dB; 4.4mm HP 124dB
- USB Transmission: Asynchronous
- USB Compatibility: Windows 7/8/8.1/10/11, Android, iOS, Mac OS X10.6+, Linux
- Bit Depth: 1bit, 16-32bit
- Sampling Rate: PCM 44.1-768kHz; DSD 2.8224-11.2896MHz
- Power Consumption: <15W
- Standby Power: <0.5W
- Dimensions: 85x22.4x85mm (WxHxD)
- Weight: 165g
