Benchtop Selective Solder System 1500W 5KG PCB Rework Station Lead-Free Solder Fountain PID Temp Control Through-Hole 110V

Dear customers and friends: Hello! Welcome to our store. Standard and High-Temperature are the main product sets. 4 * 8 H47 and 6 * 10 H47 are nozzles. Please carefully confirm the SKU you want when purchasing. The nozzle models are complete, and other types of nozzles are required. Please contact customer service to note and place an order.
Selective Wave Solder Pot
Complete Product Listing
1. PRODUCT OVERVIEW

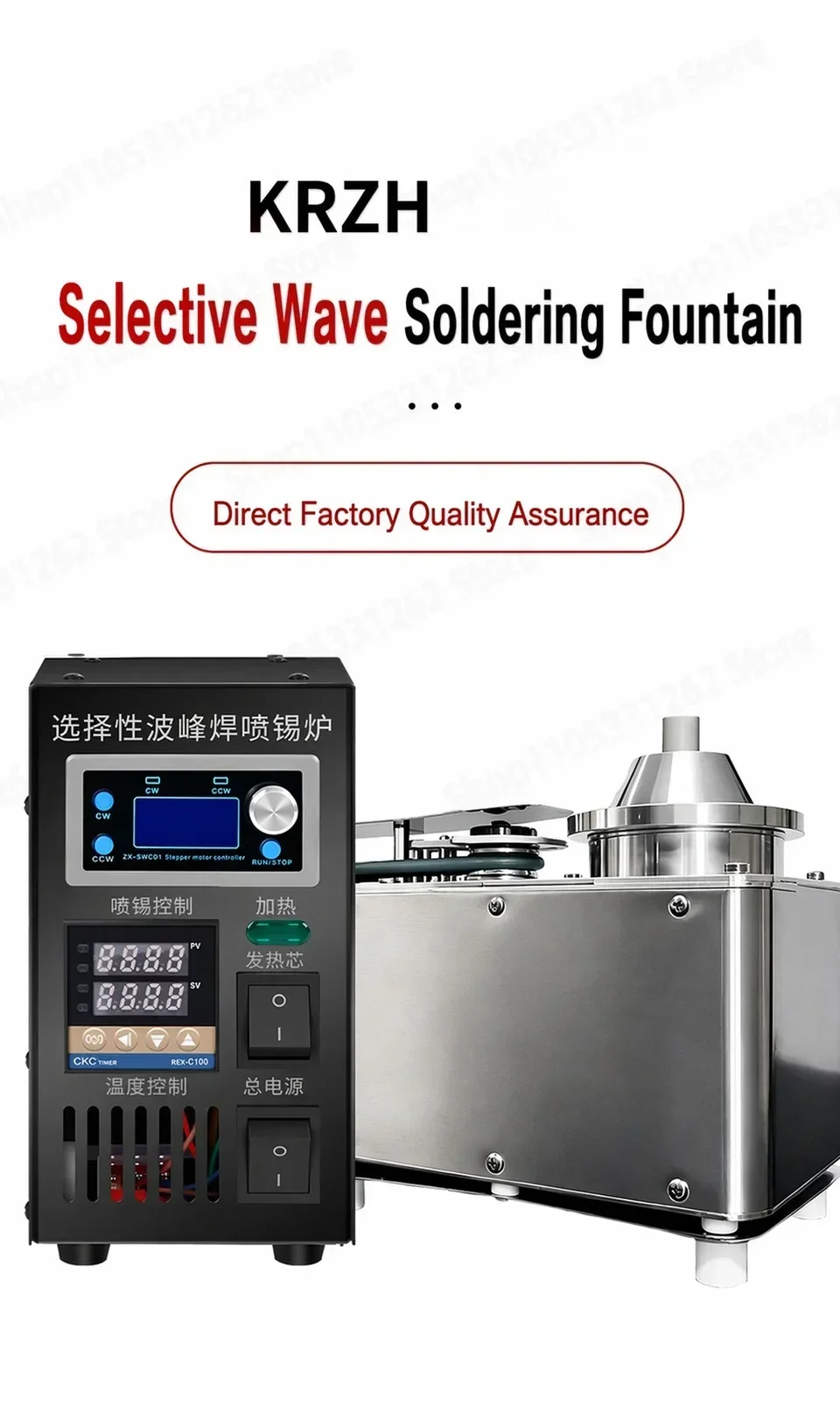

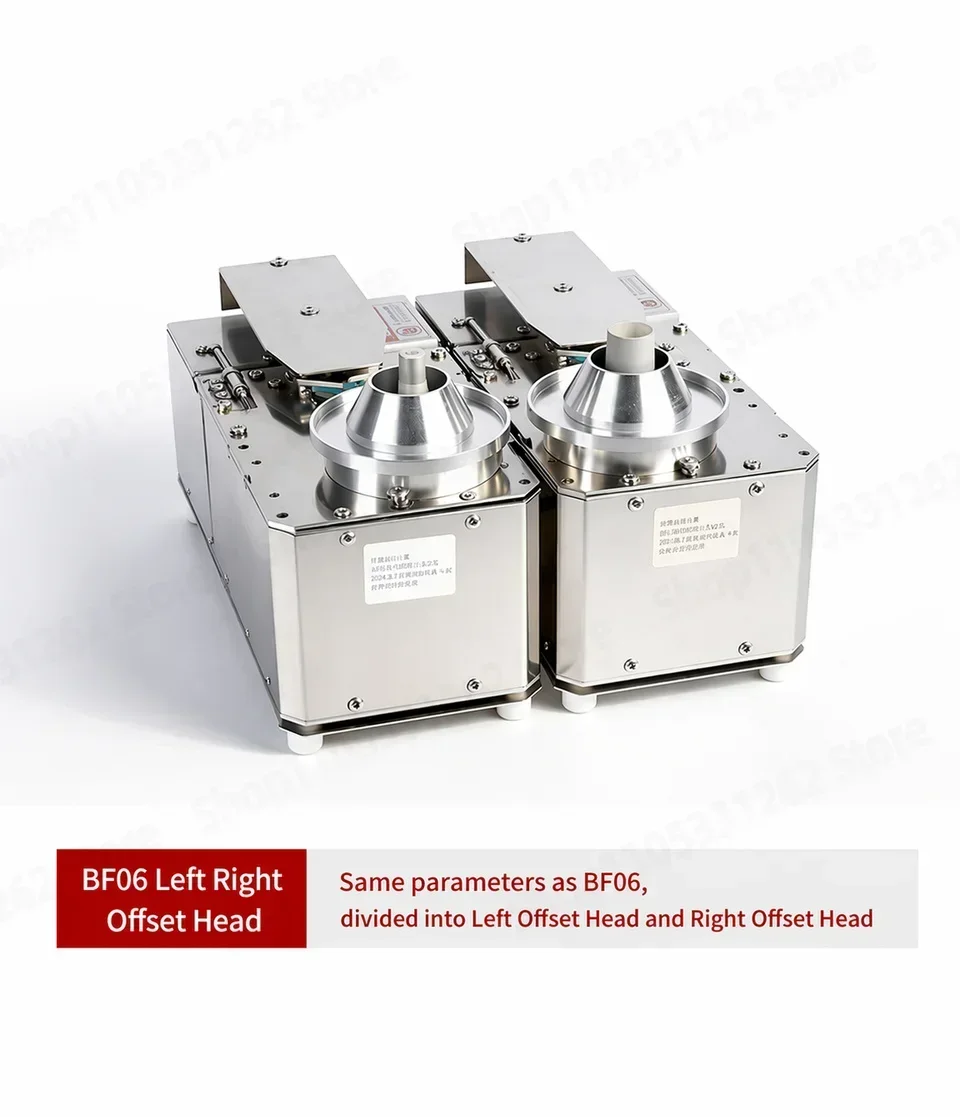

Selective Wave Soldering Pot – Professional Rework Solution

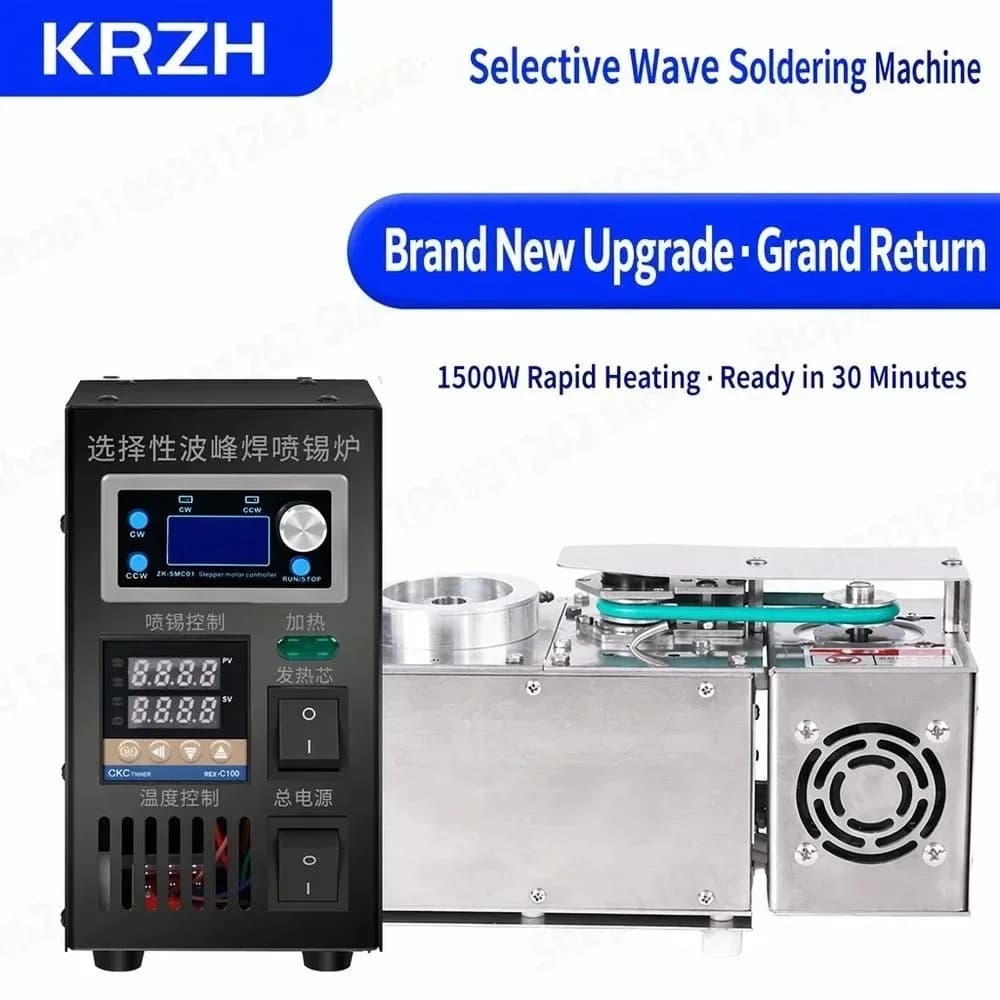

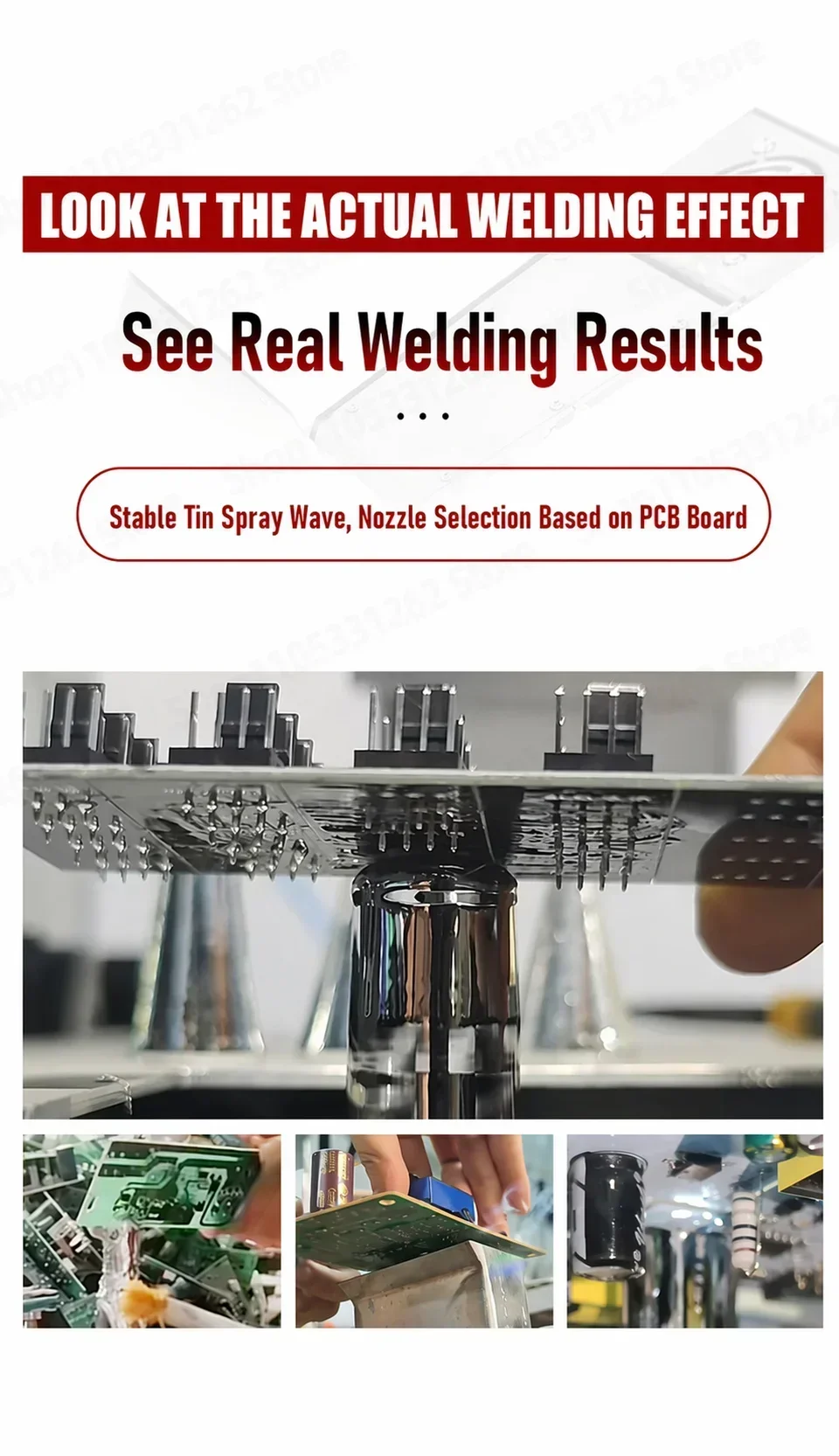

Upgrade your PCB rework station with this 1500W high-power selective wave solder pot designed for precision and efficiency. Whether you are a process engineer dealing with complex PCBA repair or a small-batch manufacturer, this mini wave soldering machine delivers stable, lead-free compatible soldering for through-hole components without damaging adjacent SMD parts.
WHY CHOOSE THIS SOLDER POT?
✔
Rapid Heating:
1500W power ensures melting within 30 minutes.
✔
Precise Control:
Digital PID+SSR temperature control up to 300°C (350°C for HT model).
✔
Durable Build:
304 Stainless Steel pot with 5KG capacity.
✔
Two SKUs Available:
Choose Standard (300°C) or High-Temperature (330°C–350°C) model to fit your needs.
2. APPLICATIONS
Your Go-To Tool for Electronics Manufacturing and Repair
✔
PCB Rework and Repair
– Efficiently repair and rework printed circuit boards.
✔
Application Automation
– Integrates easily into automated production lines.
✔
Selective Soldering
– Ideal for prototyping and small-batch production.
✔
Desoldering Components
– Easily remove multi-pin connectors and through-hole components.
✔
Wire Tinning
– Perfect for processing and tinning wires.
✔
Special Tin Plating
– Suitable for special coating and plating needs.
3. KEY SPECIFICATIONS AND MATERIALS
Two SKUs Available – Standard vs High-Temperature
Feature Standard Model High-Temperature Model Bearing Material High-Temperature Alloy Steel Ceramic Bearing Max Operating Temperature 300°C 330°C – 350°C Recommended Use General repair, intermittent use Heavy-duty, lead-free, continuous Power Supply AC220V / 10A
(110V available upon request) AC220V / 10A

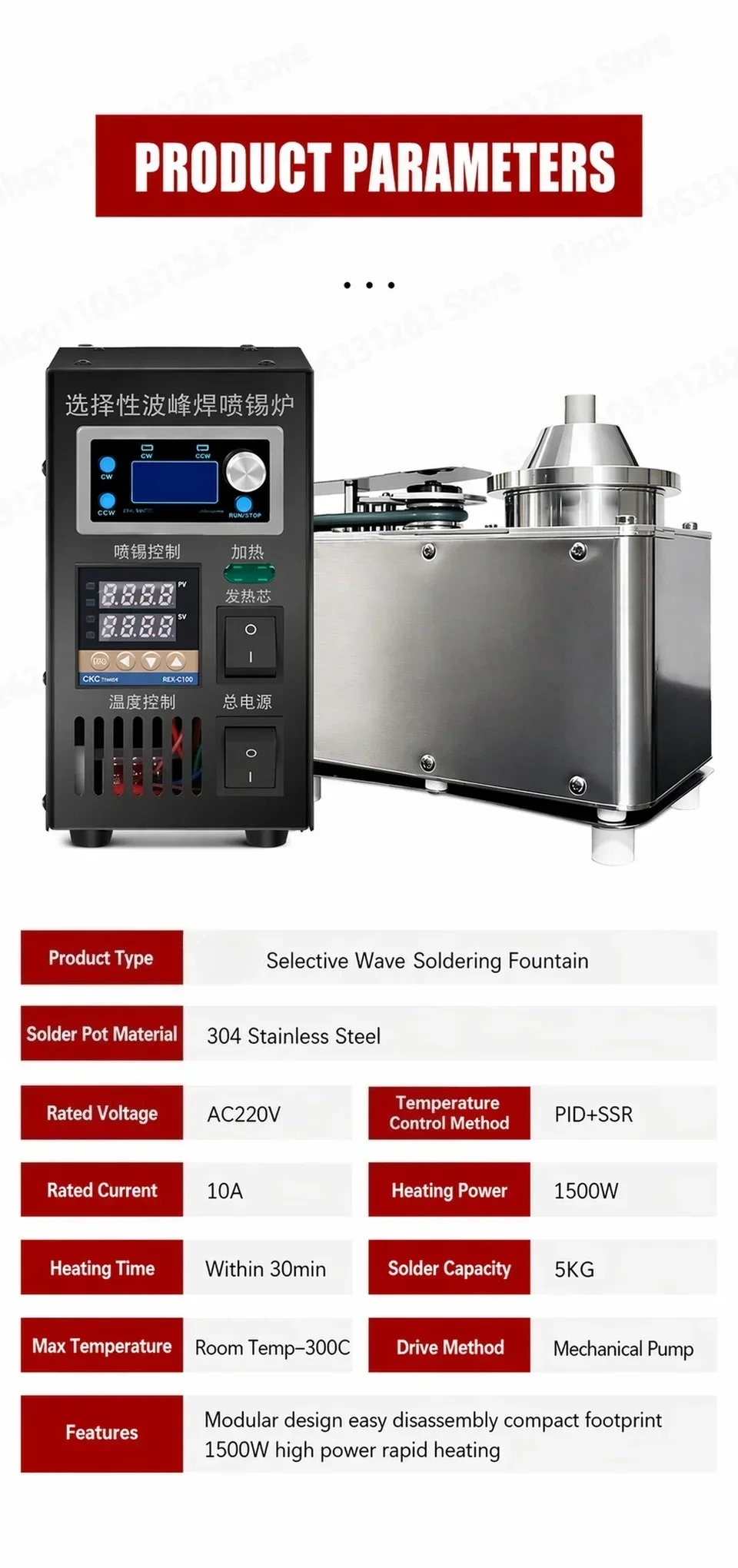

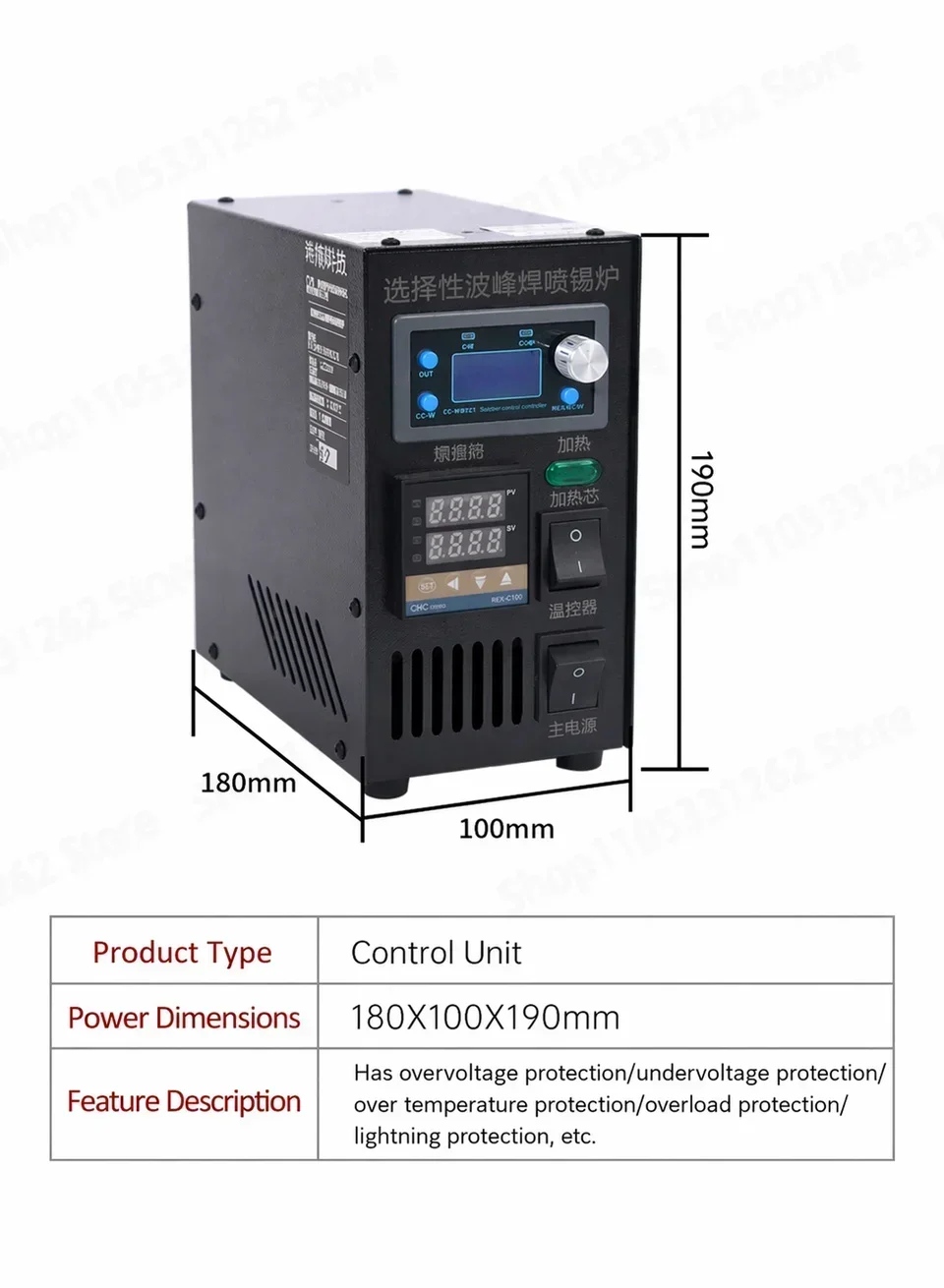

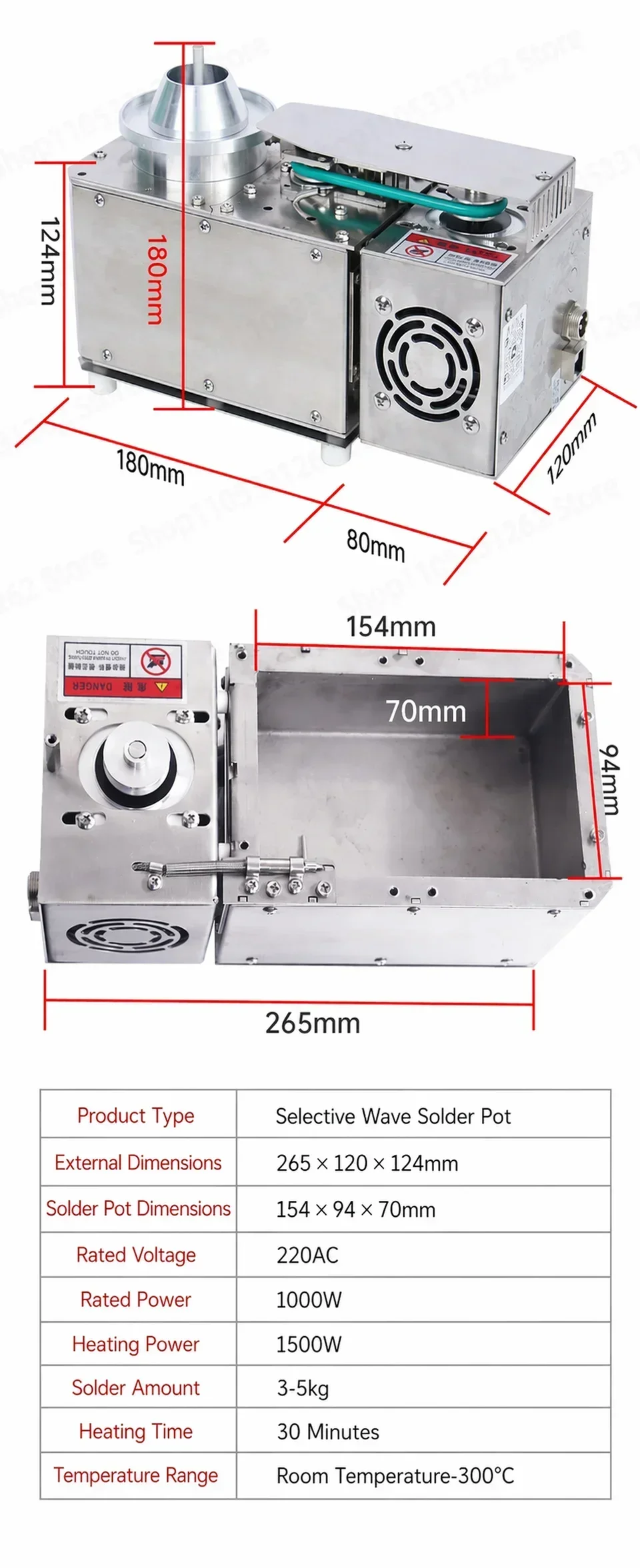

(110V available upon request) Heating Power 1500W 1500W Solder Capacity 5KG (3-5KG) 5KG (3-5KG) Pot Material 304 Stainless Steel 304 Stainless Steel Control Method PID + SSR PID + SSR Drive Method Mechanical Pump Mechanical Pump Control Unit Size 180×100×190mm 180×100×190mm Solder Pot Size 265×120×124mm 265×120×124mm
4. SIX CORE TECHNIQUES
✔
Interface Upgrade
– Newly upgraded rear panel interfaces for easier connectivity.
✔
Independent Digital Display
– Dual-screen display for real-time and set temperature.
✔
Constant Temperature Operation
– PID+SSR ensures stable, consistent soldering temperature.
✔
Independent Switches
– Separate heater switch and main power switch for flexible control.
✔
Easy Installation
– Modular design with plug-and-play connections.
✔
Multi-Protection

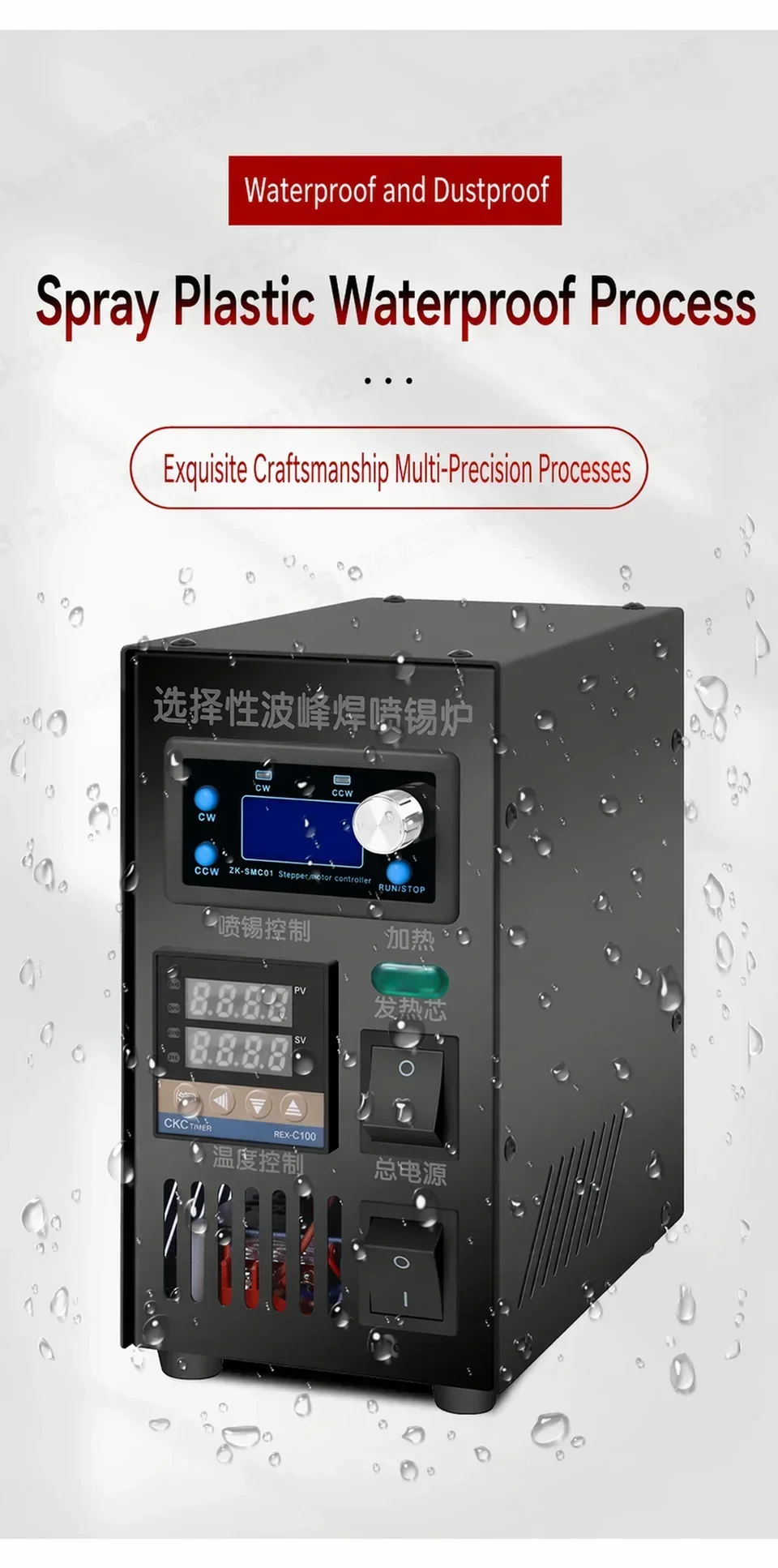

– Built-in over-voltage, under-voltage, over-temperature, overload, and lightning protection.
5. FRONT PANEL FUNCTIONS
User-Friendly Control Panel – Quick Setup

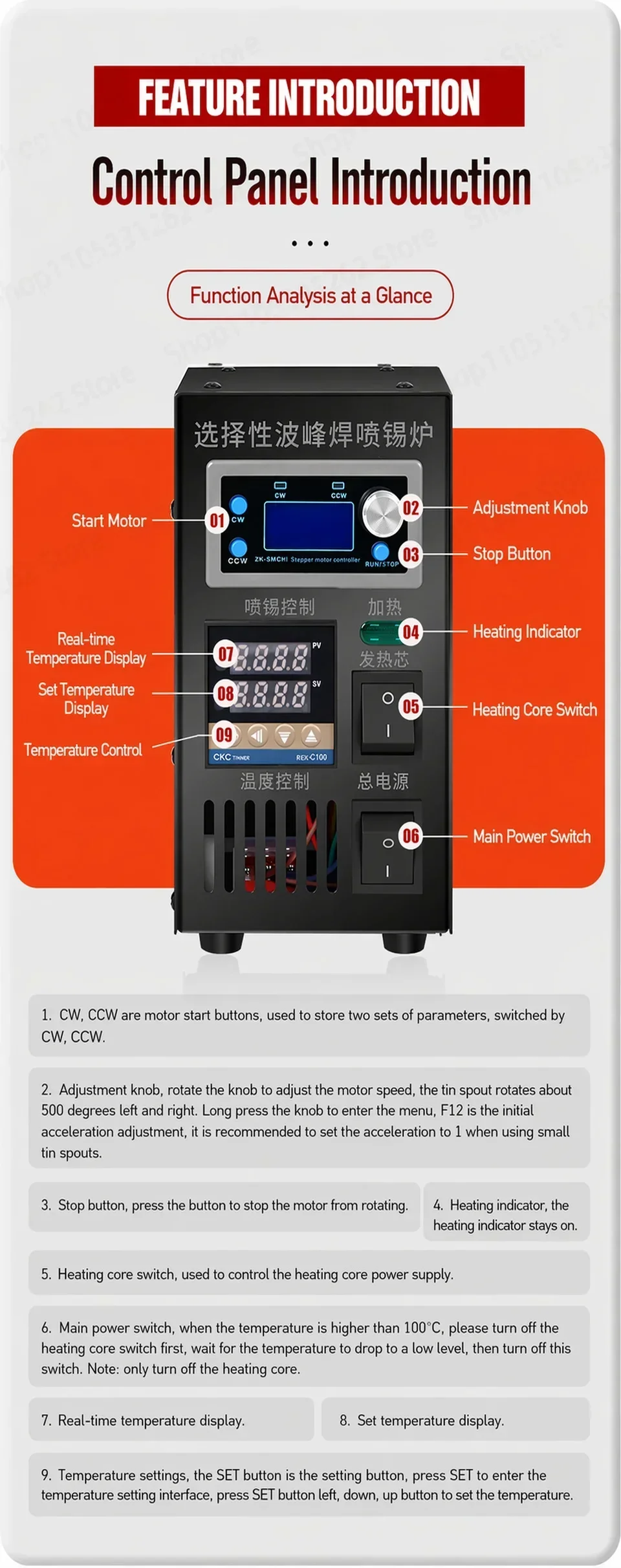

No. Name Function Description 1 CW / CCW Motor start buttons. Two sets of parameters can be stored. Press CW or CCW to switch between them. 2 Adjustment Knob Rotate to adjust motor speed. Recommended: ~500 RPM. Long press to enter menu; F12 = initial acceleration adjustment (set to 1 for small nozzles). 3 Stop Button Press to stop motor rotation immediately. 4 Heating Indicator LED stays on when heating element is active. 5 Heater Switch Controls power supply to the heating core. 6 Main Power Switch When temperature is above 100°C, turn off Heater Switch first, wait for cooling, then turn off Main Power. Note: You may also turn off only Heater Switch and leave Main Power on. 7 Real-Time Temperature Display Shows current temperature reading. 8 Set Temperature Display Shows target temperature setting. 9 Temperature Setting (SET) Press SET to enter temperature setting interface. Use the left, down, and up buttons to adjust temperature.
6. REAR PANEL INTERFACES
New Interface Upgrade – Rear Panel Function Ports

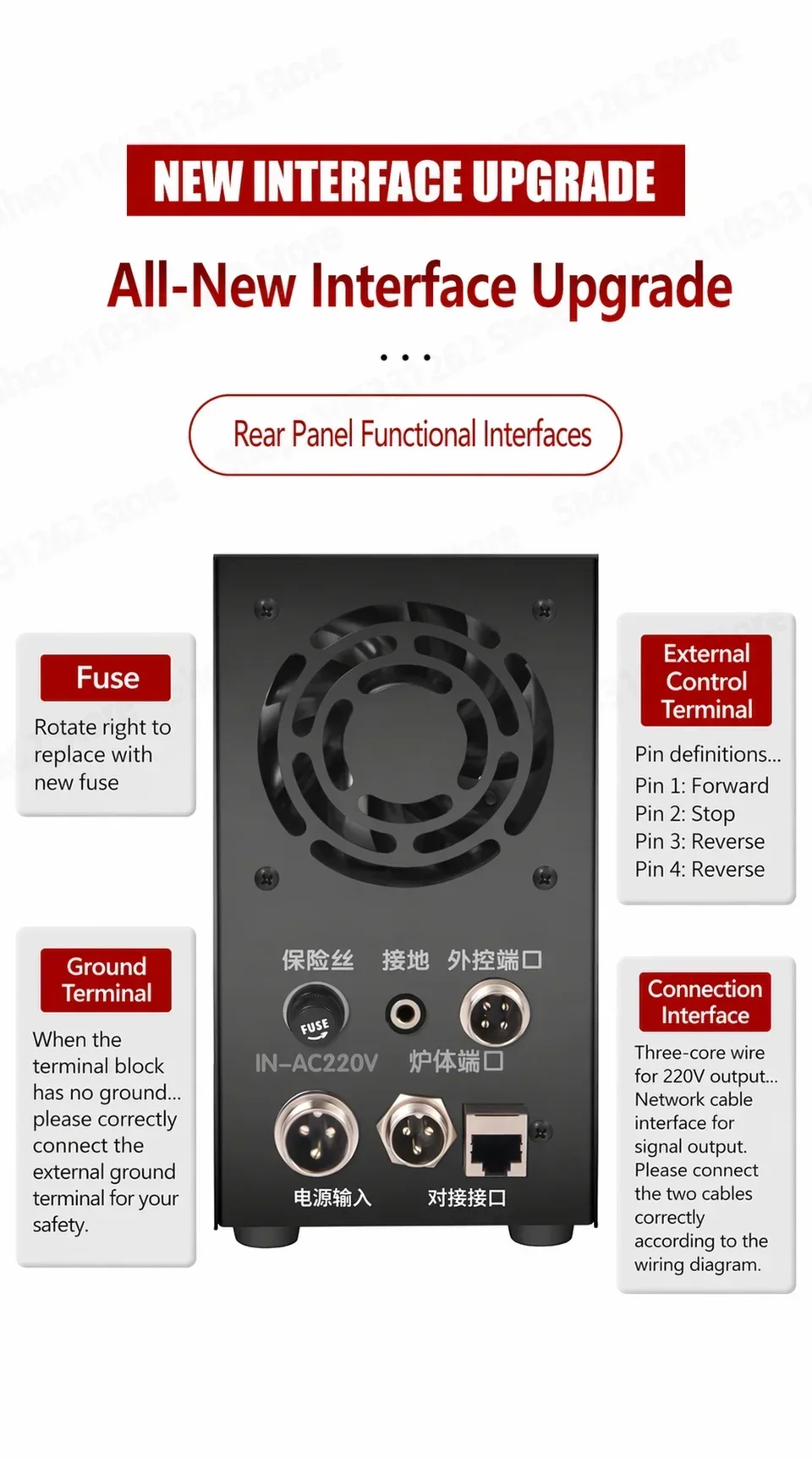

Port Description Fuse Rotate right to open and replace the fuse. Grounding Terminal If your power strip does not have grounding, use the included external grounding wire with alligator clip. Please ensure proper grounding for your safety. External Control Port Pin definition: 1-Common, 2-Stop, 3-Reverse, 4-Forward. Power Input AC220V power input (110V available upon request). Docking Interface Three-core wire is 220V output. Network port is signal output. Please connect both docking wires correctly.
7. EASY INSTALLATION AND OPERATION
Designed for Quick Setup – Get to Work in Minutes
Installation Highlights
✔
Plug-and-Play Docking
– Connect two docking wires correctly and you are ready.
✔
Easy Access with Screwdriver
– Belt cover is secured with screws. Remove using a standard screwdriver for routine maintenance.
✔
Compact Footprint
– Control host measures 180×100×190mm. Solder pot measures 265×120×124mm. Fits any crowded workbench.
✔
Clear Panel Labeling
– Every button and port clearly marked. No need to constantly check the manual.
✔
External Control Ready
– Pre-wired terminals for instant automation integration.
User-Friendly Operation
✔
One-Knob Speed Adjustment
– Rotate to adjust motor speed for different nozzles. No complex programming.
✔
Two-Parameter Memory
– Store two sets of CW and CCW parameters for quick job switching.
✔
Independent Heater Control
– Heat the pot without running the motor. Saves energy.
✔
Intuitive Temperature Setting
– Press SET, use arrow buttons. Adjust in seconds.
8. PROTECTION FEATURES
The control host is equipped with comprehensive protection for safe and reliable operation.
✔
Over-Voltage Protection
✔
Under-Voltage Protection
✔
Over-Temperature Protection
✔
Overload Protection
✔
Lightning and Surge Protection
9. VOLTAGE CUSTOMIZATION
Available in 220V or 110V – Please Confirm Before Ordering
The unit comes standard with AC220V 10A power input. If your workshop or laboratory uses 110V power supply (common in North America, Japan, Taiwan, and other regions), we offer custom voltage configuration.
Please contact us before placing your order to confirm your required voltage. We will adjust the internal components accordingly to ensure safe and stable operation at 110V.
10. IMPORTANT NOTICES AND WARNINGS
Critical Operation Instructions
DO NOT DRY BURN.
Always add solder (or water for testing) before turning on the heater switch. Dry burning will damage the unit.
Water Test Recommended.
Before adding solder, we strongly recommend testing with water to ensure the unit functions properly and meets your needs.
Returns cannot be accepted once solder has been added.
NO FLUX.
Do not use solder wire containing flux. Do not pour flux into the solder pot. Use only pure tin bars or flux-free tin wire. Flux will damage the pump mechanism.
Solder Level.
Fill solder up to 2CM from the top edge. The minimum level must cover the pump head.
Shutdown Sequence.
To extend the lifespan of the unit, always turn off the
Heater Switch
first when temperature is above 100°C. Wait for cooling, then turn off Main Power. Alternatively, you may leave Main Power on and only turn off the Heater Switch.
11. FREQUENTLY ASKED QUESTIONS
Q1. What is the difference between the Standard Model and the High-Temperature Model?

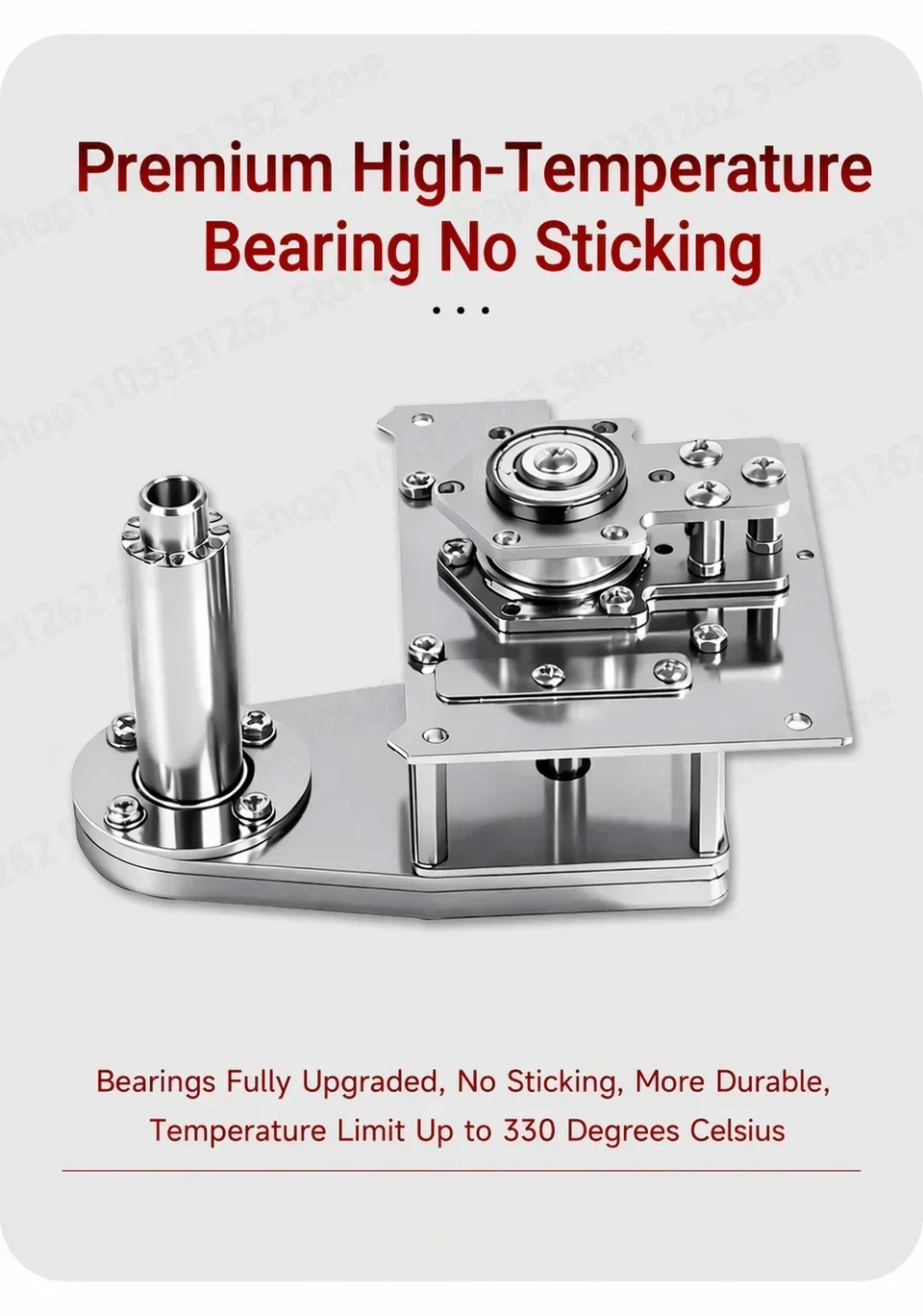

A1. The main difference is the bearing material and maximum operating temperature. The Standard Model uses high-temperature alloy steel bearings rated up to 300°C, which is sufficient for most general soldering tasks. The High-Temperature Model is equipped with ceramic bearings rated up to 330°C to 350°C, making it ideal for lead-free soldering, continuous production runs, and harsh industrial environments. Ceramic bearings also offer better wear resistance, lower friction, and longer service life.
Q2. Does this machine support 110V power?
A2. Yes. It can be customized for 110V upon request. Please message us before ordering to specify your voltage requirement. The standard unit is 220V.
Q3. Can I use this for lead-free soldering?
A3. Absolutely. The standard model reaches 300°C, and the high-temperature model reaches 330°C to 350°C. Both are sufficient for most lead-free solder alloys, which typically have a melting point of 217 to 227°C. For continuous lead-free production, we recommend the HT model.
Q4. Can I add solder wire with flux inside?
A4. No. Please use only pure tin bars or solid solder wire without flux. Flux will contaminate the solder pot and damage the mechanical pump. This is the number one cause of pump failure.
Q5. How long does it take to melt the solder?
A5. With 1500W heating power, it reaches operating temperature and melts solder within approximately 30 minutes.
Q6. How much solder should I put in?
A6. Fill to 2CM below the top edge of the pot. The minimum level must cover the pump head. Otherwise, the pump cannot draw solder and will run dry.
Q7. Can I test the machine with water before adding solder?
A7. Yes, and we strongly recommend it. Testing with water allows you to check the pump and heating functions without risking expensive solder. However, once you add solder, returns cannot be accepted due to contamination.
Q8. What is the correct shutdown procedure?
A8. When temperature is above 100°C, first turn off the Heater Switch, wait for the temperature to drop, then turn off the Main Power. Alternatively, you can simply turn off the Heater Switch and leave Main Power on.
Q9. What safety protections does this unit have?
A9. The control host includes over-voltage, under-voltage, over-temperature, overload, and lightning and surge protection for safe and reliable operation.
Q10. What if the pump jams or gets stuck?
A10. The unit is equipped with upgraded high-temperature bearings (ceramic on the HT model) that withstand extreme temperatures, significantly reducing the risk of jamming. If you experience issues, ensure you are not using flux-containing solder and that the solder level covers the pump head.
Q11. Do you provide after-sales support?
A11. Yes. We offer technical support and replacement parts. Contact us directly via the platform. We are here to help.
