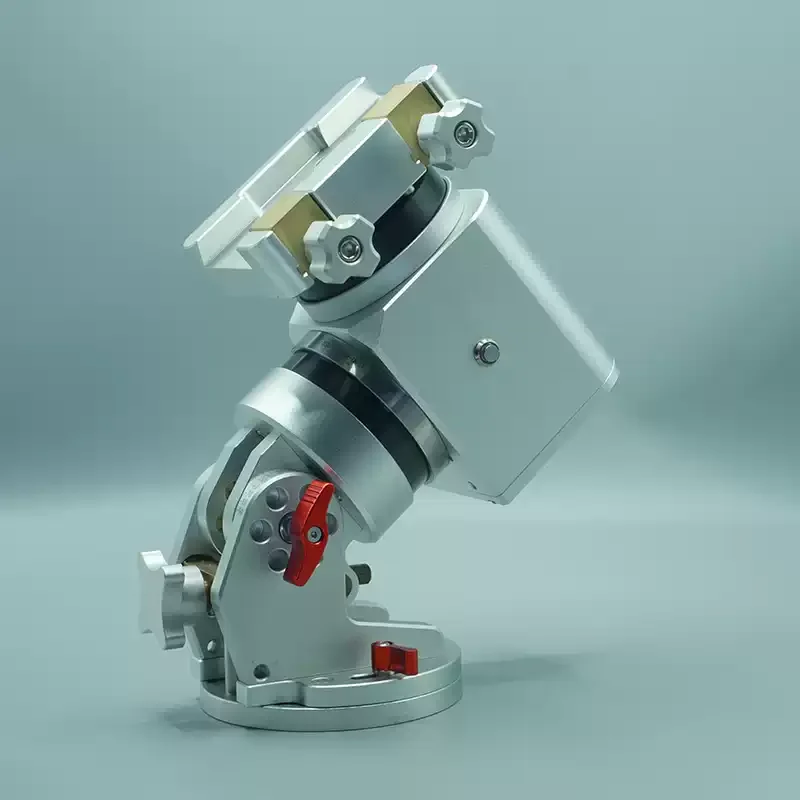

For JW14 Equatorial Instrument Red/Black/Silver 14 Harmonic Astronomical Telescope Stargazing Accessories Without Heavy Hammer

Hello dear, thank you very much for choosing our product. As the shipping cost from China to each country varies, please contact me before placing an order to confirm the accurate shipping cost to avoid any unnecessary misunderstandings. Thank you again! Wishing you a happy life! (Tip: If you are prompted to enter customized content when submitting an order, it is due to system requirements. But in reality, customized content does not affect your purchase. You can enter any content, please feel free to purchase!)

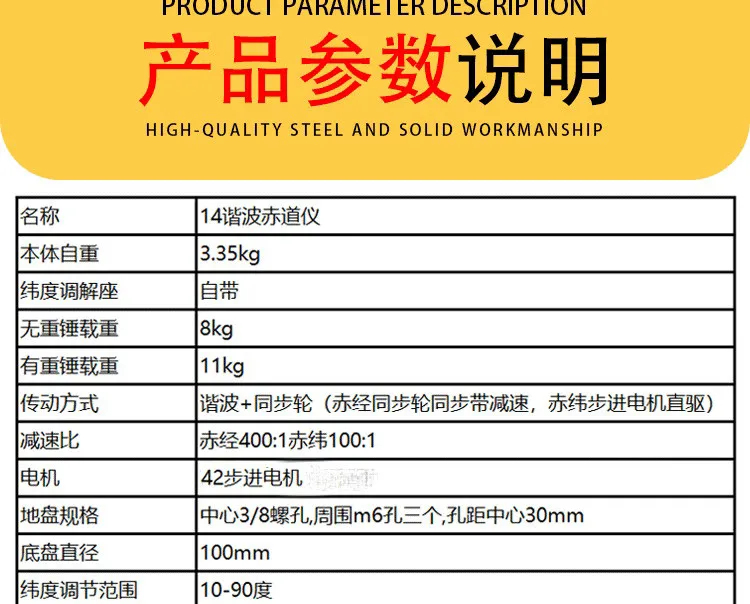

Specifications
Name: JW14 Photography Equatorial Camera
Self weight of the body: 3.35kg
Latitude Adjustment Seat: Comes with
No heavy hammer load: 8kg
Heavy hammer load capacity: 11kg
Transmission mode: Harmonic+Synchronous Wheel (Red Meridian Synchronous Wheel Synchronous Belt Reduction, Red Latitude Stepper Motor Direct Drive)
Reduction ratio: 400:1 right ascension and 100:1 declination
Motor: 42 step stepper motor
Specification of the construction site: 3/8 screw hole in the center, three M6 holes around, with a hole distance of 30mm from the center
Chassis diameter: 100mm
Latitude adjustment range: 10-90 degrees

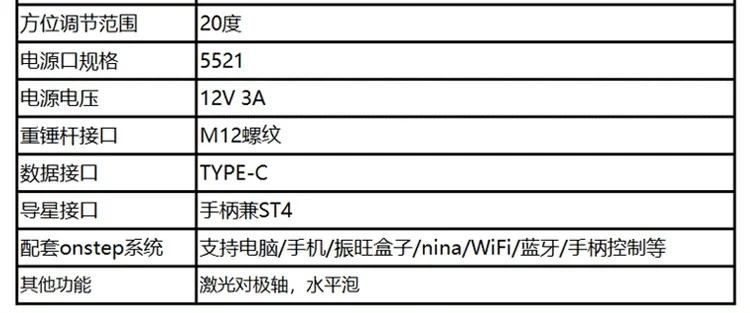

Directional adjustment range: 20 degrees

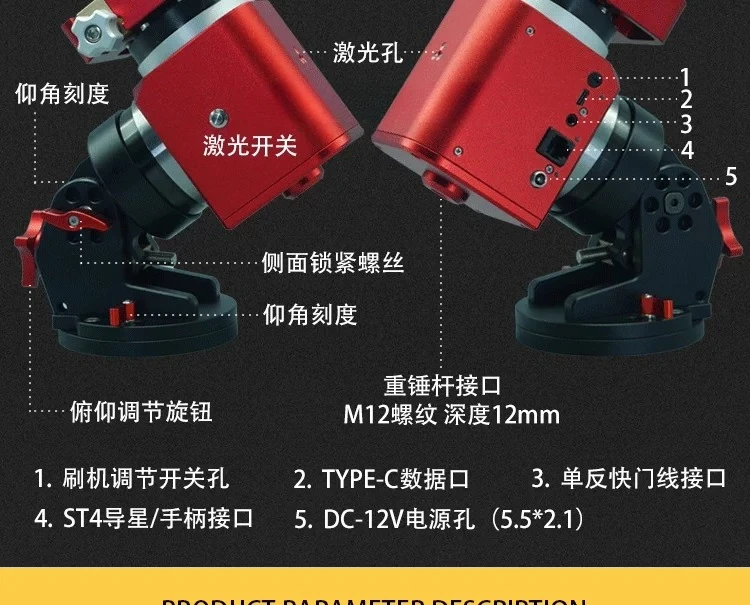

Power port specification: 5.5 * 2.1
Power specification: 12V 3A
Heavy hammer rod interface: M12 thread
Data interface: TYPE-C
Navigation interface: controller and ST4
