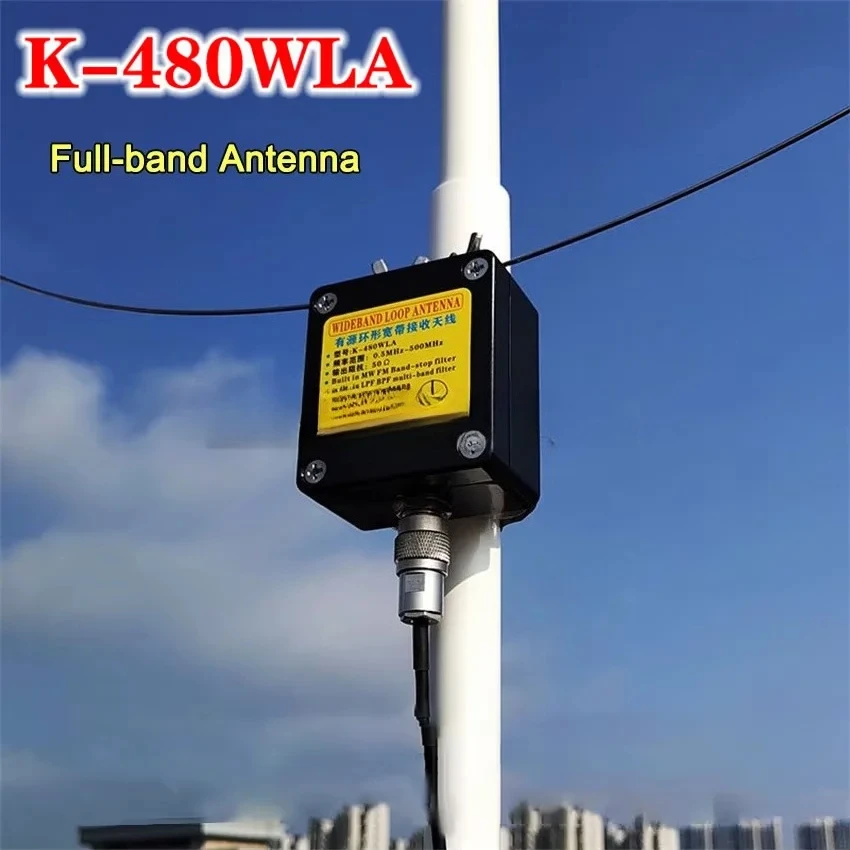

For K-480WLA MW/SW/FM/Airband /UHF /VHF 0.5MHz-500MHz Full Band Antenna LOOP Small Loop Short Wave Antenna and Filter

Hello dear, thank you very much for choosing our product. As the shipping cost from China to each country varies, please contact me before placing an order to confirm the accurate shipping cost to avoid any unnecessary misunderstandings. Thank you again! Wishing you a happy life! (Tip: If you are prompted to enter customized content when submitting an order, it is due to system requirements. But in reality, customized content does not affect your purchase. You can enter any content, please feel free to purchase!)
Specifications:
Name: K-480WLA Full Band Antenna
Feeder Length: 5m/10m/15m/20m
Antenna Model: K-480WLA
Charging voltage: DC-5V (2.5A max)
Charging port type: TYPE-C
Input and output impedance: 50Ω(Ohm)
Gain adjustable range: 0-30DB
Receiving frequency range: 0.5MHz-500MHz
Operating mode: full band MW SW FM AIR 6 meters UV
Working Mode Receiving Frequency Range:
Full band (aff band): 0.5-500MHZ
Mw (medium wave): 0.5-2MHz
SW (short wave): 2-30MHz
FM (Frequency Modulation): 70-108MHz
AIR (Air): 118-170MHz
6 meter (6 meter): 30-60MHz
UV (UHF VHF): 136-500MHz
Built-in MW FM Band-stop filter

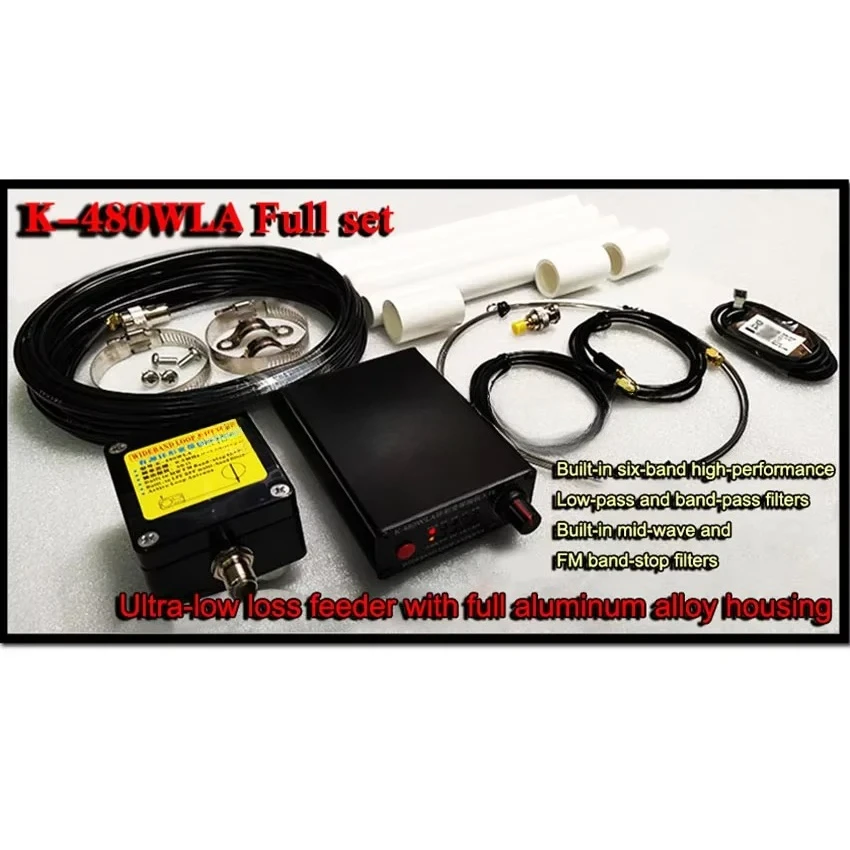

Built-in LPF BPF multi-band filter

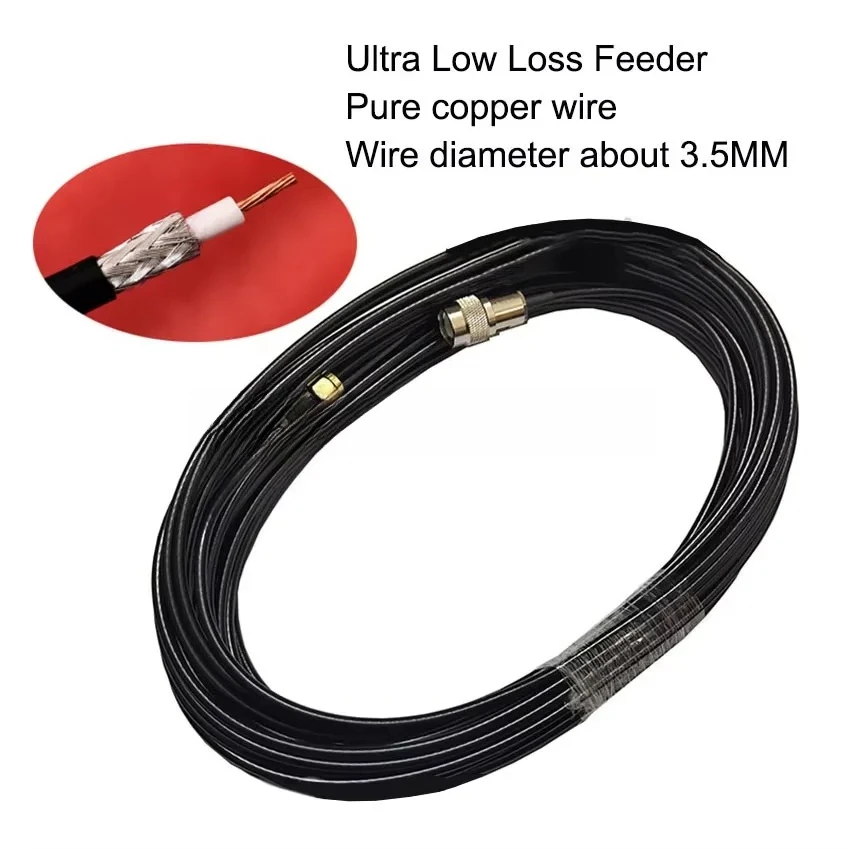

K-480WLA use feeder for 50 ohm K-180 customized version of the ultra-low loss feeder.
Note: K-180 for the feeder model diameter of about 3.5MM against the standard American 302 feeder the same performance.

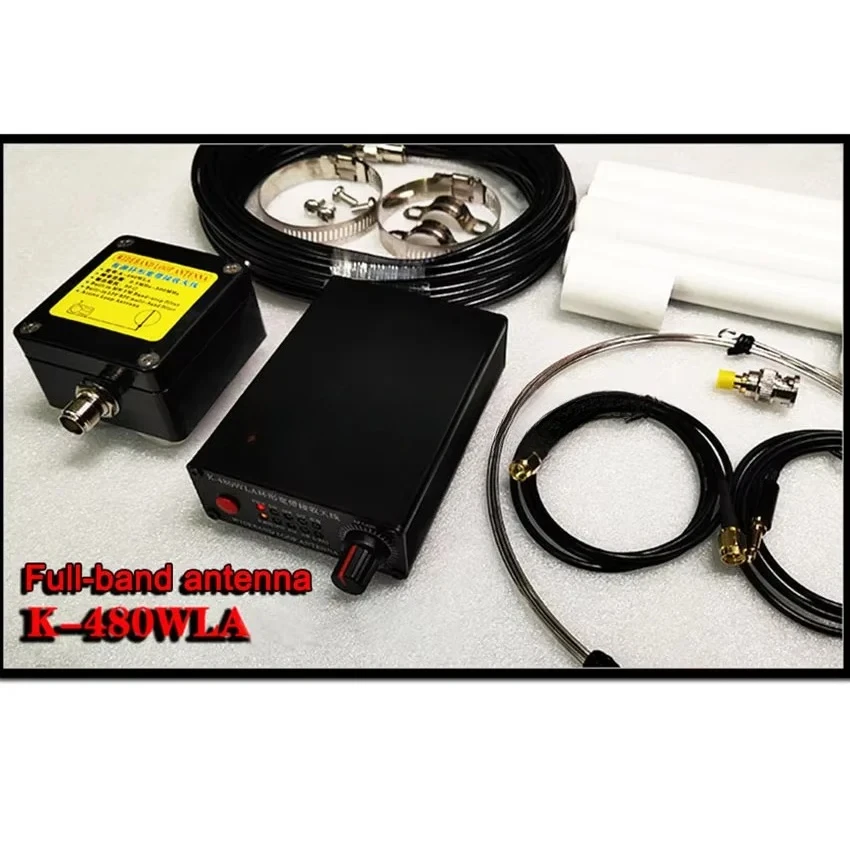

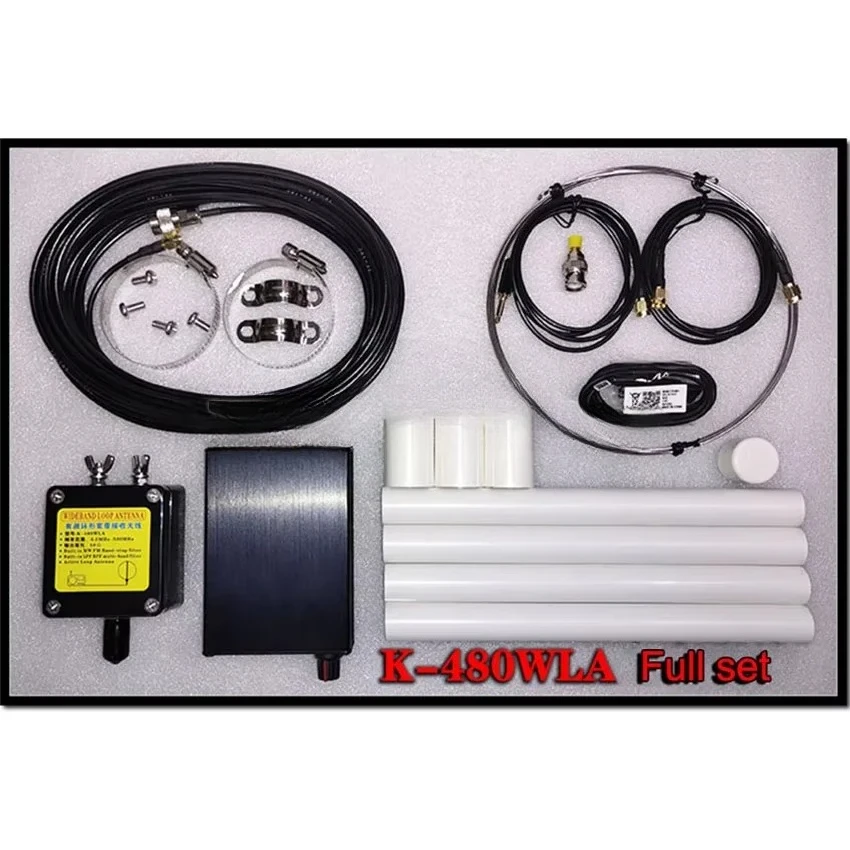

Note: The antenna comes with a dual SMA male adapter cable, a SMA to 3.5 plug adapter cable, a S2000 BNC adapter, the radio is SMA female, TV male, F female, BNC female, 3.5 jack can be used, do not need to purchase other accessories. Other interfaces of receivers and radios you need to prepare the corresponding adapter (when installing the antenna you need to prepare a small bottle of PVC glue)
Note:
1.This antenna is not to be used for transmitting!
The input of the antenna is limited to the connection of a small loop antenna only!
2.K-480WLA is a brand new design and K-180WLA and K-30WLA are completely different circuit and working principle, except for the feeder cable and adapter cable can be common, the other can not be common (can not be K-180WLA and K-30WLA's feeder box connected to the K-480WLA's pre-matching box), can not be K-180WLA and K-30WLA's pre-matching box connected to the K-480WLA's master box, so the connection will not work properly and may damage the components.
Product show:
