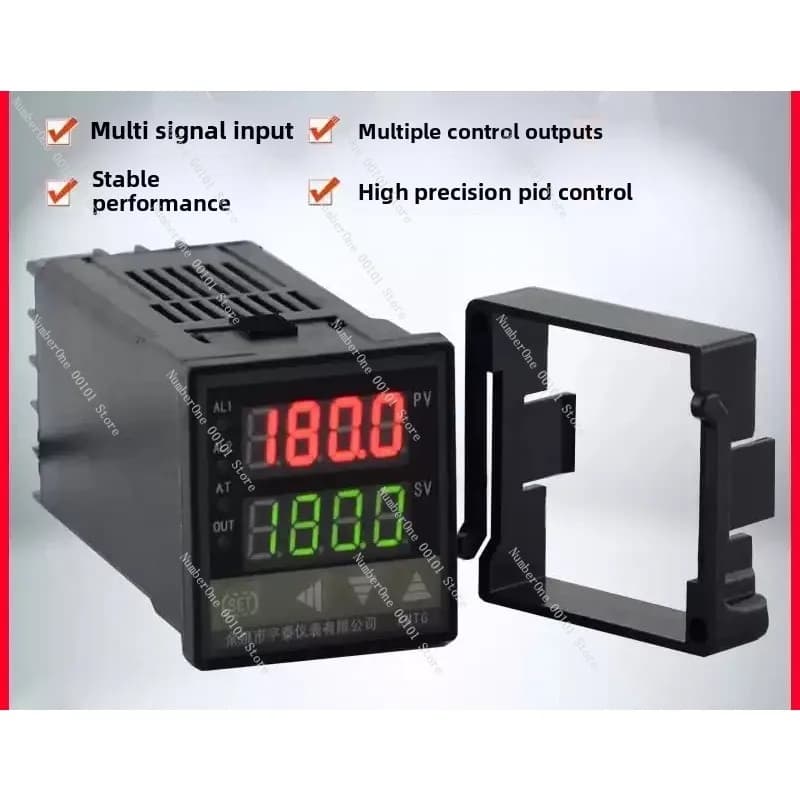

XMTG-8 Digital PID Temperature Controller, Ramp Soak Programmable Relay SSR 0-22mA SCR Output, 48x48mm Panel Instrument

XMT-8 series digital temperature controller
▇  Model number and parameters
Model number
External dimensions
Perforation dimensions
Related product
XMTG-8
48x48x110 mm
44 1/0x44 1/0 mm
Visiting...
XMTE-8
48X96X110 mm
44 1/0x92 1/0 mm
Order
XMTF-8
96x48x110 mm
92 1/0x44 1/0 mm
Order
XMTD-8
72x72x110 mm
68 1/0x68 1/0 mm
Order
XMTA-8
96x96x110 mm
92 1/0x92 1/0 mm
Order
XMT-8
160x80x110 mm
152 1/0x76 1/0 mm
Order
XMT-8S
PC software
For RS485 type controller
▇  XMTG-8 digital temperature controller model number legend
XMTG-8
Parent Model Number
Alarm quantity
1: 1 alarm
3: 2 alarm
Input type
8: Thermocouple and RTD inputs
Output type
P: Electromagnetic relay+Ramp/soak
PK: Electromagnetic relay+Ramp/soak+RS485
K: Electromagnetic relay+RS485
GP: SSR+Ramp/soak
GPK: SSR+Ramp/soak+RS485
GK: SSR+RS485
CP: 0-22mA+Ramp/soak
CPK: 0-22mA+Ramp/soak+RS485
CK: 0-22mA+RS485
AP: SCR+Ramp/soak
APK: SCR+Ramp/soak+RS485
AK: SCR+RS485
▇  General
Model number
XMT-8 series
Accuracy
±0.5%F.S±1°C
Supply voltage
85-242Vac,50/60 Hz
Input type
Thermocouple: K, J, S, B, E, N, T, WRe
RTD: Pt100, Cu50
Voltage: 0-5V, 1-5V, 0-1V, 0-100mV, 0-20mV (Need to be customized, default don't have)
Current: 0-20mA, 4-20mA, 0-10mA (Need to be customized, default don't have)
Output type
Electromagnetic relay, SSR, current, triac (not in one product, need to be selected)
Current: SSR+Ramp/soak; SCR+Ramp/soak; 0-22mA+Ramp/soak; Electromagnetic relay+Ramp/soak (Not in one product, need select one)
Auxiliary function
Ramp/soak, communication (RS485 or RS232 interface)
Power consumption
Less than 4W
Control method
PID, or ON/OFF
Setting method
Touch switch
Indication method
8-segment 4-digital display and LED indication
Alarms
1. Alarm quantity: XMTG-P: 1pcs, others: default is 1pcs, if 2pcs, need to be customized
2. Alarm form: ALM1: High limit alarm
ALM2: Low limit alarm
Hy-1: Positive deviation alarm
Hy-2: Negative deviation alarm
Sampling period
0.5s
Control period
Electromagnetic relay output: 2-120s (can adjust), others: 2s
Operating temperature
0 to 50 °C (32 to 122 °F)
Operating humidity
85% RH max, non-condensing
Alias name
XMT-P series pid temperature controller, intelligent temperature controller
▇  Output type and description
Electromagnetic relay
Contact rating: 5A at 220Vac
Solid state relay
Contact rating can be selected, order separately (Single phase 40A, Three phase 40A)
Current
Can be any value in 0-22mA
SCR
Zero crossing pulse, Amplitude>3V, width>50us, the instrument's supply voltage and load must be same phase current
▇  Auxiliary function
Ramp/soak
30 segments program, can set up or down ramp
Programming example:
Rise to 50 degrees for 48 minutes
Rise to 550 degrees for 120 minutes
Rise to 980 degrees for 150 minutes
Hold for 5 minutes and then stop
C01=25, T01=48
C02=50, T02=120
C03=550,T03=150
C04=980,T04=5
C05=980,T05=-121
Communication
RS485 or RS232 interface (Standard Modbus RTU protocol, you need write the software yourself or buy the non-standard protocol contorller with PC software from us)
▇  Input type and measuring range
K
-50-1300 °C (Bolt, Press spring, Ring, M12 probe, M8 probe, Flexible probe, Armor high temperature resistant, Customized thread probe)
S
-50-1700 °C (Probe, Armor)
B
0-1800 °C
E
0-800 °C (Bolt, Press spring, Ring, Probe, Customized thread probe)
N
0-1300 °C
T
-200-350 °C
WRe
0-2300 °C
Pt100
-199.9-649.0 °C (Bolt, Press spring, Ring, Probe, Polish rod, Polish rod waterproof, Polish rod waterproof anticorrosive, Flexible probe, Customized thread probe)
Cu50
-50-150 °C (Probe, Polish rod waterproof)
Voltage 0-5V, 1-5V
0.0-100.0 °C
Current 0-20mA, 4-20mA
0.0-100.0 °C
▇  XMTG-8 digital temperature controller related products
No
Model Number
Alarm Quantity
Input Type
Output Type
Related Product
1
XMTG-81(3)8P(GP, CP, AP)
1 alarm; 2 alarm
Thermocouple and RTD inputs
Electromagnetic relay+Ramp/soak; SSR+Ramp/soak; 0-22mA+Ramp/soak; SCR+Ramp/soak
Visiting...
2
XMTG-81(3)8PK(GPK, CPK, APK)
1 alarm; 2 alarm
Thermocouple and RTD inputs
Electromagnetic relay+Ramp/soak+RS485; SSR+Ramp/soak+RS485; 0-22mA+Ramp/soak+RS485; SCR+Ramp/soak+RS485
Order
3
XMTG-81(3)8K(GK, CK, AK)
1 alarm; 2 alarm
Thermocouple and RTD inputs
Electromagnetic relay+RS485; SSR+RS485; 0-22mA+RS485; SCR+RS485
Order
Product manual:
XMT-8 series digital temperature controller manual:  www.finglai.com/att/comp/fl-en/instruments/digital-temperature-controllers/XMT-8/XMT-8-base.pdf
XMT-8 series digital temperature controller ramp soak description:  www.finglai.com/att/comp/fl-en/instruments/digital-temperature-controllers/XMT-8/XMT-8-ramp-soak-description.pdf
XMT-8 series digital temperature controller communication protocol:  www.finglai.com/att/comp/fl-en/instruments/digital-temperature-controllers/XMT-8/XMT-8-communication-protocol.pdf
XMT-8 series digital temperature controller software (need English version software):  www.finglai.com/att/comp/fl-en/instruments/digital-temperature-controllers/XMT-8/XMT-8-en-software-manual.pdf
XMT-8 series digital temperature controller test software:  www.finglai.com/att/comp/fl-en/instruments/digital-temperature-controllers/XMT-8/XMT-8PK_test.rar
