4 Inches Rotary Table Milling Indexing Head Universal Indexing Plate with Three-Jaw Chuck for Vertical And Horizontal Milling
325.25$
322$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
4 inches Milling indexing head rotary table three-jaw chuck universal indexing plate rotating vertical horizontal manual
Index plate size 4 inches
Indexing plate diameter 110
Countertop center taper hole MT2
Countertop T-slot width 12

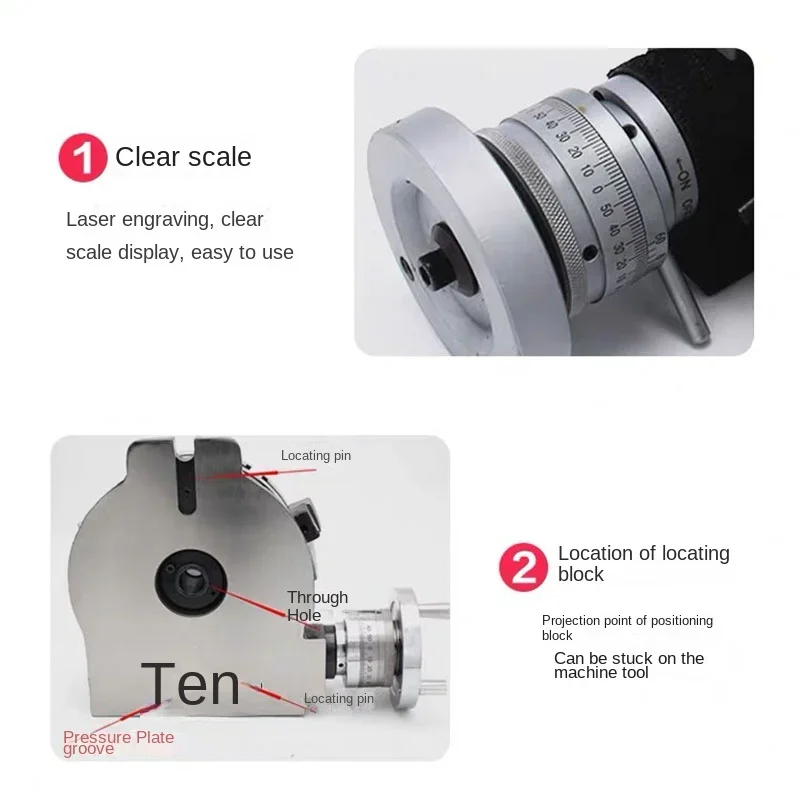

Locating pin width 12
Three countertop slots
Turbine scale 1:75
Maximum load capacity kg (horizontal) 40
Maximum load capacity kg (vertical) 20
Indexing error 0.1°
Graduation scale 360°

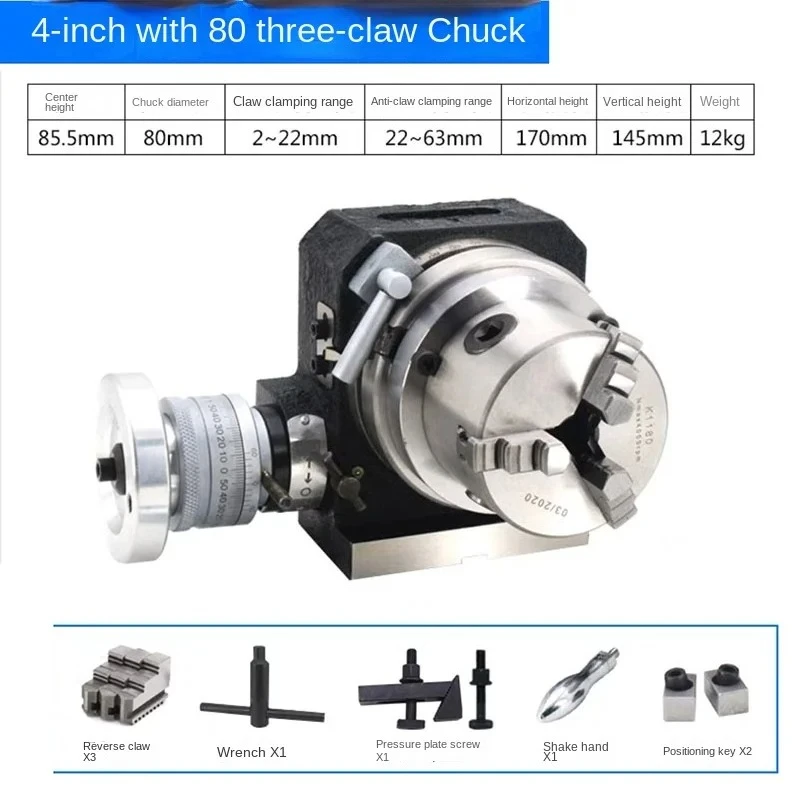

4 inch with 80 three-jaw chuck
Center height 85.5mm
Chuck diameter 80mm

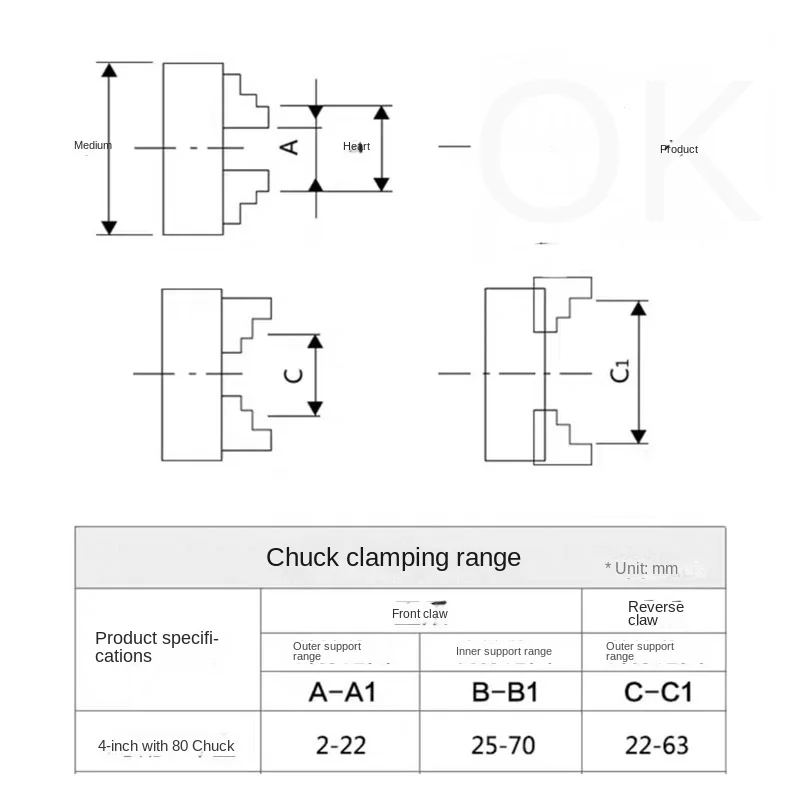

Positive claw clamping range 2~-22mm
Anti-claw clamping range 22~63mm
Horizontal height 170mm
Vertical height 145mm
Weight 12kg

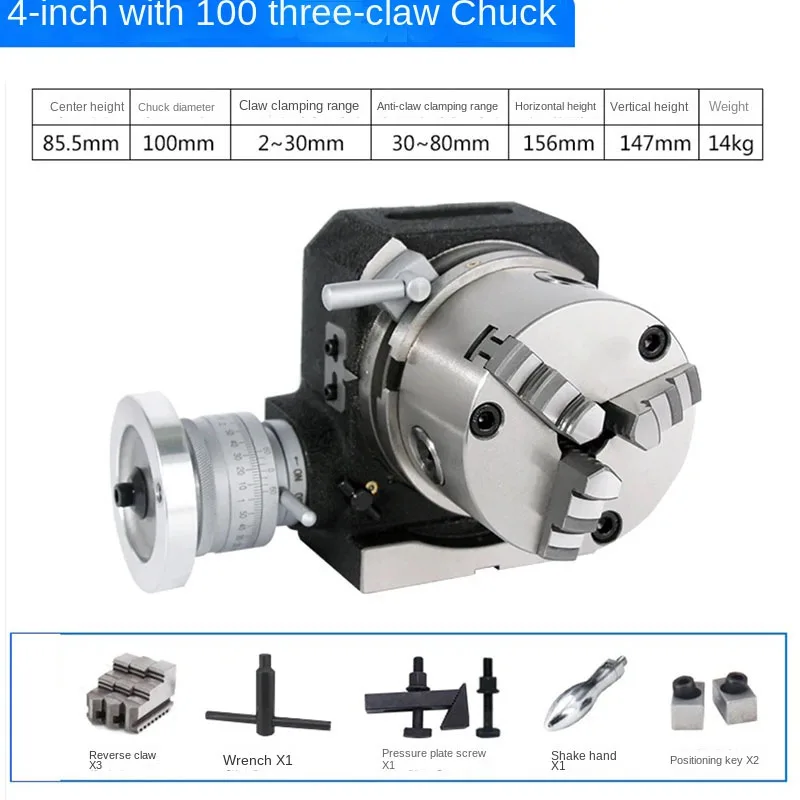

4 inch with 100 three-jaw chuck
Center height 85.5mm
Chuck diameter 100mm
Positive claw clamping range 2~-30mm
Anti-claw clamping range 30~80mm
Horizontal height 156mm
Vertical height 147mm
Weight 12kg
