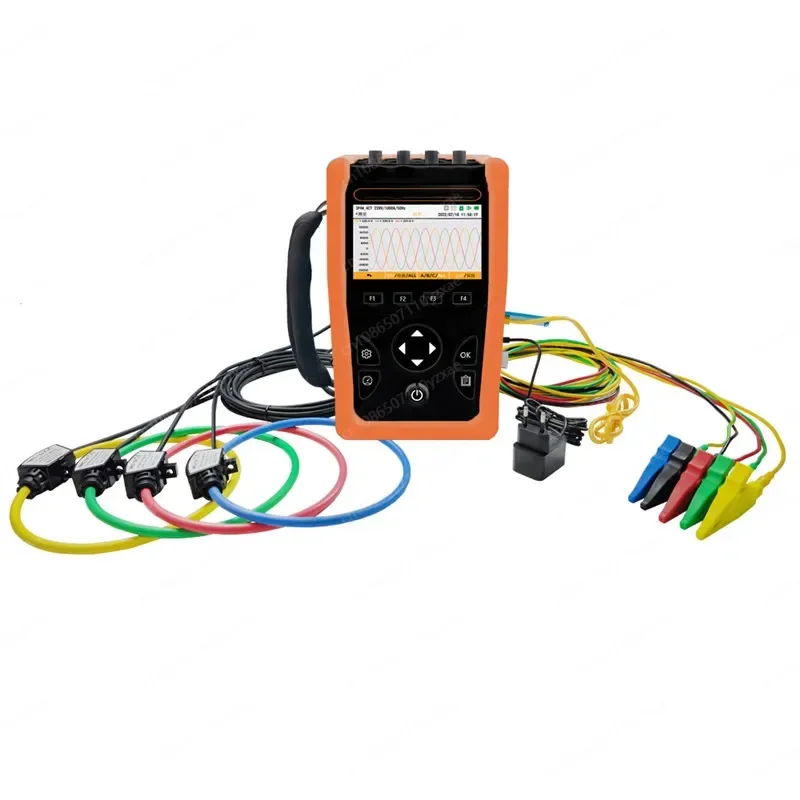

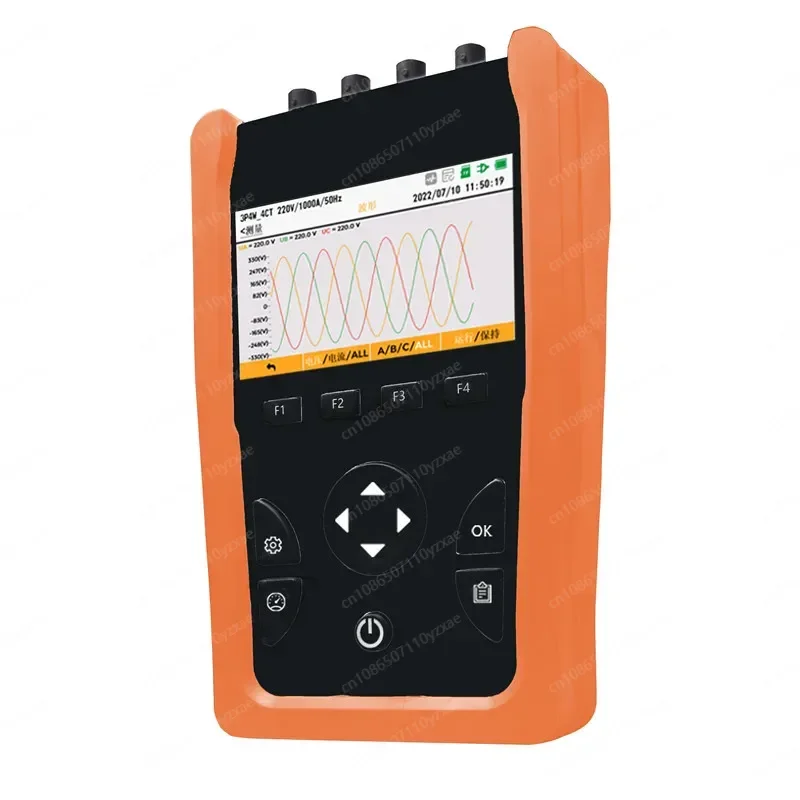

Analyzer Mi550 Three Phase Coil AC Energy Meter Power Quality Analyzer PLS-Mi550

Mi550 current coil (4pcs/set) optional
Hard port ST08-10 inner diameter 8mm current 0.01A--10A
Flexible TRC36 inner diameter 36mm current 1A--600A
Flexible TRC50 inner diameter 50mm current 1A--600A
Flexible NRC100 inner diameter 100mm current 1A--1000A
Flexible NRC150 inner diameter 150mm current 5A--3000A
NRC200 inner diameter 200mm current 10A--6000A
This is an instrument for testing power frequency alternating current parameters. It must have electrical skills to operate. It cannot measure the output of the inverter and direct current. You need to confirm the diameter range and current range of the measured wire and select the corresponding model current coil.
The product types are as follows:
A: Waterproof instrument box
B: Standard host and accessories
C: Host + flexible 600A
D: Host + flexible 3000A
E: Host + flexible 6000A
F: Host + high precision pliers 10A
G: Host + flexible 1000A
H: Host + flexible 3000AGiveaways without instrument boxes and giveaways
Product name
Model No.
Mi550
Type
Handheld Three phase power quality analyzer
Application field
Application field
Power analysis, Power measurement, Power quality analysis
Wiring mode
Wiring system
3P4W_4CT
3P4W_3CT
3P3W_3CT
3P3W_2CT
1P2w
Current sensor
Rogowski coil
Voltage-output current clamp
Voltage access
Direct access
Connected through voltage transformer
Storage
Type
TF card
Capacity
32GB
Data export
U disk export (U disk file is FAT32 system)
Communication
Interface
RJ45- Ethernet
Protocol
Modbus-TCP
Power Supply
Adapter input
5VDC, 2A
Battery
Rechargeable lithium battery, specification 18650, 2 pcs, capacity about 4000mAh
Battery purely working time
≥6h
Battery charging time (off state)
≤5h
Real-time measurement data
Voltage
Phase voltage: Phase ABC
N phase to ground voltage
Line voltage: UAB, UBC, UCA
Voltage peak coefficient: Phase ABC
Voltage peak: Phase ABC
Current
Phase current: Phase ABCN
Current peak coefficient: Phase ABC
K Factor: Phase ABC
Frequency
Line frequency
Power
Active power: Phase ABC and total
Reactive power: Phase ABC and total
Apparent power: Phase ABC and total
Power factor
Phase ABC and total
Fundamental harmonic power factor
Phase ABC and total
Electrical energy
Active Energy: Phase ABC and total (import / export)
Reactive energy: Phase ABC and total (import / export)
Apparent Energy: Phase ABC and total
CO2 emissions
Harmonic measurement data
Voltage harmonics
THD (Total harmonic percentage), TOHD (Odd total harmonic percentage), TEHD (Even total harmonic percentage), phase ABC 1-50th
harmonic percentage, phase ABC 1-50th harmonic voltage value
Current harmonics
THD (Total harmonic percentage), TOHD (Odd total harmonic percentage), TEHD (Even total harmonic percentage), phase ABC 1- 50th
harmonic percentage, phase ABC 1-50th harmonic current value
Voltage and current Waveform
Phase angle
Phase ABC
Unbalance
Voltage unbalance, current unbalance
Power demand and peak demand
Phase ABC active power and total power, phase ABC reactive power and total power, phase ABC apparent power and total power
Current demand and peak demand
Phase ABC
Voltage and Current harmonic data record
Voltage and current harmonics (Total harmonic distortion THD, Odd total harmonic TOHD, Even total harmonic TEHD, 1-50th Harmonic percentage
and voltage/current value)
Event recorded data
Event type
Start time
Duration
Amplitude value
Waveform recording
Phase ABC voltage waveform and current waveform
Data storage format
CS

1 set/carton

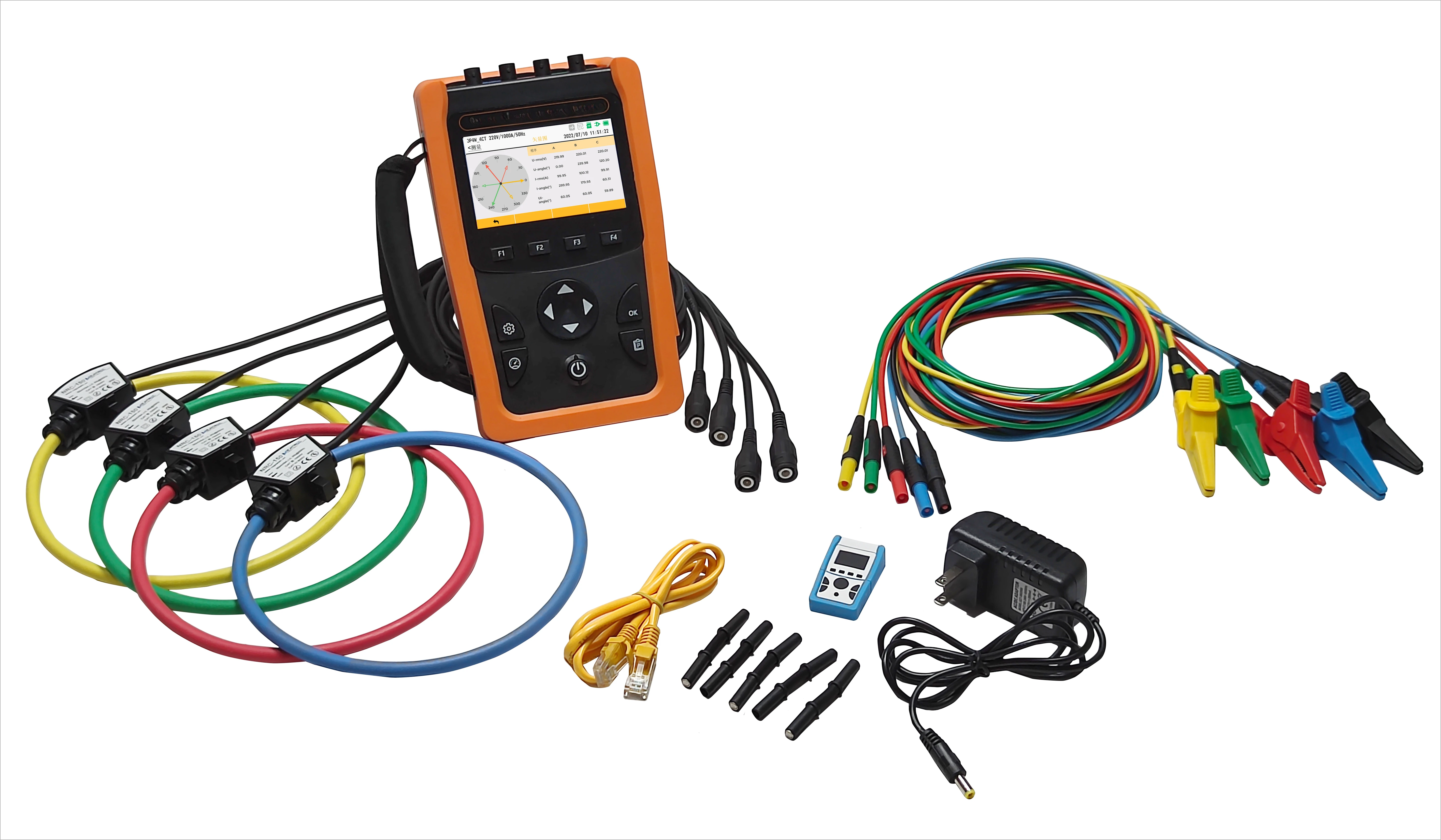

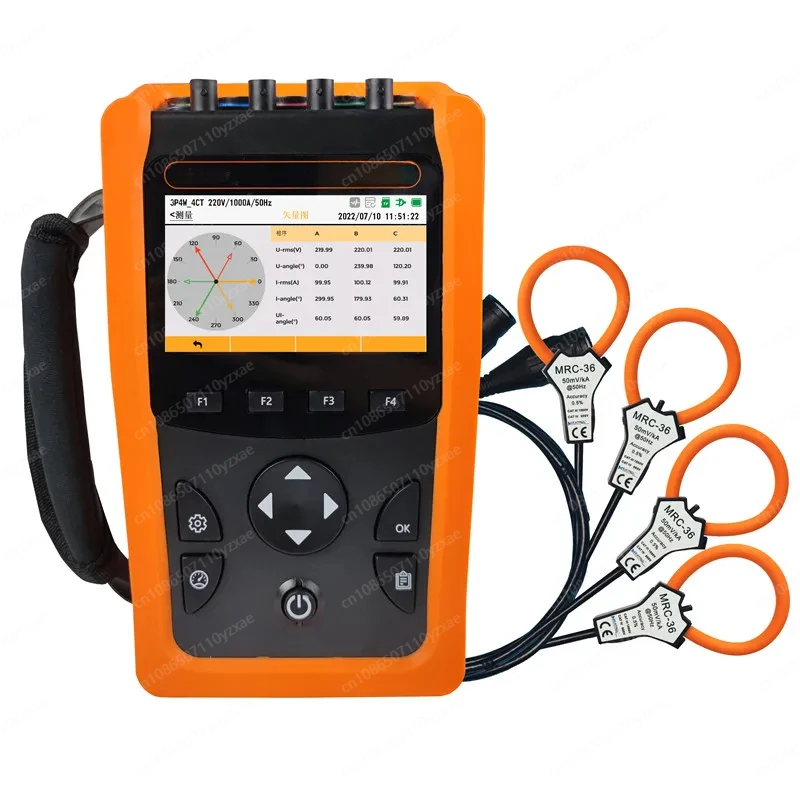

Contain accessories:4pcs voltage clamp, adaptor, SD card.
Optional:Rogowski coil sensor
100A MRC-24
600A TRC-36 / MRC-36
1000A NRC-100
3000A NRC-150
6000A NRC-200
