R5f in Stock EZ-CUBE Renesas Simulated Downloader V850 78ko RL78 79f702

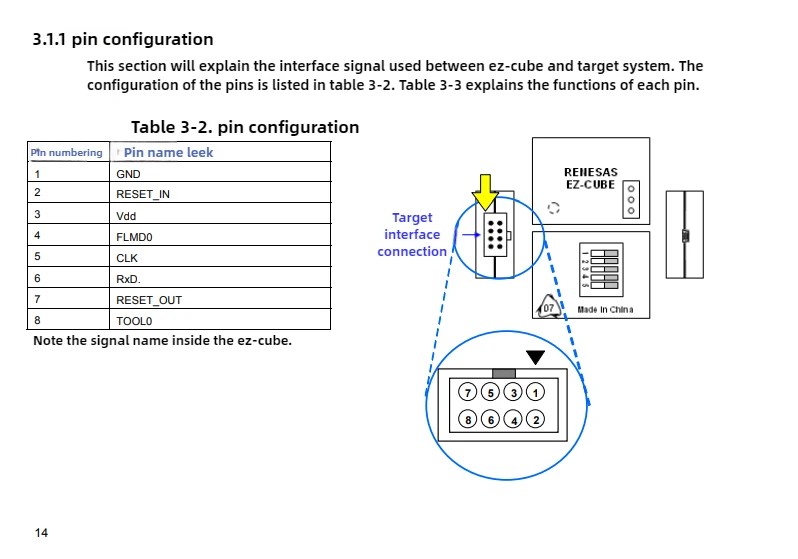

Brown thread is 1 foot in sequence 2 3 4 5 6 7 8

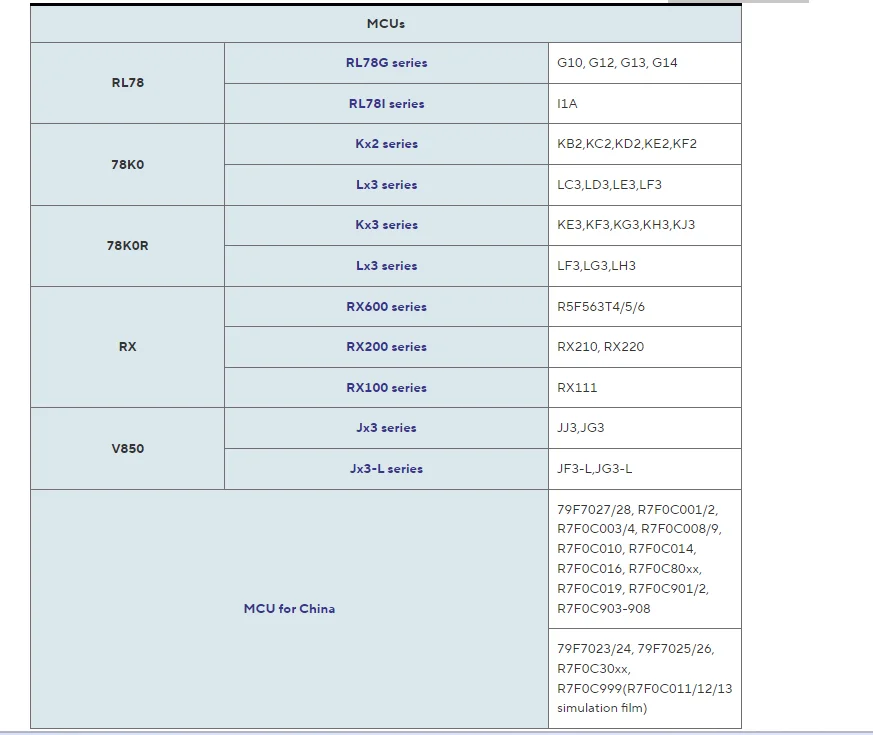

Support chip
RL78 family
RL78G series
RL78I series
78K0
Kx2 series
Lx3 series
78K0R
Kx3 series
Lx3 series
R8C family
R8C/Lx series
R8C/3x series
V850
Jx3 series
Jx3-L series
MCU for China
79F7027/28, R7F0C001/2, R7F0C003/4,R7F0C008/9, R7F0C010,R7F0C014,R7F0C016,R7F0C80xx,
79F7023/24, 79F7025/26, R7F0C30xx,R7F0C999 (R7F0C011/12/13 simulation film)
Latest support for RX series
RL78 family
RL78G series
RL78I series
78K0
Kx2 series
Lx3 series
78K0R
Kx3 series
Lx3 series
RX
RX600 series *
RX200 series *
RX100 series *
V850
Jx3 series
Jx3-L series
MCU for China
79F7027/28, 79F7023/24, 79F7025/26,
R7F0Cxx series
*: RX only supports chips with FINE interface
Software
CS+
Renesas Flash Programmer
Function
Some EZ-CUBE functions are based on the chips used. When the target chip is RL78 microcontroller, the main functions are as follows. For specific functions, refer to the user manual.

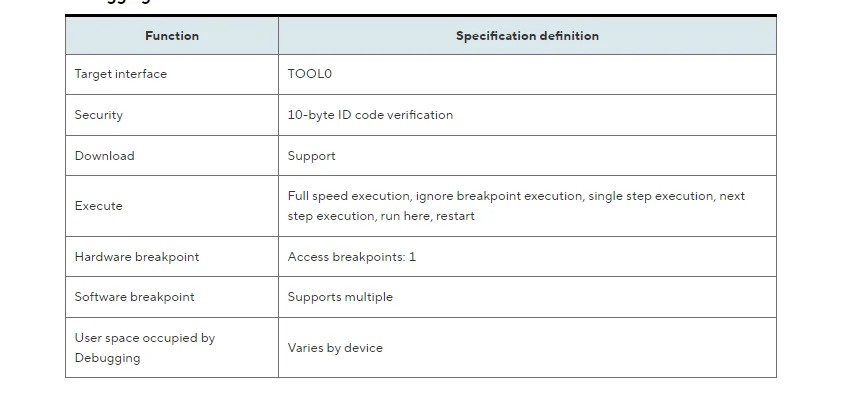

Debugging function

Features

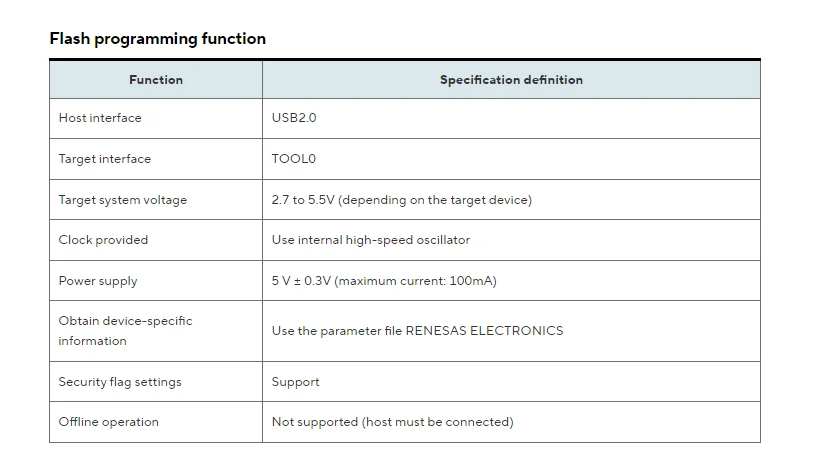

On-chip debugging and Flash programming
You can debug the microcontroller that has been connected to the target board and write the program into the built-in flash memory of the controller.
Low price
Compared with other online emulator, the price of EZ-CUBE is lower, which can save initial development investment.
Support a wide range of products
EZ-CUBE can support Renesas electronic 8-bit to 32-bit built-in Flash memory microcontroller.
Flash products with single power supply
EZ-CUBE will support more products in the future
Compact size, easy to use
EZ-CUBE small size 59x35x13mm, easy to carry.

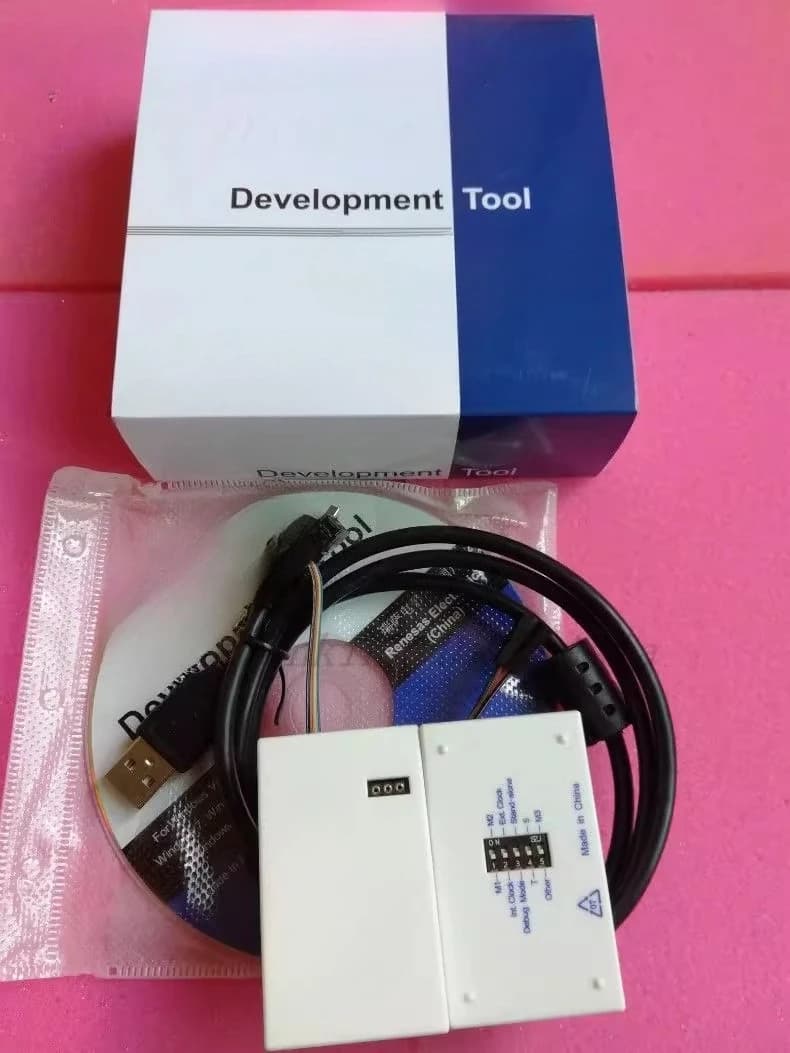

Standard configuration
EZ-CUBE ontology
USB cable
8pin target cable
Software CD
Software
User Manual

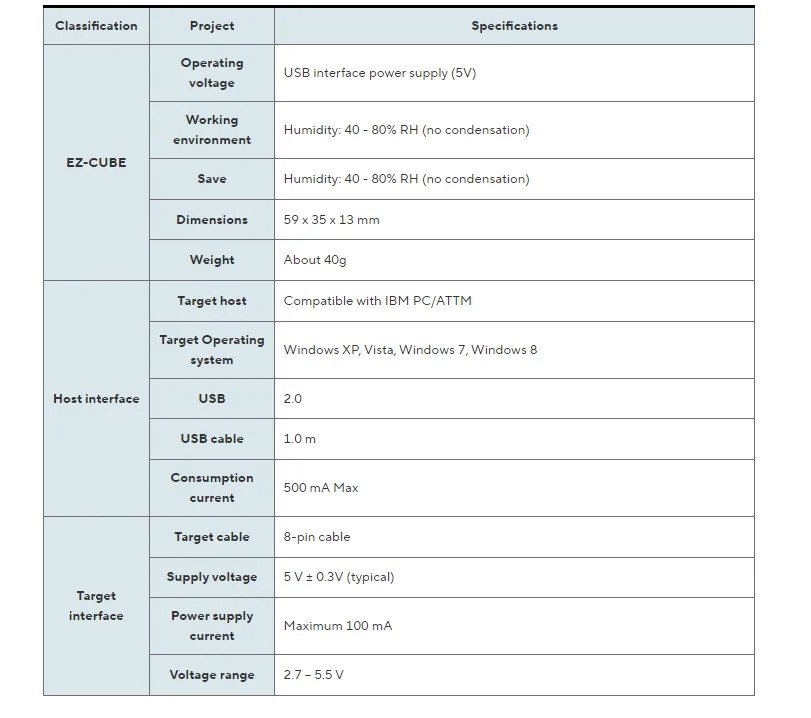

Basic Specifications

Support chip

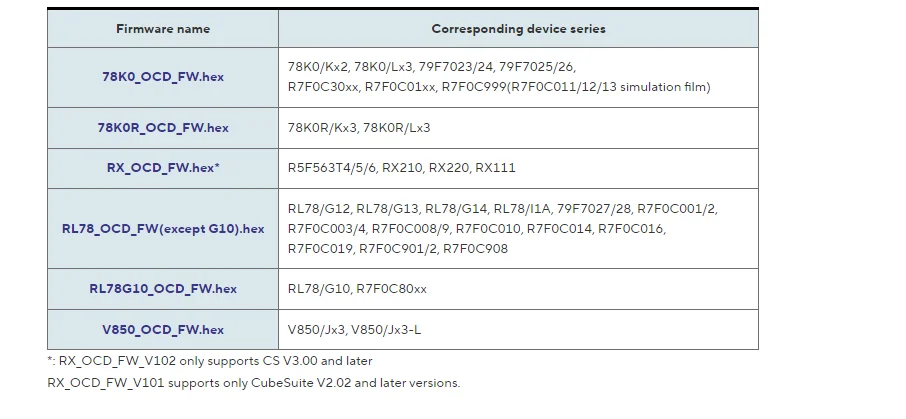

Firmware information

*: RX_OCD_FW_V102 only supports CS V3.00 and later
RX_OCD_FW_V101 supports only CubeSuite V2.02 and later versions.

System Configuration
Use CS or RFP(Renesas Flash Programmer)
PC interface
USB(USB 2.0)
Operating Environment
IBM PC/AT compatibles
32-bit editions of Windows Vista®
32-bit and 64-bit editions of Windows® 7
32-bit and 64-bit editions of Windows® 8
32-bit and 64-bit editions of Windows® 10

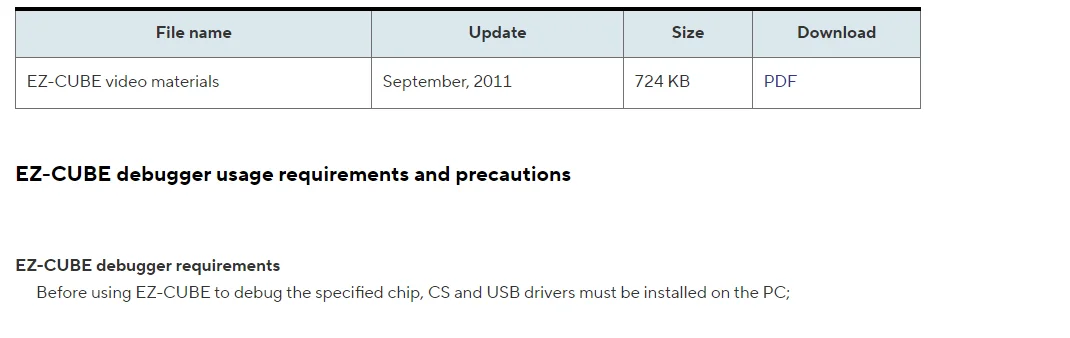

Video materials
EZ-CUBE Video

If CS is running normally, the following software must be installed on the PC:
Microsoft .NET Framework 4 + language pack
Runtime library of Microsoft Visual C++ 2010 SP1
Internet Explorer 7 or later
Precautions
Do not use the Chinese directory name, Chinese folder, and Chinese file name when installing the software.
Only after the software is installed can EZ-CUBE be connected to the host
When replacing the debugging target chip series, be sure to update the EZ-CUBE firmware first.
