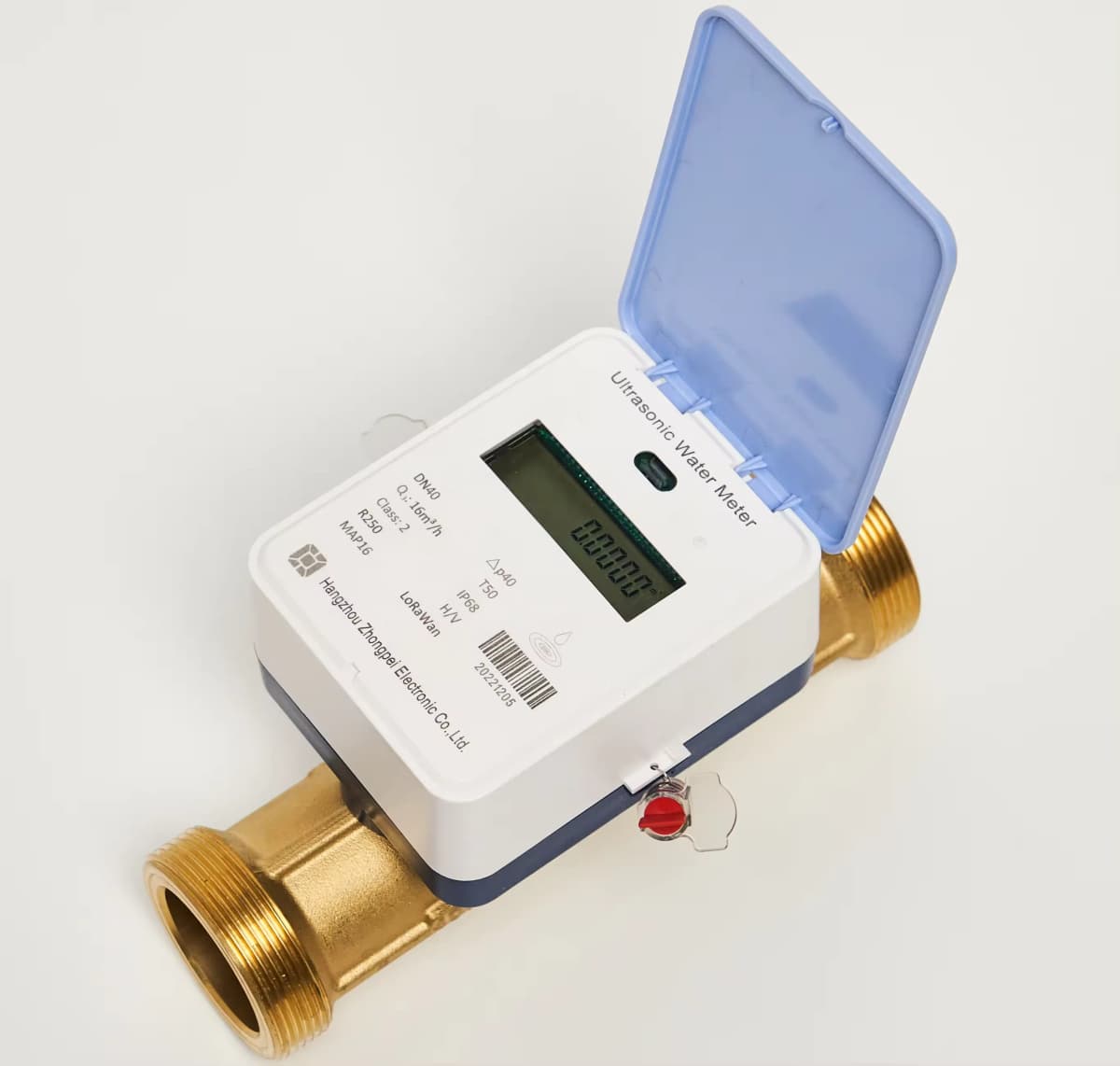

Water Flowmeter NB-IOT Smart Lorawan Sensor Ultrasonic Water Meter Remote Reading

Friend, welcome to our store, If you have any question, please contact me.Please confirm the weight and price with me before placing an order for large items. Sales Manager: Eric Whats App:  +86 18670002255
Products Description

General Information:
213/223E ultrasonic water meter is designed to measure the real flow rate and real water passing through the pipeline.
Standards Compliance: ISO4064:2014/ OIML: R49-2013
1.Ultrasonic water meter, No move part design
2. Low starting flow rate, more sensitive than mechanical water meter
3. Horizontal and Vertical installation
High accuracy level, digital display
4. Reserve water flow could be measured
5. Temperature grade: T30/T50/70
6. With multi alarm functions
7. IP68 water proof protection
Diameter
DN15
DN20
DN25
DN32
DN40
Length
165mm
190/195mm
225/260mm
180/260mm
200/300mm
Q3（m³/h）
2.5
4
6.3
10
16
Start Flow（L/h）
2
2
3
5
7
Meteorologic Class
Q3/Q1=100/125/160/250/400/500；
Accuracy Class
Class 2
Pressure Stage
MAP16
Pressure Loss
△P≤63
Temperature
T30、T50、T70；Default T30
Data Storage
730 daily data storage，48 months history data；（Customization data storage mode according to customer requirements）
Interface & Communication
Infrared、M-BUS、RS485、NB-IOT、LORAWAN、Pulse（Optional）
Power
DC3.6V Lithium Battery
Protection Class
IP68
Temperature Requirements
Medium Temperature：0.1°C～90°C
Ambient operating Temperature: 1°C～70°C
Ambient storage Temperature: -15°C～70°C
Installation
Horizontal or Vertical
Durability
Life Period ≥ 6+1 years
