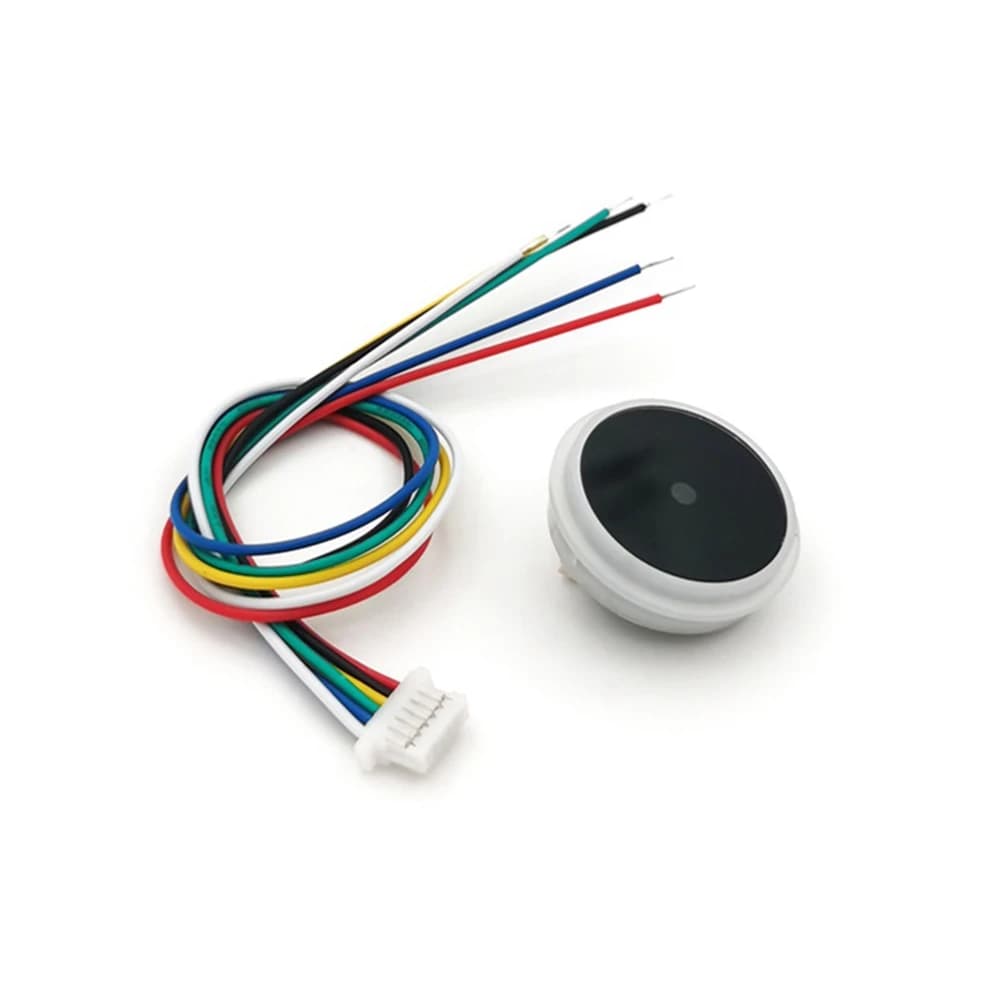

GM861S UART/USB Interface 1D/2D Bar Code QR Code Barcode Reader Module White Green LED

GM861S
Reading Distance:5-30cm
Contrast x : 25%
Scan Angle x x :Roll:360°Pitch:65°Yaw:65°
Viewing Angle:67°(Horizontal)53°(Vertical) Parameter
Performance
Sensor
CMOS
Scan Mode
640 x 480
Indicator Light
Green lightas read successfully
Read Code Type
1D: -13, -8, UPC-A, UPC-EISSN, , CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5,
Matrix2of5, Code 39,Code11, -Plessey,
GS1 Composite,GS1-Databar (RSS)
2D: QRCode, DataMatrix, PDF417
Accuracy of reading x :≥10mil
Mechanical/electrical Parameters:
Parameter:Performance
Interface:TTL-232/USB
Size(mm):Diameter 20.9mm Height 6.2mm
Weight:2g
Prompting mode:LED Indicator
OperatingVoltage:3.3V
Operation Current:70mA(Max)
Standby Current:≤6mA(Typical)
Startup time:≤250mS (Typical)
material: metal
Color as shown Package Contents:
1 x Scan code module Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
